[none23]

Problem

At smaller Android text sizes, the compose button stays at its native 56dp minimum while One UI's floating navigation shrinks to 48dp. The same ignored scale also leaves Material's expandable button, icon, and label oversized.

Change

Apply the existing scale to the React Native visual wrapper instead of Expo's ineffective graphicsLayer modifier. Both navigation styles retain the shared font-scaled size, top-right alignment, and separate touch target. Default and larger text sizes are unchanged.

Scope and approval

Small, focused fix for an existing visual defect in one shared Android component: five lines added and eight removed. It qualifies as an obvious bug fix without a prior issue. Both One UI and Material callers are covered.

Verification

• Android 16 emulator: before/after at 11pt, 16pt, and 22pt in both navigation styles. One UI matches at 48dp, 56dp, and 77dp respectively; 22pt retains its existing stacked layout. The 16pt and 22pt navigation crops are pixel-identical before and after in both styles.
• Tapping the collapsed One UI button and the expanded Material button opens the project picker.
• vp run check:changed passes on the rebased head. Two pre-existing looping .env symlinks were temporarily excluded and restored for the check.
• vp test run apps/mobile/src/features/workspace/floating-workspace-tabs.test.ts: 12 tests pass.
• Claude Opus 5.5 reviewed the final diff and screenshots with no findings.

All images below are navigation crops from actual emulator captures at the same viewport and setting within each pair.

One UI

Text size	Before	After
11pt
16pt
22pt

Material

Text size	Before	After
11pt
16pt
22pt

Implemented with gpt-6-astra through Codex. Reviewed by Claude Opus 5.5 through T3 Code's Claude provider.

[coderabbitai]

Walkthrough

ScrollComposeButton now scales its visual host through a React Native View. The transform origin depends on layout direction. The Compose graphicsLayer scaling modifier is removed, while button sizing and width measurement remain unchanged.

Changes: Android compose button scaling

Layer / File(s)	Summary
Move scaling to the visual wrapper apps/mobile/src/components/ScrollComposeButton.android.tsx	A non-interactive, accessibility-hidden View scales the visual host from the top-left in RTL and the top-right otherwise. The Compose graphicsLayer scaling modifier is removed. Button sizing and width measurement remain unchanged.

Priority: Normal

Estimated code review effort: 2 (Simple) | ~8 minutes

Change: Bug fix

Possibly related PRs

• pingdotgg/t3code#26080: Scales Android split-composer controls and aligns their height with scaled navigation controls.
• pingdotgg/t3code#24925: Applies system font scaling to mobile text and control geometry.
• pingdotgg/t3code#26231: Aligns Android dictation controls with the send button and applies text-scale sizing to composer buttons.

Suggested reviewers: macroscopeapp

Merge Risk: Minimal · up to 1f95b

No merge-blocking risk was identified in the Android compose button scaling change.

Pre-merge checks: 4

Check name	Status	Explanation
Title check		The title names the mobile scope and the main fix: compose buttons on Android should scale with text size. The changeset replaces the Compose graphicsLayer scale with a React Native wrapper transform …
Description check		The description follows the template's main sections: Problem, Change, Scope and approval, and Verification. The Problem and Change sections clearly explain the defect and the fix. The Scope section g…
Linked Issues check		Check skipped because no linked issues were found for this pull request.
Out of Scope Changes check		Check skipped because no linked issues were found for this pull request.

Full details: Title check

Explanation

The title names the mobile scope and the main fix: compose buttons on Android should scale with text size. The changeset replaces the Compose graphicsLayer scale with a React Native wrapper transform in ScrollComposeButton.android.tsx, which matches the title's subject. The title is short, specific, and follows conventional commit style.

Full details: Description check

Explanation

The description follows the template's main sections: Problem, Change, Scope and approval, and Verification. The Problem and Change sections clearly explain the defect and the fix. The Scope section gives a justification for a small obvious bug fix without a prior issue, as the template allows. The Verification section gives specific before/after evidence at 11pt, 16pt, and 22pt, tap checks, a changed-file check, and a focused test run. The template's optional agent attribution line is present. Minor gaps: the Scope section does not link a triaged issue or discussion, and the template's required comment about the scope qualifying for the obvious-bug exemption is only partly covered. The image links are embedded in the author's text and are not visible in this review, so they cannot be checked here.

Finishing Touches

🧪 Generate unit tests (beta)

• Create a new PR

• Autofix · Keep fixing CodeRabbit findings and required CI, and resolving merge conflicts

Usage-based review receipt

• Mode: Continue automatically
• Reviewed files: 1
• Charged: $0.25
• View usage details

Note

This review was completed with usage-based billing: files reviewed beyond your plan's included limits are billed at $0.25/file. View usage-based billing.

_{Comment @coderabbitai help to get the list of available commands.}

[maria-rcks]

Note

Written by gpt-6.1-sol on behalf of Maria

thanks @none23. moving the existing scale to the react native visual wrapper is the focused fix this needs. i kept your commits and implementation, merged current main without rebasing, and added one correction: scale from the top-left in rtl, matching compose's mirrored alignment and the existing touch target. the final diff is one file, 9 additions and 9 deletions. no controls, actions, or accessibility behavior were repurposed.

verification at 1f95b794a3b6650cc8c21517159a8f2ad060b6d4:

• blacksmith vp run check:changed passed format, lint, knip, affected typechecks, and react compiler checks.
• blacksmith vp test run apps/mobile/src/features/workspace/floating-workspace-tabs.test.ts: 12 passed.
• all 29 ci checks passed. coderabbit reported no merge-blocking findings. two independent code reviews approved this head after the rtl correction.
• fresh native reproduction, taps, and screenshots on this merged head remain unverified: this vm has no adb device and t3 reports device access is disabled. chrome cannot exercise this native compose component. human approval is still outstanding.

these are your original 11 pt one ui captures, inspected and re-uploaded for review. they demonstrate the original ltr change, not a fresh run on this head or rtl coverage. your other captures remain in the pr description.

[maria-rcks]

Note

Written by gpt-6.1-sol on behalf of Maria

Verified in a real dev environment

No changed behavior could be exercised on this Linux VM. This is an unverifiable run, not a runtime pass. I inspected the current diff, description, discussion, commit authors, and check status at 1f95b794a3b6650cc8c21517159a8f2ad060b6d4. The PR is open and its PR commits have no authors matching the two stop conditions. All 29 reported CI checks are successful, which does not prove native behavior.

The diff only changes ScrollComposeButton.android.tsx: it moves scale from Expo Compose graphicsLayer onto the React Native visual wrapper, with a mirrored transform origin in RTL. The affected user path is Android workspace navigation → New thread, in One UI and Material navigation. Chrome/Playwright cannot execute this native Jetpack Compose component.

Environment probe:

device_list: Agent device access is turned off for this environment.
adb devices -l: List of devices attached [empty]

Not verified

Main reproduction, PR native rendering, before/after captures, and real Codex gpt-6.1-sol turns through the Android client remain unverified. There was no usable Android device; the repository mobile verification skill requires stopping when device access is unavailable. I did not start a dev server, install dependencies, modify code, or substitute web output or the author's screenshots for fresh proof. No new evidence images or recordings were captured.

A follow-up needs an automation-enabled Android device with the real dev client: compare matching data at 11pt, 16pt, and 22pt for both navigation styles on main and this exact head; check LTR and RTL alignment, expanded/collapsed New thread taps, adjacent tab/list touch targets, and creation of a thread with a real Codex gpt-6.1-sol turn. iOS and desktop were not exercised and do not execute the changed Android component.

[maria-rcks]

Note

Written by gpt-6.1-sol on behalf of Maria

Verified on Android emulator (API 35) against a real dev server

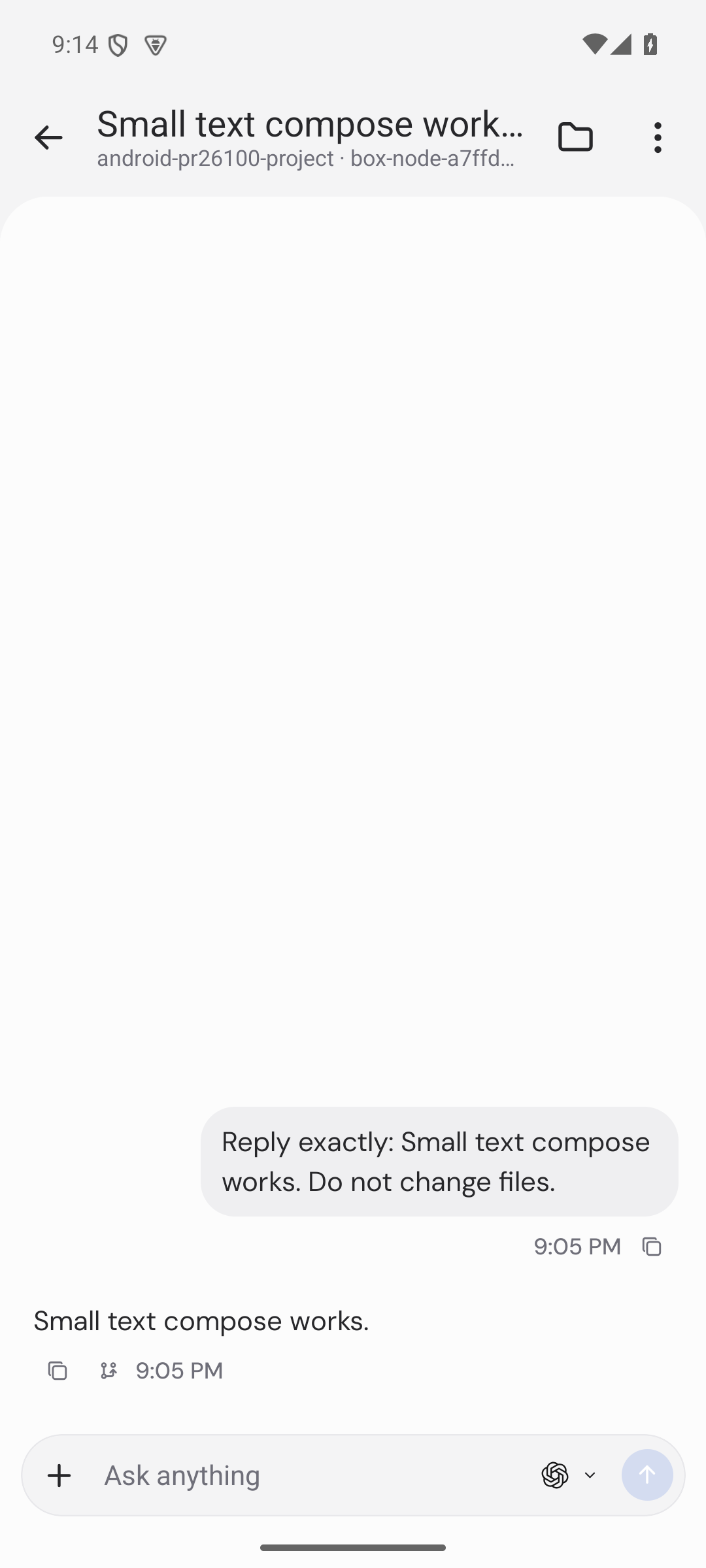

Verified head 1f95b794a3b6650cc8c21517159a8f2ad060b6d4 using the t3 Android emulator, the cached native development client, Metro, and an isolated backend on port 13773. Created a real project and two threads through the Android app. Both real Codex gpt-6.1-sol turns completed through the local proxy and their responses appeared in the client. No mocks or replay provider were used.

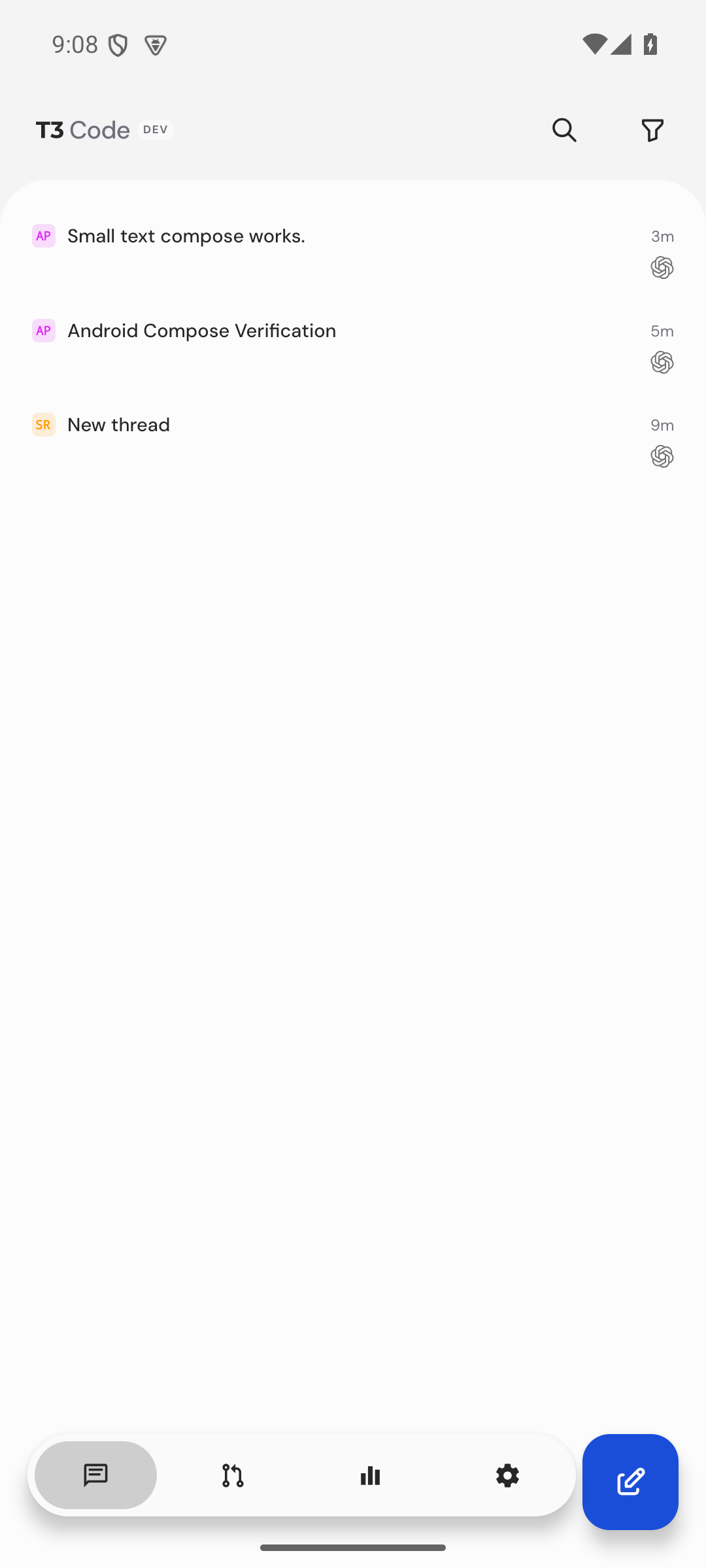

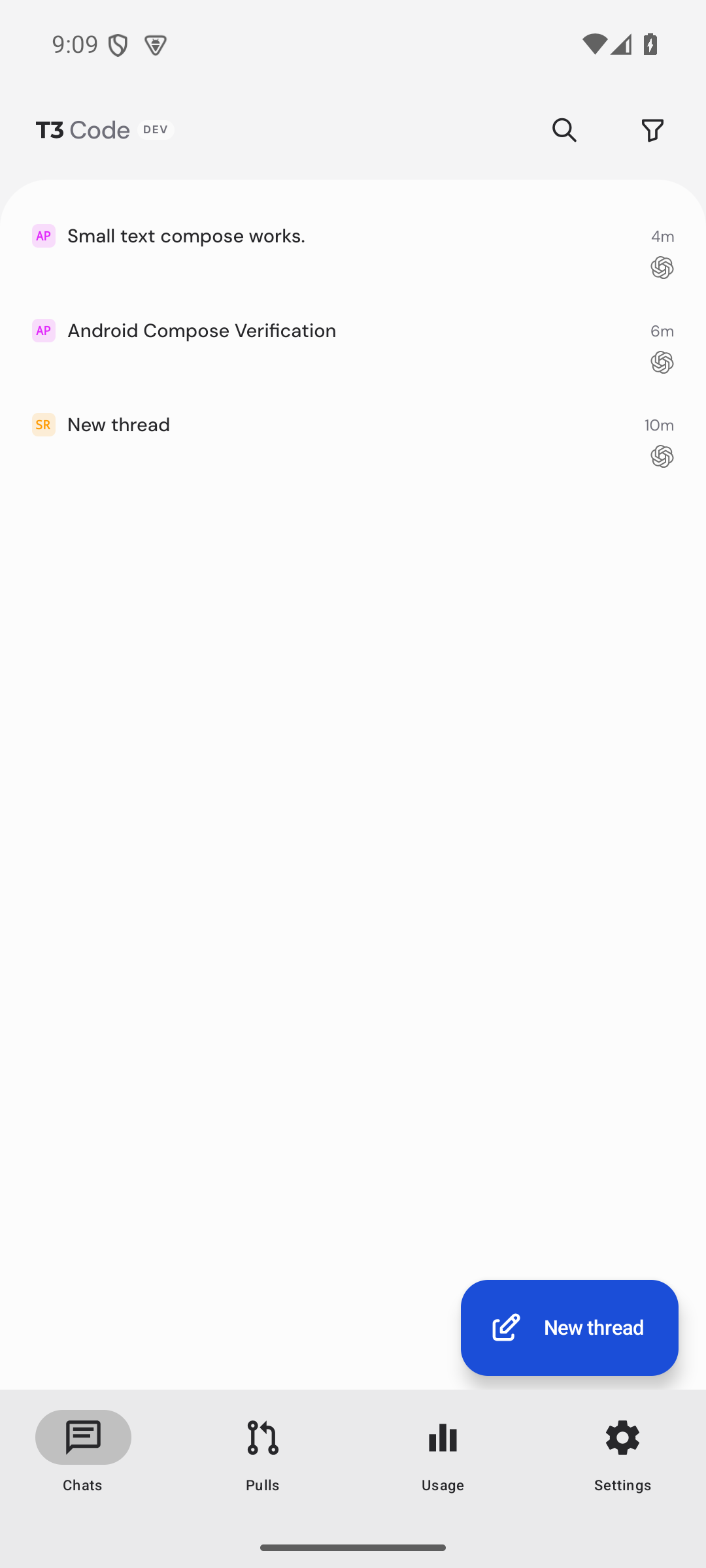

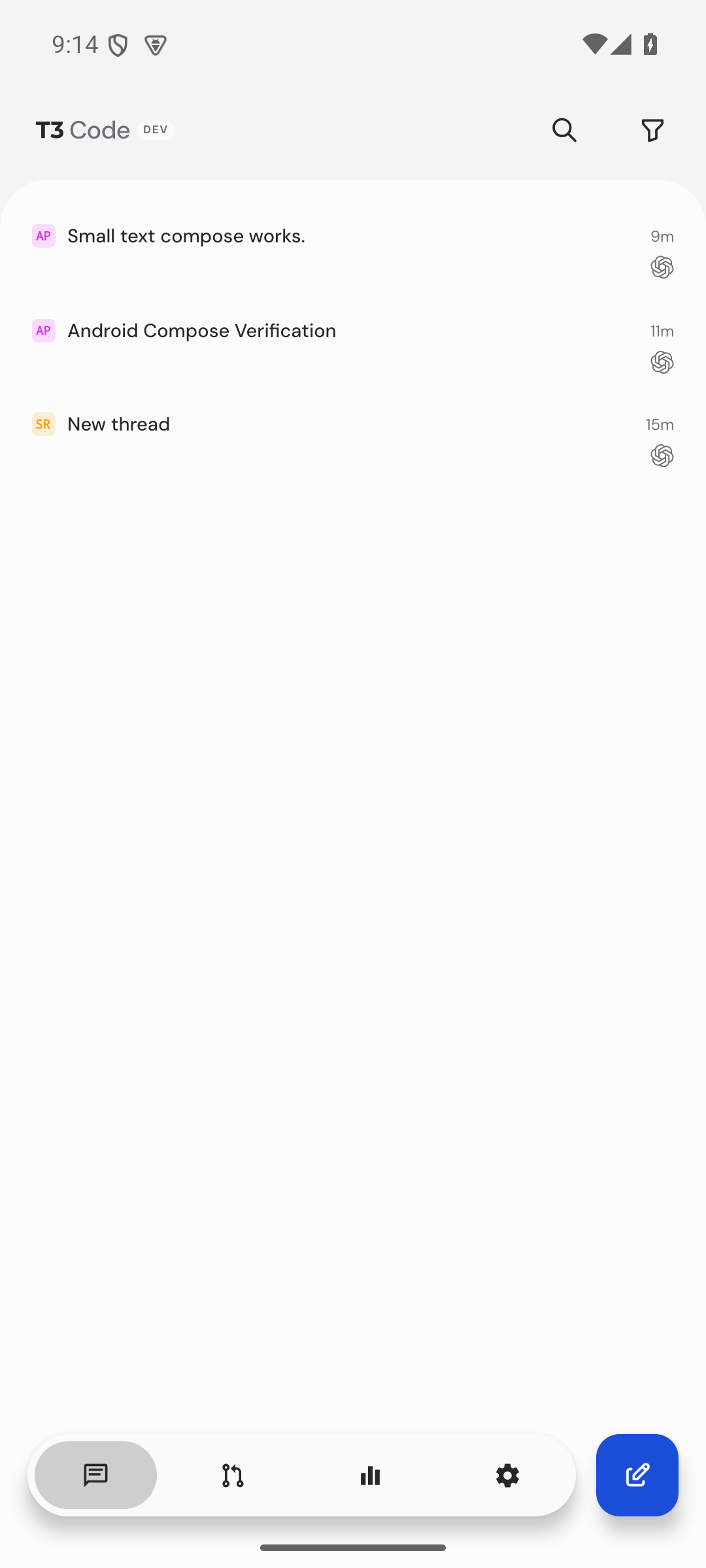

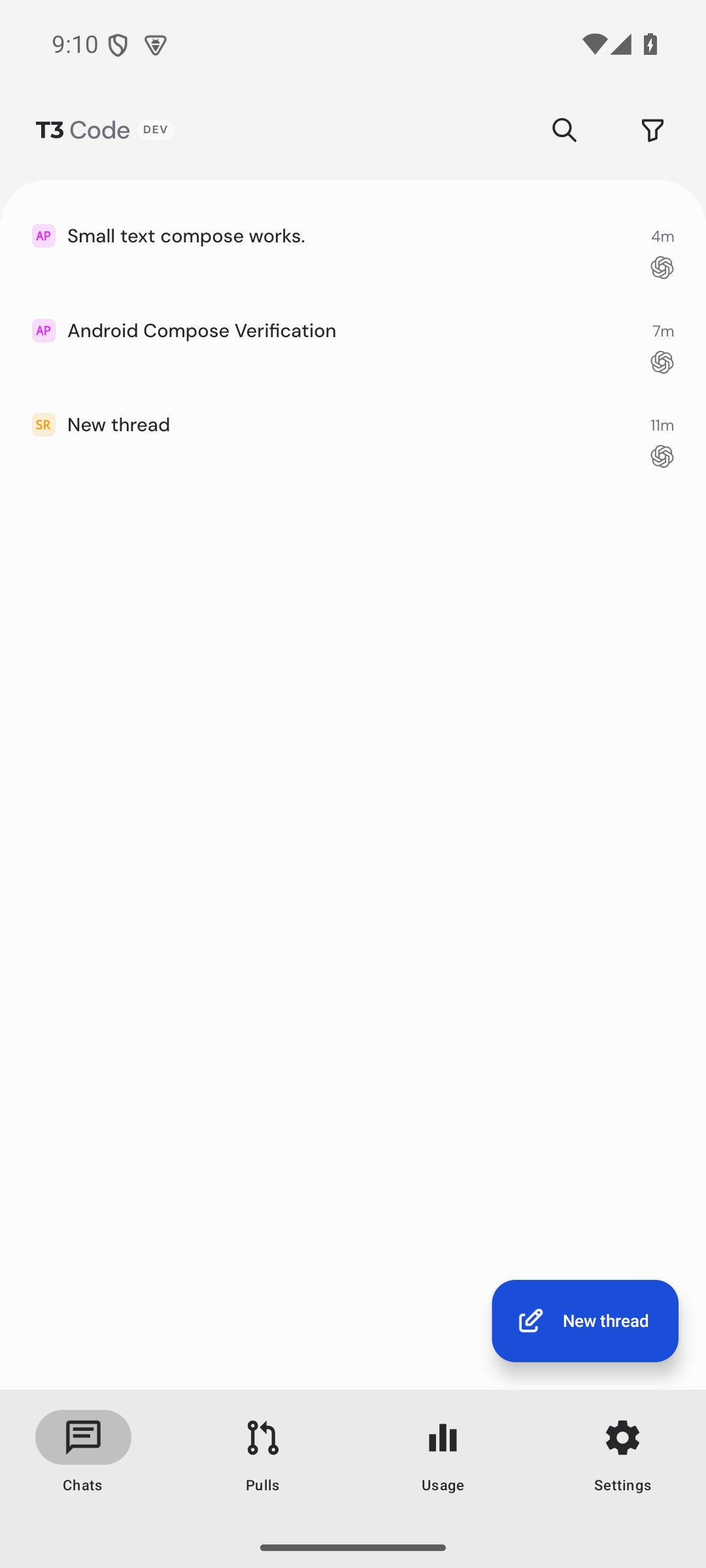

Reproduced the oversized 11 pt compose button on github/main at 13f9bc4e5575c6101e263282c21174f8d42448f3, using a separate checkout and Metro against the same backend and data. On the PR head, One UI's collapsed button matches its 48 dp navigation height; Material's expanded button, icon, and label scale down together. The matching captures below use the same project, threads, viewport, text size, and navigation style; clock and relative timestamps advanced between runs.

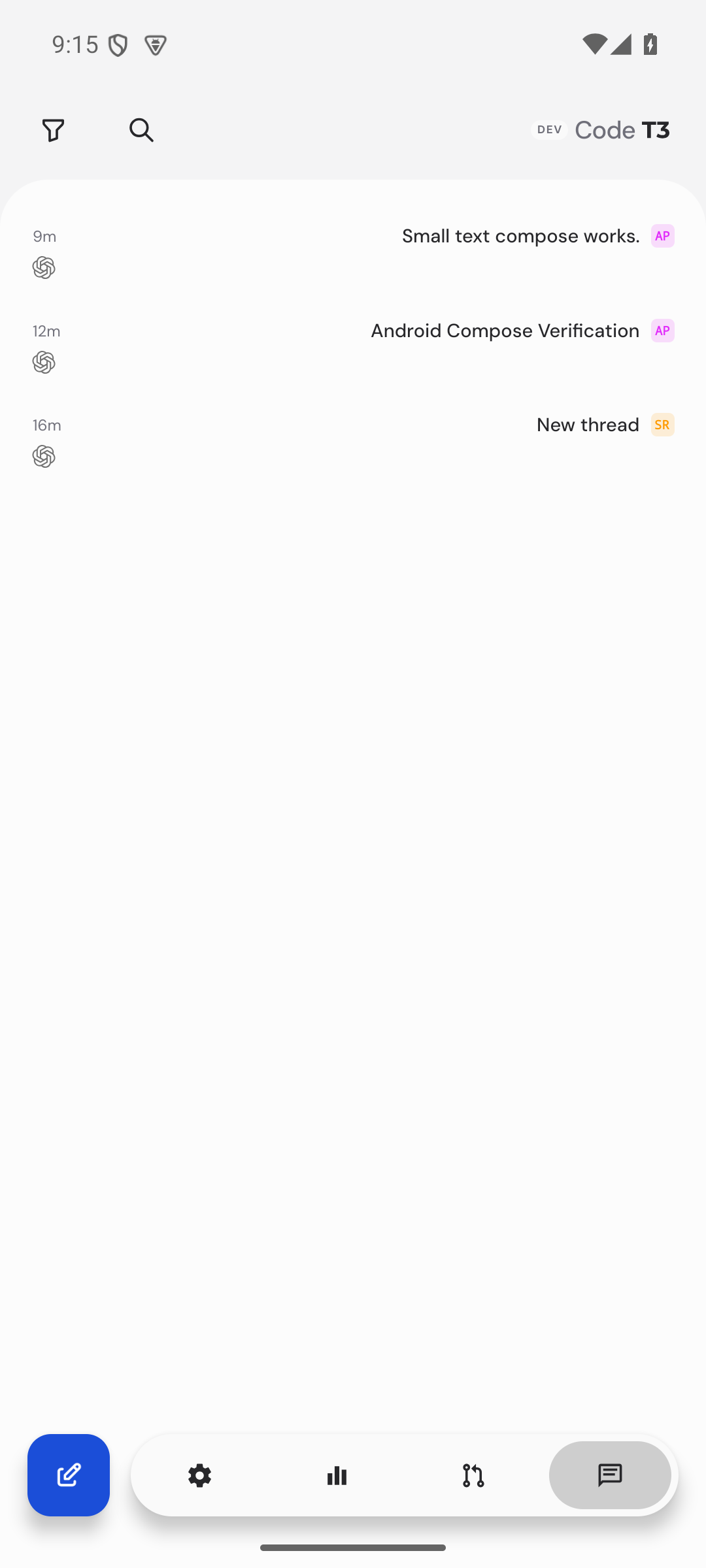

Checked 16 pt and 22 pt in both navigation styles. The default controls remain correctly sized, and 22 pt One UI keeps its stacked layout. Tapping the collapsed One UI and expanded Material controls opens the new-thread composer for the selected project. With no preferred project selected, the initial compose action opened the project picker, where I added the project. Neighboring Settings/Chats navigation and opening an existing thread still work. Forced RTL mirrors the 11 pt One UI button to the left, aligned with its touch target; tapping it opens the composer.

No source changes were needed. The working tree is clean. The reported CI status is 29 successful checks, zero failing or pending; these are existing CI results, separate from this native verification. The emulator crashed during the second Metro bundle; I restarted it with one Metro server limited to two workers and completed the checks above.

Not verified

• iOS cannot run on this Linux VM and does not execute this Android component.
• RTL Material, dark theme, landscape/tablet layouts, and physical devices were not exercised.
• 16 pt and 22 pt were inspected on the PR head, without matching main captures at those sizes.
