Migrate statistics to use timestamp columns

[bdraco]

Breaking change

Statistics and energy graphs will be unavailable during the database migration.

Proposed change

This is effectively the same change as #84870 but for statistics. Statistics migrations are expected to take a relatively short time compared to states migrations. (In testing they took less than a minute on fast hardware with a 4 GiB database)

This should address some of the feedback about the energy and statistics graphs being slower than the history graphs on the frontend. The ones that had noticeable delays now appear to load instantly. Additional API optimization is possible to avoid some more data conversions in future PRs. This does not fix energy stats for a full year taking a very long time to load. The hope is to be able to resolve that in #87747.

With ~8 months of statistics data and 10 day purge for states this is expected to reduce the database size by ~30% after the next monthly repack (2nd Sunday of the month) and improve the speed of selecting data from statistics.

Testing before

-rwxrwxrwx  1 bdraco  staff  1082642432 Feb  3 17:05 home-assistant_v2.db

after:

-rwxr-xr-x   1 bdraco  staff  755396608 Feb  3 17:36 home-assistant_v2.db

30.22% decrease

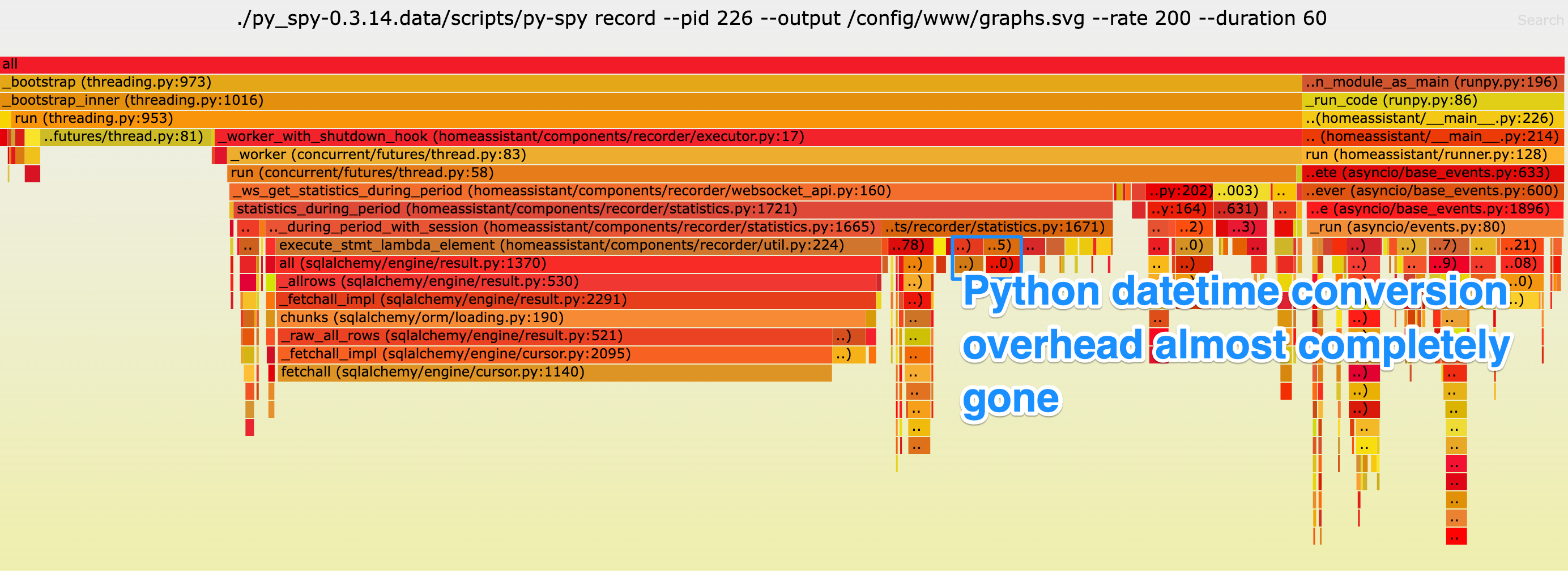

Nearly eliminates python datetime conversion overheads for a single day of stats (not weekly/monthly/yearly .. see #87747). The fetch overhead is much lower as we don't have to do any datetime data conversion at that layer as well which tend to be the most expensive part of row fetches.

Remaining:

• no dev blog post since there are no changes to the public interfaces and no integration is expected to select statistics manually
• update data.home-assistant.io Update statistics for schema 35 data.home-assistant#254
• sqlite testing
• mariadb testing
• postgresql testing

Type of change

• Dependency upgrade
• Bugfix (non-breaking change which fixes an issue)
• New integration (thank you!)
• New feature (which adds functionality to an existing integration)
• Deprecation (breaking change to happen in the future)
• Breaking change (fix/feature causing existing functionality to break)
• Code quality improvements to existing code or addition of tests

Additional information

• This PR fixes or closes issue: fixes #
• This PR is related to issue:
• Link to documentation pull request:

Checklist

• The code change is tested and works locally.
• Local tests pass. Your PR cannot be merged unless tests pass
• There is no commented out code in this PR.
• I have followed the development checklist
• The code has been formatted using Black (black --fast homeassistant tests)
• Tests have been added to verify that the new code works.

If user exposed functionality or configuration variables are added/changed:

• Documentation added/updated for www.home-assistant.io

If the code communicates with devices, web services, or third-party tools:

• The manifest file has all fields filled out correctly.
  Updated and included derived files by running: python3 -m script.hassfest.
• New or updated dependencies have been added to requirements_all.txt.
  Updated by running python3 -m script.gen_requirements_all.
• For the updated dependencies - a link to the changelog, or at minimum a diff between library versions is added to the PR description.
• Untested files have been added to .coveragerc.

To help with the load of incoming pull requests:

• I have reviewed two other open pull requests in this repository.

Note: will conflict with #86436 but easy enough to fix whichever one merges first

Additional conflicts (fixes that have been broken out of this PR that were discovered as part of the process of developing this):

#87581
#87583

[home-assistant]

Hey there @home-assistant/core, mind taking a look at this pull request as it has been labeled with an integration (recorder) you are listed as a code owner for? Thanks!

Code owner commands

Code owners of recorder can trigger bot actions by commenting:

• @home-assistant close Closes the issue.
• @home-assistant rename Awesome new title Change the title of the issue.
• @home-assistant reopen Reopen the issue.
• @home-assistant unassign recorder Removes the current integration label and assignees on the issue, add the integration domain after the command.

[bdraco]

unrelated but if we drop the IX_STATES_EVENT_ID................................ 3794 2.1%

We can save another 2.1%

[bdraco]

*** Page counts for all tables with their indices *****************************

STATES............................................ 93200       50.5%
STATISTICS........................................ 54219       29.4%
STATISTICS_SHORT_TERM............................. 26203       14.2%
STATE_ATTRIBUTES.................................. 6904         3.7%
EVENTS............................................ 3639         2.0%
EVENT_DATA........................................ 181          0.098%
STATISTICS_RUNS................................... 55           0.030%
STATISTICS_META................................... 16           0.009%
SQLITE_SCHEMA..................................... 3            0.002%
RECORDER_RUNS..................................... 2            0.001%
SCHEMA_CHANGES.................................... 1            0.0%

[bdraco]

This is what is looks like if we drop ix_states_event_id (which won't be used after we migrate all the old rows)

STATES............................................ 89406       49.5%
STATISTICS........................................ 54219       30.0%
STATISTICS_SHORT_TERM............................. 26203       14.5%
STATE_ATTRIBUTES.................................. 6904         3.8%
EVENTS............................................ 3639         2.0%
EVENT_DATA........................................ 181          0.10%
STATISTICS_RUNS................................... 55           0.030%
STATISTICS_META................................... 16           0.009%
SQLITE_SCHEMA..................................... 3            0.002%
RECORDER_RUNS..................................... 2            0.001%
SCHEMA_CHANGES.................................... 1            0.0%

[bdraco]

*** Page counts for all tables and indices separately *************************

STATES............................................ 39402       21.8%
STATISTICS........................................ 29150       16.1%
IX_STATES_ENTITY_ID_LAST_UPDATED_TS............... 19517       10.8%
STATISTICS_SHORT_TERM............................. 13748        7.6%
IX_STATES_CONTEXT_ID.............................. 13663        7.6%
IX_STATISTICS_STATISTIC_ID_START_TS............... 10004        5.5%
IX_STATISTICS_START_TS............................ 8249         4.6%
IX_STATES_LAST_UPDATED_TS......................... 6832         3.8%
IX_STATISTICS_METADATA_ID......................... 6816         3.8%
STATE_ATTRIBUTES.................................. 6329         3.5%
IX_STATES_OLD_STATE_ID............................ 5220         2.9%
IX_STATISTICS_SHORT_TERM_STATISTIC_ID_START_TS.... 4916         2.7%
IX_STATES_ATTRIBUTES_ID........................... 4772         2.6%
IX_STATISTICS_SHORT_TERM_START_TS................. 4092         2.3%
IX_STATISTICS_SHORT_TERM_METADATA_ID.............. 3447         1.9%

IX_STATES_ENTITY_ID_LAST_UPDATED_TS takes up more than half of the actual states data

[bdraco]

SQLite looks good

need to do MySQL and PostgreSQL testing

[bdraco]

Uncovered lines are the postgresql and mysql test runners which don't currently report to codecov

[emontnemery]

Looks great, just a few comments.

[bdraco]

Will need rebase on top of #87583 before merging.
