Improve performance of fetching and storing history and events with the database

[bdraco]

Breaking change

This breaking change only affects custom integrations that do not use the recorder history API and access the database directly.

The underlying database schema has changed. The documentation for the events and states have been updated and is available at the Data Science Portal.

Proposed change

Note: The bulk of the lines here are copies of the old tests to make sure that history queries still work during the short (unless they have a giant db) live migration from schema 30->32. We still have support for migrating from db schema 0 (circa 2016) and are already maintaining a few tests for that.

Currently we store all timestamps as strings in UTC isotime. This makes searches slow since we have to search strings to find time ranges as it make the indices much larger (also the reason why InnoDB is currently required when using MySQL ..because of the very large index keys). Every single row had to store at least one string which was always in UTC time.

This change makes returning data via the newer apis much faster as well since we avoid many conversions in the process as they mostly return timestamps as floats

While not the primary goal, this also reduces database size by ~10-30% (on the higher side if you have lots of energy/frequently updating sensors and on the lower side if there are a lot of statistics) as well as size of backups. The database size reductions will become apparent after the next second sunday of the month as we only repack the database monthly. For a real world estimate, my primary production went from 1155682304 bytes to 836296704 bytes

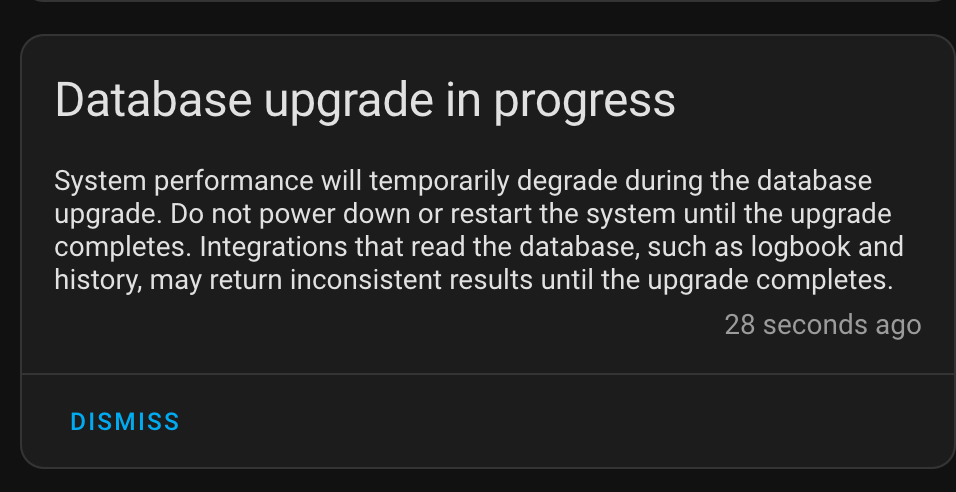

As with previous migrations, History queries will keep working during migration. Logbook will be unavailable until the migration completes

There is effectively no more conversion overhead when fetching history with the newer apis

There is also a nice reduction in commit overhead since there are no complex conversions happening in the ORM anymore which will reduce idle CPU and disk I/O (from the size reduction)

• Update data site Update schema to version 32 data.home-assistant#248
• Test the old path in history.py by copying the old tests and patching the schema

Dev testing TODO:

• sqlite
• mysql
• postgresql

Production testing TODO:

• sqlite
• mysql
• postgresql

Migration testing

• sqlite
• mysql
• postgresql

Performance testing

• blue
• rpi3
• x86
• mac laptop

Type of change

• Dependency upgrade
• Bugfix (non-breaking change which fixes an issue)
• New integration (thank you!)
• New feature (which adds functionality to an existing integration)
• Deprecation (breaking change to happen in the future)
• Breaking change (fix/feature causing existing functionality to break)
• Code quality improvements to existing code or addition of tests

Additional information

• This PR fixes or closes issue: fixes #
• This PR is related to issue:
• Link to documentation pull request: Update schema to version 32 data.home-assistant#248

Checklist

• The code change is tested and works locally.
• Local tests pass. Your PR cannot be merged unless tests pass
• There is no commented out code in this PR.
• I have followed the development checklist
• The code has been formatted using Black (black --fast homeassistant tests)
• Tests have been added to verify that the new code works.

If user exposed functionality or configuration variables are added/changed:

• Documentation added/updated for data.home-assistant.io

If the code communicates with devices, web services, or third-party tools:

• The manifest file has all fields filled out correctly.
  Updated and included derived files by running: python3 -m script.hassfest.
• New or updated dependencies have been added to requirements_all.txt.
  Updated by running python3 -m script.gen_requirements_all.
• For the updated dependencies - a link to the changelog, or at minimum a diff between library versions is added to the PR description.
• Untested files have been added to .coveragerc.

To help with the load of incoming pull requests:

• I have reviewed two other open pull requests in this repository.

[home-assistant]

Hey there @home-assistant/core, mind taking a look at this pull request as it has been labeled with an integration (recorder) you are listed as a code owner for? Thanks!

Code owner commands

Code owners of recorder can trigger bot actions by commenting:

• @home-assistant close Closes the issue.
• @home-assistant rename Awesome new title Change the title of the issue.
• @home-assistant reopen Reopen the issue.
• @home-assistant unassign recorder Removes the current integration label and assignees on the issue, add the integration domain after the command.

[bdraco]

This is working well in testing. Need to build the migration code and add tests next

[bdraco]

I think this is good to go but I want to migrate two or three more test blues that I have lying around to be 💯

Will do that later tonight

• Houston ble text box
• Houston rpi test
• Houston blue test

[bdraco]

Thanks

[bdraco]

All 3 of the additional test migrations went well.

[frenck]

For the breaking change aimed at developers, would be nice to have a small dev blog on that.

[bdraco]

For the breaking change aimed at developers, would be nice to have a small dev blog on that.

home-assistant/developers.home-assistant#1606
