perf(charts): improve performance on GET list

[dpgaspar]

CATEGORY

Choose one

• Bug Fix
• Enhancement (new features, refinement)
• Refactor
• Add tests
• Build / Development Environment
• Documentation

SUMMARY

This API endpoint was issuing a couple of extra queries for each row. One for ab_user resolving created by field and another for fetching the correct datasource. Since druid support outside of SQLAlchemy is deprecated, making an outer join with SqlaTable.

The idea to optimize and avoid a query per row, is when using @property has a column and the method itself references a column, make sure this column is declared on list_columns so it's prefetched or SQLAlchemy will issue the extra query

Local times are:
Before:
(timing) ChartRestApi.get_list.time = 130ms - 180ms

After:
(timing) ChartRestApi.get_list.time = 25ms - 50ms

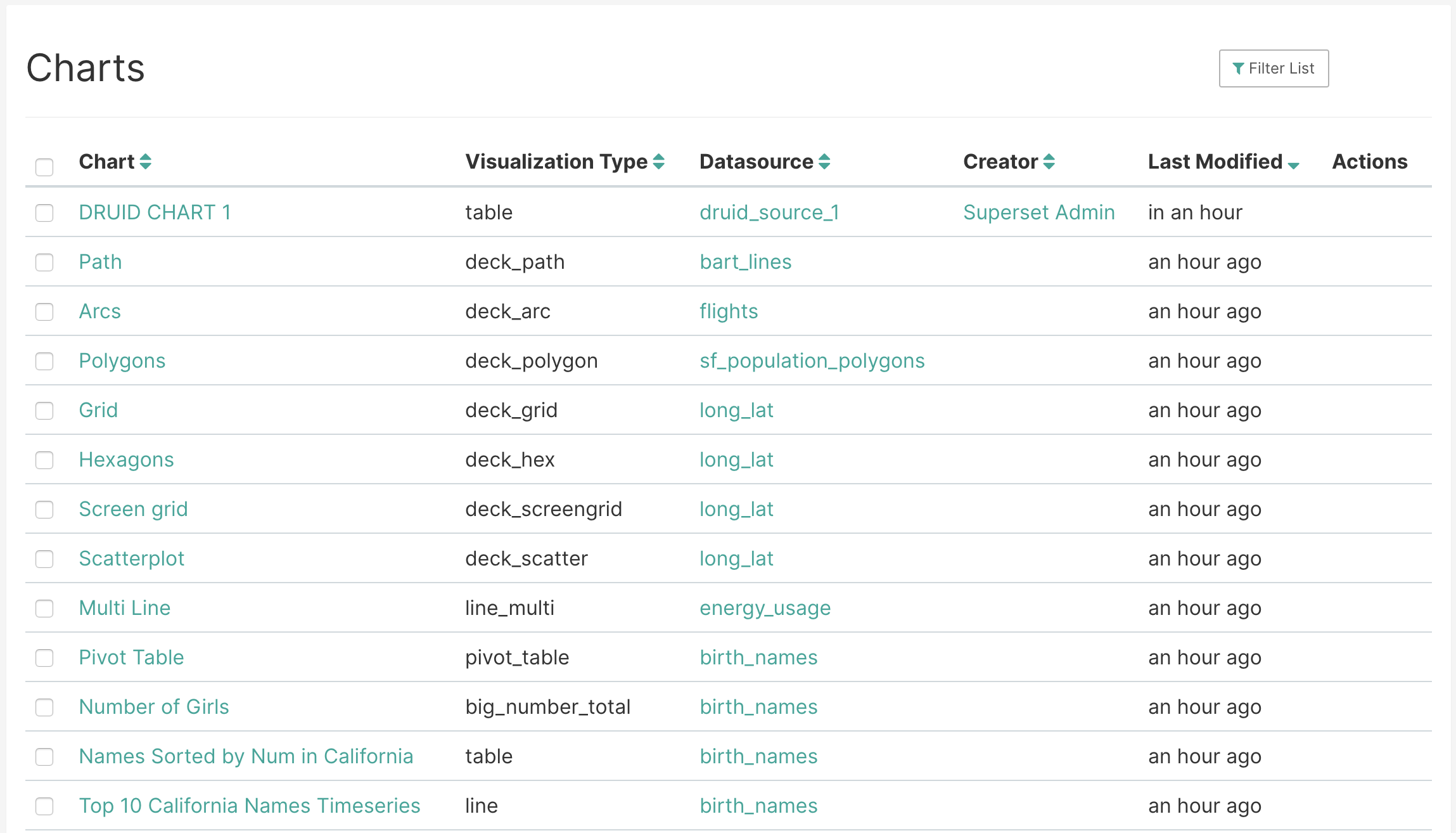

Druid charts get displayed normally but if any, an extra query is issued for each one:

ADDITIONAL INFORMATION

• Has associated issue:
• Changes UI
• Requires DB Migration.
• Confirm DB Migration upgrade and downgrade tested.
• Introduces new feature or API
• Removes existing feature or API

REVIEWERS

@nytai

[dpgaspar]

Setting this relation will avoid making one extra query per row, but will not support showing the datasource for deprecated druid source (yet will issue an outer join)

[willbarrett]

What will the experience for the user be if they are primarily using the deprecated Druid connector?

[dpgaspar]

Updated the PR description with an example

[dpgaspar]

No impact now

[codecov-io]

Codecov Report

Merging #9619 into master will decrease coverage by 0.02%.
The diff coverage is 71.42%.

@@            Coverage Diff             @@
##           master    #9619      +/-   ##
==========================================
- Coverage   65.71%   65.68%   -0.03%
==========================================
  Files         574      574
  Lines       30135    30138       +3
  Branches     3066     3066
==========================================
- Hits        19802    19797       -5
- Misses      10149    10157       +8
  Partials      184      184

Flag	Coverage Δ
#javascript	58.76% <ø> (ø)
#python	70.55% <71.42%> (-0.05%)	⬇️

Impacted Files	Coverage Δ
superset/charts/api.py	81.66% <ø> (ø)
superset/models/slice.py	84.69% <71.42%> (-0.86%)	⬇️
superset/db_engine_specs/postgres.py	80.00% <0.00%> (-15.00%)	⬇️

---

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update 76764ac...2cc7494. Read the comment docs.

[willbarrett]

I think Airbnb might have opinions about this. @john-bodley would this mess with your users' workflow?

[john-bodley]

@dpgaspar regarding the comment,

Since druid support outside of SQLAlchemy is deprecated

this isn't quite true, i.e., although we encourage environments to use Druid SQL (rather than Druid NoSQL) we still currently support Druid NoSQL and thus I'm not certain whether we should merge this PR.

I sense this PR shows the potential performance wins of actually fully deprecating the Druid NoSQL connector, i.e., there are numerous other places in the code base were the logic is complex and/or requires additional joins because there doesn't exist a foreign key between the slices and tables (or datasources which will be deprecated) tables.

[dpgaspar]

@john-bodley had the wrong impression regarding Druid NoSQL.

Yet, adapted this PR so that we can have the best of both worlds. We still have the performance boost for fetching charts outside of Druid NoSQL and an extra query is issued for each Druid NoSQL existent on the query page (like before).

@willbarrett
No user impact, just user satisfaction :)

[john-bodley]

LGTM.
