Remove requirement to specify icon class in umb-icon directive by bjarnef · Pull Request #10805 · umbraco/Umbraco-CMS

bjarnef · 2021-08-06T10:19:16Z

Prerequisites

I have added steps to test this contribution in the description below

Description

This PR is a follow-up on this PR #9255

Currently <umb-icon> use SVG icons, but also fallback to legacy font icons for now. To support both version is was required to specify icon name in class attribute as well otherwise it didn't work in case a font icon was used.

E.g. <umb-icon icon="icon-document" class="icon-document"></umb-icon>

This would be much nicer:
<umb-icon icon="icon-document"></umb-icon> or
<umb-icon icon="icon-document" class="another-class"></umb-icon>

I tried added icon name to class="umb-icon {{icon}} but it has some side effects since the directive use transclude and replace, so e.g. in editor actions menu which added -hidden class via ngClass it didn't work and then hidden error and success icons was suddently all visible.

We really only need this specific to the font/legacy icon, so instead we can wrap the  element and ensure this inherit the correct font , while not adding the pseudo classes on the parent element.

In future we might remove this part, so only SVG icons are supported (maybe in backoffce rebuild ~ v10).

Test notes

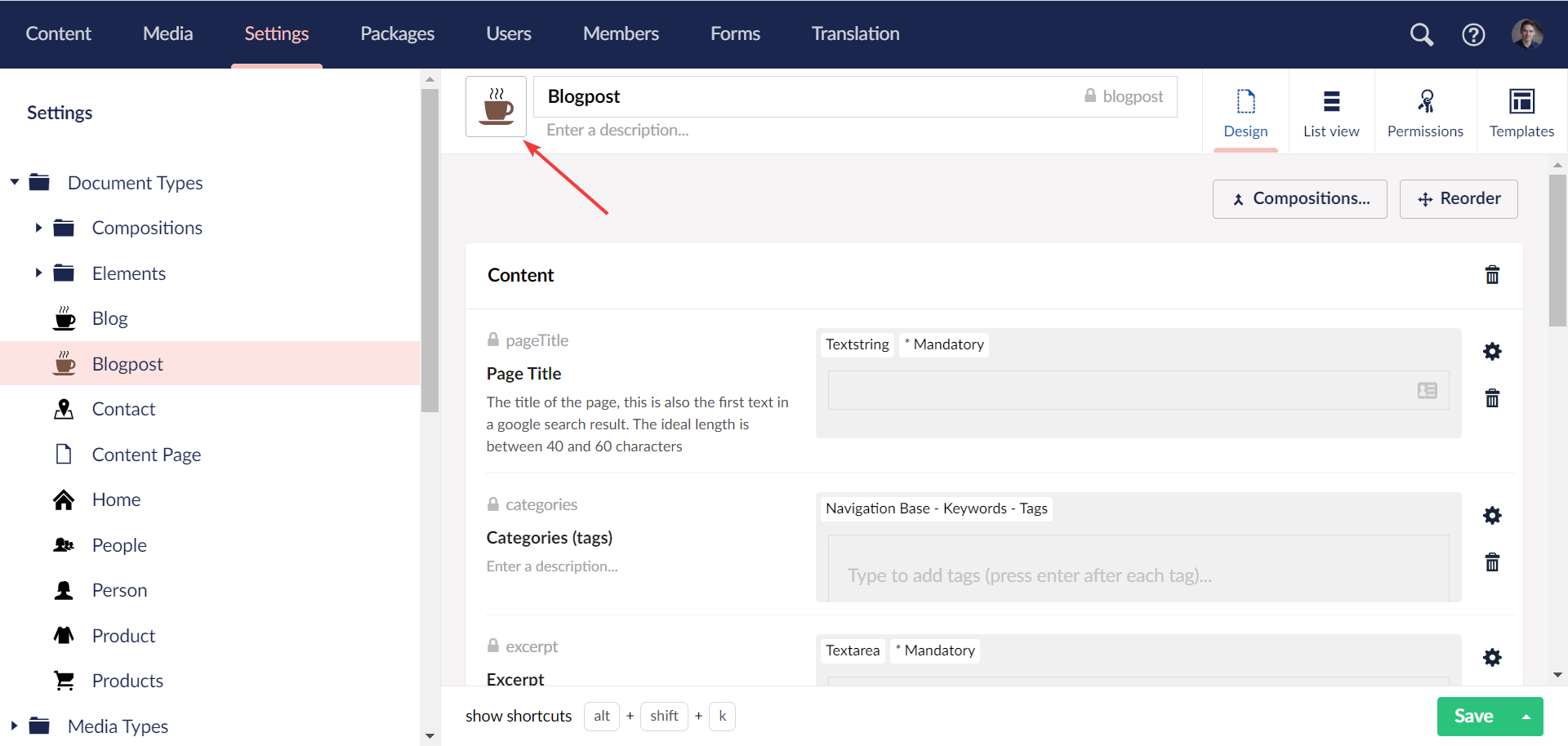

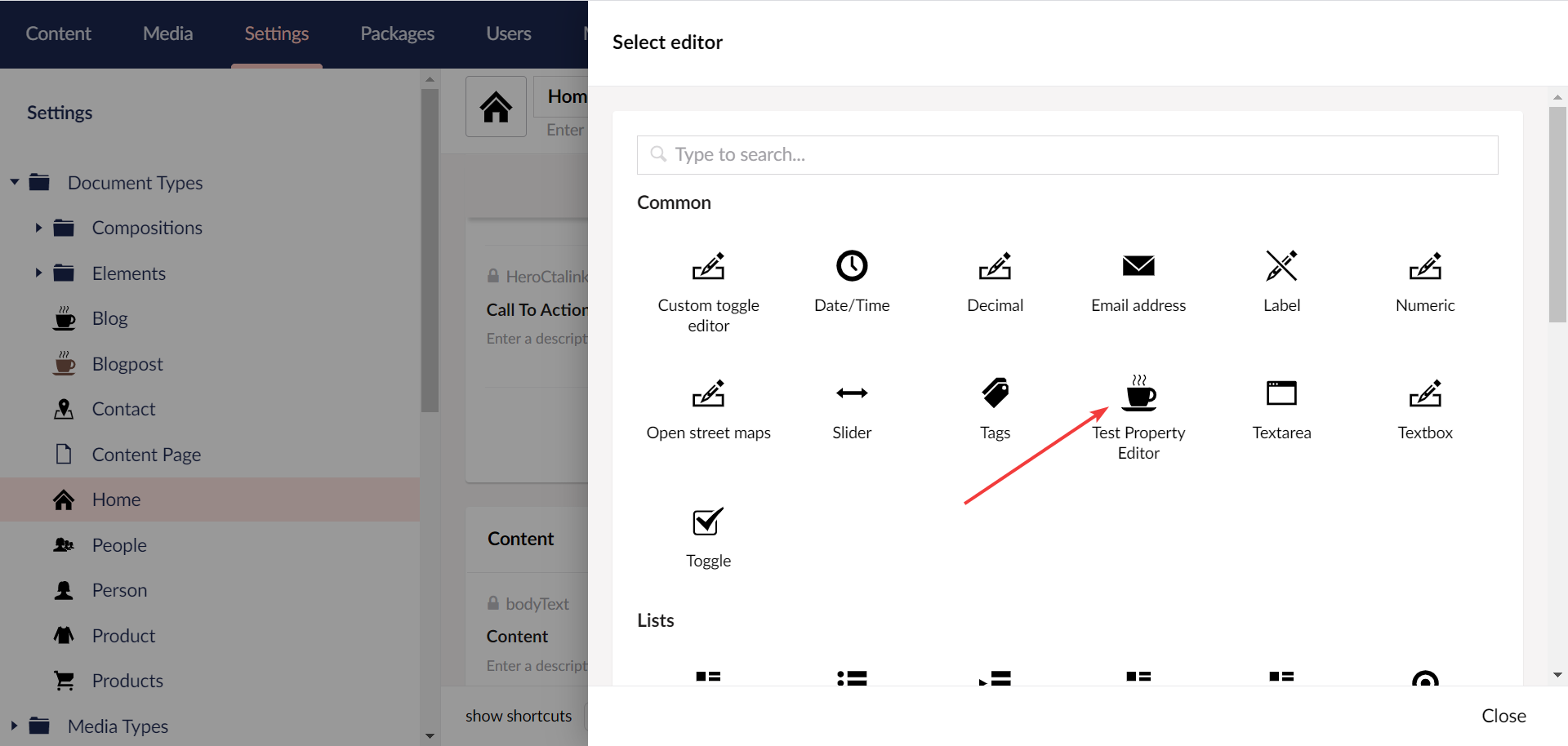

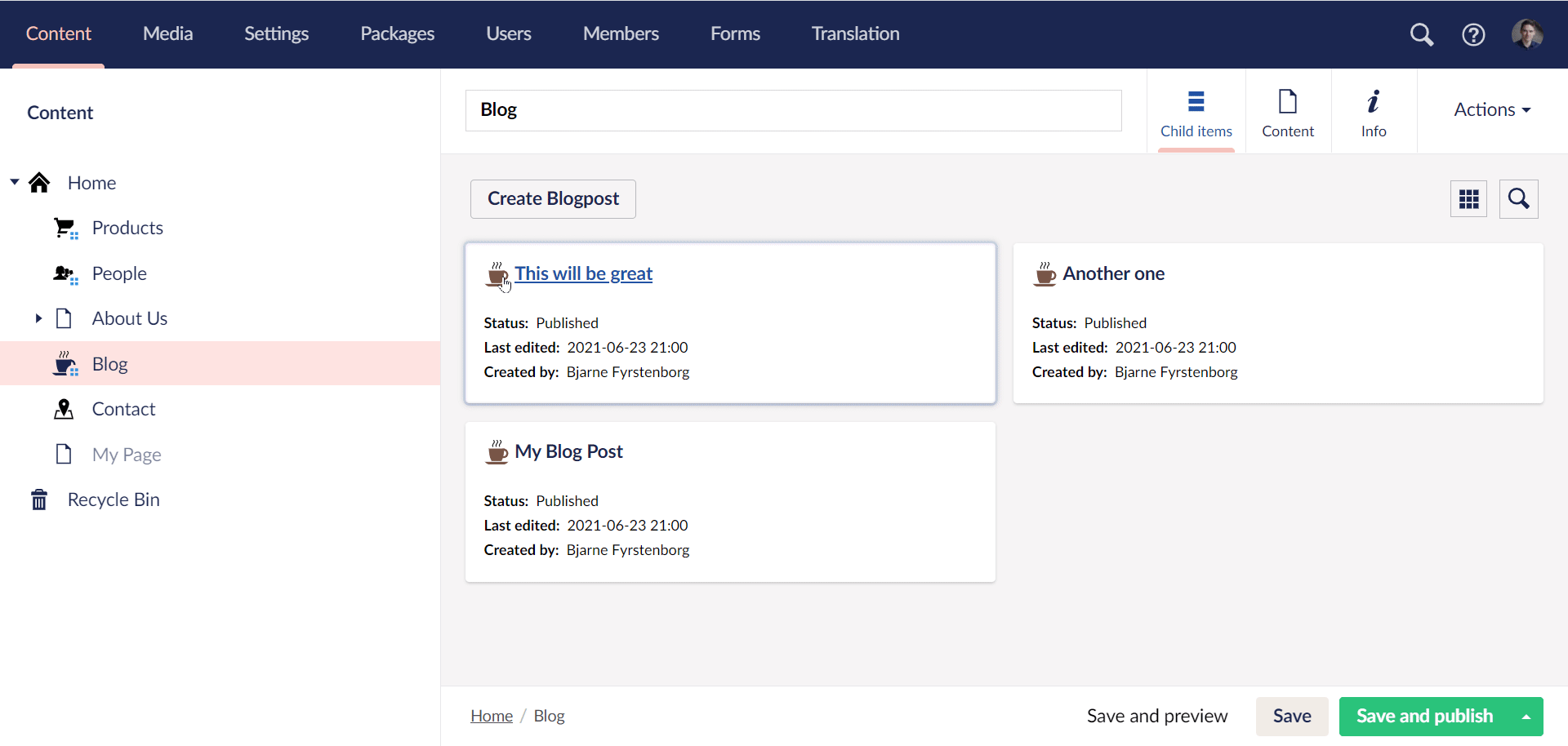

SVG icons are shown. Try with both core SVG icons and custom SVG icon in App_Plugins folder.
Example folder with coffee-cup.svg: CustomIcons.zip

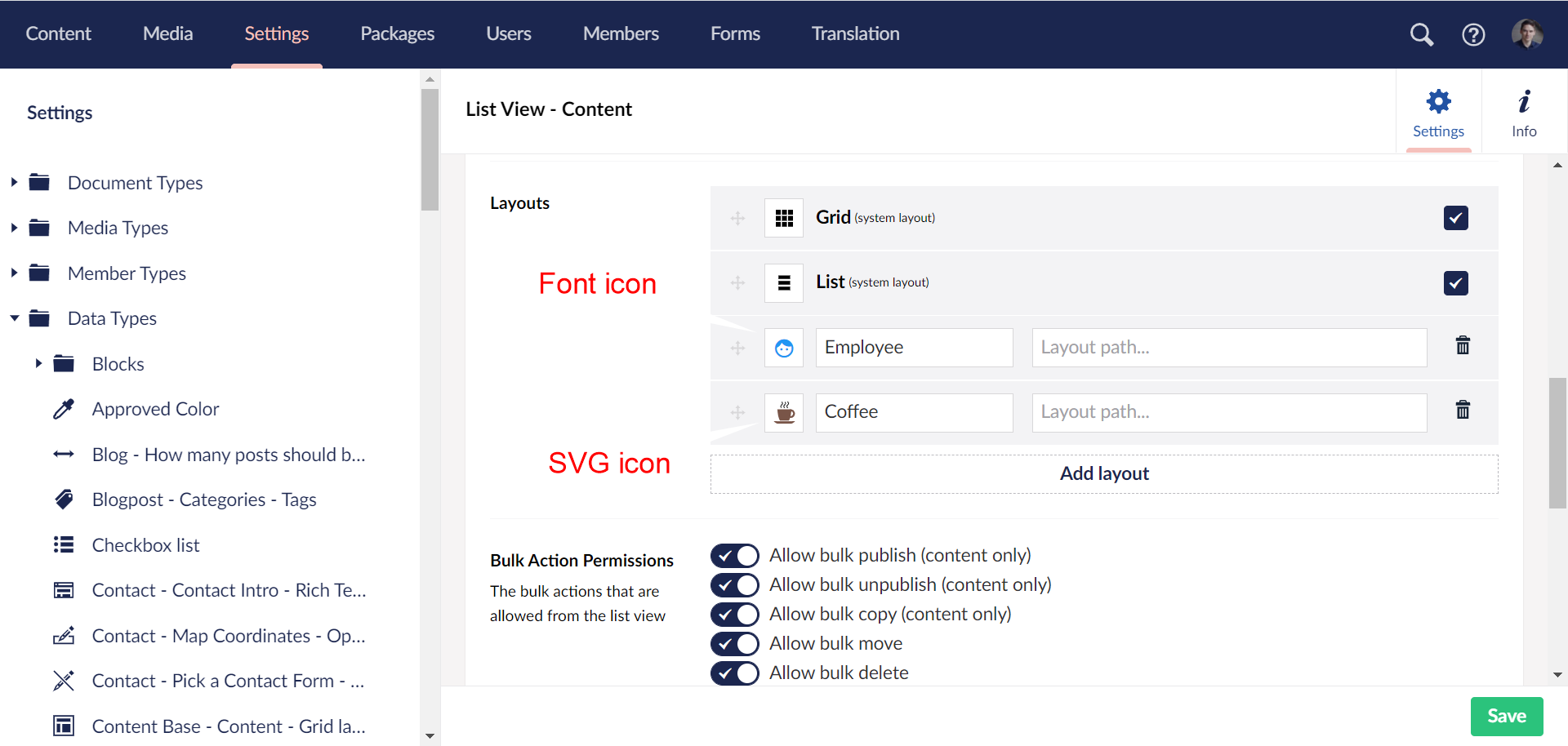

Font icons are shown. Try with a font icon package like Material Design Icon Pack
Colors work on SVG icon and font icons.
When changing icon and/or color in icon picker in document/media/member type and submitting dialog, the icon + color is updated in editor header.
Polling icon is spinning when enabled.
Adding an external login provider the icon is shown correct using a font awesome icon, custom font icon or SVG icon.

umbrabot · 2021-08-06T11:00:29Z

Hi there @bjarnef, thank you for this contribution! 👍

While we wait for one of the Core Collaborators team to have a look at your work, we wanted to let you know about that we have a checklist for some of the things we will consider during review:

It's clear what problem this is solving, there's a connected issue or a description of what the changes do and how to test them
The automated tests all pass (see "Checks" tab on this PR)
The level of security for this contribution is the same or improved
The level of performance for this contribution is the same or improved
Avoids creating breaking changes; note that behavioral changes might also be perceived as breaking
If this is a new feature, Umbraco HQ provided guidance on the implementation beforehand
The contribution looks original and the contributor is presumably allowed to share it

Don't worry if you got something wrong. We like to think of a pull request as the start of a conversation, we're happy to provide guidance on improving your contribution.

If you realize that you might want to make some changes then you can do that by adding new commits to the branch you created for this work and pushing new commits. They should then automatically show up as updates to this pull request.

Thanks, from your friendly Umbraco GitHub bot 🤖 🙂

bjarnef · 2021-08-06T11:16:44Z

@nathanwoulfe @nul800sebastiaan this would clean a lot of stuff 😁
still need some testing, but so far it still looks nice with core SVG icons, custom SVG icon and custom font icon 🗡️

bjarnef · 2021-08-06T13:01:23Z

With these changes we also need to check font icons and SVG icons can be used in actions menu: #10757

…nto v8/feature/umb-icon-svg-legacy # Conflicts: # src/Umbraco.Web.UI.Client/src/views/components/umb-mini-search.html

bjarnef · 2021-08-06T22:00:49Z

nathanwoulfe · 2021-08-06T23:36:04Z

This is awesome @bjarnef! Always bugged me that we had to pass in the same value in two places (obvs didn't bug me enough to jump in and fix it 🙄)

Will try find the time to test

bjarnef · 2021-08-07T10:43:08Z

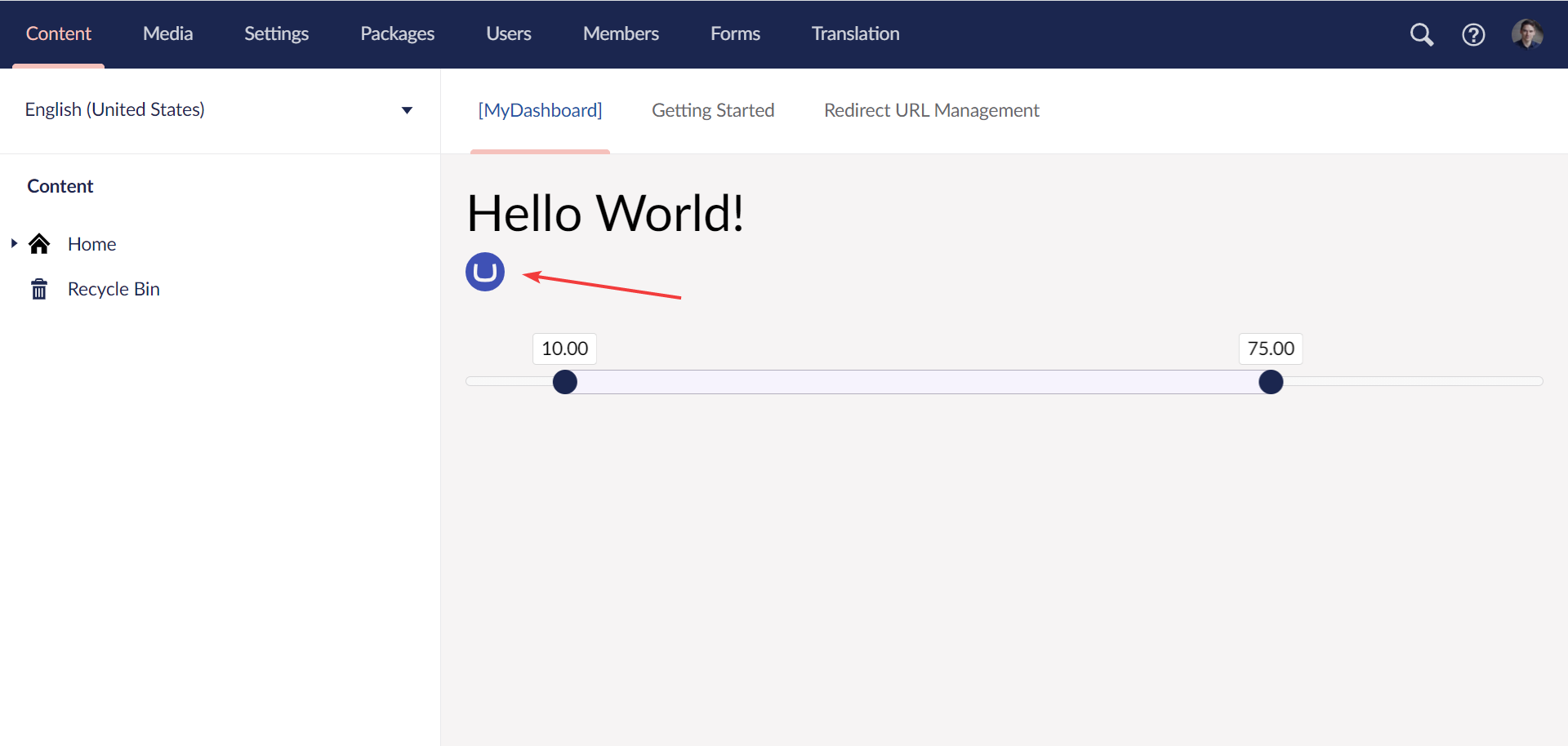

Further it should be possible to use <umb-icon> with color classes in e.g. a custom dashboard. In have used umbraco.svg from here: https://github.com/umbraco/Umbraco-CMS/blob/v8/contrib/src/Umbraco.Web.UI.Client/src/assets/icons/icon-umbraco.svg

<umb-icon icon="icon-umbraco" class="large color-indigo"></umb-icon>

The directive also use replace and transclude but I don't recall if is has been possible to use a custom SVG icon inside <umb-icon> e.g.

<umb-icon class="large color-cyan">
            <svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 315.89 315.89">
                <path d="M0,157.74A157.95,157.95,0,1,1,158,315.89,157.95,157.95,0,0,1,0,157.74Zm154.74,54.09a155.41,155.41,0,0,1-36.5-3.29,27.92,27.92,0,0,1-19.94-16q-5.35-12.34-5.21-38.1a243,243,0,0,1,1.69-26.84q1.55-13,3.09-21.46l1.07-5.59a2,2,0,0,0,0-.49,3.2,3.2,0,0,0-2.65-3.17L75.92,93.67h-.44a3.19,3.19,0,0,0-3.11,2.48c-.35,1.31-.56,2.27-1.17,5.38-1.16,6-2.24,11.85-3.43,20.38a264.17,264.17,0,0,0-2.3,27.94,145.24,145.24,0,0,0,0,19.57q.72,25.94,8.9,41.42t27.72,22.3q19.53,6.81,54.43,6.66h2.91q34.94.15,54.41-6.66t27.71-22.3q8.17-15.53,8.91-41.42a145.24,145.24,0,0,0,0-19.57,266.84,266.84,0,0,0-2.3-27.94c-1.2-8.44-2.27-14.26-3.44-20.38-.61-3.11-.81-4.07-1.16-5.38a3.21,3.21,0,0,0-3.12-2.48h-.52l-20.38,3.18a3.2,3.2,0,0,0-2.68,3.17,4,4,0,0,0,0,.49l1.08,5.59q1.55,8.48,3.12,21.46a245.68,245.68,0,0,1,1.65,26.84q.27,25.69-5.21,38.07a27.9,27.9,0,0,1-19.76,16.07,155.19,155.19,0,0,1-36.48,3.29Z" />
            </svg>
</umb-icon>

The SVG here is the source of umbraco.svg.

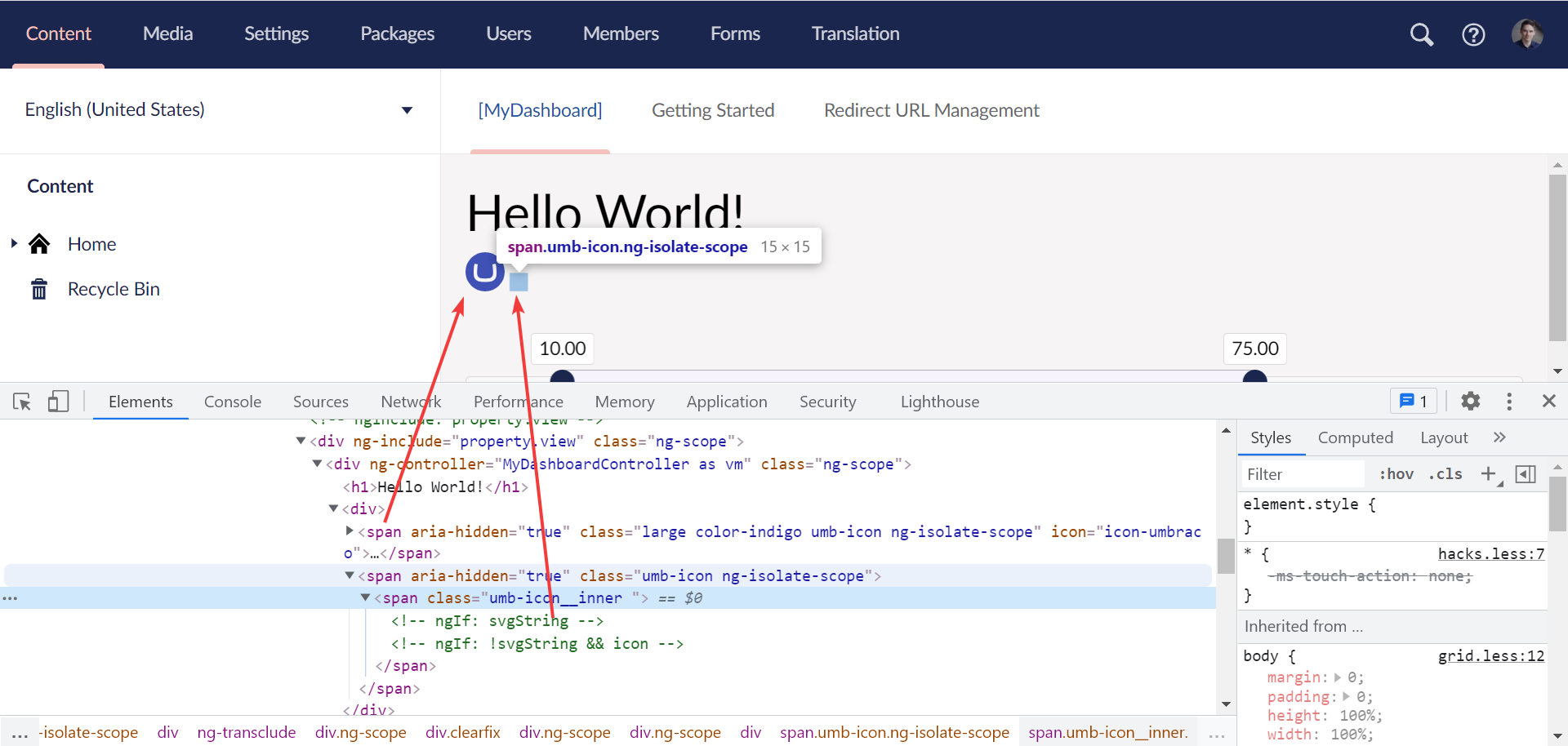

It partially works, but doesn't render the SVG icon. @MMasey do you recall if this previous worked?

bjarnef · 2021-08-07T10:58:38Z

It seems it may work by adding ng-transclude here instead. We {{icon}} rendered on a parent element and/or  and  (SVG) element for a few reasons.

Sometimes value passed in to icon contains both icon and color, e.g. icon-document color-green, so it need to inherit font and color.
The second class in icon property is not always a color, e.g. in logviewer polling the second class is fa-spin, where it need to inherit CSS animation.

<span aria-hidden="true" class="umb-icon">
    <span class="umb-icon__inner {{icon}}" ng-transclude>
        <span ng-if="svgString" ng-bind-html="svgString"></span>
        <i ng-if="!svgString && icon" class="{{icon}}"></i>
    </span>
</span>

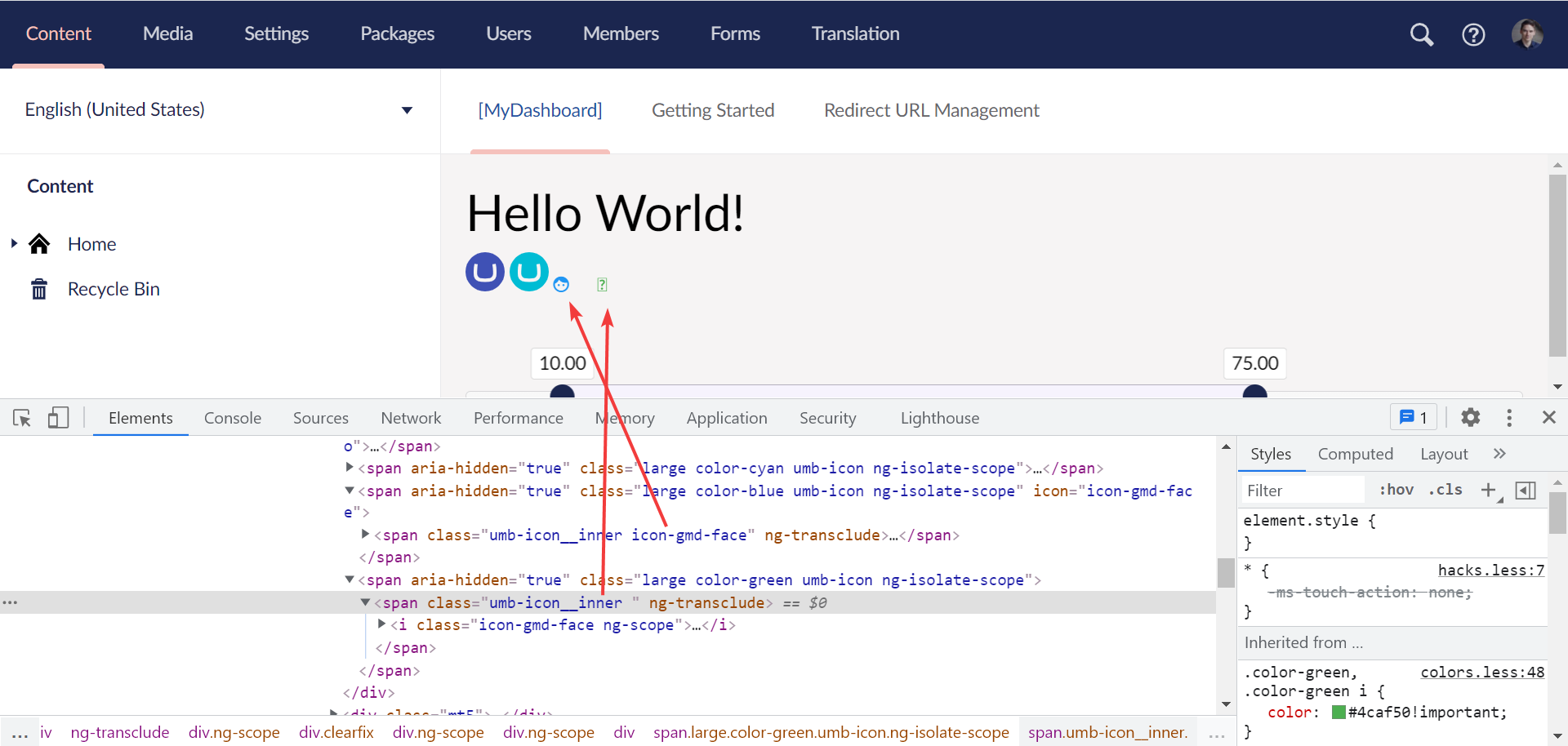

One thing I noticed doesn't work is when using a font icon inside umb-icon because ng-transclude also replace the {{icon}} class on umb-icon__inner so the font family isn't inherited.

<umb-icon icon="icon-gmd-face" class="large color-blue"></umb-icon>

<umb-icon class="large color-green">
     <i class="icon-gmd-face"></i>
</umb-icon>

This may be a option instead:

<span aria-hidden="true" class="umb-icon">
    <span class="umb-icon__inner {{icon}}">
        <ng-transclude>
            <span ng-if="svgString" ng-bind-html="svgString"></span>
            <i ng-if="!svgString && icon" class="{{icon}}"></i>
        </ng-transclude>
    </span>
</span>

bjarnef · 2021-08-07T11:48:19Z

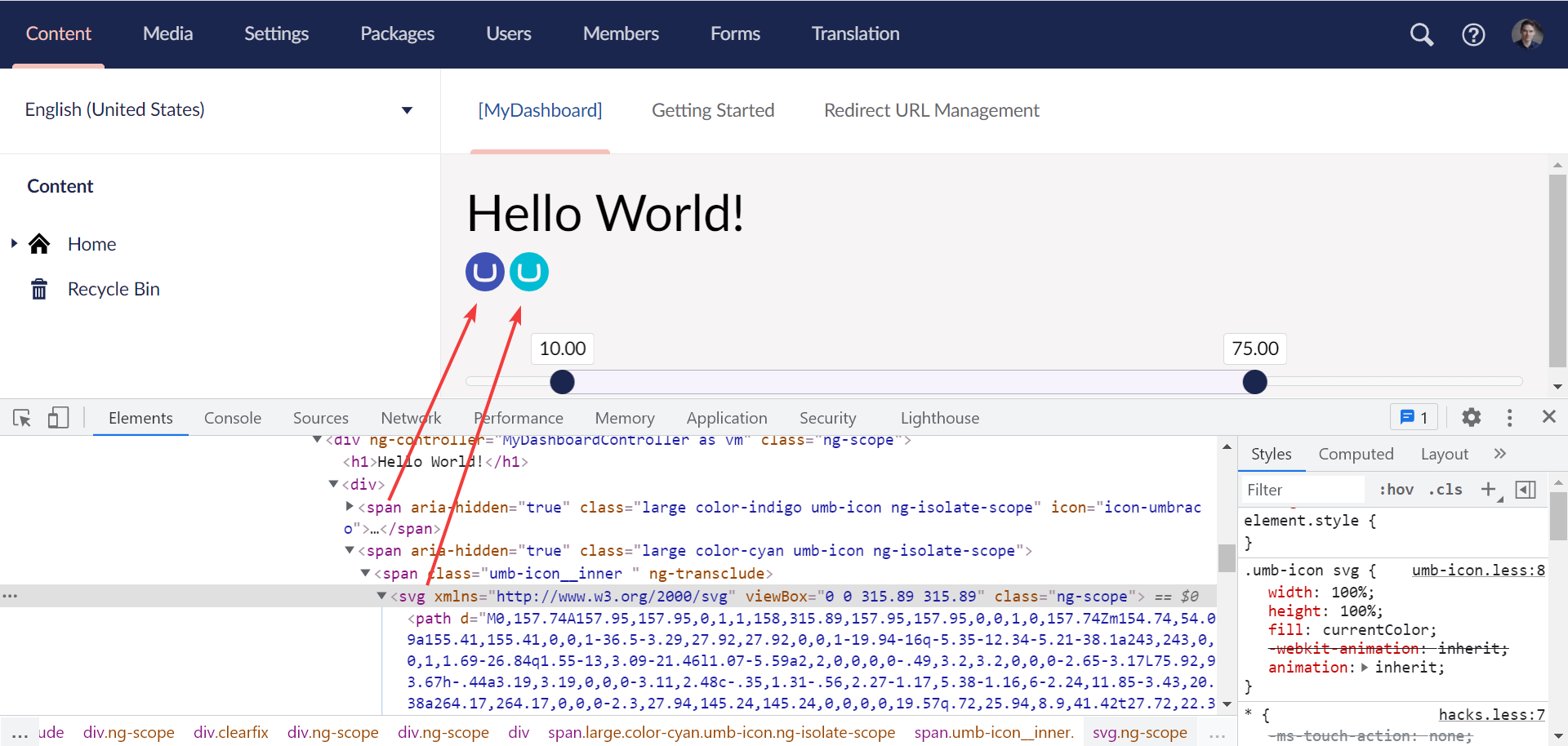

I now have the following:

<umb-icon icon="icon-umbraco" class="large color-indigo"></umb-icon>

<umb-icon class="large color-cyan">
    <svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 315.89 315.89">
        <path d="M0,157.74A157.95,157.95,0,1,1,158,315.89,157.95,157.95,0,0,1,0,157.74Zm154.74,54.09a155.41,155.41,0,0,1-36.5-3.29,27.92,27.92,0,0,1-19.94-16q-5.35-12.34-5.21-38.1a243,243,0,0,1,1.69-26.84q1.55-13,3.09-21.46l1.07-5.59a2,2,0,0,0,0-.49,3.2,3.2,0,0,0-2.65-3.17L75.92,93.67h-.44a3.19,3.19,0,0,0-3.11,2.48c-.35,1.31-.56,2.27-1.17,5.38-1.16,6-2.24,11.85-3.43,20.38a264.17,264.17,0,0,0-2.3,27.94,145.24,145.24,0,0,0,0,19.57q.72,25.94,8.9,41.42t27.72,22.3q19.53,6.81,54.43,6.66h2.91q34.94.15,54.41-6.66t27.71-22.3q8.17-15.53,8.91-41.42a145.24,145.24,0,0,0,0-19.57,266.84,266.84,0,0,0-2.3-27.94c-1.2-8.44-2.27-14.26-3.44-20.38-.61-3.11-.81-4.07-1.16-5.38a3.21,3.21,0,0,0-3.12-2.48h-.52l-20.38,3.18a3.2,3.2,0,0,0-2.68,3.17,4,4,0,0,0,0,.49l1.08,5.59q1.55,8.48,3.12,21.46a245.68,245.68,0,0,1,1.65,26.84q.27,25.69-5.21,38.07a27.9,27.9,0,0,1-19.76,16.07,155.19,155.19,0,0,1-36.48,3.29Z" />
    </svg>
</umb-icon>

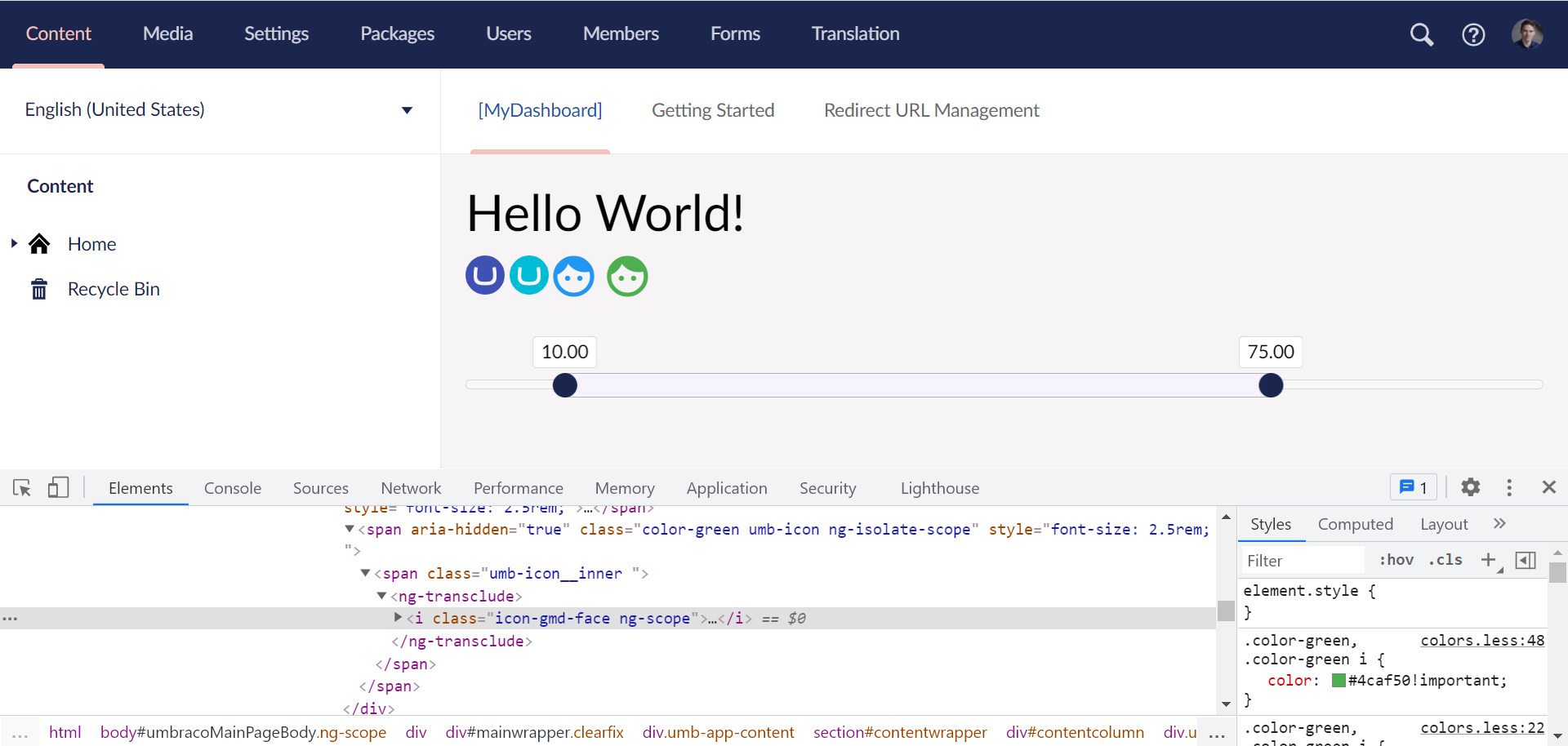

<umb-icon icon="icon-gmd-face" class="color-blue" style="font-size: 2.5rem;"></umb-icon>

<umb-icon class="color-green" style="font-size: 2.5rem;">
    <i class="icon-gmd-face"></i>
</umb-icon>

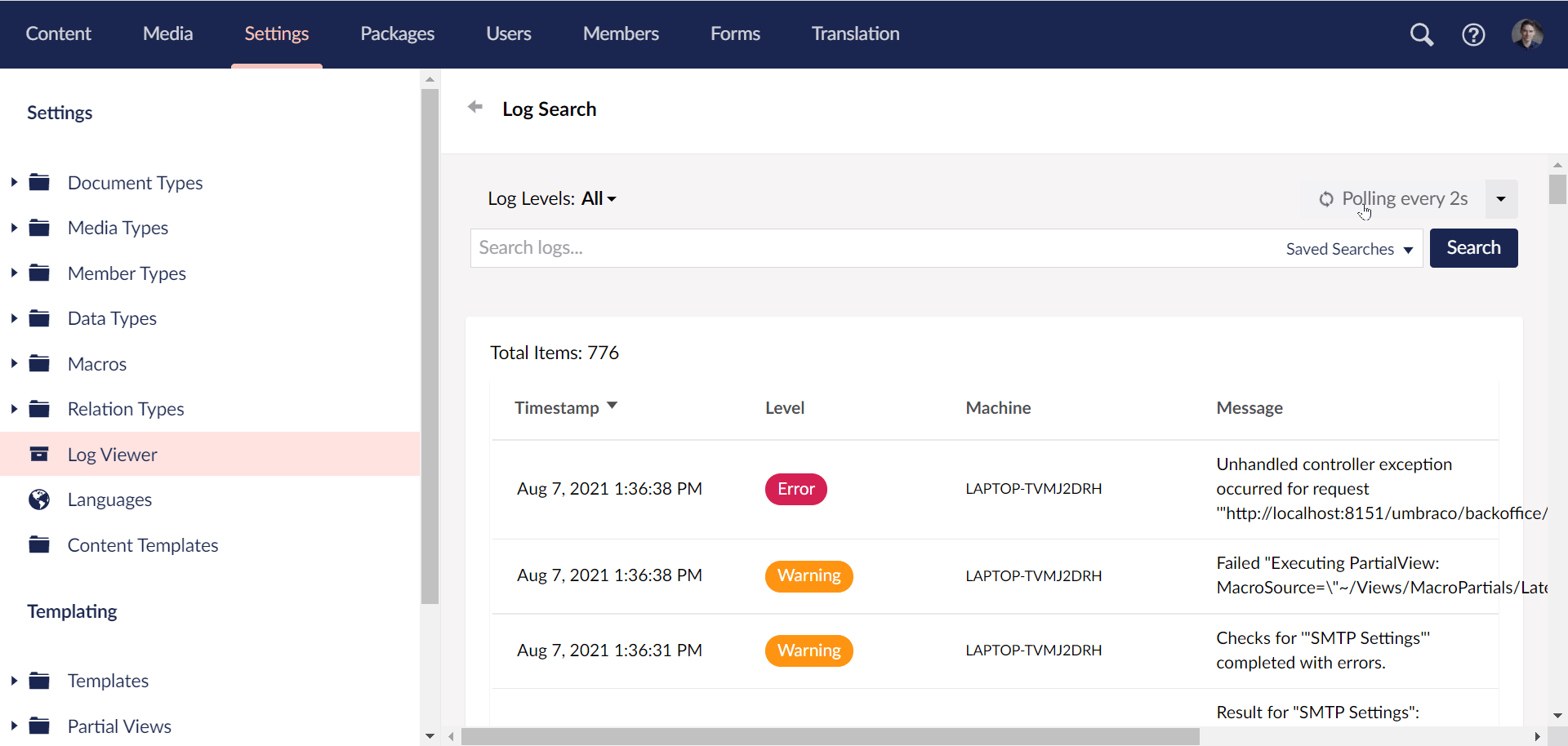

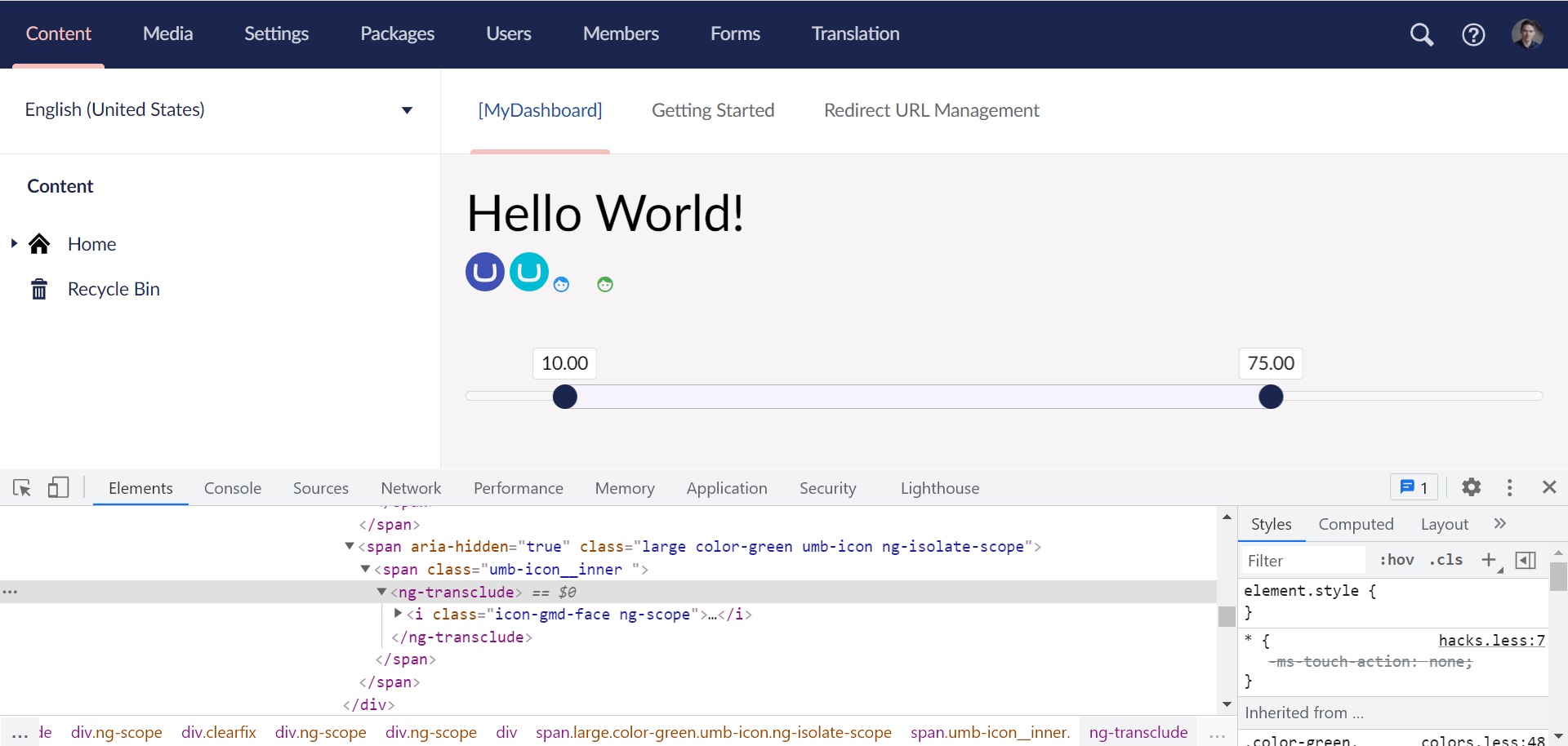

The polling animation is still working:

bjarnef · 2021-08-08T13:18:14Z

@nathanwoulfe I decided the replace pretty much all icons represented as  using <umb-icon> instead, so icons are handle in same way.

I also found some issues with directives/components which were self-closing e.g. <localize /> which should be <localize></localize>.

Furthermore I found propertyJoinSeparator added here 188cc2a but it wasn't used anywhere, so I have removed this. In case it was intended to be used, I guess it only should contain a separator like ,.

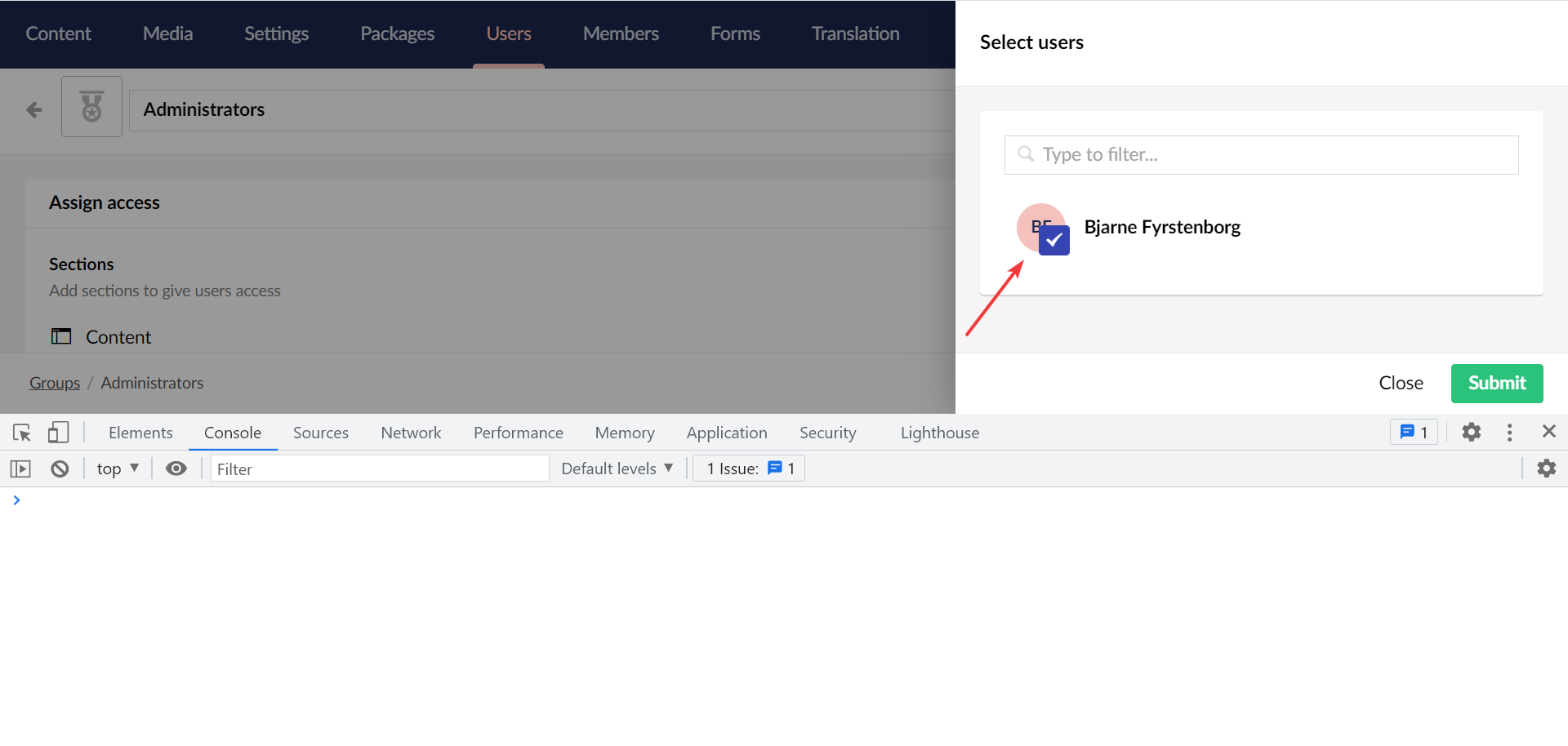

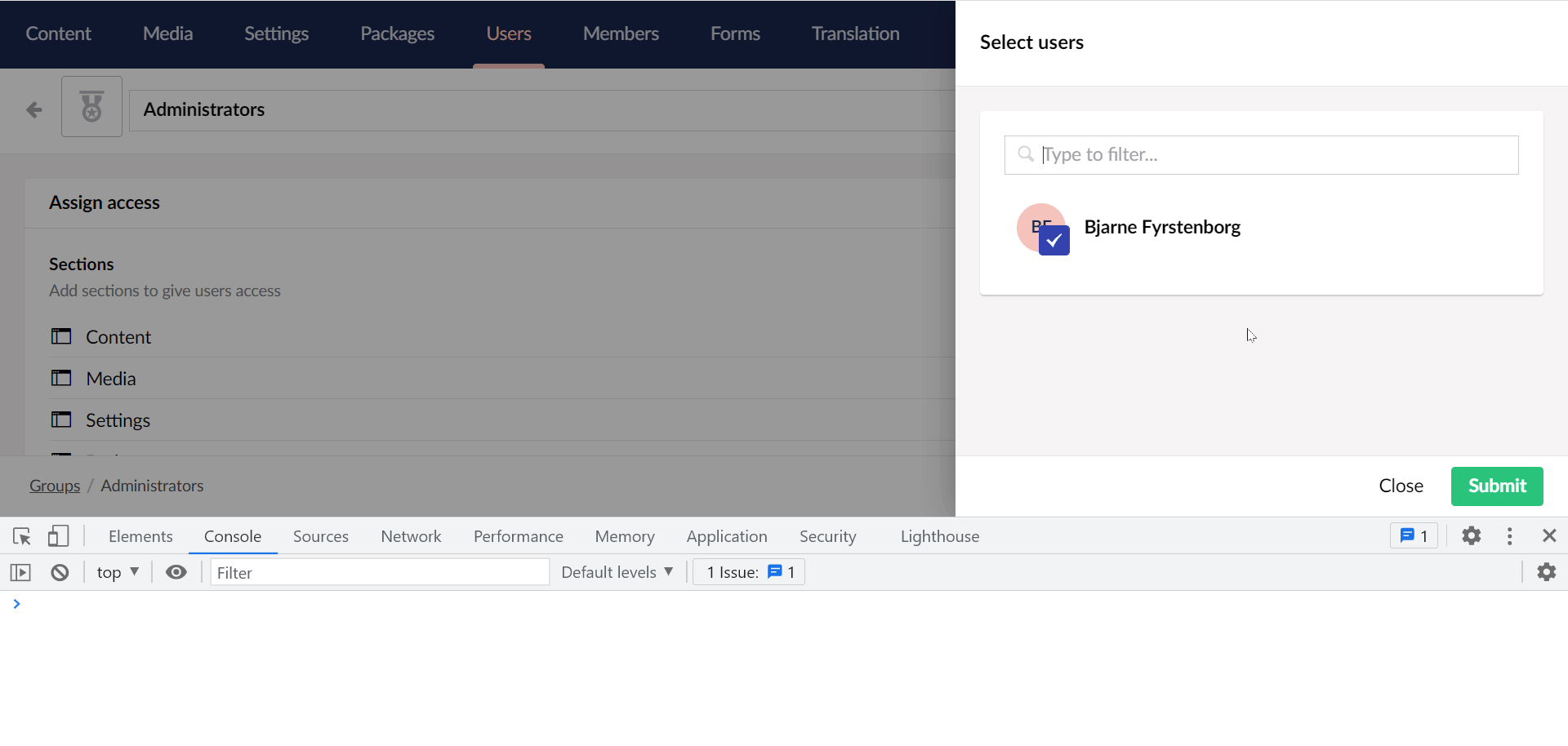

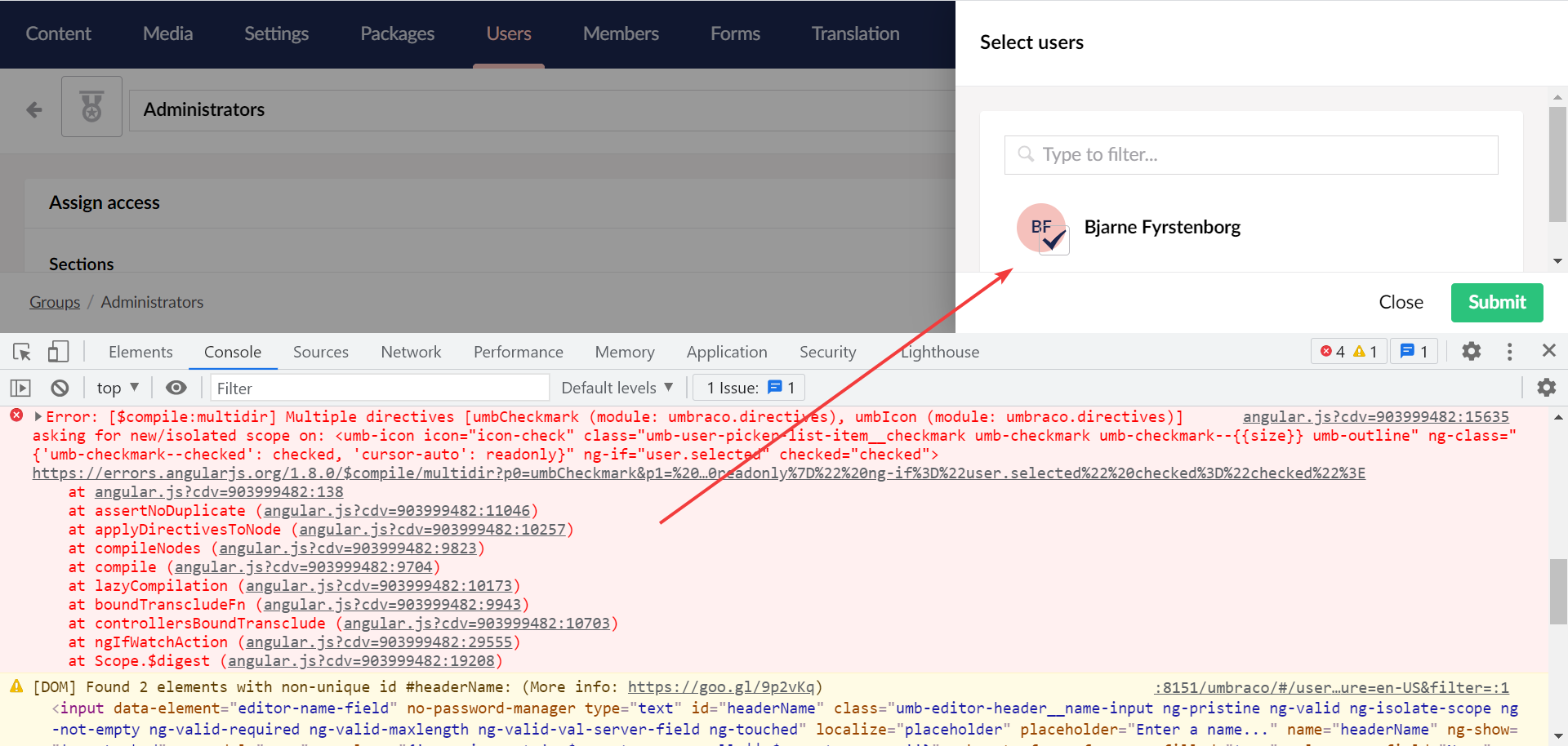

I tried to use <umb-icon> inside <umb-checkmark> component https://github.com/umbraco/Umbraco-CMS/blob/v8/contrib/src/Umbraco.Web.UI.Client/src/views/components/umb-checkmark.html but it seems to cause issues with isolated scopes, so I have reverted that for now.
