[t3dotgg]

T3 Chat linking is live, but nobody knows it exists. You can't see how many tunnels you use. When you hit the cap of 3, you get a long relay error and a toast. The T3 Chat page is three clicks deep: avatar, Manage account, T3 Chat tab.

Now:

• Usage meter. "N of M tunnels in use" with one bar segment per tunnel. It shows in Settings > T3 Connect (desktop), the account T3 Connect page, and the T3 Chat page. It turns amber at the cap.
• Upsell at the cap. When the relay refuses a new tunnel for being at the cap, the Settings row and the Connect onboarding dialog show "You're out of tunnels (they cost us money)." with a nudge to Tailscale or T3 Chat. This replaces the raw error and toast. The button fits the plan:
  • Not linked: Link T3 Chat
  • Free or Pro: Upgrade on T3 Chat
  • Premier: Manage tunnels
• Direct link. Get more tunnels and Link T3 Chat open the account dialog straight on the T3 Chat tab. On the account T3 Connect page, Link T3 Chat starts the link flow in place.

The client works out the cap from the linked T3 Chat plan (3 / 10 / 100), because the relay does not expose per-user overrides. DEFAULT_MANAGED_TUNNEL_LIMIT moved into contracts so the relay and the client share it. Mobile is unchanged, because it can't add tunnels or link T3 Chat.

Screenshots

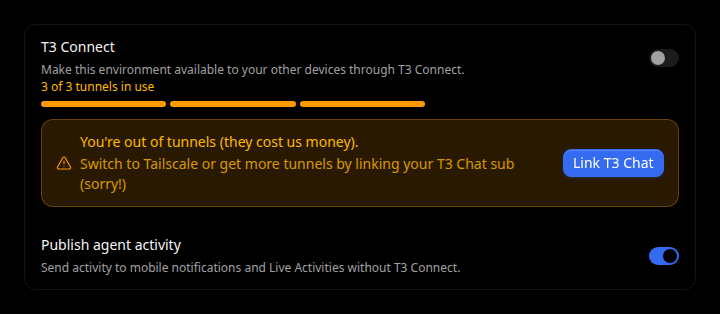

Settings, at the cap, after a refused link:

Before	After

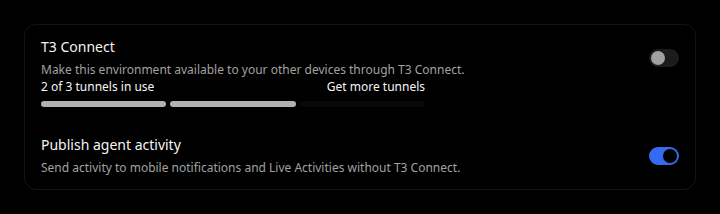

Settings, under the cap:

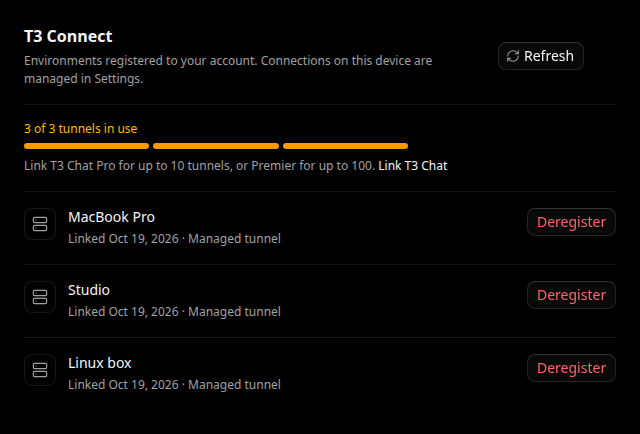

Account T3 Connect page:

Before	After

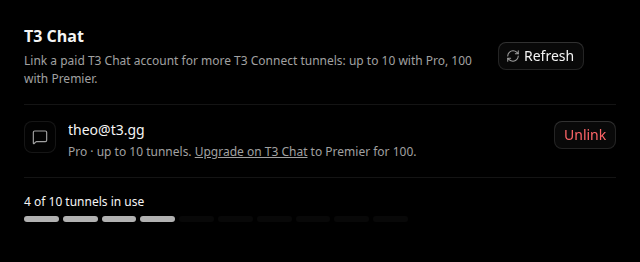

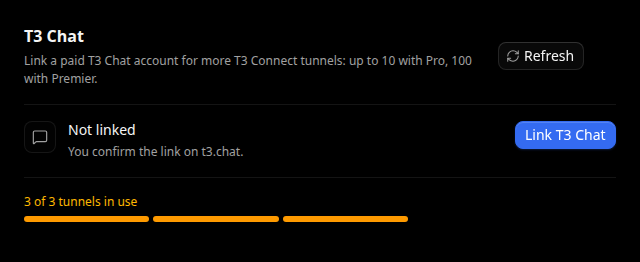

T3 Chat page, not linked and linked Pro:

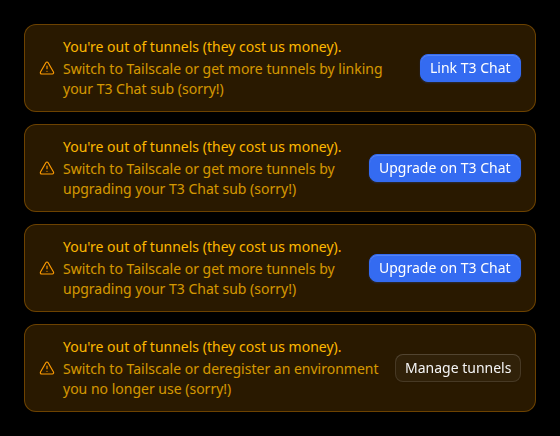

Cap alert for each plan (not linked, Free, Pro, Premier):

Proof: a new useCloudLinkController browser test turns a relay cap refusal into tunnelLimit with no error toast. vp run check:changed passes. Screenshots come from the real components in the browser test harness with fixture relay data. The dev setup has no Clerk or relay config, so I could not click through the live Clerk modal. That leaves __experimental_startPath: "/t3-chat" unchecked live, but it follows the existing /t3-connect path.

Reviewed with sol-loop: 2 rounds with GPT-6.1 Sol. Sol verdict: approved

Created with Claude Opus 5.5 in Claude Code (T3 Code).

🤖 Generated with Claude Code

[macroscopeapp]

Approvability

Verdict: Approved at dbc1caa

Macroscope's review found this PR approvable — Adds tunnel usage meters and contextual T3 Chat linking or upgrade guidance when capacity is reached. Existing tunnel limits and server enforcement remain unchanged.

^{You can add or adjust custom eligibility rules. Learn more.}

[coderabbitai]

No actionable comments were generated in the recent review.

Recent review info

Run configuration

• Source mode: Auto
• Repository: pingdotgg/t3code
• Branch: t3/tunnel-usage-t3-chat-upsell
• File: .coderabbit.config.ts
• Commit: dbc1caa
• Layers: Repository TS config
• Review profile: CHILL
• Plan: Team
• Run ID: 21d047be-1991-4f3c-a46e-f9bec04b71af

Commits

Reviewing files that changed from the base of the PR and between f75e7fe and dbc1caa.

Files selected for processing: 1

• apps/web/src/components/settings/SavedEnvironmentRows.tsx

Included review availability: This review used your included allowance. Your plan provides up to 10 included reviews per hour; 6 remain after this review.

Walkthrough

The change adds a shared default tunnel limit and managed tunnel usage state. It handles tunnel-limit errors in cloud-link flows and adds usage meters, upgrade guidance, and account-link actions to profile, onboarding, and settings interfaces.

Changes: Managed tunnel usage and limit guidance

Layer / File(s)	Summary
Shared limit and usage state packages/contracts/src/relay.ts, infra/relay/src/environments/ManagedTunnelLimits.ts, infra/relay/src/environments/ManagedTunnelLimits.test.ts, apps/web/src/cloud/managedRelayState.ts	The relay contract exports the default limit, and relay limit handling imports it. Web state derives tunnel usage, plan limits, upgrade options, and refresh behavior.
Cloud-link tunnel-limit handling apps/web/src/cloud/useCloudLinkController.ts, apps/web/src/cloud/useCloudLinkController.browser.test.tsx	The controller captures recognized relay tunnel-limit failures, exposes the limit, and refreshes usage after link and unlink attempts. The browser test checks the captured limit and error handling.
Account linking and profile usage apps/web/src/components/clerk/useT3ChatLink.ts, apps/web/src/components/clerk/T3ConnectAccountPages.tsx, apps/web/src/components/clerk/T3ChatUserProfilePage.tsx, apps/web/src/components/clerk/T3ConnectUserProfilePage.tsx	The shared hook manages T3 Chat link actions, and the account-page hook accepts a selected page. T3 Chat and T3 Connect profile pages display tunnel usage and related upgrade guidance.
Limit alerts in cloud and settings flows apps/web/src/components/cloud/TunnelUsage.tsx, apps/web/src/components/cloud/ConnectOnboardingDialog.tsx, apps/web/src/components/settings/SavedEnvironmentRows.tsx, apps/web/src/components/settings/settingsSearch.ts	Shared meter and alert components provide usage and limit guidance. Onboarding and settings connect alert actions to account pages, and settings search adds “tunnels limit.”

Priority: Normal

Estimated code review effort: 3 (Moderate) | ~25 minutes

Change: Feature

Sequence Diagram(s)

sequenceDiagram
  participant ProfilePage
  participant useManagedTunnelUsage
  participant refreshManagedTunnelUsage
  participant EnvironmentState
  participant T3ChatLinkState
  ProfilePage->>useManagedTunnelUsage: Request usage refresh
  useManagedTunnelUsage->>refreshManagedTunnelUsage: Refresh current account data
  refreshManagedTunnelUsage->>EnvironmentState: Refresh environments
  refreshManagedTunnelUsage->>T3ChatLinkState: Refresh T3 Chat link state
  useManagedTunnelUsage-->>ProfilePage: Return usage, limit, and upgrade

Loading

Possibly related PRs

• pingdotgg/t3code#25931: Adds T3 Chat link state and plan data used to derive tunnel caps and provide link and upgrade actions.
• pingdotgg/t3code#26186: Makes managed-tunnel reservation atomic under the quota limit; this change displays that capacity and handles its limit errors.
• pingdotgg/t3code#26320: Changes which managed allocations count toward tunnel capacity; this change displays usage and cap warnings based on that accounting.

Suggested reviewers: juliusmarminge, maria-rcks

Merge Risk: Minimal · up to dbc1c

After a successful deregistration refreshes usage, the outdated capacity warning clears. No actionable merge-blocking risk remains after normal checks.

Pre-merge checks: 4

Check name	Status	Explanation
Title check		The title clearly identifies the main changes: showing T3 Connect tunnel usage and directing full accounts to T3 Chat.
Description check		The description explains the problem, implementation, scope, verification results, screenshots, known limitations, and test coverage. It does not provide a triaged issue or discussion link as requeste…
Linked Issues check		Check skipped because no linked issues were found for this pull request.
Out of Scope Changes check		Check skipped because no linked issues were found for this pull request.

Full details: Description check

Explanation

The description explains the problem, implementation, scope, verification results, screenshots, known limitations, and test coverage. It does not provide a triaged issue or discussion link as requested by the Scope and approval template section, but the description is otherwise substantially complete.

Finishing Touches

📝 Generate docstrings

• Commit to this branch
• Create a new PR

🧪 Generate unit tests (beta)

• Commit to this branch
• Create a new PR

• Autofix · Keep fixing CodeRabbit findings and required CI, and resolving merge conflicts

_{Comment @coderabbitai help to get the list of available commands.}

[github-actions]

Thread transfer impact

✅ Thread transfer remains within every enforced ceiling.

ℹ️ The exact PR base did not have a successful artifact. Baseline uses the latest successful main measurement shown below.

Provider	Metric	Main baseline	This PR	Impact	PR ceiling
Codex	Total thread wire	5.0 KiB	5.0 KiB	0 B (0.0%)	6.8 KiB	✅
Codex	Thread snapshot wire	3.8 KiB	3.8 KiB	0 B (0.0%)	4.9 KiB	✅
Codex	Live turn WebSocket wire	1.3 KiB	1.3 KiB	0 B (0.0%)	2.0 KiB	✅
Codex	Live turn WebSocket decoded	21.6 KiB	21.6 KiB	0 B (0.0%)	24.4 KiB	✅
Codex	Live turn messages	2	2	0 (0.0%)	8	✅
Claude	Total thread wire	5.0 KiB	5.0 KiB	0 B (0.0%)	6.8 KiB	✅
Claude	Thread snapshot wire	3.8 KiB	3.8 KiB	0 B (0.0%)	4.9 KiB	✅
Claude	Live turn WebSocket wire	1.3 KiB	1.3 KiB	0 B (0.0%)	2.0 KiB	✅
Claude	Live turn WebSocket decoded	21.9 KiB	21.9 KiB	0 B (0.0%)	24.4 KiB	✅
Claude	Live turn messages	2	2	0 (0.0%)	8	✅

Baseline: 07f7f97 · PR result: dbc1caa · Source CI: success

Scenario and decoded snapshot size

10 historical turns, 5 command tools per turn, 878.9 KiB retained MCP result per historical turn, and a 1.05 MiB retained result in the measured turn.

• Codex decoded thread snapshot: 108.5 KiB
• Claude decoded thread snapshot: 108.8 KiB

Updated in place by a trusted workflow. PR artifacts are strictly validated and never executed.
