Add basic support for native Hue sensors

[mitchellrj]

Description:

This PR adds support for Hue motion sensors and their integrated light-level & temperature sensors.

In future, this could be expanded to include support for Hue switches and artificial sensors.

Pull request in home-assistant.io with documentation (if applicable): home-assistant/home-assistant.io#9084

Example entry for configuration.yaml (if applicable):

unchanged

Checklist:

• The code change is tested and works locally.
• Local tests pass with tox. Your PR cannot be merged unless tests pass
• There is no commented out code in this PR.

If user exposed functionality or configuration variables are added/changed:

• Documentation added/updated in home-assistant.io

If the code communicates with devices, web services, or third-party tools:

• New files were added to .coveragerc.

[balloob]

This will require tests to be written.

[mitchellrj]

I'll address these shortly, thanks for the feedback. Some of these corrections are an upshot of me copying code from the light module and not understanding broader codebase guidelines.

[mitchellrj]

Pushed a rebase to trigger tests again - last run failed due to an unstable test in another component.

@balloob, how do you feel about this now? Personally, I think it's in pretty good shape and much better than the original request thanks to people's feedback. @MartinHjelmare makes a good point about handling updates for newly added sensors, but I hope my response makes sense and that others agree with that.

[balloob]

🎉 🎉 🎉 🎉

[codecov]

Codecov Report

Merging #22598 into dev will increase coverage by <.01%.
The diff coverage is 96.42%.

@@            Coverage Diff             @@
##              dev   #22598      +/-   ##
==========================================
+ Coverage   94.19%    94.2%   +<.01%
==========================================
  Files         453      456       +3
  Lines       36917    37084     +167
==========================================
+ Hits        34775    34936     +161
- Misses       2142     2148       +6

Impacted Files	Coverage Δ
homeassistant/components/hue/binary_sensor.py	100% <100%> (ø)
homeassistant/components/hue/bridge.py	74.07% <100%> (+0.99%)	⬆️
homeassistant/components/hue/sensor.py	100% <100%> (ø)
homeassistant/components/hue/sensor_base.py	95.34% <95.34%> (ø)
homeassistant/components/uk_transport/sensor.py	93.43% <0%> (-0.73%)	⬇️
...ssistant/components/islamic_prayer_times/sensor.py	95.74% <0%> (+1.06%)	⬆️

---

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update 5b33d95...9958a6f. Read the comment docs.

[jimbob1001]

Hi, Is there a particular reason the motion sensor binary_sensors have device_class "presence" rather than "motion"?
Cheers,
James

[mitchellrj]

This is fixed in another PR, #23193.

…

On Thu, 18 Apr 2019, 18:24 James, ***@***.***> wrote: Hi, Is there a particular reason the motion sensor binary_sensors have device_class "presence" rather than "motion"? Cheers, James — You are receiving this because you authored the thread. Reply to this email directly, view it on GitHub <#22598 (comment)>, or mute the thread <https://github.com/notifications/unsubscribe-auth/AABD47XT5UMOJVZ2XI4MPM3PRCVFDANCNFSM4HCSAHIA> .

[mitchellrj]

#23208 for actual naming

[mvdwetering]

I was looking through the code to see how it compared to my personal hacks to get the Hue sensors work with hass and noticed 2 small issues.

According to https://www.home-assistant.io/components/sensor/ the light unit should be lx (for lux) or lm (for lumen), however current implementation seems to use 'Lux'

Light level in the Hue API is not in lux, it is in another unit. So in my custom code I had the following to convert to lux. It seemed right, but I had some issues getting it working so it may have issues return round(10 ** ((int(self.sensor.state['lightlevel'])-1)/10000.0))
This is the info from the Hue developer documentation:

Light level in 10000 log10 (lux) +1 measured by sensor. Logarithm scale used because the human eye adjusts to light levels and small changes at low lux levels are more noticeable than at high lux levels.

[mitchellrj]

Excellent info, thanks @mvdwetering! I'll get this updated right away.

[mitchellrj]

@mvdwetering #23309

[Mariusthvdb]

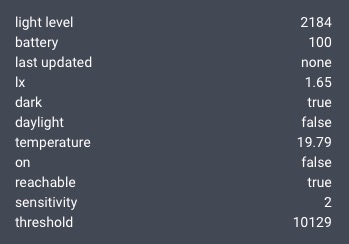

not really being sure, so please forgive me if this is an unnecessary question, but it would really be very nice if we got these values with the native sensors, since they are all part of templates being used throughtout the setup:

about the lux setting: in the current custom component, lx is calculated from light level as follows:

            lx = round(float(10 ** ((lightlevel - 1) / 10000)), 2)

if you need more info, please let me help if, be glad to.

[mitchellrj]

Some of these additional attributes are exposed as attributes on the sensor entities, for example battery level. For the initial implementation I opted not to include some of them, but that doesn't mean they cannot be included in the future.

…

On Mon, 22 Apr 2019, 21:20 Marius, ***@***.***> wrote: not really being sure, so please forgive me if this is an unnecessary question, but it would really be very nice if we got these values with the native sensors, since they are all part of templates being used throughtout the setup: [image: Schermafbeelding 2019-04-22 om 22 15 30] <https://user-images.githubusercontent.com/33354141/56526322-7072c380-654c-11e9-8f8c-3e4e67b9491b.jpg> about the lux setting: in the current custom component, lx is calculated from light level as follows: lx = round(float(10 ** ((lightlevel - 1) / 10000)), 2) — You are receiving this because you authored the thread. Reply to this email directly, view it on GitHub <#22598 (comment)>, or mute the thread <https://github.com/notifications/unsubscribe-auth/AABD47TWSVJBNP4WICHVPY3PRYM2DANCNFSM4HCSAHIA> .

[Mariusthvdb]

ok thanks, please do. Some of them are simply there for the taking. adding them is a matter of adding a line (at least it was like that in the CC...)

Hope you can add them like that too?

def parse_sml(response):
    """Parse the json for a SML Hue motion sensor and return the data."""
    if response["type"] == "ZLLLightLevel":
        lightlevel = response["state"].get("lightlevel")
        tholddark = response["config"].get("tholddark")
        if lightlevel is not None:
            lx = round(float(10 ** ((lightlevel - 1) / 10000)), 2)
            dark = response["state"]["dark"]
            daylight = response["state"]["daylight"]
            data = {
                "light_level": lightlevel,
                "lx": lx,
                "dark": dark,
                "daylight": daylight,
                "threshold": tholddark,

'reachable' and 'on' are truly important, hope these are already included right now?

[MartinHjelmare]

Please open an issue if you suspect a bug.

Merged PRs should not be used for enhancement discussion or bug reports. If you've found a bug it's ok to make a review with inline comments and link to an issue that reports the bug.

Thanks!
