Added Time based SMA to Filter Sensor by dgomes · Pull Request #13104 · home-assistant/core

dgomes · 2018-03-12T01:47:03Z

Description:

This adds a Simple Moving Average (SMA) Filter that works with a time based window.

A time based window can handle unevenly spaced time series.

Pull request in home-assistant.github.io with documentation (if applicable): home-assistant/home-assistant.io#4926

Example entry for `configuration.yaml` (if applicable):

  - platform: filter
    name: "Filtered power"
    entity_id: sensor.power_smart_meter
    filters:
      - filter: time_sma
        window_size: 00:01
        precision: 2

Checklist:

The code change is tested and works locally.
Local tests pass with tox. Your PR cannot be merged unless tests pass
Documentation added/updated in home-assistant.github.io

OttoWinter · 2018-03-12T15:48:11Z

 FILTER_NAME_LOWPASS = 'lowpass'
 FILTER_NAME_OUTLIER = 'outlier'
 FILTER_NAME_THROTTLE = 'throttle'
+FILTER_NAME_TIME_SMA = 'time_sma'


I'm not sure about this name, it's not very descriptive. Maybe time_weighted_average instead?

That name is too long :(

The actual name would be SMA_last as per the paper the filter is based upon:
http://www.eckner.com/papers/Algorithms%20for%20Unevenly%20Spaced%20Time%20Series.pdf

I don't really think it's too long. I mean yes it's longer than most other filter names but time_sma is just incredibly hard to understand and the more descriptive name outweighs how long it is for me. And we shouldn't force our users to read scientific papers, ideally the filter would just work.

Furthermore it's not a weighted average. Just refer to wikipedia for the differences:

https://en.wikipedia.org/wiki/Moving_average

I agree users should not need to read scientific papers to profit from filters, but that was another PR ;)

From another comment on this PR I understand that the "last" part of the official name is actually an important implementation detail of this algorithm. I would expect that to be part of the name unless we plan on making it first/last etc configurable for this filter later on.

I think putting the last/first/average part into a type: option very clean. If we add separate filters for each filter type we would eventually just pollute the filter list.

And since these filters are so similar it would also make sense semantically. Can of course also go into a follow-up PR.

As described in the other comment, a second PR with the "linear" implementation is possible, although I have other filters in the priority list first. Maybe someone else can have a go 😄

I propose to link the paper in the documentation and code "type: last" as the default for the time being.

I like adding a type: last to the options for this filter 👍

type is reserved word, can I use variant :) ?

What do you mean with reserved? We're talking about the config format right? I think that this makes sense:

- platform: filter name: "Filtered power" entity_id: sensor.power_smart_meter filters: - filter: time_simple_moving_average window_size: 00:01 precision: 2 type: last

I am a bit confused why a name can be too long? Assume your users, like me, have no clue about filters. I would prefer less abbreviations or having to read papers to get what I want. time_simple_moving_average sounds about right?

OttoWinter · 2018-03-12T15:55:37Z

+                self.last_leak = self.queue.popleft()
+            else:
+                break
+        return now


I would instead create now in _filter_state and pass down the value to _leak.

def _leak(self, now): while self.queue: timestamp, _ = self.queue[0] if timestamp + self._time_window > now: return self.last_leak = self.queue.popleft()

After all, it's not the _leaks responsibility to track time.

Good point!

OttoWinter · 2018-03-12T16:01:32Z

+        _, prev_val = self.last_leak or (0, float(new_state))
+
+        for timestamp, val in self.queue:
+            moving_sum += (timestamp-start)*prev_val

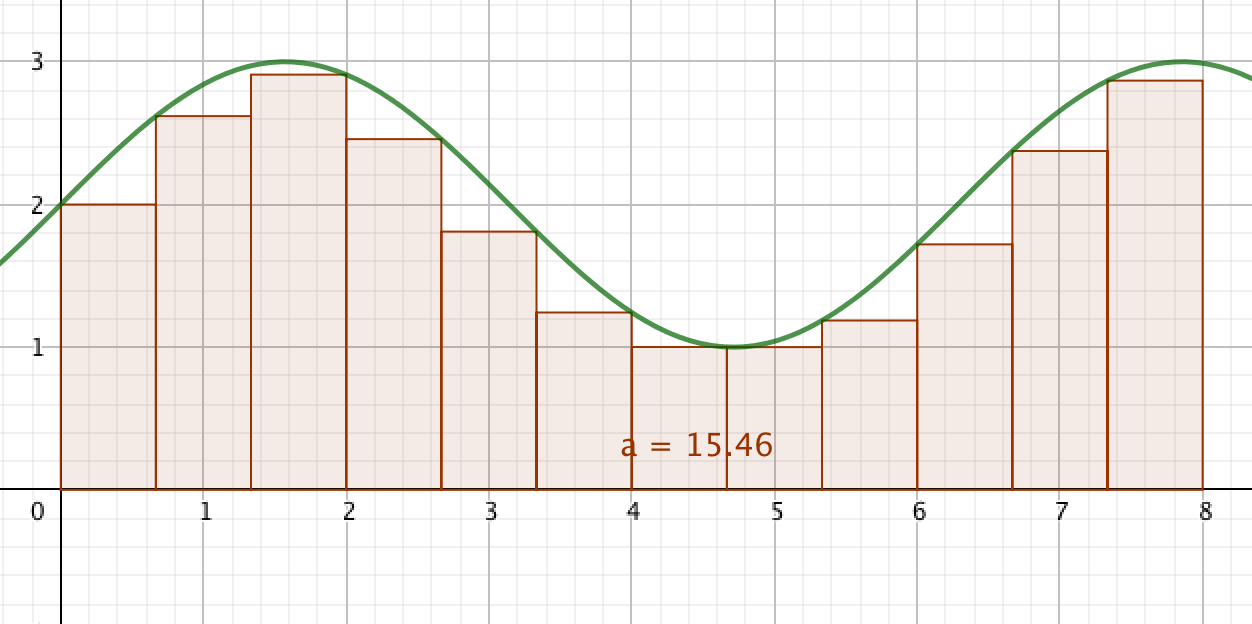

What you're doing here is a lower bound of the moving average:

(Edit: This picture is not entirely true; Your code always takes the previous values for the "integral" approximation, not the lower of the two)

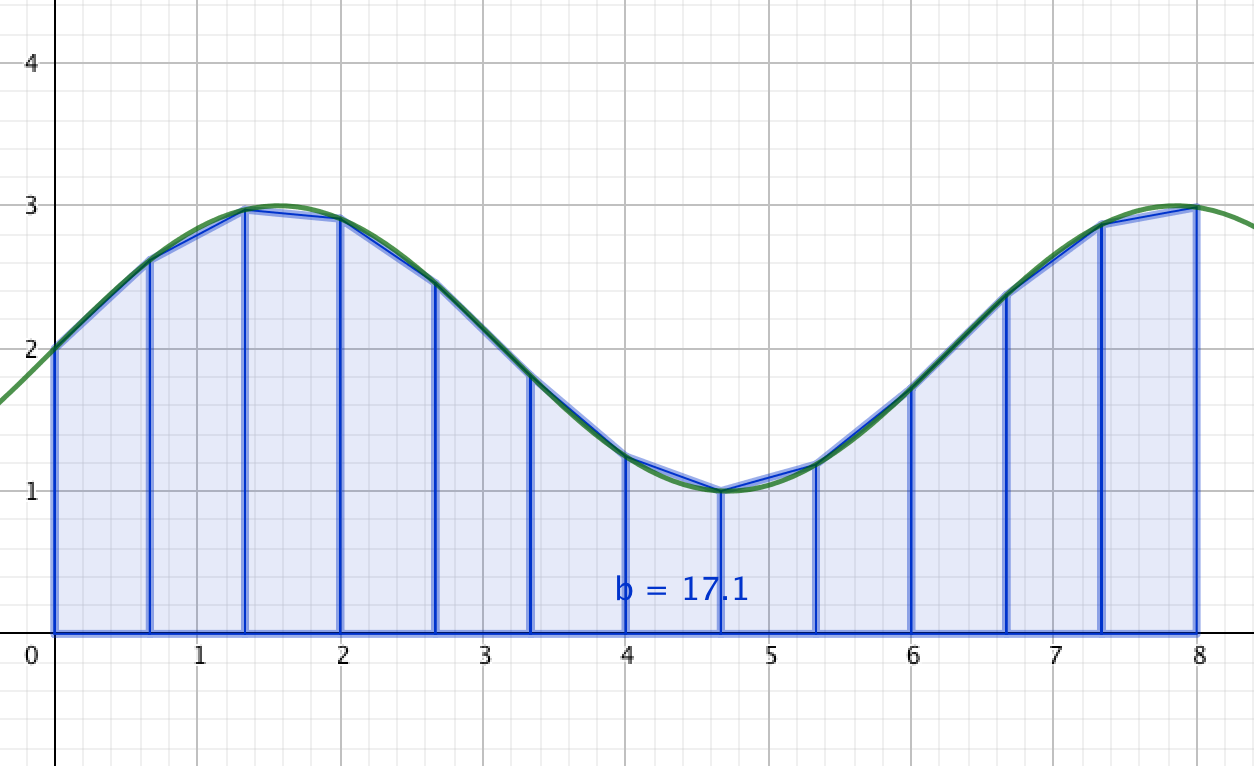

Ideally we would instead be using the mean of prev and val:

I based the implementation in this paper:

http://www.eckner.com/papers/Algorithms%20for%20Unevenly%20Spaced%20Time%20Series.pdf

My implementation is that of SMA_last, what you propose is SMA_linear. Both are acceptable filters, yet different ones.

Ok that is true; I don't see much value in this SMA_last method over the trapezoids though. The latter just seems quite a bit more accurate in most cases.

I will probably PR a second filter based on SMA_linear, but the use cases are different:

SMA_last: "discrete observation values"

sensors that are event based

binary_sensors in HA

SMA_linear: "discretely-observed continuous-time stochastic processes"

sensors which are polled

OttoWinter · 2018-03-12T16:07:49Z

+            start, prev_val = timestamp, val
+        moving_sum += (now-start)*prev_val
+
+        return moving_sum/self._time_window


What if we don't receive any value within self._time_window? I think we should be reporting an unknown state then. For example if my time window is 1 minute but I haven't received any state updates for 2 minutes, the output of this sensor should automatically be set to unknown (and not just repeat the same old state indefinitely).

I know this might be a bit of work to do but it's what I'd expect as a user. See usages of async_track_point_in_utc_time for ways how to do this.

I disagree, If I don't get any values it just means that it hasn't changed.

The problem here is that the time has changed and time is also an input into this filter. Imagine that our current value is based off 2 states that happened during the window. If we wait long enough that 1 state drops out of our window, wouldn't you expect to base the value off just the other state?

@balloob that is exactly what it will happen.

Even if no points are left in the time window, the filter will report based on the last value that exited the windows (_, prev_val = self.last_leak )

@dgomes I think you're misunderstanding Paulus' comment (or I'm not understanding it...)

If there's only one point within the time window, as a user I wouldn't expect it to use the last value outside the time window for any computation. It should just discard anything that's outside the time window.

In other words: only every consider the data points that are inside the time frame for computation. See this gif for an example (the blue points are the data points, the blue area is our time window and red line is the output):

Couple of things going on here:

First we only "see" the first value, so of course we should only report that value.

Then we start to see the next value. We should then take the weighted average (or whatever it's called in your paper) of the two.

If the first value exits the window, we should not use it for any computation anymore. In your current code that is however happening, not what I would expect.

Optional: In my opinion if there's no data points inside our window left, as I said we should report an unknown state. This might differ from the definition in the paper you mentioned, but IMHO our user base is not made up of scientists nor developers.

(The computation of the values while both data points are inside the time window is probably not right in my gif, but that's not the focus of this comment.)

@OttoWinter that is not the filter I'm implementing here.

Sure, that filter can be implemented, but it's not the one in this PR.

Please share how you are creating those graphs 😄

@dgomes I see that you report only on the last value but you only update the filter value when a new state comes in right?

@dgomes Ok, sorry I will shut up about other filters 😅

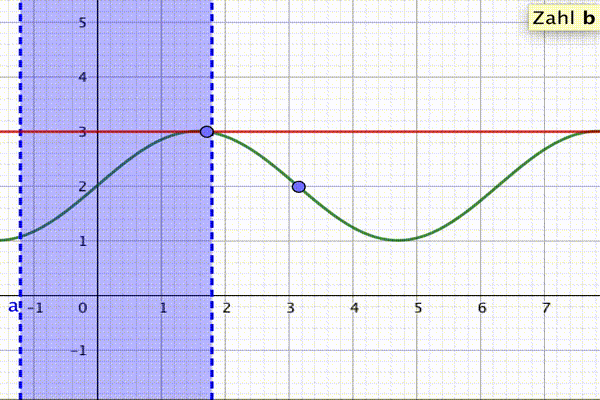

Yeah those graphics were done with (ab)using GeoGebra, but I would describe it as the single most user-unfriendly maths tools ever written IMHO (but it's sadly what's taught here in Austria 🇦🇹). Seriously, it's incredibly hard to use if you're starting out. (incidentally, because of its poor usability the rest of my class will probably also have to re-take a recent maths exam 😥)

btw, if for some reason you're looking for a nice tool (in python, yay) for creating nice presentations, have a look at manim. For example, it has allowed me to create these fancy visualizations about graph theory: https://youtu.be/t2Gb1YA-HcU 😺

@balloob right, this filter always lags 1 state behind. The concept is that the raw sensor has maintained the previous status until the new state has arrived.

E.g.: Think about a water pump that publishes its rate (1 to 5). If the pump is at speed 5 and comes down to speed 4 (new state) the SMA is calculated with the period of time in which the pump was at 5 (we weight in the time the pump was at 5), 4 is of no use in the SMA since the period of time is 0 (it just got to 4).

@OttoWinter please contribute more filters :) It's just that I'm prioritising filters I can use in my setup. There are plenty of important filters missing which I hope some else can contribute 😄

Okay I'm going to shut up talking about filters as I have clearly not a clue what I am talking about 👍

balloob · 2018-03-15T04:06:45Z

+                return
+
+    def _filter_state(self, new_state):
+        now = int(datetime.now().timestamp())


Use our date util package and UTC timestamps:

from homeassistant.util import date as dt_util dt_util.utcnow()

That way you won't get hit by daylight savings etc.

Any reason you're using timestamps instead of datetime objects?

window size is already given to you in a timedelta. So you can do things like dt_util.utcnow() - self._time_window to calculate points in time.

Time needs to be multiplied with an unknown type value, so I preferred to keep safe and make sure time is an int.

balloob · 2018-03-15T04:07:22Z

+        while self.queue:
+            timestamp, _ = self.queue[0]
+            if timestamp + self._time_window <= now:
+                self.last_leak = self.queue.popleft()


Is there any reason this is assigned to an instance variable instead of a local variable and returned at the end of the while loop ?

Please look at the previous comment #13104 (comment)

Keeping this value assures me I always have some value to work with in the _filter_state()

The filter always lags 1 state behind, so using the new state in these cases (when there are no previous states in the windows) would make the behaviour erratic.

houndci-bot · 2018-03-15T18:39:26Z

+FILTER_TIME_SMA_SCHEMA = FILTER_SCHEMA.extend({
+    vol.Required(CONF_FILTER_NAME): FILTER_NAME_TIME_SMA,
+    vol.Optional(CONF_TIME_SMA_TYPE,
+                 default=TIME_SMA_LAST): vol.All(cv.ensure_list, [vol.Any(TIME_SMA_LAST)]),


line too long (91 > 79 characters)

balloob

Ok to merge when a test has been added for this filter

OttoWinter

Great 👍

OttoWinter · 2018-03-18T11:41:37Z

+    vol.Required(CONF_FILTER_NAME): FILTER_NAME_TIME_SMA,
+    vol.Optional(CONF_TIME_SMA_TYPE,
+                 default=TIME_SMA_LAST): vol.In(
+                     [None, TIME_SMA_LAST]),


Why is None required here? I mean we have a default. The only configuration that I believe would spit out None here would be the following:

- platform: filter # ... filters: - filter: time_simple_moving_average type:

And I think we should break when the user writes that.

Oops, Otto is right.

You are absolutely right! Just created a new PR #13326

balloob · 2018-03-18T15:58:57Z

🎉 🎉 🎉 🎉 🎉

Added Time based SMA

da50319

homeassistant added cla-signed platform: sensor.filter labels Mar 12, 2018

OttoWinter reviewed Mar 12, 2018

View reviewed changes

move "now" to _filter_state()

90e1dcb

homeassistant added the cla-signed label Mar 12, 2018

balloob reviewed Mar 15, 2018

View reviewed changes

Addressed comments

790d67a

homeassistant added the cla-signed label Mar 15, 2018

houndci-bot reviewed Mar 15, 2018

View reviewed changes

fix long line

212e341

homeassistant added the cla-signed label Mar 15, 2018

dgomes mentioned this pull request Mar 16, 2018

Added Time SMA home-assistant/home-assistant.io#4926

Merged

2 tasks

dgomes added 2 commits March 16, 2018 02:24

type and name

3467fdd

# pylint: disable=redefined-builtin

2f767f9

balloob approved these changes Mar 16, 2018

View reviewed changes

added test

8480db5

OttoWinter approved these changes Mar 18, 2018

View reviewed changes

balloob merged commit 1e17b2f into home-assistant:dev Mar 18, 2018

dgomes mentioned this pull request Mar 18, 2018

Fix to #13104 #13320

Closed

OttoWinter mentioned this pull request Mar 18, 2018

Initialise filter_sensor with historical values #13075

Merged

4 tasks

dgomes mentioned this pull request Mar 18, 2018

Superfluous None in validation list #13326

Merged

balloob mentioned this pull request Mar 30, 2018

0.66.0 #13554

Merged

home-assistant locked and limited conversation to collaborators Jul 26, 2018

ghost added integration: filter and removed platform: sensor.filter labels Mar 21, 2019
