[EPM] Store map visualizations from the package registry and use saved object ID by jonathan-buttner · Pull Request #62059 · elastic/kibana

jonathan-buttner · 2020-03-31T19:38:36Z

This PR adds maps to the types of kibana assets that can be created from a package.

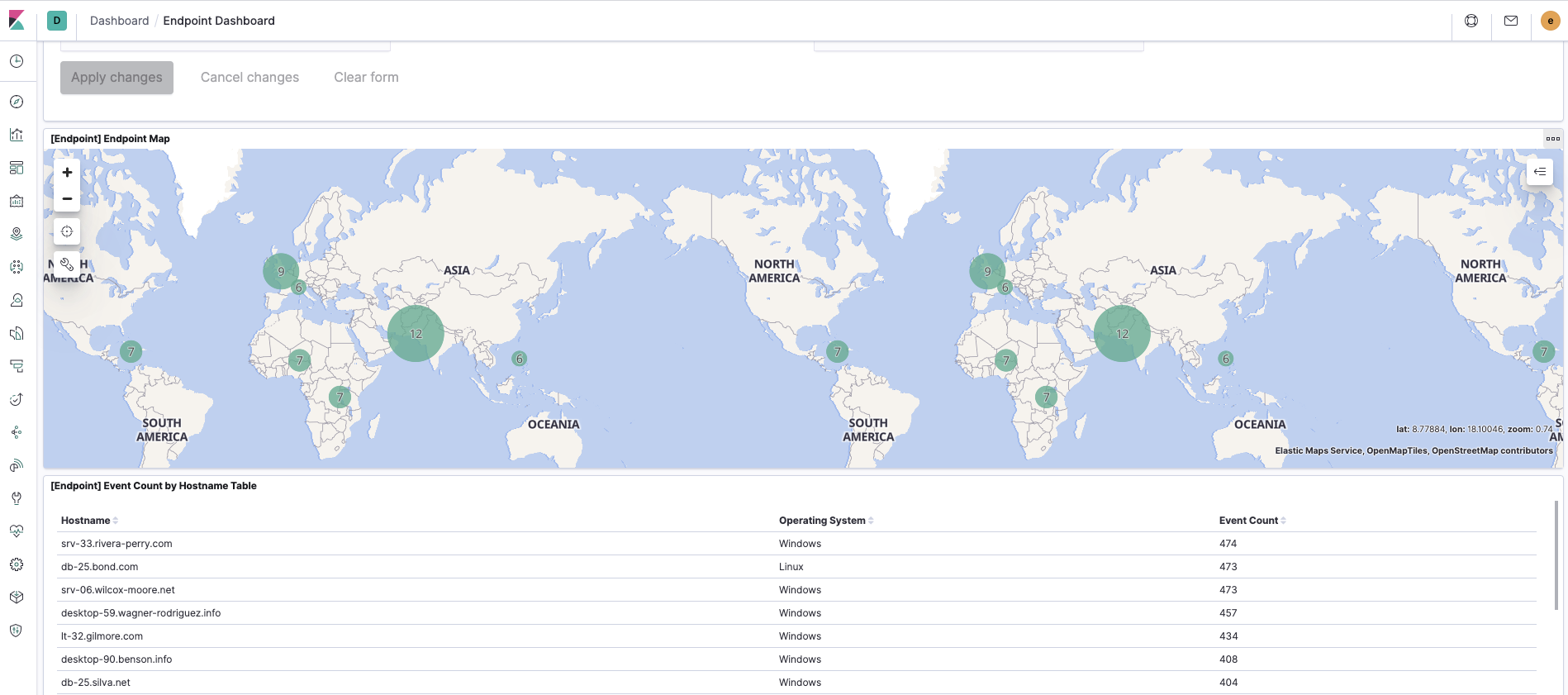

Example map working

Testing

To test this change:

Open the Ingest Manager plugin
Install the Okta package

Kibana may crash because of the ingest pipeline within the okta package (this is happing on master without my change as well), this is what was happening to me

{ Error: Internal Server Error
    at respond (/Users/jbuttner/proj/es/kibana/node_modules/elasticsearch/src/lib/transport.js:349:15)
    at checkRespForFailure (/Users/jbuttner/proj/es/kibana/node_modules/elasticsearch/src/lib/transport.js:306:7)
    at HttpConnector.<anonymous> (/Users/jbuttner/proj/es/kibana/node_modules/elasticsearch/src/lib/connectors/http.js:173:7)
    at IncomingMessage.wrapper (/Users/jbuttner/proj/es/kibana/node_modules/elasticsearch/node_modules/lodash/lodash.js:4929:19)
    at IncomingMessage.emit (events.js:203:15)
    at endReadableNT (_stream_readable.js:1145:12)
    at process._tickCallback (internal/process/next_tick.js:63:19)
  status: 500,
  displayName: 'InternalServerError',
  message: 'Internal Server Error',
  path: '/_ingest/pipeline/logs-okta.system-0.0.1',
  query: undefined,
  body:
   '---\nerror:\n  root_cause:\n  - type: "not_x_content_exception"\n    reason: "Compressor detection can only be called on some xcontent bytes or compressed\\\n      \\ xcontent bytes"\n  type: "not_x_content_exception"\n  reason: "Compressor detection can only be called on some xcontent bytes or compressed\\\n    \\ xcontent bytes"\nstatus: 500\n',
  statusCode: 500,
  response:
   '---\nerror:\n  root_cause:\n  - type: "not_x_content_exception"\n    reason: "Compressor detection can only be called on some xcontent bytes or compressed\\\n      \\ xcontent bytes"\n  type: "not_x_content_exception"\n  reason: "Compressor detection can only be called on some xcontent bytes or compressed\\\n    \\ xcontent bytes"\nstatus: 500\n',
  toString: [Function],
  toJSON: [Function] }

Terminating process...
 server crashed  with status code 1

The dashboard and map should still be installed even though kibana crashed.
3. Restart Kibana but not ES
4. Go to the dashboard page
5. Open the [Filebeat Okta] Overview dashboard
6. See that the map is now in the dashboard

With the change

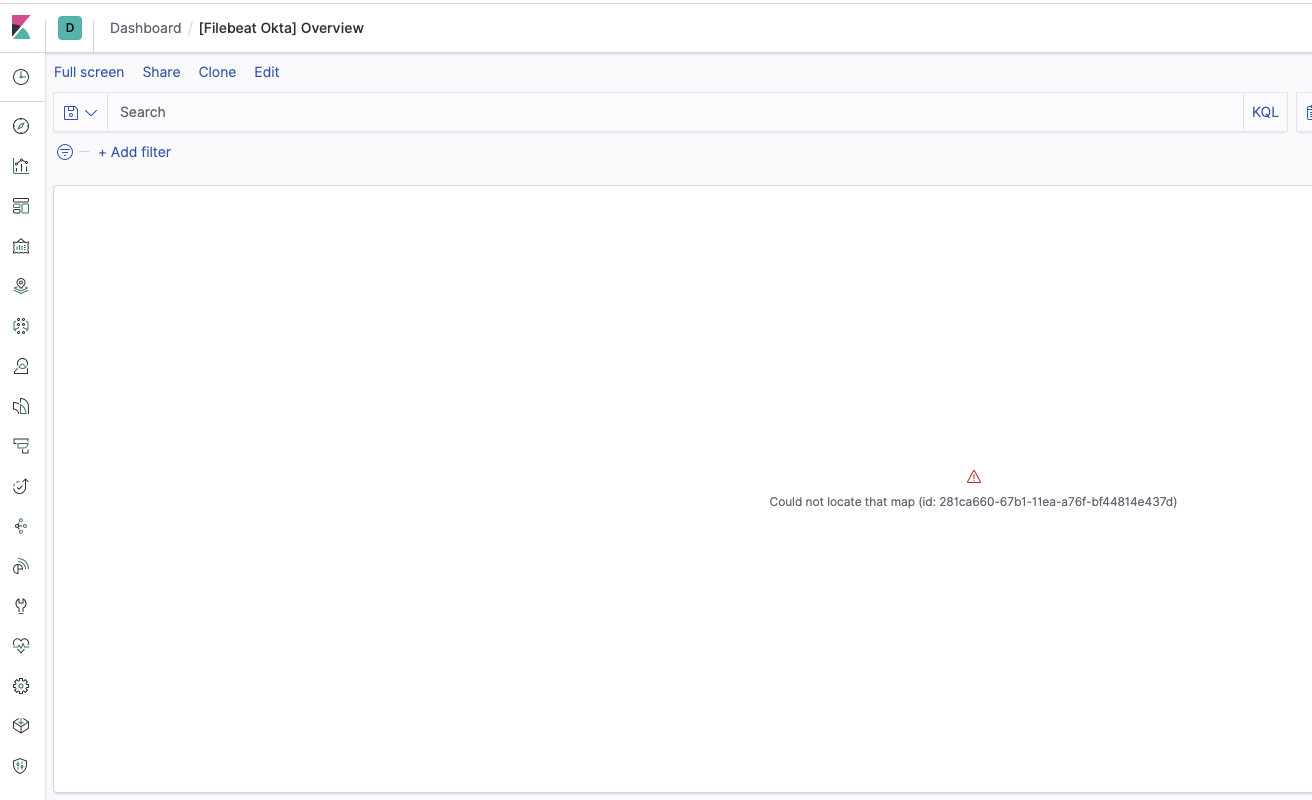

Without this change

elasticmachine · 2020-03-31T19:38:39Z

Pinging @elastic/ingest-management (Feature:EPM)

jonathan-buttner · 2020-03-31T20:59:50Z

x-pack/plugins/ingest_manager/public/applications/ingest_manager/sections/epm/constants.tsx

  'index-pattern': 'indexPatternApp',
  search: 'searchProfilerApp',
  visualization: 'visualizeApp',
+  map: 'mapApp',


Not sure if these need to be actual names of icons or something? @jen-huang @neptunian @jfsiii

I believe this is only used in the AssetsFacetGroup component to get the icon. We have a prototype of an assets section in the package detail page, but its been pushed back for a while as its not really important. so you can keep this and when we bring it back, we'll fix it if its not working.

Ah ok, thanks Sandra!

jfsiii · 2020-03-31T21:01:54Z

@jonathan-buttner Can you include instructions for how to test this?

jfsiii · 2020-03-31T21:05:05Z

x-pack/plugins/ingest_manager/server/services/epm/packages/get_objects.ts

  const savedObject: SavedObjectToBe = {
    type,
-    id: file.replace('.json', ''),
+    id: asset.id,


IIRC, EPM initially stored the ID given by the registry/package. However, IIRC, it was removed because we couldn't count on it(upgrades?). I believe we were going to have EPM maintain a mapping(?).

/cc @ruflin @skh @neptunian

I guess we can add this now and fix the broken case you show, then deal with the other issues if/when they show up.

My long term preference would be that we use our "own" ids to make sure we don't conflict with other assets and keep a list.

+1 on adding this now to make it work and figure out the exact renaming.

@skh @neptunian Your input on where we are standing here would be great.

@jfsiii I think I can actually revert this change based on a recommendation from @ruflin. The dashboard I was exporting was relying on a custom index pattern I created instead of the one that the ingest manager creates so I should be able to get around needing to change this line.

ruflin · 2020-04-01T06:23:17Z

@jonathan-buttner Thanks for taking this on. This will close #60353

jonathan-buttner · 2020-04-01T13:10:54Z

@jonathan-buttner Can you include instructions for how to test this?

Yeah sorry about that I'll add some instructions.

jonathan-buttner · 2020-04-01T19:43:12Z

@elasticmachine merge upstream

elasticmachine · 2020-04-03T15:45:05Z

Pinging @elastic/endpoint-app-team (Feature:Endpoint)

jonathan-buttner · 2020-04-06T15:16:27Z

@elasticmachine merge upstream

kibanamachine · 2020-04-06T17:06:26Z

💚 Build Succeeded

continuous-integration/kibana-ci/pull-request
Commit: 941edf9

History

💚 Build #37960 succeeded 486b38f
💔 Build #37915 failed f72e2ab
💔 Build #37909 failed 9a0c070
💚 Build #37817 succeeded ff5046d
💚 Build #37680 succeeded ff5046d

To update your PR or re-run it, just comment with:
@elasticmachine merge upstream

neptunian · 2020-04-07T11:48:56Z

x-pack/plugins/ingest_manager/public/applications/ingest_manager/sections/epm/constants.tsx

  'index-pattern': 'indexPatternApp',
  search: 'searchProfilerApp',
  visualization: 'visualizeApp',
+  map: 'mapApp',


I believe this is only used in the AssetsFacetGroup component to get the icon. We have a prototype of an assets section in the package detail page, but its been pushed back for a while as its not really important. so you can keep this and when we bring it back, we'll fix it if its not working.

* master: [APM] Change custom link from EuiListGroupItem to EuiLink (elastic#62742) [Remote Clusters] Update callout and move server_name field (elastic#62352) Removes Pitch Presentation Template from Canvas (elastic#62688) FTR: Enable w3c for chromedriver (elastic#62542) [ML] Disable functional tests [ILM] Skip failing API integration test (elastic#62779) [SIEM] Update beat doc (elastic#61902) [Search] Properly add slash preceding path in async search (elastic#62722) [APM] make sure environment query is correct for service maps… (elastic#62764) Add service map icon for rum-js agent type (elastic#62721) [APM] Service map - fixes irrelevant services on data refresh (elastic#62750) [APM] Service map - Fix taxi edge arrow orientation (elastic#62741) [APM] Prevent error rate alert trigger from rendering NaN (elastic#62754) [EPM] Store map visualizations from the package registry and use saved object ID (elastic#62059) [Alerting] for email action, set tls.rejectUnauthorized: false when secure: false (elastic#62380)

kibanamachine · 2020-04-09T12:58:45Z

Friendly reminder: Looks like this PR hasn’t been backported yet.
To create backports run node scripts/backport --pr 62059 or prevent reminders by adding the backport:skip label.

…d object ID (#62059) (#63146) * Using saved objects id instead of creating one * Adding map to list of types * Fixing typing errors * Reverting id change * Reverting asset id Co-authored-by: Elastic Machine <elasticmachine@users.noreply.github.com> Co-authored-by: Elastic Machine <elasticmachine@users.noreply.github.com>

## PR Summary Show [`emsApp` icon from EUI](https://eui.elastic.co/#/display/icons#apps) if integration includes map assets. <img width="229" alt="Screen Shot 2021-01-12 at 3 14 14 PM" src="https://user-images.githubusercontent.com/57655/104367878-65628280-54e9-11eb-8d9c-fa838e2c15ae.png"> Looking at #62059 (comment), I believe it landed with the incorrect key at a time when that part of the page wasn't visible. When we enabled that section, we likely didn't notice the missing key since most integrations don't have Maps assets ## Bug: `master` doesn't have an icon for Map assets 1. Visit an integration with map assets, like AWS http://localhost:5601/app/fleet#/integrations/detail/aws-0.3.16 2. Observe missing icon for Map in right column summary & HTTP request for `/app/mapApp` <img width="1013" alt="Screen Shot 2021-01-12 at 3 10 44 PM" src="https://user-images.githubusercontent.com/57655/104367875-64c9ec00-54e9-11eb-81d8-982bec862f5f.png"> ## This PR adds one 1. Visit an integration with map assets, like AWS http://localhost:5601/app/fleet#/integrations/detail/aws-0.3.16 2. Observe EMS icon is present in right column summary <img width="1087" alt="Screen Shot 2021-01-12 at 3 11 39 PM" src="https://user-images.githubusercontent.com/57655/104367877-65628280-54e9-11eb-91da-578fec6ff769.png">

jonathan-buttner added 2 commits March 31, 2020 12:03

Using saved objects id instead of creating one

e33b320

Adding map to list of types

18b08ab

jonathan-buttner added v8.0.0 release_note:skip Skip the PR/issue when compiling release notes Feature:EPM Fleet team's Elastic Package Manager (aka Integrations) project v7.8.0 labels Mar 31, 2020

jonathan-buttner requested a review from a team March 31, 2020 19:38

jonathan-buttner self-assigned this Mar 31, 2020

Fixing typing errors

ff5046d

jonathan-buttner commented Mar 31, 2020

View reviewed changes

jfsiii reviewed Mar 31, 2020

View reviewed changes

jonathan-buttner added 2 commits April 1, 2020 13:15

Reverting id change

9a0c070

Reverting asset id

f72e2ab

Merge branch 'master' into saved-objects-maps-ids

486b38f

jonathan-buttner added the Feature:Endpoint Elastic Endpoint feature label Apr 3, 2020

Merge branch 'master' into saved-objects-maps-ids

941edf9

neptunian approved these changes Apr 7, 2020

View reviewed changes

jonathan-buttner merged commit 994aa63 into elastic:master Apr 7, 2020

jonathan-buttner deleted the saved-objects-maps-ids branch April 7, 2020 12:50

kibanamachine added the backport missing Added to PRs automatically when the are determined to be missing a backport. label Apr 9, 2020

jen-huang added the Team:Fleet Team label for Observability Data Collection Fleet team label Apr 9, 2020

jonathan-buttner mentioned this pull request Apr 9, 2020

[7.x] [EPM] Store map visualizations from the package registry and use saved object ID (#62059) #63146

Merged

kibanamachine removed the backport missing Added to PRs automatically when the are determined to be missing a backport. label Apr 9, 2020

ph mentioned this pull request Oct 16, 2020

[EPM] Add support for map object in packages #60353

Closed

jfsiii mentioned this pull request Jan 13, 2021

[Fleet] Fix broken maps icon key #88093

Merged
