[SR] Design and copywriting fixes by jen-huang · Pull Request #35591 · elastic/kibana

jen-huang · 2019-04-25T15:01:20Z

Changes based on design and copywriting reviews. Main changes:

Rename app to Snapshot Repositories

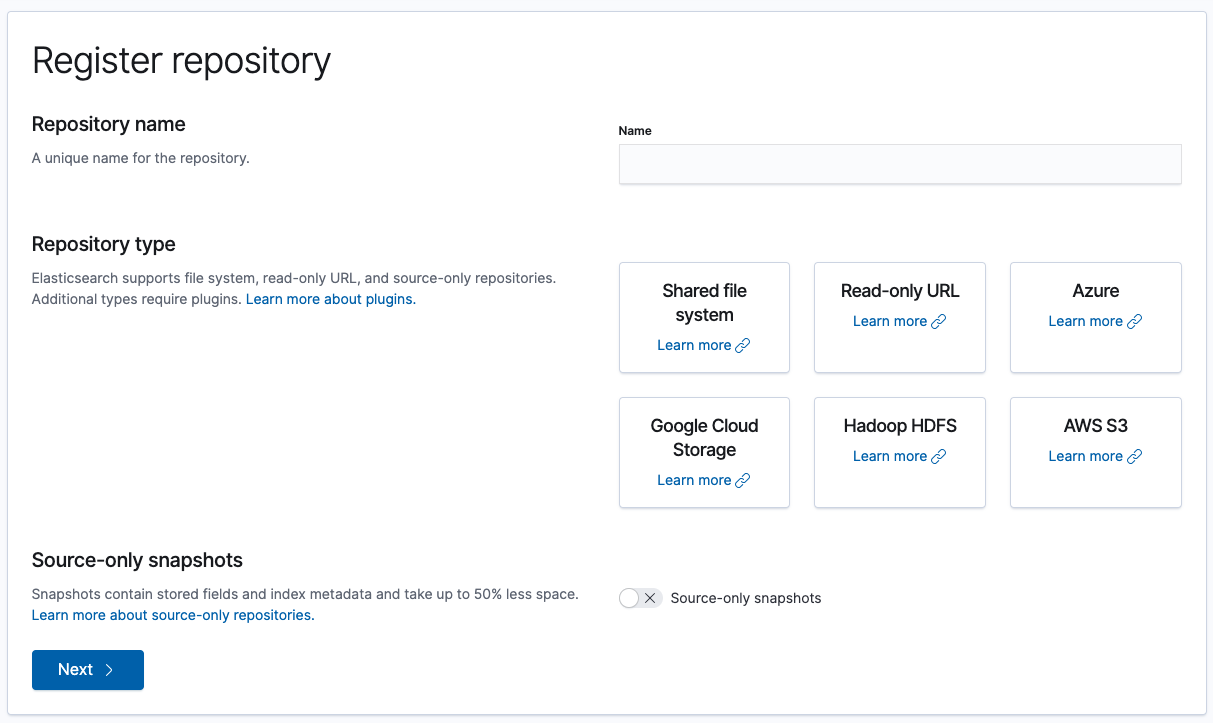

Split repository form into two steps; move clean_settings.ts to server
Add minimum timeout to list view requests to avoid flicker

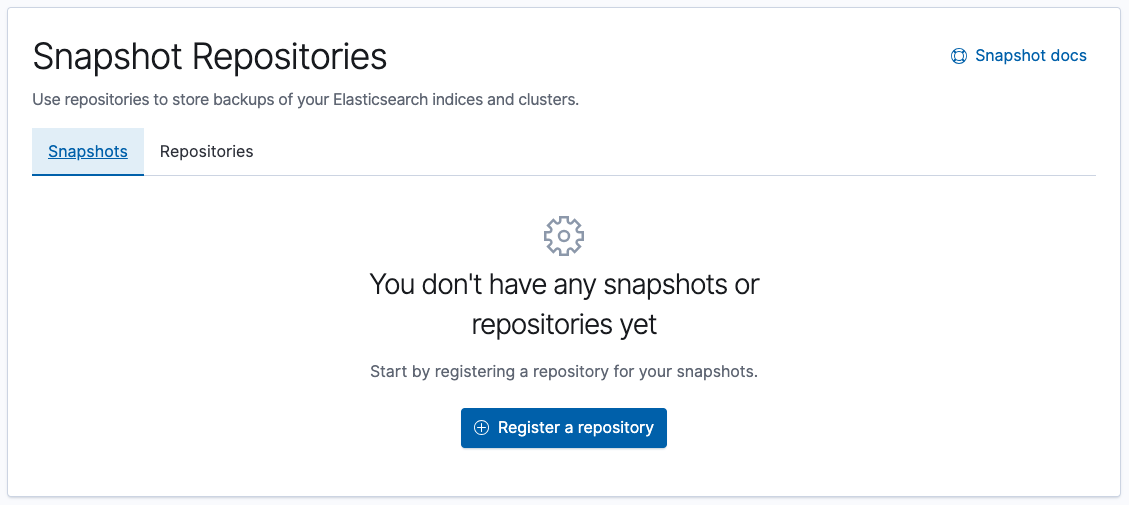

Use EuiEmptyPrompt for loading screen

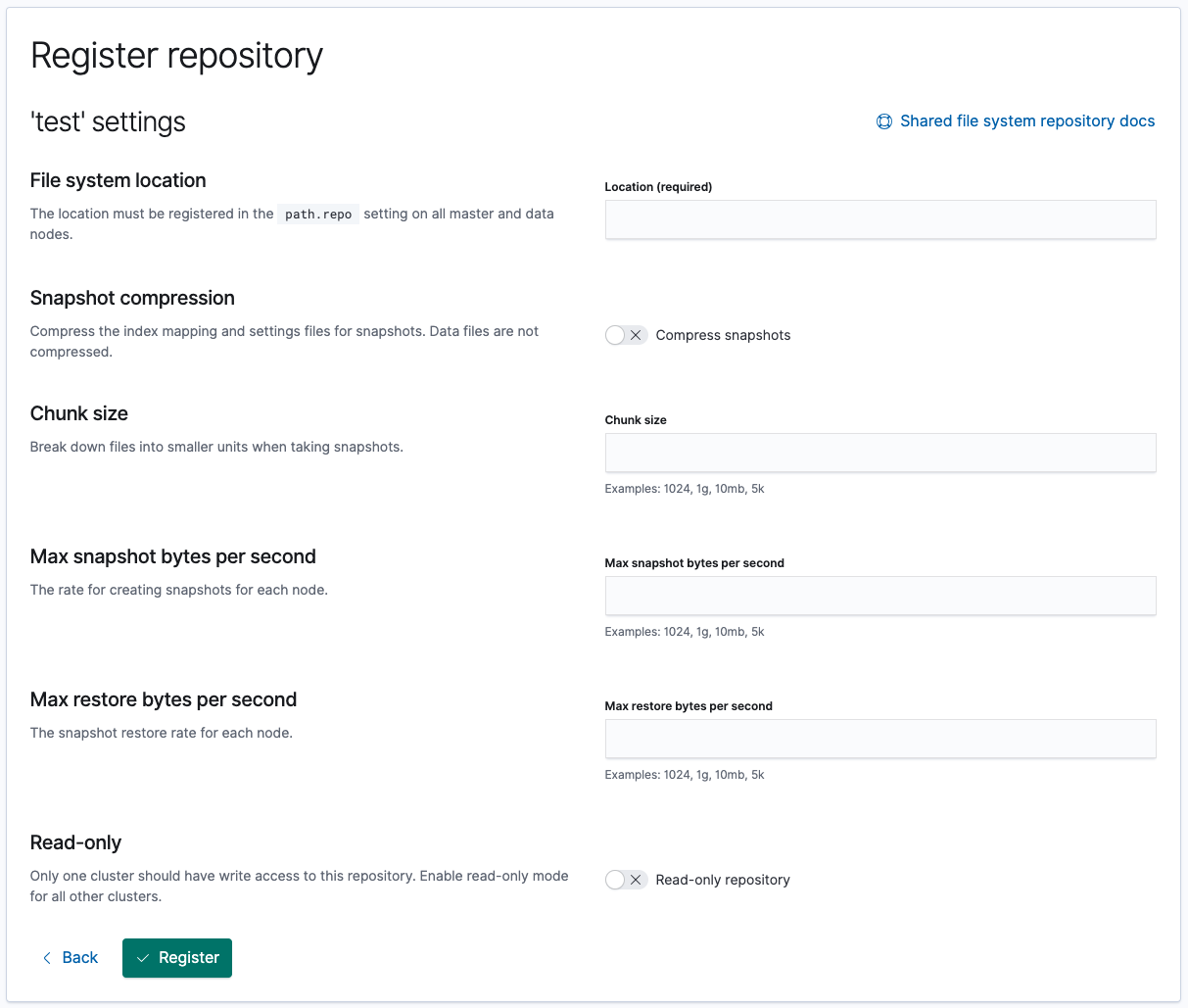

Add doc link to settings step
Add information about snapshots to delete repository behavior
Add doc link for source only toggle, add size notation help text
Add main doc link
Copywriting and i18n fixes
Add some common settings to third party repo types

…iption

…ptyPrompt for loading screen, add doc link to settings step

…c link for source only toggle, add size notation help text

…ty repo types

elasticmachine · 2019-04-25T15:01:24Z

Pinging @elastic/es-ui

jen-huang · 2019-04-25T15:59:31Z

x-pack/plugins/snapshot_restore/public/app/components/repository_form/_repository_form.scss

@@ -0,0 +1,19 @@
+@import 'src/legacy/ui/public/styles/_styling_constants';
+
+.ssrRepositoryFormTypeCard {

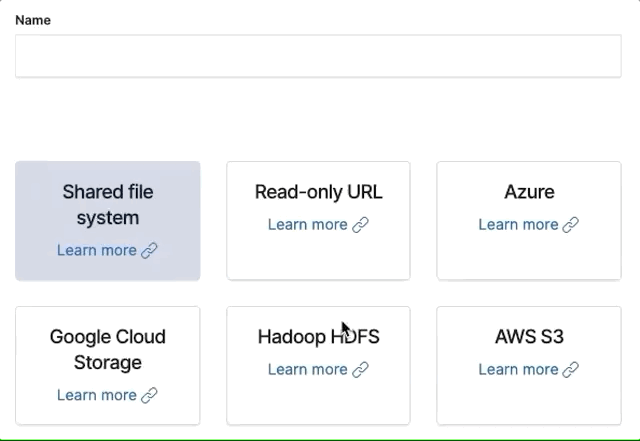

@elastic/kibana-design the rules here are to add hover and selected styling to the repository type cards. there is also a wrapper around each card to enable keyboard navigation and selection. tabbing through each card applies the same styling as hovering:

We are working on an EUI-side solution for you, can you hold off on applying this?

@cchaos I'm happy to swap out with EUI's solution whenever it is ready and would like to keep current styling in place until then 😄

elasticmachine · 2019-04-25T16:03:33Z

💚 Build Succeeded

continuous-integration/kibana-ci/pull-request

elasticmachine · 2019-04-26T02:45:08Z

💚 Build Succeeded

continuous-integration/kibana-ci/pull-request

alisonelizabeth

@jen-huang Nice work! LGTM. Left a couple minor comments around some of the text.

Also, what do you think about disabling the Next button on step 1 of the form if the user provides invalid fields? It looks like we're following that pattern for rollup jobs.

alisonelizabeth · 2019-04-26T13:20:52Z

...plugins/snapshot_restore/public/app/components/repository_form/type_settings/fs_settings.tsx

-              id="xpack.snapshotRestore.repositoryFor.typeFS.urlFilePathDescription"
-              defaultMessage="This location (or one of its parent directories) must be registered in the {settingKey} setting on all master and data nodes."
+              id="xpack.snapshotRestore.repositoryFor.typeFS.locationDescription"
+              defaultMessage="The location must be registered in the {settingKey} setting on all master and data nodes. "


looks like an extra space here

alisonelizabeth · 2019-04-26T13:28:18Z

x-pack/plugins/snapshot_restore/public/app/constants/index.ts

@@ -5,8 +5,12 @@
 */

 export const BASE_PATH = '/management/elasticsearch/snapshot_restore';


Should this remain as /snapshot_restore?

yeah, in order to not break bookmarks/links when we add restore functionality

alisonelizabeth · 2019-04-26T13:31:54Z

x-pack/plugins/snapshot_restore/public/app/components/repository_form/step_one.tsx

+          <h3>
+            <FormattedMessage
+              id="xpack.snapshotRestore.repositoryForm.fields.nameDescriptionTitle"
+              defaultMessage="Repository name"


Should this be Repository name (required)?

alisonelizabeth · 2019-04-26T13:32:24Z

x-pack/plugins/snapshot_restore/public/app/components/repository_form/step_one.tsx

+            <h3>
+              <FormattedMessage
+                id="xpack.snapshotRestore.repositoryForm.fields.typeDescriptionTitle"
+                defaultMessage="Repository type"


Change to Repository type (required)?

…gress

This reverts commit e34ee47.

jen-huang · 2019-04-29T18:56:11Z

@alisonelizabeth Thanks for the review! I think disabling Next is a good idea, however would require some time-consuming changes to the current way validation works on both steps, so I will defer this enhancement for now. For the first step containing type and name, it's implied that all fields are required (as opposed to step two where some settings are required and others are optional), so adding Required to the fields isn't necessary IMO.

jen-huang · 2019-04-29T19:01:21Z

Side note: I implemented e34ee47 as a result of stakeholder review, but reverted due to Roy's feedback for Cloud implications.

elasticmachine · 2019-04-29T19:43:29Z

💚 Build Succeeded

continuous-integration/kibana-ci/pull-request

cchaos · 2019-05-02T15:49:34Z

@jen-huang The selectable EuiCard types are in EUI 10.3.0 https://elastic.github.io/eui/#/display/card (bottom of page)

jen-huang · 2019-05-02T17:00:10Z

Thanks @cchaos, the cards look great!! @chandlerprall is working on upgrading Kibana so once that's done I'll convert the cards over.
