[SPARK-39470][SQL] Support cast of ANSI intervals to decimals #36857

MaxGekk · 2022-06-13T17:06:28Z

What changes were proposed in this pull request?

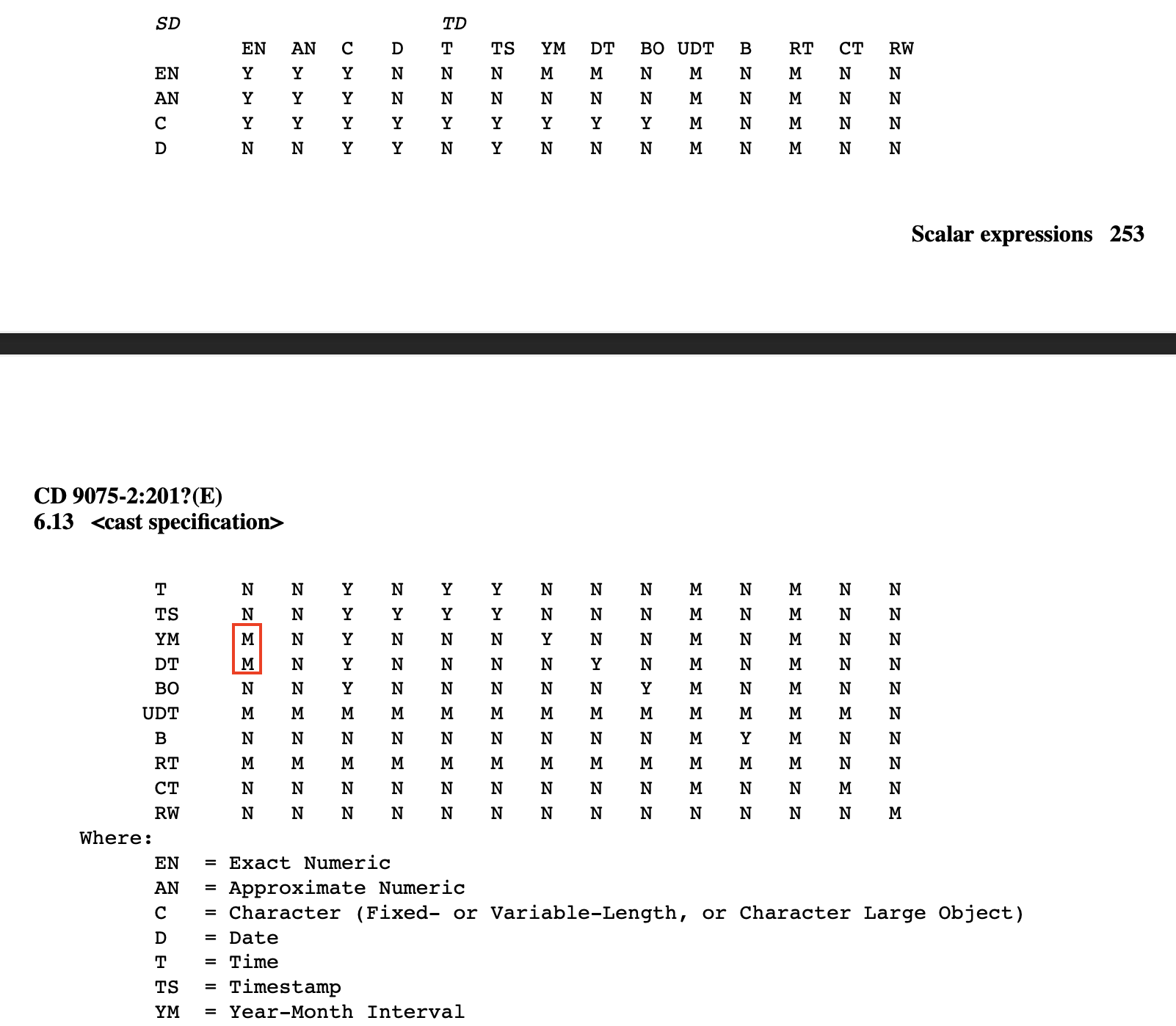

In the PR, I propose to support casts of ANSI intervals to decimals, and follow the SQL standard:

Why are the changes needed?

To improve user experience with Spark SQL, and to conform to the SQL standard.

Does this PR introduce any user-facing change?

No, it just extends existing behavior of casts.

Before:

spark-sql> SELECT CAST(INTERVAL '1.001002' SECOND AS DECIMAL(10, 6));
Error in query: cannot resolve 'CAST(INTERVAL '01.001002' SECOND AS DECIMAL(10,6))' due to data type mismatch: cannot cast interval second to decimal(10,6); line 1 pos 7;
'Project [unresolvedalias(cast(INTERVAL '01.001002' SECOND as decimal(10,6)), None)]
+- OneRowRelation

After:

spark-sql> SELECT CAST(INTERVAL '1.001002' SECOND AS DECIMAL(10, 6));
1.001002

How was this patch tested?

By running new tests:

$ build/sbt "sql/testOnly org.apache.spark.sql.SQLQueryTestSuite -- -z cast.sql"
$ build/sbt "test:testOnly *CastWithAnsiOnSuite"
$ build/sbt "test:testOnly *CastWithAnsiOffSuite"

MaxGekk · 2022-06-14T18:46:05Z

cc @srielau

MaxGekk · 2022-06-15T08:34:00Z

@cloud-fan @gengliangwang @HyukjinKwon @srielau Could you review this PR, please.

cloud-fan · 2022-06-15T08:38:47Z

sql/catalyst/src/main/scala/org/apache/spark/sql/catalyst/expressions/Cast.scala

+      buildCast[Long](_, dt => changePrecision(dayTimeIntervalToDecimal(dt, x.endField), target))
+    case x: YearMonthIntervalType =>
+      buildCast[Int](_, ym =>
+        changePrecision(Decimal(yearMonthIntervalToInt(ym, x.startField, x.endField)), target))


shall we consider ansi mode here? what if the decimal precision is too small, e.g. decimal(1, 0)?

As we did before, we don't consider non-ANSI mode for ANSI intervals. So, we are in ANSI mode always for ANSI intervals.

what if the decimal precision is too small, e.g. decimal(1, 0)

I think changePrecision() should output an error. Let me double check this.

yea let's add some negative tests

Added a test

I will take confusion on what is scale and what is precision to my grave....

We can round/truncate, but not modulo/wrap.
So I see:
CAST(INTERVAL '1.234' SECOND AS DECIMAL(1,0)) as perfectly fine.
But:
CAST(INTERVAL('123.4' SECOND AS DECIMAL(4, 2)) is an overflow.
On trunc vs round the semantic is given in DECIMAL to DECIMAL:
select cast(1.5 AS DECIMAL(1, 0));
2

PS: I loathe that cannot-change-decimal-precision error. In most cases we should just call it an overflow.

PS: I loathe that cannot-change-decimal-precision error. In most cases we should just call it an overflow.

I plan to do that.

Though, changing of scale/precision while keeping the same value is different thing from changing the value and get overflow.

In any case, I am not going to change decimal logic (errors) here in the PR.

…-to-decimal

srielau · 2022-06-15T15:04:20Z

sql/catalyst/src/test/scala/org/apache/spark/sql/catalyst/expressions/CastSuiteBase.scala

  }
+
+  test("cast ANSI intervals to decimals") {
+    Seq(


We need examples with rounding:
INTERVAL '12.123' SECOND AS DECIMAL(3, 1) => 12.1
INTERVAL '12.005' SECOND AS DECIMAL(4, 2) => 12.01

No, we don't round and don't loose info. See the last check that I added:

select cast(interval '10.123' second as decimal(1, 0)) -- !query schema struct<> -- !query output org.apache.spark.SparkArithmeticException [CANNOT_CHANGE_DECIMAL_PRECISION] Decimal(compact, 10, 18, 6) cannot be represented as Decimal(1, 0). If necessary set "spark.sql.ansi.enabled" to "false" to bypass this error. == SQL(line 1, position 8) == select cast(interval '10.123' second as decimal(1, 0)) ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^

Both of your cases are the same, actually - total number of digits is greater than 3 or 4.

This is different. My examples test sucess. Yours tests a failure. Obviously any number>= 10 and <100 cannot be even approximated in a single digit.
But any number between 0 and 9 can be approximated in a digit.
I’m curious why you see truncation rather than rounding given that decimal to decimal rounds.

cloud-fan · 2022-06-15T15:31:22Z

sql/catalyst/src/main/scala/org/apache/spark/sql/catalyst/expressions/Cast.scala

        case _: NumberFormatException => null
      }
+    case x: DayTimeIntervalType =>
+      buildCast[Long](_, dt => changePrecision(dayTimeIntervalToDecimal(dt, x.endField), target))


@MaxGekk as you said I think it makes sense to always go with ANSI behavior in new features. Does changePrecision take a bool flag like nullOnOverflow?

Does changePrecision take a bool flag like nullOnOverflow?

No, it checks the SQL config actually, passed to the Cast expression:

private[this] def changePrecision(value: Decimal, decimalType: DecimalType): Decimal = { if (value.changePrecision(decimalType.precision, decimalType.scale)) { value } else { if (!ansiEnabled) { null } else { throw QueryExecutionErrors.cannotChangeDecimalPrecisionError( value, decimalType.precision, decimalType.scale, queryContext) } } }

Probably, it makes sense to incapsulate the logic:

spark/sql/catalyst/src/main/scala/org/apache/spark/sql/catalyst/expressions/Cast.scala

Lines 993 to 1000 in a4f96af

case StringType if !ansiEnabled =>

buildCast[UTF8String](_, s => {

val d = Decimal.fromString(s)

if (d == null) null else changePrecision(d, target)

})

case StringType if ansiEnabled =>

buildCast[UTF8String](_,

s => changePrecision(Decimal.fromStringANSI(s, target, queryContext), target))

Also cc @gengliangwang

Yeah always go with ANSI behavior in new features. Either adding a new parameter on changePrecision or adding a new method are fine.

let's add a new parameter then.

I have added new parameter already.

cloud-fan · 2022-06-16T01:42:57Z

sql/core/src/test/resources/sql-tests/inputs/cast.sql

+select cast(interval '08:11:10.001' hour to second as decimal(10, 4));
+select cast(interval '1 01:02:03.1' day to second as decimal(8, 1));
+
+select cast(interval '10.123' second as decimal(1, 0));


how about decimal(4, 2)? will we fail or truncate?

I added a check. The result is truncated. Please, take a look.

MaxGekk · 2022-06-16T05:14:36Z

@cloud-fan @srielau I added more checks, please, take a look at this PR one more time.

cloud-fan · 2022-06-16T06:23:31Z

sql/core/src/test/resources/sql-tests/results/ansi/cast.sql.out

+-- !query schema
+struct<CAST(INTERVAL '10.005' SECOND AS DECIMAL(4,2)):decimal(4,2)>
+-- !query output
+10.01


@srielau I think the rounding behavior is correct.

MaxGekk · 2022-06-16T09:06:14Z

Merging to master. Thank you, @cloud-fan and @srielau for review.

### What changes were proposed in this pull request? In the PR, I propose to update the doc page https://spark.apache.org/docs/latest/sql-ref-ansi-compliance.html#cast about new behaviour of CAST introduced by the following PRs: 1. [[SPARK-40008][SQL] Support casting of integrals to ANSI intervals](#37442) 2. [[SPARK-39451][SQL] Support casting intervals to integrals in ANSI mode](#36811) 3. [[SPARK-39470][SQL] Support cast of ANSI intervals to decimals](#36857) 4. [[SPARK-40014][SQL] Support cast of decimals to ANSI intervals](#37466) <img width="1004" alt="Screenshot 2022-08-12 at 15 00 10" src="https://user-images.githubusercontent.com/1580697/184349887-700c64f6-e9c8-40c4-85cc-a77072506cf5.png"> ### Why are the changes needed? To inform Spark SQL about new behaviour of `CAST`. ### Does this PR introduce _any_ user-facing change? No. ### How was this patch tested? By building Spark SQL docs and check them manually: ``` $ SKIP_SCALADOC=1 SKIP_PYTHONDOC=1 SKIP_RDOC=1 bundle exec jekyll build ``` Closes #37495 from MaxGekk/doc-interval-cast. Authored-by: Max Gekk <[email protected]> Signed-off-by: Max Gekk <[email protected]>
