feat(crew): evidence on the thread log — prompt rule, --evidence tag, desktop cards, owner accept/reject (#121)

[devin-ai-integration]

Summary

Ships the #121 slice: an agent that reports "done" attaches the artifact it already produced, the desktop renders it as a card in the timeline, and the owner accepts or rejects it with a standard NIP-25 reaction the agent can read back. Evidence is a byproduct of work done properly — no computer-use anywhere in the flow, no new event kinds, no relay changes.

Wire contract (D-036, see numbering note below):

["crew-evidence", "test-run" | "metrics" | "before-after-visual" | "diff-stat"]

on the existing message kind. First occurrence wins; the CLI validates the enum value only (it cannot and does not verify that evidence exists); the renderer does not trust it — an unrecognized value falls back to the ordinary message body. Images ride the existing Blossom upload + NIP-92 imeta path.

Design choices worth knowing before reading the diff:

• The tag is appended post-build, not in the SDK. EvidenceKind::append_tag takes the already-built EventBuilder and appends before signing (precedent crates/buzz-cli/src/client.rs:590), so buzz-sdk and buzz-core keep zero additional Crew delta.
• MessageRow.tsx was at 980/1000 lines against the file-size ratchet. D-022 forbids raising MAX_LINES, so the change there is +7 lines of prop pass-through only; the dispatch and all card logic live in Crew-owned MessageRowDefaultBody.tsx / EvidenceCard.tsx / lib/evidenceTag.ts. Final: 987/1000, MAX_LINES untouched.
• The prompt section is capped at 18 lines and the cap is machine-checked (crates/buzz-acp/src/lib.rs), because the base prompt is paid on every turn of every agent — a fat section would violate the issue's own token-frugality principle. Actual: 13 lines.
• Accept/Reject adds no new machinery. It reuses the exact handler the agent-receipt card already uses (handleReactionSelect), so useReactionHandler.ts and MessageReactions.tsx are unchanged. Reject sends ❌ and opens the reply composer, because a bare ❌ leaves the agent nothing to act on. Controls are owner-only, reusing the receipt card's owner resolution rather than inventing a second owner concept.
• Cards never assert a claim the author did not make. The structured framing (metrics before/after/delta row, red→green blocks) is additive over the authored excerpt, which is always rendered through the existing Markdown pipeline; when nothing parses, the framing is omitted rather than printing "No failures" over a body describing failures.

Known limit, documented in DECISIONS.md rather than only in the issue: evidence is self-reported and can be fabricated. This raises the cost of lying and the odds of getting caught (fabricated numbers diverge from CI, fabricated screenshots diverge from the app); it does not cryptographically verify work. Independent verification stays where it lives today: CI + PR review. Related non-claim: the ≤30-line evidence bound is a prompt rule and a probe check, never a runtime guard.

Definition of Done → change

DoD checkbox	Satisfied by
base_prompt.md evidence section + UPSTREAM-SYNC.md accounting in the same PR; generic half as a Crew-owned artifact	crates/buzz-acp/src/base_prompt.md (new self-contained ## Evidence on completion, placed after Communication Patterns, before Engineering Discipline) · new "Upstream files Crew edits" table in docs/crew/UPSTREAM-SYNC.md (the list the issue referenced did not exist yet) · docs/crew/upstream-proposals/evidence-on-completion.md — Crew-owned draft of the generic, Crew-free half. No PR, branch, or push against block/buzz (D-020, root AGENTS.md); per the correction on the issue, the upstream contribution is a separate founder decision and is not a blocking DoD item.
buzz messages send --evidence <kind> emits the validated tag	new Crew-owned crates/buzz-cli/src/commands/evidence.rs (enum + exact-match parse, no aliases/case folding) · --evidence on MessagesCmd::Send · SendMessageParams.evidence threaded through cmd_send_message
Desktop renders all four kinds; text kinds legible without images	EvidenceCard.tsx (metrics → compact number table; test-run → red→green blocks; diff-stat → summary + PR link reusing AgentReceiptCard's href resolver; before-after-visual → side-by-side imeta images degrading to captions + links) · lib/evidenceTag.ts tolerant parse
Owner Accept/Reject via NIP-25, end-to-end	EvidenceCard controls → existing kind-7 reaction handler; verdict derived from the owner's own reaction (nothing new persisted); agent-readable half needs no new CLI — buzz reactions get --event <id> already ships
Known limit + tag schema in DECISIONS.md; STATE.md updated in-PR	docs/crew/DECISIONS.md D-036 · docs/crew/STATE.md (anti-drift rule, #117)
Evidence attached to the PR	Testing section below · docs/crew/verification/0010-evidence-on-thread-log-probes.md · live probes + per-kind rendered card screenshots posted as a PR comment

Decision numbering

Took D-036, the slot the orchestrator allocated to issue #121 (D-028/029/030 → PR #120, D-031/032 → PR #124, D-033 → PR #127, D-034 → PR #129, D-035 → issue #119) — the plan's assumed D-031 was long gone. Spike id 0021 and verification record 0010 for the same reason: parallel sessions are consuming the lower ids (#120 took spikes 0015-0017).

Related issue

Closes #121. Plan of record: plans/20260810-evidence-thread-log/ on PR #123 (9 phases, all executed except phase 09's live probes, which run against this PR).

Testing

Spike first (docs/crew/spikes/0021-evidence-tag-roundtrip.md, verdict PASS) — the whole wire design depended on an unknown Crew-invented tag surviving the kind-9 path, which was unproven: an unknown tag on kind 9 round-tripped publish → relay ingest → Postgres → /query byte-identically, formatTimelineMessages kept it on TimelineMessage.tags, applyEditTagOverlay preserved it across an edit, and a normal reply in the same thread kept correct thread_metadata counters. Mobile/web ignore-safety is source-level evidence, not a running-client test.

Then contract tests RED before implementation, per the repo workflow. Observed RED reasons (each a genuine absence, on a built e2e bundle):

C1  --evidence test-run should parse: error: unexpected argument '--evidence' found
C2  expect(locator).toBeVisible() failed — getByTestId('evidence-card-test-run') — element(s) not found
C3  expect(locator).toBeVisible() failed — getByTestId('evidence-card-test-run') — element(s) not found

GREEN after implementation:

cargo test -p buzz-cli    348 passed; 0 failed
cargo test -p buzz-acp    831 passed; 0 failed   (incl. the 18-line prompt-cap assertion)
pnpm --filter buzz test   5045 passed; 0 failed; 1 skipped
playwright --project=smoke evidence-cards.spec.ts evidence-reactions.spec.ts   6 passed

Also green: pnpm --filter buzz check, pnpm --filter buzz typecheck, cargo fmt --check, cargo clippy --all-targets -- -D warnings, just test-unit, just check-compile, desktop/ pnpm check:px-text, node scripts/check-file-sizes.mjs. just ci's mobile leg (dart format) hangs in this environment, so the Rust/desktop gates were run individually.

Beyond the four card contracts, the non-regression contracts are pinned too: a message with no crew-evidence tag renders exactly as today; an unrecognized kind value renders the ordinary body rather than a broken card; a KIND_AGENT_RECEIPT (46043) message carrying the tag keeps its receipt card and does not grow a second evidence card; a non-owner sees the card without Accept/Reject controls; a third party's ❌ does not display the card as rejected.

CI: 9 passed / 2 failed / 1 skipped. The two red lanes are smoke shards whose failures all reproduce on clean origin/main run 31362178966 — channel-activity-popover.spec.ts:459, channels.spec.ts:500 (#110), inbox-edit.spec.ts:175/325, inbox-reactions.spec.ts:36, messaging.spec.ts:1819; Desktop Smoke E2E (4) is the known 30-minute cancellation lane (#109). channel-activity-popover.spec.ts was additionally reproduced locally on a clean origin/main worktree at 35af74019 (toHaveCount(2) → Received: 1). No evidence-related check is red. One earlier Desktop Rust failure (Text file busy (os error 26) spawning the provider binary) went green on the next head — recorded as transient in verification record 0010.

Phase 09 live probes ran against a real local relay plus the headless Playwright harness — results, per-kind rendered card screenshots and the buzz reactions get agent read-back are in this comment, recorded in docs/crew/verification/0010-evidence-on-thread-log-probes.md. One limit stated there rather than glossed: the e2e bridge's add_reaction is mock-only (e2eBridge.ts:9528-9571), so probe 1 is two halves — the desktop half proves the emitted kind-7's target event id and the card's accepted/rejected states, the relay half proves a kind-7 lands on a real relay and is agent-readable via buzz reactions get. No single run exercises click → relay end to end, since a real Tauri run would need computer-use, which this issue bans. Tracked as a harness gap in #133, not worked around here.

Link to Devin session: https://app.devin.ai/sessions/dc642c6db0de4d11b8f47f98a3f1e6fc
Requested by: @oscarlehuu

[devin-ai-integration]

🤖 Devin AI Engineer

I'll be helping with this pull request! Here's what you should know:

✅ I will automatically:

• Address comments on this PR. Add '(aside)' to your comment to have me ignore it.
• Look at CI failures and help fix them

Note: I can only respond to comments from users who have write access to this repository.

⚙️ Control Options:

• Disable automatic comment, CI, and merge conflict monitoring

[devin-ai-integration]

Phase 09 — live probes + rendered evidence (no computer-use)

Verified against a real local relay (:3000, Docker PG/Redis) plus the headless Playwright harness. Evidence is terminal text and scoped locator.screenshot() PNGs only — the app was never opened by hand. Full record: docs/crew/verification/0010-evidence-on-thread-log-probes.md.

RED first: stubbing parseEvidenceKind back to its pre-change null return makes all four probe tests fail with getByTestId('evidence-card-test-run') not found; reverting turns them green. Negative control: the same report sent without --evidence yields tags [["h","<channel>"]] — no crew-evidence.

Rendered card per kind (7/7 unique shasum -a 256)

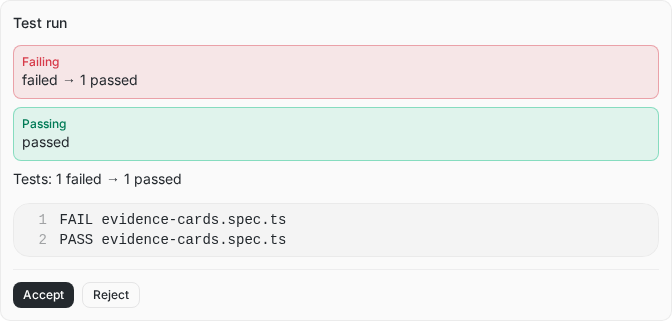

test-run (pending)	metrics

diff-stat	before/after visual

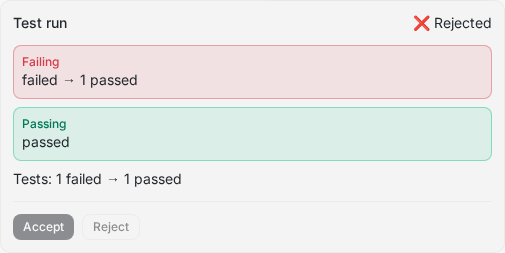

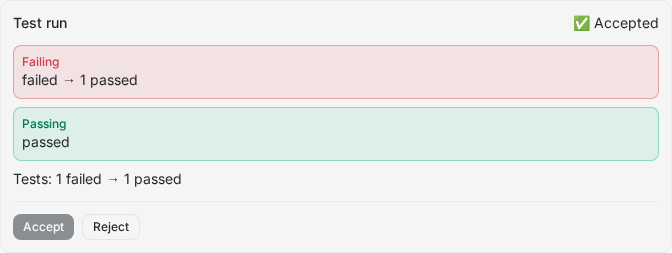

accepted	rejected

Images blocked — the card still reads sensibly (0 img, two labelled links):

Probe 1 — accept/reject round trip + agent read-back

$ buzz messages send --channel <CH> --content "$(cat report.md)" --evidence test-run
{"accepted":true,"event_id":"c53eea073f4916aef03a58b2350a172f031cd8328f19bd748a3aded7f157d338",…}

$ buzz messages get --channel <CH>
c53eea07… kind 9 tags [['h','feabece1-…'], ['crew-evidence','test-run']]

$ buzz reactions add --event c53eea07… --emoji "✅"      # owner
{"accepted":true,"event_id":"0974e1250958d6b4389ea19c4eaff2a5a4e17f74e62d17ff256d6394dc81f35b",…}

$ buzz --format compact reactions get --event c53eea07…  # agent read-back
{"reactions":[{"count":1,"emoji":"✅","pubkeys":["e5ebc6cdb579be112e336cc319b5989b4bb6af11786ea90dbe52b5f08d741b34"]}]}

# reject path
$ buzz --format compact reactions get --event 8e823f97…
{"reactions":[{"count":1,"emoji":"❌","pubkeys":["e5ebc6cd…"]}]}
follow-up reply tags: [['h','feabece1-…'], ['e','8e823f97…','','reply']]

Desktop half: Accept → ✅ Accepted + button disabled, with exactly one add_reaction carrying emoji:"✅" and eventId === <evidence id>; Reject → ❌ Rejected + a second add_reaction emoji:"❌" on the same id, and the reply surface opens rooted on the evidence message. A ✅ from a third-party pubkey does not flip the owner verdict.

Stated limit: probe 1 is two halves by necessity — the harness bridge's add_reaction is mock-only (e2eBridge.ts:9528-9571), so a headless desktop click cannot publish to the relay. The desktop half proves the kind-7 target and the card states; the relay half proves it lands and is agent-readable. The single-process click→relay chain is unverified (a real Tauri run would need computer-use, which this issue bans).

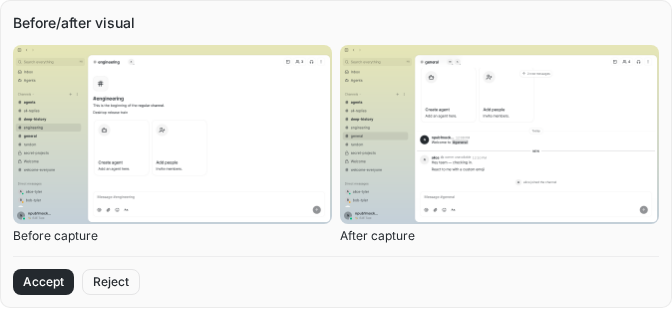

Probe 2 — before/after visual

just desktop-screenshot --name evidence-before/--name evidence-after → two distinct PNGs (dc4fd780…/55dfbf23…), sent as one report with --file ×2 + --evidence before-after-visual. The relay event carries two imeta tags (m image/png) plus one crew-evidence tag. The card renders exactly 2 decoded images (naturalWidth > 0), distinct src, side by side (same row, before strictly left of after).

Note: relay Blossom GET returns 401 to an unauthenticated page, so the render/degrade captures serve the same PNGs locally using the relay's exact content and imeta tag shape.

Probe 3 — token discipline (spot-check only)

Report body line counts as stored on the relay: 12, 1, 5, against the issue's example bound of ≤30. No work was re-executed solely to capture evidence — the two PNGs were captured once and reused for the upload, the render assertion and the degrade assertion. The bound is not enforced anywhere in code.

Regression: full evidence suite 10 passed (evidence-cards, evidence-reactions, plus 4 probe tests). Screenshot text was additionally OCR-checked so the assertions rest on pixels, not just the DOM.
