Optimize partitioned exchange for RowType channels by lukasz-stec · Pull Request #12762 · trinodb/trino

lukasz-stec · 2022-06-09T10:02:22Z

Optimize partitioned exchange for RowType channels
with batch oriented RowPositionsAppender

Description

Is this change a fix, improvement, new feature, refactoring, or other?

performance improvement

Is this a change to the core query engine, a connector, client library, or the SPI interfaces? (be specific)

core query engine and spi

How would you describe this change to a non-technical end user or system administrator?

Benchmarks

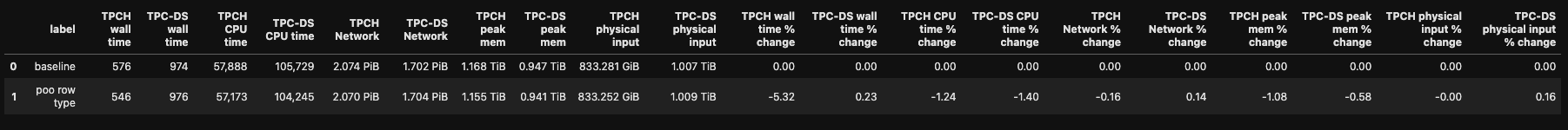

tpch/tpcds orc sf1000 partitioned

There is a slight (1.5%) CPU improvement. This is expected as PartitindOutputOperator is about 5% of the overall CPU.

poo-row-type-sf1000-orc-part.pdf

jmh

There is 2x to 4x improvement.
before

Benchmark                                   (channelCount)  (enableCompression)  (nullRate)  (partitionCount)  (positionCount)                 (type)  Mode  Cnt    Score    Error  Units
BenchmarkPartitionedOutputOperator.addPage               1                false           0                16             8192      ROW_BIGINT_BIGINT  avgt   20  625.371 ± 12.527  ms/op
BenchmarkPartitionedOutputOperator.addPage               1                false           0                16             8192  ROW_RLE_BIGINT_BIGINT  avgt   20  518.245 ± 82.994  ms/op
BenchmarkPartitionedOutputOperator.addPage               1                false         0.2                16             8192      ROW_BIGINT_BIGINT  avgt   20  557.170 ± 65.907  ms/op
BenchmarkPartitionedOutputOperator.addPage               1                false         0.2                16             8192  ROW_RLE_BIGINT_BIGINT  avgt   20  473.040 ± 64.605  ms/o

after

Benchmark                                   (channelCount)  (enableCompression)  (nullRate)  (partitionCount)  (positionCount)                 (type)  Mode  Cnt    Score   Error  Units
BenchmarkPartitionedOutputOperator.addPage               1                false           0                16             8192      ROW_BIGINT_BIGINT  avgt   20  144.102 ± 5.855  ms/op
BenchmarkPartitionedOutputOperator.addPage               1                false           0                16             8192  ROW_RLE_BIGINT_BIGINT  avgt   20  109.074 ± 1.223  ms/op
BenchmarkPartitionedOutputOperator.addPage               1                false         0.2                16             8192      ROW_BIGINT_BIGINT  avgt   20  281.255 ± 4.728  ms/op
BenchmarkPartitionedOutputOperator.addPage               1                false         0.2                16             8192  ROW_RLE_BIGINT_BIGINT  avgt   20  162.054 ± 2.670  ms/op

This also brings big improvements for queries with a large number of aggregations that use RowType as an intermediate state e.g. sum.
This sample query sees about a 30% improvement.

trino:tpch_sf1000_dec_orc_part> explain analyze select cast ((orderkey+partkey) %1300000 as int), sum(suppkey), sum(suppkey + 1), sum(suppkey + 2), sum(suppkey + 3),
                             -> sum(suppkey + 4), sum(suppkey + 5), sum(suppkey + 6), sum(suppkey + 7),
                             -> sum(suppkey + 8), sum(suppkey + 9), sum(suppkey + 10), sum(suppkey + 11)
                             -> from lineitem group by cast ((orderkey + partkey) % 1300000  as int);

before

Query 20220610_101803_00005_8baqg, FINISHED, 7 nodes
http://localhost:8082/ui/query.html?20220610_101803_00005_8baqg
Splits: 3,081 total, 3,081 done (100.00%)
CPU Time: 32273.5s total,  186K rows/s, 1.88MB/s, 68% active
Per Node: 20.1 parallelism, 3.73M rows/s, 37.6MB/s
Parallelism: 140.5
Peak Memory: 9.59GB
3:50 [6B rows, 59.1GB] [26.1M rows/s, 263MB/s]

after

Query 20220610_090149_00009_b42pz, FINISHED, 7 nodes
http://localhost:8081/ui/query.html?20220610_090149_00009_b42pz
Splits: 3,081 total, 3,081 done (100.00%)
CPU Time: 22725.7s total,  264K rows/s, 2.66MB/s, 75% active
Per Node: 16.7 parallelism,  4.4M rows/s, 44.4MB/s
Parallelism: 116.7
Peak Memory: 9.87GB
3:15 [6B rows, 59.1GB] [30.8M rows/s, 311MB/s]

Documentation

(x) No documentation is needed.
( ) Sufficient documentation is included in this PR.
( ) Documentation PR is available with #prnumber.
( ) Documentation issue #issuenumber is filed, and can be handled later.

Release notes

( ) No release notes entries required.
( X) Release notes entries required with the following suggested text:

# Section
* Improve performance of queries with a large number of aggregations that use `RowType` as an intermediate state (e.g. `sum`).

core/trino-main/src/main/java/io/trino/operator/output/RowPositionsAppender.java

core/trino-spi/src/main/java/io/trino/spi/block/AbstractRowBlock.java

core/trino-main/src/main/java/io/trino/operator/output/RowPositionsAppender.java

core/trino-spi/src/main/java/io/trino/spi/block/AbstractRowBlock.java

lukasz-stec

comments answered, addressed.

core/trino-main/src/main/java/io/trino/operator/output/RowPositionsAppender.java

core/trino-spi/src/main/java/io/trino/spi/block/AbstractRowBlock.java

skrzypo987

LGTM % comments

core/trino-spi/src/main/java/io/trino/spi/block/BatchRowWriter.java

core/trino-spi/src/main/java/io/trino/spi/block/AbstractRowBlock.java

core/trino-main/src/main/java/io/trino/operator/output/RowPositionsAppender.java

lukasz-stec

comments addressed

core/trino-spi/src/main/java/io/trino/spi/block/AbstractRowBlock.java

raunaqmorarka · 2022-06-15T11:08:30Z

core/trino-main/src/main/java/io/trino/operator/output/RowPositionsAppender.java

Is it possible that the fieldBlocks coming out of RowBlock is a LazyBlock ? Not sure if PositionsAppender deals with those

I don't think it's possible. fieldBlocks are loaded when the block is loaded via getLoadedBlock and the PartitionedOutputOperator is configured with the PageChannelSelector page pre processor

core/trino-main/src/main/java/io/trino/operator/output/RowPositionsAppender.java

core/trino-main/src/test/java/io/trino/operator/output/TestPositionsAppender.java

lukasz-stec

comments addressed

lukasz-stec · 2022-06-15T12:23:43Z

core/trino-main/src/main/java/io/trino/operator/output/RowPositionsAppender.java

I don't think it's possible. fieldBlocks are loaded when the block is loaded via getLoadedBlock and the PartitionedOutputOperator is configured with the PageChannelSelector page pre processor

core/trino-main/src/test/java/io/trino/operator/output/TestPositionsAppender.java

core/trino-spi/src/main/java/io/trino/spi/block/AbstractRowBlock.java

core/trino-main/src/main/java/io/trino/operator/output/RowPositionsAppender.java

lukasz-stec

added AbstractRowBlock#copyPositions branchless commit

core/trino-main/src/main/java/io/trino/operator/output/RowPositionsAppender.java

core/trino-spi/src/main/java/io/trino/spi/block/AbstractRowBlock.java

lukasz-stec · 2022-06-21T08:21:35Z

AbstractRowBlock#copyPositions branchless impl fixed

raunaqmorarka

Could you extract 2nd commit as a separate PR ? I think we can land that immediately.

core/trino-spi/src/main/java/io/trino/spi/block/AbstractRowBlock.java

lukasz-stec

branchless copyPositions extracted to. #12926 + comment

core/trino-spi/src/main/java/io/trino/spi/block/AbstractRowBlock.java

raunaqmorarka

lgtm % minor comments

core/trino-main/src/main/java/io/trino/operator/output/RowPositionsAppender.java

lukasz-stec · 2022-06-27T11:11:21Z

comments addressed + commit message extended with the SPI change justification.

core/trino-spi/src/main/java/io/trino/spi/block/RowBlock.java

core/trino-spi/src/main/java/io/trino/spi/block/AbstractRowBlock.java

core/trino-main/src/main/java/io/trino/operator/output/RowPositionsAppender.java

raunaqmorarka · 2022-07-04T06:54:01Z

@lukasz-stec please rebase to latest master

Introduced batch oriented RowPositionsAppender. As RowBlock's field blocks are public via getChildren method and field offset can be calculated, albeit slowly, using Block#isNull, the AbstractRowBlock#getFieldBlockOffset is made public to give access to pre-calculated offsets. Before Benchmark (channelCount) (enableCompression) (nullRate) (partitionCount) (positionCount) (type) Mode Cnt Score Error Units BenchmarkPartitionedOutputOperator.addPage 1 false 0 16 8192 ROW_BIGINT_BIGINT avgt 20 687.344 ± 55.380 ms/op BenchmarkPartitionedOutputOperator.addPage 1 false 0 16 8192 ROW_RLE_BIGINT_BIGINT avgt 20 583.781 ± 69.803 ms/op BenchmarkPartitionedOutputOperator.addPage 1 false 0.2 16 8192 ROW_BIGINT_BIGINT avgt 20 426.873 ± 11.070 ms/op BenchmarkPartitionedOutputOperator.addPage 1 false 0.2 16 8192 ROW_RLE_BIGINT_BIGINT avgt 20 486.288 ± 69.490 ms/op After BenchmarkPartitionedOutputOperator.addPage 1 false 0 16 8192 ROW_BIGINT_BIGINT avgt 20 148.079 ± 14.656 ms/op BenchmarkPartitionedOutputOperator.addPage 1 false 0 16 8192 ROW_RLE_BIGINT_BIGINT avgt 20 102.773 ± 6.502 ms/op BenchmarkPartitionedOutputOperator.addPage 1 false 0.2 16 8192 ROW_BIGINT_BIGINT avgt 20 196.848 ± 6.971 ms/op BenchmarkPartitionedOutputOperator.addPage 1 false 0.2 16 8192 ROW_RLE_BIGINT_BIGINT avgt 20 159.385 ± 10.308 ms/op
