cmux-next: internal page tabs draw their page's registry icon

[teamleaderleo]

Summary

Third PR of the icon registry lane (after #17538 and #17558). Tabs that hold cmux's own pages, such as Settings, the App Store, History and Diff, drew stock SF Symbols in the tab strip at text size, while terminal and browser tabs draw from the cmux icon set. Each page now names its cmux icon, and its tab draws that icon filling the icon box the way terminal and browser tabs do.

• Browser tabs at cmux page addresses (cmux://history, cmux://bookmarks, cmux://agent-activity, cmux://remote-view) drew the globe and the loading throbber. BrowserTabIconState.resolve(url:) now gives them .page(name): history, bookmark.manager, agent.activity and machine.remote. PaneController.browserIcon passes the live page's URL, else the record's.
• InternalPageProvider.icon: IconName? (default nil) is the page's registry icon. InternalPageTabStore.tabIcon draws it, falls back to the page's SF Symbol when a page has none (a third-party app's pane), and uses placeholder when no provider has registered.

Call sites converted:

Page	Was (SF)	Now (registry)
Settings	gearshape	settings
App Store (AppsService)	bag	store
History (HistoryTopPage)	clock	history
Bookmarks (BookmarksTopPage)	book	bookmark.manager
Feed	tray	inbox
Keyboard Shortcuts	keyboard	keyboard
Passwords	key	security.lock
Diff	plusminus	diff.file
Markdown / editor file pages (FilePageKind)	doc.richtext / chevron.left.forwardslash.chevron.right	file.text / code
CodeRouter	arrow.triangle.branch	account.routed
Changelog	sparkles	file.text
App pane with no symbol	app	app.generic
BrowserTabIconState for cmux://history / bookmarks / agent-activity / remote-view	globe (throbber while loading)	history / bookmark.manager / agent.activity / machine.remote
InternalPageTabStore.stripItem, storeTabItem	.symbol(provider.symbol)	tabIcon(provider)

Tasks and Debug Settings keep their SF Symbols because the registry has no page icon for them yet. Adding drawings to the pack is a separate change.

Testing

Red commit de0cede adds InternalPageTabIconTests; the fix follows.

• A page with a registry icon draws .icon(name), a page without one draws its symbol, and a missing provider draws placeholder.
• File page kinds name file.text and code.
• cmux page addresses resolve to their page icon, not the throbber or globe, and apply as .icon(name). Red commit 2121a18.

check-no-godfiles.sh --only swift passed. scripts/verify-local.py --affected passed feature-flags. package-groups failed on cmux.xcworkspace grouping, which comes from the base: this PR adds no packages. Fleet builds op-next-icons-2b (base 7cf558b) and op-next-icons-3 (head dcddaf5) were shot on a capture mini after opening History, Bookmark Manager and Settings from the menus.

Changelog

Changed: Tabs holding Settings, History, Bookmarks, Diff and other cmux pages show their page's icon from the cmux icon set

Demo Video

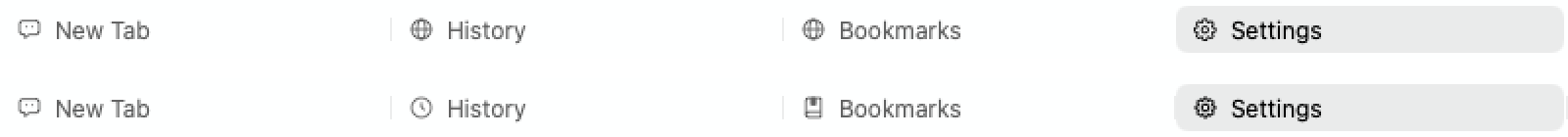

Tab strip, before (top) and after (bottom), at 2x from a 1x capture. History and Bookmarks drew the globe and now wear history and bookmark.manager. Settings draws the registry's settings.

Full windows: before, after.

Checklist

• Behavior changes have added or updated tests, or Testing says why not
• UI change with no new or changed user-facing strings; localization not affected

🤖 Generated with Claude Code

[cursor]

Bugbot is paused — on-demand spend limit reached

Bugbot uses usage-based billing for this team and has hit its on-demand spend limit.

A team admin can raise the spend limit in the Cursor dashboard, or wait for the next billing cycle to continue.

[coderabbitai]

Important

Review skipped

Auto reviews are disabled on base/target branches other than the default branch.

Please check the settings in the CodeRabbit UI or the .coderabbit.yaml file in this repository. To trigger a single review, invoke the @coderabbitai review command.

⚙️ Run configuration

• Configuration used: Repository: manaflow-ai/cmux/.coderabbit.yaml
• Review profile: ASSERTIVE
• Plan: Advanced
• Run ID: 687304ac-aff6-4347-82d2-fdb393e12121

You can disable this status message by setting the reviews.review_status to false in the CodeRabbit configuration file.

Use the checkbox below for a quick retry:

• 🔍 Trigger review

• Autopilot · Keep fixing CodeRabbit findings and required CI, and resolving merge conflicts

---

Thanks for using CodeRabbit! It's free for OSS, and your support helps us grow. If you like it, consider giving us a shout-out.

❤️ Share

• X
• Mastodon
• Reddit
• LinkedIn

_{Comment @coderabbitai help to get the list of available commands.}

[github-actions]

Not verified: macOS jobs did not run: compile and app tests were skipped on dcddaf5e50; ci-status is green without them.

CI passes on dcddaf5e50 (run 37493192918 attempt 1).
macOS jobs did not run: compile and app tests were skipped: Fast static checks skipped (the macos job needs both to succeed). Re-run CI once they pass, before merging.

Written by scripts/ci/classify_failures.py (ci-failure-attribution.yml); signatures are its SIGNATURES table. A machine verdict is the runner's fault, not this PR's; yours means the failing file is one this PR changes, also red on main that main's latest full suite fails the same way.

[teamleaderleo]

Batch queue: green. Batch stack 87bf7dcfd4d7 on feat-cmux-next 7d209e8ddbed with #17520 #17534 #17541 #17551 #17552 #17558 #17582. Fleet production build: job 3b88261eeebcf0f42557a5e7 (cmux-ci artifact 3b88261eeebcf0f42557a5e7 (job 3b88261eeebcf0f42557a5e7, tag nb-local-20261006-153816-1)). heavy tier did not run on this branch (run); your PR's own checks are the tests. Validated this PR at 27344a90070a.

Next: land it yourself with gh-merge-green on this receipt.
