cmux ssh: require a per-tunnel credential on the browser proxy by austinywang · Pull Request #15132 · manaflow-ai/cmux

austinywang · 2026-09-28T04:01:01Z

Summary

The ssh workspace browser reaches remote services through a loopback SOCKS5 and HTTP CONNECT listener. Each accepted handshake opens a daemon proxy.open stream on the remote host. Until now the listener accepted any local client.

Each tunnel start now mints a random BrowserProxyCredential: username cmux and a 64-hex-digit password. The listener checks it on every handshake, with a constant-time compare, before any daemon stream opens:

SOCKS5: only the username/password method (RFC 1929) is offered. A greeting without it gets 05 FF, and a wrong credential gets 01 01. Either way the connection closes.
HTTP CONNECT: the request must carry Proxy-Authorization: Basic …. Without it, the listener answers 407 with Proxy-Authenticate: Basic realm="cmux" and closes.

The browser applies the credential to both ProxyConfigurations on its WKWebsiteDataStore. The favicon URLSession switches from connectionProxyDictionary to the same proxyConfigurations, so it carries the credential too.

A refused credential never turns into a password prompt. Without a delegate, a proxy 407 reaches the system, which asks the user for a proxy password and would send the answer to whatever holds the loopback port. That can happen after a tunnel restart rotates the credential, or when another process takes a freed port. The new ManagedProxySessionDelegate cancels proxy challenges instead. It is used on the favicon session, and the same check runs in the web view and popup navigation delegates of remote and cloud panes. Local panes keep the default handling for their system proxy.

The credential stays out of logs, argv and workspace.remote.status. BrowserProxyCredential and BrowserProxyEndpoint print as redacted descriptions. The status payload still reports host, port and a socks5:// URL, without the credential.

Testing

Regression test, run the same way at each commit:

swift test --package-path Packages/macOS/CmuxRemoteWorkspace --filter RemoteDaemonProxySessionAuthenticationTests

Red at 409a6bc (test only): exit 1, "Test run with 8 tests in 1 suite failed after 30.257 seconds with 23 issues". Handshakes without the credential got 05 00 or 200 Connection Established, and daemon streams opened.
Green at 645d033 (fix): exit 0, "Test run with 8 tests in 1 suite passed after 5.406 seconds". The test files are the same in both commits.

Proxy prompt follow-up, run the same way at each commit:

swift test --package-path Packages/macOS/CmuxCore --filter ManagedProxySessionDelegateTests

Red at 0fd0b21 (test only): "Test run with 2 tests in 1 suite failed after 0.007 seconds with 2 issues". Both proxy challenge cases got .performDefaultHandling instead of .cancelAuthenticationChallenge.
Green at f39305d (fix): "Test run with 2 tests in 1 suite passed after 0.005 seconds".

On f39305d, RemoteDaemonProxySessionAuthenticationTests passed 8 tests in 0.276 seconds. Its URLSession now goes through the delegate, so the no-credential CONNECT case is refused without opening the system proxy-password dialog. verify-local.py --affected origin/main --swift-changed origin/main passed 15/15 checks.

The suite covers raw SOCKS5 and CONNECT handshakes with a missing, wrong or correct credential. It also drives URLSession through Network.framework ProxyConfiguration, the stack WKWebView uses, with and without the credential.

Full package runs on 645d033 all passed:

Package	Tests	Suites
CmuxCore	86	14
CmuxRemoteWorkspace	164	26
CmuxRemoteSession	199	34

CmuxCore adds BrowserProxyCredentialTests, which checks:

The password has the expected length and differs between mints.
matches needs the exact bytes.
No description or reflection contains the password.

python3 scripts/verify-local.py with automatic selection passed 5/5 checks: swift-syntax, wire-app-sources, test-wiring, package-groups and feature-flags.

Not run:

App target: the app was not built and app tests were not run locally. That leaves these to the CI app build and app test lanes: Sources/Panels/BrowserPanel.swift, BrowserNavigationDelegate.swift, BrowserPopupWindowController.swift and the three GhosttyConfigTests call sites. No app test drives a web view proxy challenge.
Live ssh workspace: the browser was not checked against a real one.
Docker scripts in tests_v2: test_ssh_remote_docker_forwarding.py, test_ssh_remote_docker_reconnect.py and test_ssh_remote_proxy_bind_conflict.py send unauthenticated SOCKS5 and CONNECT to the endpoint from workspace.remote.status. The listener now refuses those requests, and the status payload deliberately omits the credential. These scripts are not in CI and were not updated here.

No user-facing strings changed, so there is no localization impact.

Changelog

Fixed: The ssh workspace browser proxy now requires a per-tunnel credential, so other local accounts can't route connections through the remote host

Checklist

Behavior changes have added or updated tests, or Testing says why not
User-facing docs updated if needed (docs/remote-daemon-spec.md, daemon/remote/README.md)
Reviewed with a subagent before merge (cmux-review), and all bot and human review comments resolved

🤖 Generated with Claude Code

The loopback SOCKS5 and HTTP CONNECT listener that serves the ssh workspace browser accepts any local client. Add a per-tunnel BrowserProxyCredential and an optional session seam, then test that a handshake without it is refused before a daemon stream opens and that the credentialed handshake still relays bytes. The Network.framework cases drive URLSession through ProxyConfiguration, the stack WKWebView uses. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

The loopback SOCKS5 and HTTP CONNECT listener for the ssh workspace browser now requires the credential its tunnel minted. SOCKS5 only accepts username/password authentication (RFC 1929), CONNECT needs a matching Proxy-Authorization: Basic header, and both compare in constant time before any daemon stream opens. A refused client gets 05 FF, 01 01 or 407 and the connection closes. The broker mints a fresh credential per tunnel start and hands it to the tunnel and the BrowserProxyEndpoint. The browser applies it to its WKWebsiteDataStore SOCKS5 and CONNECT proxy configurations, and the favicon session moves from the legacy proxy dictionary, which cannot carry a credential, to a credentialed ProxyConfiguration. Descriptions of the credential and endpoint are redacted, and workspace.remote.status keeps reporting the endpoint without it. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

github-actions · 2026-09-28T04:01:16Z

All contributors have signed the CLA ✍️ ✅
_{Posted by the CLA Assistant Lite bot.}

coderabbitai · 2026-09-28T04:01:21Z

Warning

Review limit reached

Next included review available in 2 minutes.

Check out review usage here.

View limit details

Limit details: You’ve used all 10 included reviews currently available.

You've used all free OSS reviews for now. Wait for the free limit to reset to keep reviewing this public repository.

Learn how review limits work.

Review configuration:

⚙️ Run configuration

Configuration used: Repository: manaflow-ai/cmux/.coderabbit.yaml

Review profile: ASSERTIVE

Plan: Advanced

Run ID: 21e9fec5-c95e-48f4-8065-fb8608cdaf39

📥 Commits

Reviewing files that changed from the base of the PR and between ce5cb45 and 89cef27.

📒 Files selected for processing (28)

Packages/macOS/CmuxCore/Sources/CmuxCore/Remote/BrowserProxyCredential.swift
Packages/macOS/CmuxCore/Sources/CmuxCore/Remote/BrowserProxyEndpoint.swift
Packages/macOS/CmuxCore/Sources/CmuxCore/Remote/ManagedProxySessionDelegate.swift
Packages/macOS/CmuxCore/Tests/CmuxCoreTests/BrowserProxyCredentialTests.swift
Packages/macOS/CmuxCore/Tests/CmuxCoreTests/ManagedProxySessionDelegateTests.swift
Packages/macOS/CmuxRemoteSession/Tests/CmuxRemoteSessionTests/IntentionalCleanupTestTunnelProvider.swift
Packages/macOS/CmuxRemoteSession/Tests/CmuxRemoteSessionTests/NeverReadyProxyTunnelProvider.swift
Packages/macOS/CmuxRemoteSession/Tests/CmuxRemoteSessionTests/RemotePTYIntentionalCleanupTests.swift
Packages/macOS/CmuxRemoteSession/Tests/CmuxRemoteSessionTests/RemotePortScanGatingTests.swift
Packages/macOS/CmuxRemoteSession/Tests/CmuxRemoteSessionTests/RemoteReconnectPolicyTests.swift
Packages/macOS/CmuxRemoteSession/Tests/CmuxRemoteSessionTests/RemoteSessionReadinessParkingTests.swift
Packages/macOS/CmuxRemoteWorkspace/Sources/CmuxRemoteWorkspace/Broker/RemoteDaemonProxyTunnelProvider.swift
Packages/macOS/CmuxRemoteWorkspace/Sources/CmuxRemoteWorkspace/Broker/RemoteProxyBroker.swift
Packages/macOS/CmuxRemoteWorkspace/Sources/CmuxRemoteWorkspace/Broker/RemoteProxyTunnelProviding.swift
Packages/macOS/CmuxRemoteWorkspace/Sources/CmuxRemoteWorkspace/Tunnel/RemoteDaemonProxySession.swift
Packages/macOS/CmuxRemoteWorkspace/Sources/CmuxRemoteWorkspace/Tunnel/RemoteDaemonProxyTunnel.swift
Packages/macOS/CmuxRemoteWorkspace/Tests/CmuxRemoteWorkspaceTests/BlockingCloseTunnelProvider.swift
Packages/macOS/CmuxRemoteWorkspace/Tests/CmuxRemoteWorkspaceTests/BridgeTestClient.swift
Packages/macOS/CmuxRemoteWorkspace/Tests/CmuxRemoteWorkspaceTests/ProxyStreamTestRPCClient.swift
Packages/macOS/CmuxRemoteWorkspace/Tests/CmuxRemoteWorkspaceTests/RemoteDaemonProxySessionAuthenticationTests.swift
Packages/macOS/CmuxRemoteWorkspace/Tests/CmuxRemoteWorkspaceTests/RemoteDaemonProxyTunnelPTYBridgeTests.swift
Packages/macOS/CmuxRemoteWorkspace/Tests/CmuxRemoteWorkspaceTests/RemoteProxyBrokerTests.swift
Sources/Panels/BrowserNavigationDelegate.swift
Sources/Panels/BrowserPanel.swift
Sources/Panels/BrowserPopupWindowController.swift
cmuxTests/GhosttyConfigTests.swift
daemon/remote/README.md
docs/remote-daemon-spec.md

Thanks for using CodeRabbit! It's free for OSS, and your support helps us grow. If you like it, consider giving us a shout-out.

❤️ Share

_{Comment @coderabbitai help to get the list of available commands.}

github-actions · 2026-09-28T04:09:28Z

CI failure attribution

CI passes on 89cef27732 (run 36484987966 attempt 2).

Written by scripts/ci/classify_failures.py (ci-failure-attribution.yml); signatures are its SIGNATURES table. A machine verdict is the runner's fault, not this PR's.

A proxy 407 on a URLSession without a delegate reaches the system, which asks the user for a proxy password. Route the proxy test's session through a delegate and test that it cancels proxy challenges while leaving server challenges to the default handling. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

The remote proxy credential rotates on each tunnel start, and another process can take a freed loopback port. A stale or wrong credential then reaches the system, which asks the user for a proxy password and would send what they type to that port. Cancel proxy challenges on the favicon session and in the web view and popup delegates of remote and cloud panes, whose only proxies are cmux proxies that already carry their credential. Local panes keep the default handling for their system proxy. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

Catch-up merge by scripts/ci/catch_up_pr.py (RFC #14631). Merged by scripts/merge-main.sh: origin/main at ce5cb45. Catch-up-previous-head: f39305d Catch-up-base: ce5cb45

ProxyConfiguration is a struct over a reference, and applyCredential is non-mutating, so the var bindings added with the per-tunnel credential drew two "never mutated" warnings in BrowserPanel.swift. The macOS compile admission gate refuses new Swift warnings over the budget, which declined the PR. The test helper had the same binding. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

github-actions · 2026-09-28T22:12:04Z

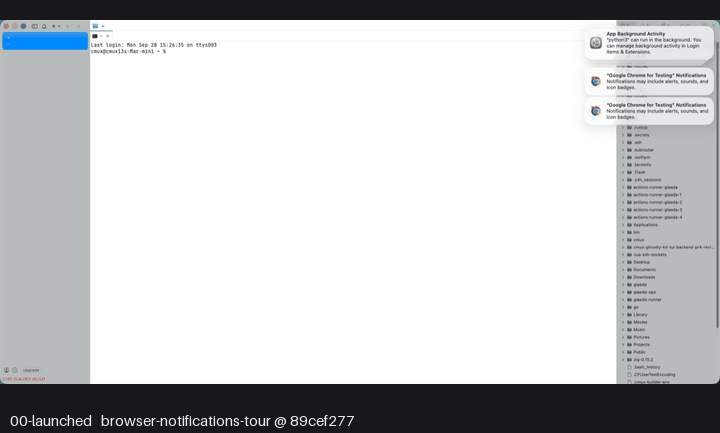

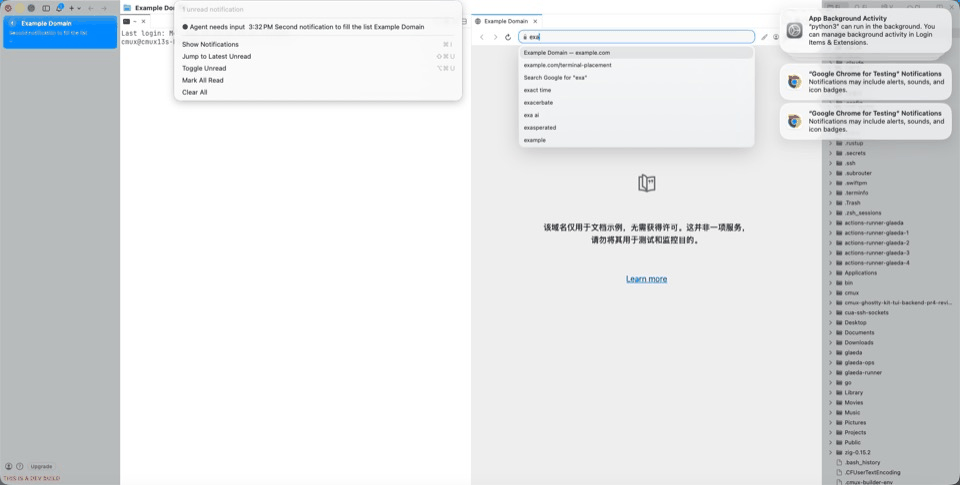

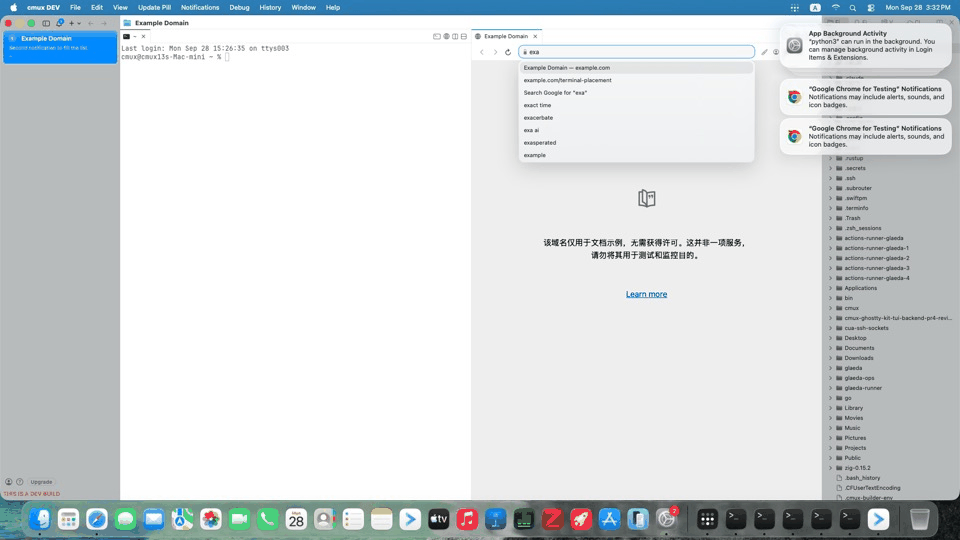

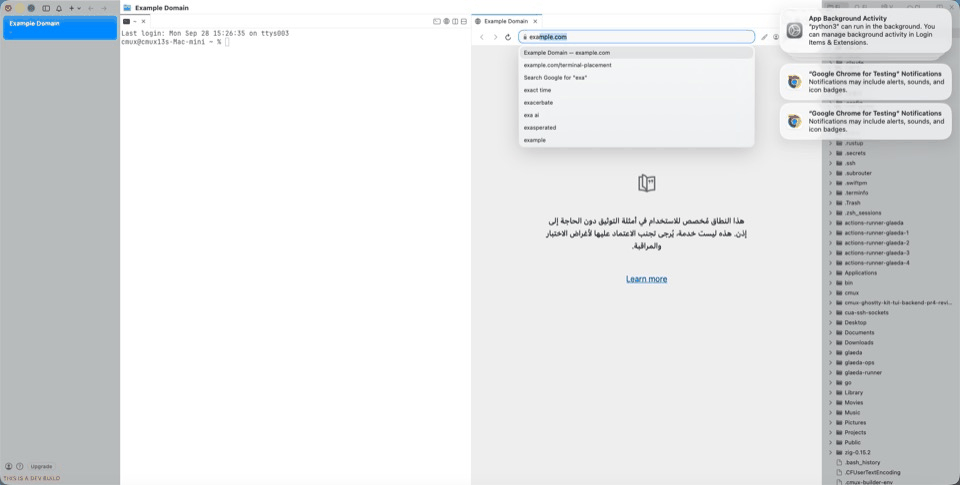

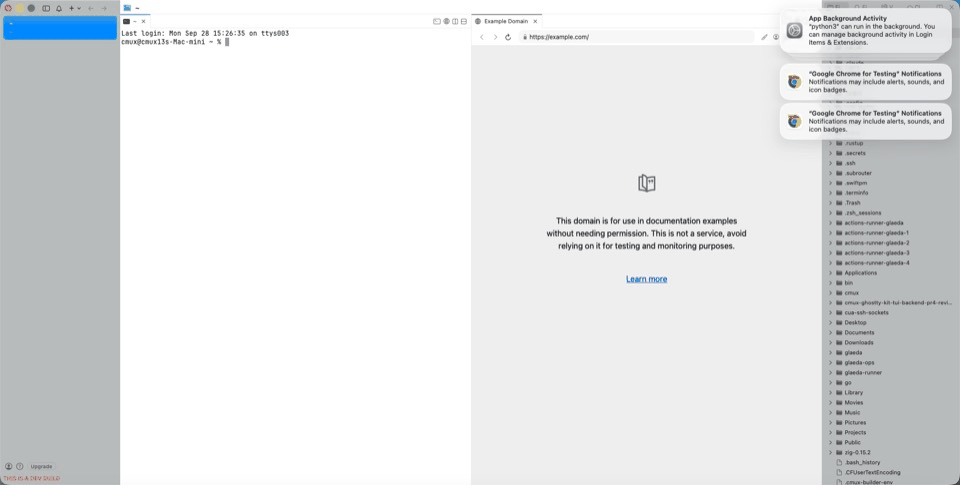

Dogfood tours of `89cef277`

browser-notifications-tour at 89cef277: passed (run)

Key frames of browser-notifications-tour at 89cef27

_{Tours are picked by the paths globs in dogfood/scenarios/*.json; a Dogfood-tours: a, b line in the description picks them instead (none turns this off). Look at every frame before merging: a green tour only means no step failed.}

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

austinywang · 2026-10-08T21:55:45Z

Closing as superseded by merged PR #15116, which consolidated this SSH/security/local-state hardening into main.

austinywang and others added 2 commits September 27, 2026 20:38

austinywang and others added 4 commits September 27, 2026 21:46

Merge main (ce5cb45) into ssh-browser-proxy-auth

47aae20

Catch-up merge by scripts/ci/catch_up_pr.py (RFC #14631). Merged by scripts/merge-main.sh: origin/main at ce5cb45. Catch-up-previous-head: f39305d Catch-up-base: ce5cb45

github-actions Bot added a commit that referenced this pull request Sep 28, 2026

PR #15132 media: browser-notifications-tour at 89cef27

f524db4

github-actions Bot added a commit that referenced this pull request Sep 28, 2026

PR #15132 media: browser-notifications-tour at 89cef27

9a2280f

github-actions Bot added a commit that referenced this pull request Sep 28, 2026

PR #15132 media: browser-notifications-tour at 89cef27

3bf1875

github-actions Bot added a commit that referenced this pull request Sep 28, 2026

PR #15132 media: browser-notifications-tour at 89cef27

e6a73fc

github-actions Bot added a commit that referenced this pull request Sep 28, 2026

PR #15132 media: browser-notifications-tour at 89cef27

0aa69b6

github-actions Bot added a commit that referenced this pull request Sep 28, 2026

PR #15132 media: browser-notifications-tour at 89cef27

b1bbce8

austinywang added a commit that referenced this pull request Sep 28, 2026

Merge ssh-browser-proxy-auth (#15132) into ssh-private-control-path

44ab7fd

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

austinywang mentioned this pull request Sep 28, 2026

Consolidate SSH security, shim hardening, and restored terminal replay fixes #15116

Merged

teamleaderleo mentioned this pull request Oct 8, 2026

Fix SSH browser previews reaching local services #18382

Open

3 tasks done

austinywang closed this Oct 8, 2026
