feat(big-number): add option to align time range

[ktmud]

In Superset, when a timeseries query has no data at the beginning period
or end period of the filtered time range, there will be no data records
at those periods, hence the trendline in Big Number chart will not
render them. This often causes confusion and misinterpretation
in dashboards, especially for those with multiple trendline charts
aligned with each other. They could all be a very smooth line, but
actually showing very different time ranges.

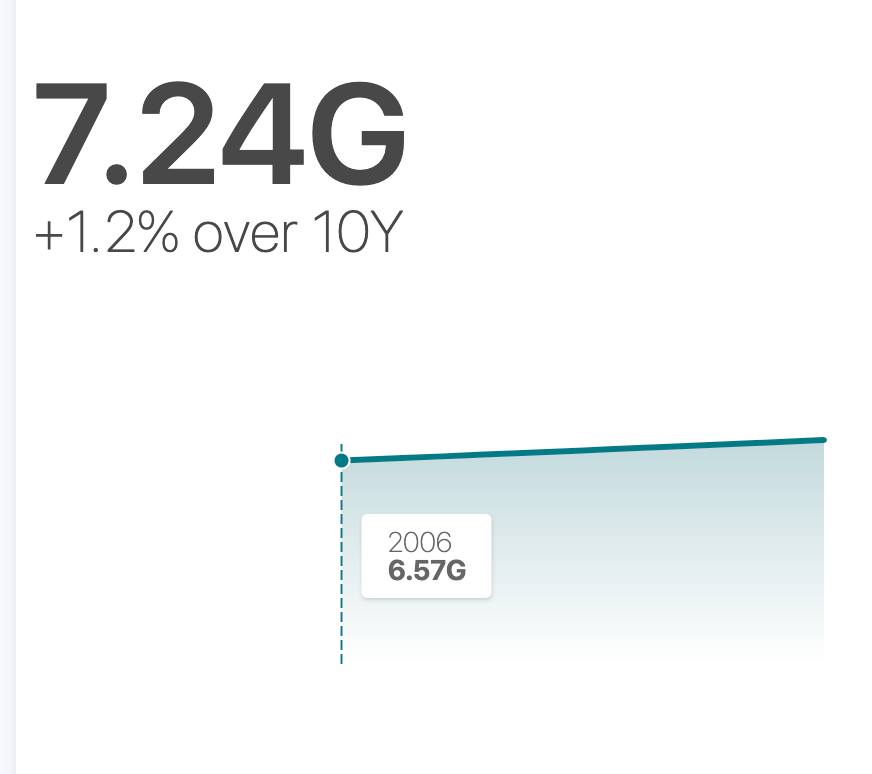

This PR adds an option "alignTimeRange" to apply the filtered time
range on the xAxis. Date periods for empty data will be rendered, but
there will be no connected lines, dots, or tooltips for them.

It's possible to still show tooltips for those periods, but I decided
not to do that as: 1) it's considerably more complicated to do so; 2) I don't
want to confuse zero or nulls with empty data.

🏆 Enhancements

[kristw]

Is alignTimeRange required?
If both fromDateTime and toDateTime are set, would that be enough to apply the fixed domain?

What do you think if we merge fromDateTime and toDateTime fields to a single field domain: number[]?

[ktmud]

To keep backward capability, I plan to make alignTimeRange disabled by default, there will be a new control in Superset that enables this behavior.

to_dttm and from_dttm (the parsed date range) is not currently available in the backend. I plan to add them as a generic API for all future charts. To keep things simple, I decided not to let the backend handle whether or not to output to_dttm and from_dttm based on chart types / control options, nor add another layer of data processing in the frontend to do so. transformProps should serve that purpose.

Not having from_dttm and to_dttm in an domain array is to follow the same coding style in the backend:
https://github.com/apache/incubator-superset/blob/53ed851339e8607f4609762664d389d60d1ad26e/superset/viz.py#L324-L352

We could have used an array variable parsed_range or something, but that adds more API for developers to remember and would make searching the code harder.

[kristw]

Got it on the date time.

I wish there is a clearer naming for alignTimeRange. align for me means adjusting the time of each data point. Perhaps fixTimeRange, useFixedTimeRange?

[kristw]

Date periods for empty data will be rendered, but there will be no connected lines, dots, or tooltips for them.

Would be nice to have a tooltip showing date and value=null though. We did that for metric explorer.

[ktmud]

Date periods for empty data will be rendered, but there will be no connected lines, dots, or tooltips for them.

Would be nice to have a tooltip showing date and value=null though. We did that for metric explorer.

That would mean to translate time granularity to d3 ticks and reformat data values. There might also be a debate whether to do this in the frontend or backend, or some higher abstraction layer in the frontend. I'd rather push a quick fix first then iterate.

[kristw]

Date periods for empty data will be rendered, but there will be no connected lines, dots, or tooltips for them.

Would be nice to have a tooltip showing date and value=null though. We did that for metric explorer.

That would mean to translate time granularity to d3 ticks and reformat data values. There might also be a debate whether to do this in the frontend or backend. I'd rather push a quick fix first then iterate.

Could you attach a screenshot of the current behavior when you hover the null data point?

[kristw]

That would mean to translate time granularity to d3 ticks and reformat data values. There might also be a debate whether to do this in the frontend or backend. I'd rather push a quick fix first then iterate.

Sure. Can do in a follow-up PR. There is also existing code that may help. https://git.musta.ch/airbnb/dataportal/blob/master/dataportal/static/src/javascripts/apollo/clientResolvers/utils/fillTimeSeriesGap.ts

[ktmud]

Could you attach a screenshot of the current behavior when you hover the null data point?

Similar to the screenshot above. It will just be no tooltip at all.

I guess I can probably just fromDatetime and toDatetime to data.records, without getting tangled with d3.time and the ticks.

[kristw]

Similar to the screenshot above. It will just be no tooltip at all.

That is fine.

I guess I can probably just fromDatetime and toDatetime to data.records, without getting tangled with d3.time and the ticks.

Sorry. I am not sure I fully understand what you mean.

[ktmud]

Sorry. I am not sure I fully understand what you mean.

I mean instead of fill all the missing periods with d3-time or something similar to fillTimeSeriesGap.ts, just insert fromDatetime and toDatetime to data records so that the beginning and the end of the range will have a tooltip, but anything in between will still be empty.

[ktmud]

Sorry. I am not sure I fully understand what you mean.

I mean instead of fill all the missing periods with d3-time or something similar to fillTimeSeriesGap.ts, just insert fromDatetime and toDatetime to data records so that the beginning and the end of the range will have a tooltip, but anything in between will still be empty.

Just realized it is not that simple as Crosshair does not support that.
