Realtime Voice Activity Projection (Realtime-VAP)

README: English | Japanese (日本語)

A real-time implementation of Voice Activity Projection (VAP) is aimed at controlling behaviors of spoken dialogue systems, such as turn-taking. The VAP model takes stereo audio data (from two dialogue participants) as input and outputs future voice activity (p_now and p_future).

Details about the VAP model can be found in the following repository: https://github.com/ErikEkstedt/VoiceActivityProjection

In this repository, the VAP model can operate in real-time in a CPU environment. Please note that using GPUs can increase the processing speed.

The VAP program operates as a program that receives input and outputs processing results through a TCP/IP connection. It is expected that your program will connect to the VAP program via TCP/IP, input the audio data, and receive the VAP results.

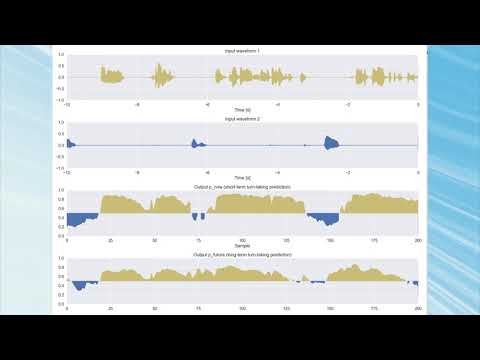

Demo video on YouTube (https://www.youtube.com/watch?v=-uwB6yl2WtI)

Directory

• rvap
  • vap_main - VAP main directory
  • vap_bc - VAP main directory for backchannel prediction
  • common - Utility programs for the VAP process, like how to encode and decode data for communication
• input - Sample programs for input function
• output - SAmple programs for output function
• asset - Model files for VAP and CPC
  • vap - VAP models
  • cpc - Pre-trained CPC models

Environment

• Windows - Not support WSL
• Mac - Not support output/gui.py
• Linux

Install

This software requires a Python environment (over than version 3.9). Please refer to the required libraries listed in requirements.txt.

You can directory install the libraries using it as

$ pip install -r requirements.txt
$ pip install -e .

If you want to use a GPU, please use requirements-gpu.txt

How to use

This system can be used in three steps. The first step is the main part of the VAP model, while the second and third steps are optional for input and output. This implies that you should ideally structure your system like the second and third steps, using them to provide input audio from your sensor and receive the processing result from VAP.

Step 1: Launch the main VAP program

When launching the main VAP program, specify both the trained VAP model and the pre-trained CPC model. You can also assign port numbers for input and output. For the parameters of the model you use, it needs to correctly set vap_process_rate and context_len_sec. Please check out the description of the model.

$ cd rvap/vap_main

$ python vap_main.py ^
    --vap_model ../../asset/vap/vap_state_dict_jp_20hz_2500msec.pt ^
    --cpc_model ../../asset/cpc/60k_epoch4-d0f474de.pt ^
    --port_num_in 50007 ^
    --port_num_out 50008 ^
    --vap_process_rate 20 ^
    --context_len_sec 2.5

If you want to use a GPU, please add an argument --gpu.

Then, you should see the message like

[IN] Waiting for connection of audio input...

Step 2: Launch the INPUT program

To test the WAV audio inputs of the sample data, launch input/wav.py. You can specify the input WAV file names. Please note, this sample input program requires both individual audio files as input for the model, and a mixed 2-channel audio data for playback. Note that you also need to specify the server IP and port number for the main VAP program.

$ cd input

$ python wav.py ^
    --server_ip 127.0.0.1 ^
    --port_num 50007 ^
    --input_wav_left wav_sample/jpn_inoue_16k.wav ^
    --input_wav_right wav_sample/jpn_sumida_16k.wav ^
    --play_wav_stereo wav_sample/jpn_mix_16k.wav

To capture input audio from the microphone, refer to the sample program input/mic.py. This program takes monaural audio data from the default microphone and concatenates it with zero data to fit the VAP input format. This implies that one participant is speaking while the other remains silent. This application is suitable for implementing the VAP model in spoken dialogue systems.

$ cd input

$ python mic.py ^
    --server_ip 127.0.0.1 ^
    --port_num 50007

Step 3: Launch the OUTPUT program

You can obtain the processing result of the VAP program via TCP/IP. The sample program output/console.py is designed to demonstrate how to receive data. It will display the received data on the console. Note that you need to specify the server IP and port number for the main VAP program.

$ cd output

$ python console.py ^
    --server_ip 127.0.0.1 ^
    --port_num 50008

We have also prepared another sample to visualize the received data as output/gui.py. Note that this GUI program does not work in Mac environemtns.

$ cd output

$ python gui.py ^
    --server_ip 127.0.0.1 ^
    --port_num 50008

You would see the GUI visualization like:

Data format

It is expected to the users of this repoditory that they would implement the input and output programs according to their own purposes, by referring to the sample programs located in input and output directories.

Input

Each data consists of 160 audio samples in 16,000 Hz, with each sample representing the audio data of two individuals. Each audio data sample is represented as an 8-byte double-precision floating-point number in the range of -1.0 to +1.0, in the little endian.

Transmission Order:

Data samples are transmitted sequentially in pairs. The first 8 bytes of each pair represent the audio data for the first individual, followed by 8 bytes for the second individual.

Example Data Packet Structure:

The size of each input data should be 2,560 bytes.

Byte Offset	Data type	Description
0 - 7	Double	Audio data (Individual 1) - Sample 1
8 - 15	Double	Audio data (Individual 2) - Sample 1
16 - 23	Double	Audio data (Individual 1) - Sample 2
24 - 31	Double	Audio data (Individual 2) - Sample 2
...	...	...
2544 - 2551	Double	Audio data (Individual 1) - Sample 160
2552 - 2559	Double	Audio data (Individual 2) - Sample 160

For more concrete examples, please see the sample programs like input/wav.py and input/mic.wav.

Output

The output data includes both the input audio data and the VAP outputs (p_now and p_future). Note that the framerate for the VAP processing differs from that of the input audio. For instance, with a 20 Hz model, the length of the VAP audio frame is 800 samples. Also, all data is in little-endian.

Example Data Packet Structure:

Under the specified condition, the size of each output data should be 12,860 bytes. This data is distributed after each VAP frame is processed.

Byte Offset	Data type	Description
0 - 3	Int	Total Data Length (12,860)
4 - 11	Double	Unix time stamp
12 - 15	Int	Individual 1 Audio Data Length (800)
16 - 23	Double	Audio data (Individual 1) - Sample 1
24 - 31	Double	Audio data (Individual 1) - Sample 2
...	...	...
6408 - 6415	Double	Audio data (Individual 1) - Sample 800
6416 - 6419	Int	Individual 2 Audio Data Length (800)
6420 - 6427	Double	Audio data (Individual 2) - Sample 1
6428 - 6435	Double	Audio data (Individual 2) - Sample 2
...	...	...
12812 - 12819	Double	Audio data (Individual 2) - Sample 800
12820 - 12823	Int	p_now length (2)
12824 - 12831	Double	p_now for (Individual 1)
12832 - 12839	Double	p_now for (Individual 2)
12840 - 12843	Int	p_future length (2)
12844 - 12851	Double	p_future for (Individual 1)
12852 - 12859	Double	p_future for (Individual 2)

Offline (batch) processing

You can also batch process recorded wav files using rvap/vap_main/vap_offline.py.

$ cd rvap/vap_main

$ python vap_offline.py ^
    --vap_model '../../asset/vap/vap_state_dict_20hz_jpn.pt' ^
    --cpc_model ../../asset/cpc/60k_epoch4-d0f474de.pt ^
    --input_wav_left ../../input/wav_sample/jpn_inoue_16k.wav ^
    --input_wav_right ../../input/wav_sample/jpn_sumida_16k.wav ^
    --filename_output 'output_offline.txt'

The output data will be saved in output_offline.txt, where each line contains the timestamp from the wav file (in seconds) followed by p_now (2 float values) and p_future (2 float values), separated by commas, like this:

time_sec,p_now(0=left),p_now(1=right),p_future(0=left),p_future(1=right)
0.07,0.29654383659362793,0.7034487724304199,0.3714706599712372,0.6285228729248047
0.12,0.6943456530570984,0.30564749240875244,0.5658637881278992,0.4341297447681427
0.17,0.8920691013336182,0.10792573541402817,0.7332779169082642,0.26671621203422546
0.22,0.8698683977127075,0.13012604415416718,0.6923539042472839,0.3076401650905609
0.27,0.870344340801239,0.12964950501918793,0.730902373790741,0.26909157633781433
0.32,0.9062888622283936,0.09370578080415726,0.7462385892868042,0.2537555992603302
0.37,0.8965250849723816,0.10346963256597519,0.6949127912521362,0.30508118867874146
0.42,0.9331467151641846,0.06684830039739609,0.7633994221687317,0.2365950644016266
0.47,0.9440065026283264,0.05598851293325424,0.7653886675834656,0.2346058338880539

Visualization

The visualization app can be used to see the prediction result while listening to the audio.

python output/offline_prediction_visualizer/main.py --left_audio input/wav_sample/jpn_inoue_16k.wav --right_audio input/wav_sample/jpn_sumida_16k.wav  --prediction rvap/vap_main/output_offline.txt

Backchannel prediction

There is also a fine-tuned model available for backchannel prediction (generation). Please use the following main program:

$ cd rvap/vap_bc

$ python vap_bc_main.py ^
    --vap_model ../../asset/vap_bc/vap-bc_state_dict_erica_20hz_5000msec.pt ^
    --cpc_model ../../asset/cpc/60k_epoch4-d0f474de.pt ^
    --port_num_in 50007 ^
    --port_num_out 50008 ^
    --vap_process_rate 20 ^
    --context_len_sec 5

The input/output format is the same, but the output p_now and p_future are replaced with p_bc_react and p_bc_emo, respectively. p_bc_react represents the probability of occurrence of continuer backchannels (e.g., "Yeah"), and p_bc_emo represents the probability of occurrence of assessment backchannels (e.g., "Wow"). This model predicts the probability of backchannels occurring 500 milliseconds later. Also, note that while the model input consists of 2-channel audio, it predicts the backchannels of the speaker on the first channel, meaning the second channel corresponds to the user's voice.

The sample programs for visualization are output/console_bc.py and output/gui_bc.py.

Model

This repository contains several models for VAP and CPC. To use these models, please abide by the lisence. There are parameters named vap_process_rate and context_len_sec. The former specifies the number of samples processed in the VAP model per second, and the second one corresponds to the length (sec.) of the context input to the model. They are fixed during the training so if you want to change those parameters, you need to re-train the models.

VAP

Japanese model (trained using a Zoom meeting dialogue from Travel agency dialogue (Inaba 2022))

Location	vap_process_rate	context_len_sec
asset/vap/vap_state_dict_jp_20hz_2500msec.pt	20	2.5
asset/vap/vap_state_dict_jp_10hz_5000msec.pt	10	5
asset/vap/vap_state_dict_jp_10hz_3000msec.pt	10	3
asset/vap/vap_state_dict_jp_5hz_5000msec.pt	5	5
asset/vap/vap_state_dict_jp_5hz_3000msec.pt	5	3

English model (trained using Switchboard corpus)

Location	vap_process_rate	context_len_sec
asset/vap/vap_state_dict_eng_20hz_2500msec.pt	20	2.5
asset/vap/vap_state_dict_eng_10hz_5000msec.pt	10	5
asset/vap/vap_state_dict_eng_10hz_3000msec.pt	10	3
asset/vap/vap_state_dict_eng_5hz_5000msec.pt	5	5
asset/vap/vap_state_dict_eng_5hz_3000msec.pt	5	3

Multi-lingual model (for English, Mandarin Chinese, and Japanese, trained using Switchboard corpus, HKUST Mandarin Telephone Speech, and Travel agency dialogue (Inaba 2022))

Location	vap_process_rate	context_len_sec
asset/vap/vap_state_dict_tri_ecj_20hz_2500msec.pt	20	2.5
asset/vap/vap_state_dict_tri_ecj_10hz_5000msec.pt	10	5
asset/vap/vap_state_dict_tri_ecj_10hz_3000msec.pt	10	3
asset/vap/vap_state_dict_tri_ecj_10hz_5000msec.pt	5	5
asset/vap/vap_state_dict_tri_ecj_10hz_3000msec.pt	5	3

Backchannel prediction VAP

Japanese backchannel model (fine-tuned with an attentive listening dialogue data using ERICA (WoZ))

Location	vap_process_rate	context_len_sec
asset/vap-bc/vap-bc_state_dict_erica_20hz_5000msec.pt	20	5
asset/vap-bc/vap-bc_state_dict_erica_20hz_3000msec.pt	20	3
asset/vap-bc/vap-bc_state_dict_erica_10hz_5000msec.pt	10	5
asset/vap-bc/vap-bc_state_dict_erica_10hz_3000msec.pt	10	3
asset/vap-bc/vap-bc_state_dict_erica_5hz_5000msec.pt	5	5
asset/vap-bc/vap-bc_state_dict_erica_5hz_3000msec.pt	5	3

CPC

Type	Location	Description
Original CPC	asset/cpc/60k_epoch4-d0f474de.pt	Original CPC model trained with Libri-light 60k speech data

Publication

Please cite the following paper, if you made any publications made with this repository.

Koji Inoue, Bing'er Jiang, Erik Ekstedt, Tatsuya Kawahara, Gabriel Skantze
Real-time and Continuous Turn-taking Prediction Using Voice Activity Projection
International Workshop on Spoken Dialogue Systems Technology (IWSDS), 2024
https://arxiv.org/abs/2401.04868

@inproceedings{inoue2024iwsds,
    author = {Koji Inoue and Bing'er Jiang and Erik Ekstedt and Tatsuya Kawahara and Gabriel Skantze},
    title = {Real-time and Continuous Turn-taking Prediction Using Voice Activity Projection},
    booktitle = {International Workshop on Spoken Dialogue Systems Technology (IWSDS)},
    year = {2024},
    url = {https://arxiv.org/abs/2401.04868},
}

If you use the multi-lingual VAP model, please also cite the following paper.

Koji Inoue, Bing'er Jiang, Erik Ekstedt, Tatsuya Kawahara, Gabriel Skantze
Multilingual Turn-taking Prediction Using Voice Activity Projection
Joint International Conference on Computational Linguistics, Language Resources and Evaluation (LREC-COLING), pages 11873-11883, 2024
https://aclanthology.org/2024.lrec-main.1036/

@inproceedings{inoue2024lreccoling,
    author = {Koji Inoue and Bing'er Jiang and Erik Ekstedt and Tatsuya Kawahara and Gabriel Skantze},
    title = {Multilingual Turn-taking Prediction Using Voice Activity Projection},
    booktitle = {Proceedings of the Joint International Conference on Computational Linguistics and Language Resources and Evaluation (LREC-COLING)},
    pages = {11873--11883},
    year = {2024},
    url = {https://aclanthology.org/2024.lrec-main.1036/},
}

Lisence

The source code in this repository is licensed under the MIT license. The trained models, found in the asset directory, are used for only academic purposes.

A pre-trained CPC model, located at asset/cpc/60k_epoch4-d0f474de.pt, is from the original CPC project and please follow its specific license. Refer to the original repository at https://github.com/facebookresearch/CPC_audio for more details.
