Virtual assistant for contextual support in Legend Studio

[akphi]

Summary

• bump dependencies: upgraded react-reflex
• Cleanup and move validation logic out of metamodels for DSL Diagram
• Remove the header for Legend Taxonomy
• Remove the header for Legend Studio
  • Moved the Share project button to Project Overview
  • Moved the Home/Setup button (previously the app name icon) to menu
• Closes Feature request: More descriptive version info in About dialog #100
• Closes Feature request: create virtual assistance to provide contextual documentation/help in form mode #1072

Details of implementation for #1072

• Read the contextual doc registry
• Add the component at the top-level of the app so it pops even when we have a backdrop
• Have an eye-catchy motion when there is new event and we found some contextual doc
• Deal with the eye-catchy animation when we switch from one contextual doc to another, how can we replay that animation?
• When there are contextual help items, we could show an indicator, when being hovered on, we should have a tooltip showing contextual support available
• Refactor ClassEditor to have different pages
• Change the assistant trigger icon to X icon when the assistant is open
• Bump up the virtual assistant popover (or non-modal dialog) when clicking on the assistant
• Think of the design for multiple tabs in the virtual assistant
  • Design the tabs like how we do aux panel
  • Have a welcome page when there's no search keyword
  • Contextual Help Tab: Show contextual suggestions in this tab
  • General Help Tab: Allow searching in the virtual assistant popover - Consider using https://www.npmjs.com/package/fuse.js
  • Show number of results next to the clear/search icon in search <input>
• Click help in the menu will open the assitant to the general help tab
• Allow hiding the assistant, if hidden, the popover will open to the left, not touching the bottom of the app; otherwise, the popover will open to the top, not touching the right edge of the app
  • When hiding the assistant, close the popover
• Improve existing doc library
  • use dot-case for eventKey and docKey
  • add question/title for existing DSL and element grammar docs
• Create application context service:
  • the service holds a stack of context that mirrors how user navigate the application
  • the virtual asistant will react to the top context to find relevant documentation
• Created Event Service in ApplicationStore - We will use this to keep track of posted event and have a note that in the future we might change this to a queue for storing event, always look at the latest event for the assitant though.
• Improve the current way we configure and override documentation entries
• Allow extending/override contextual documentation
• DEBUG Have a context-menu/button to copy the context ID and documentation key, also allow downloading the whole documentation (contextual included) registry
• Support drag-and-drop for virtual assistant - use react-dragable
  • Make the assistant position auto - so the panel doens't get cropped off
  • Bound DnD to edge of screen
  • While dragging, hide the panel, re-show when done with dragging
  • While dragging, alter the cursor to grabbing
  • Restyle the trigger: account for right edge/border color as well
  • When collapsed, auto-reset to default position
  • Support context menu from the trigger to reset to default/hide assistant
• Show loading indicator when searching
• Have a button on status bar to toggle assistant

How did you test this change?

• Test(s) added
• Manual testing (please provide screenshots/recordings)
• No testing (please provide an explanation)

Screenshots and videos

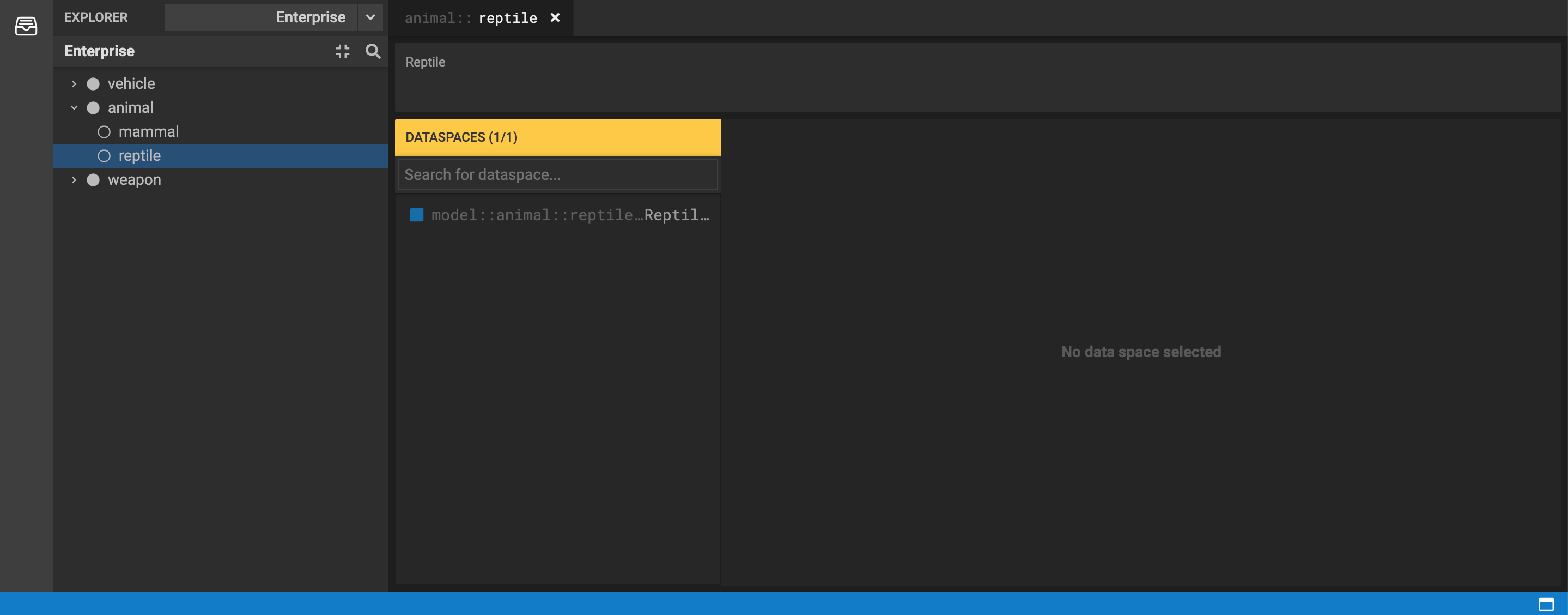

Legend Taxonomy without header

Share project button (moved to project overview panel)

share.project.mov

Go-to-homepage/setup button (moved to menu)

back.to.home.page.mov

Improved About dialog

new.app.info.modal.mov

Documentation search and general assistant

search.documentation.mov

Contextual documentation (class editor case)

contextual.documentation.mov

[changeset-bot]

🦋 Changeset detected

Latest commit: d1c36ab

The changes in this PR will be included in the next version bump.

This PR includes changesets to release 33 packages

Name	Type
@finos/legend-application	Major
@finos/legend-art	Minor
@finos/legend-graph	Minor
@finos/legend-studio	Major
@finos/legend-taxonomy	Patch
@finos/babel-preset-legend-studio	Patch
@finos/eslint-plugin-legend-studio	Patch
@finos/legend-dev-utils	Patch
@finos/legend-extension-dsl-data-space	Patch
@finos/legend-extension-dsl-diagram	Patch
@finos/legend-extension-dsl-persistence	Patch
@finos/legend-extension-dsl-text	Patch
@finos/legend-extension-external-format-json-schema	Patch
@finos/legend-extension-external-language-morphir	Patch
@finos/legend-extension-external-store-service	Patch
@finos/legend-extension-mapping-generation	Patch
@finos/legend-graph-extension-collection	Patch
@finos/legend-manual-tests	Patch
@finos/legend-model-storage	Patch
@finos/legend-query	Patch
@finos/legend-query-app	Patch
@finos/legend-query-deployment	Patch
@finos/legend-server-depot	Patch
@finos/legend-server-sdlc	Patch
@finos/legend-shared	Major
@finos/legend-studio-app	Patch
@finos/legend-studio-deployment	Patch
@finos/legend-studio-extension-management-toolkit	Patch
@finos/legend-studio-extension-query-builder	Patch
@finos/legend-taxonomy-app	Patch
@finos/legend-taxonomy-deployment	Patch
@finos/legend-tracer-extension-zipkin	Patch
@finos/stylelint-config-legend-studio	Patch

Not sure what this means? Click here to learn what changesets are.

Click here if you're a maintainer who wants to add another changeset to this PR

[codecov]

Codecov Report

Merging #1166 (d1c36ab) into master (436264a) will decrease coverage by 0.34%.
The diff coverage is 26.27%.

@@            Coverage Diff             @@
##           master    #1166      +/-   ##
==========================================
- Coverage   42.48%   42.13%   -0.35%
==========================================
  Files        1133     1138       +5
  Lines       50284    50729     +445
  Branches    11523    11629     +106
==========================================
+ Hits        21364    21376      +12
- Misses      28849    29283     +434
+ Partials       71       70       -1

Impacted Files	Coverage Δ
...-application/src/application/LegendApplication.tsx	8.00% <ø> (ø)
...src/application/LegendApplicationPluginManager.tsx	0.00% <ø> (ø)
...d-application/src/components/DocumentationLink.tsx	20.00% <0.00%> (ø)
.../legend-application/src/stores/ApplicationStore.ts	18.18% <0.00%> (-0.92%)	⬇️
...cation/src/stores/LegendApplicationEventService.ts	0.00% <0.00%> (ø)
...gend-application/src/stores/PureLanguageSupport.ts	15.38% <ø> (ø)
...kages/legend-art/src/components/ResizablePanel.tsx	10.71% <0.00%> (ø)
packages/legend-art/src/components/TypeIcon.tsx	0.00% <ø> (ø)
...s/legend-art/src/components/popover/BasePopper.tsx	0.00% <0.00%> (ø)
...s/studio/DSLDataSpace_LegendStudioDocumentation.ts	0.00% <0.00%> (ø)
... and 111 more
