[Vega] Use mapbox instead of leaflet #88605

VladLasitsa · 2021-01-18T15:11:02Z

Summary

The task was to get rid of the use of mapLegacy (since it will be removed soon) and migrate to the MapBox.
As part of this task the following was done:

Added MapBox and used it as a map for Vega. Created a new view (https://github.com/elastic/kibana/pull/88605/files#diff-007ffb62742258bc950468291bcbab7055d8b598fba324cc285c3f3b5925ef50) for this instead previous one vega_map_view.js
Created a custom Vega layer for MapBox by analogy as in Leaflet and tested it.(https://github.com/elastic/kibana/pull/88605/files#diff-91c9c1f0c2762706554bd15bb6457d7912e98b1240b3147884ffe14a9bdb3904).
Added MapServiceSettings for getting needed tms service instead of using mapLegacy services. (https://github.com/elastic/kibana/pull/88605/files#diff-597f7f1d850fb0e98ce3fab72bf3fcbdf3dc3a8ec8d258b23d177eb7c21ee60b)
Moved validation of zoom values from view in validataion_helper (https://github.com/elastic/kibana/pull/88605/files#diff-f82ce0679453cb41a4f663254cf02b78ad2986ce066a1b360e88fc92b9b11384)
Added unit and visual regression tests.

Release notes

Leaflet (https://leafletjs.com/) map layer in Vega visualization was replaced to MapBox (https://www.mapbox.com/)

Testing notes

To enable map layer, you should specify type=map in the spec configuration.
If you would like also see Vega layer on the map you can open any vega-map visualization from sample data. For example [Flights] Airport Connections (Hover Over Airport) which you can find if add Sample flight data.

Screens

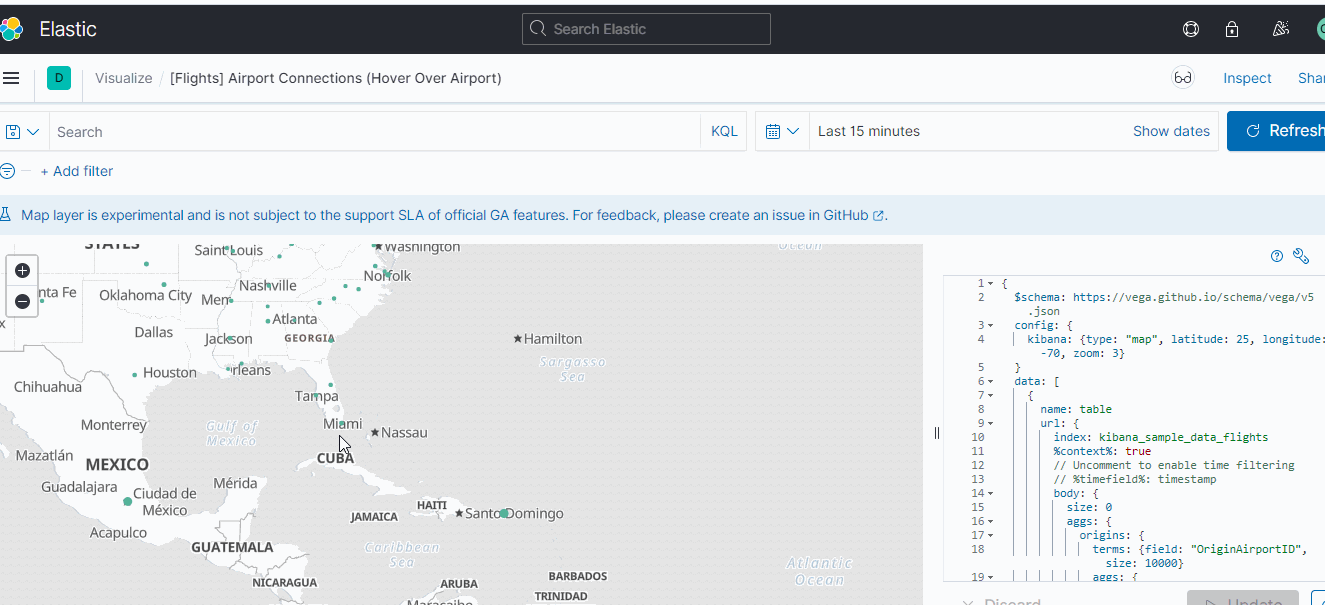

Before:

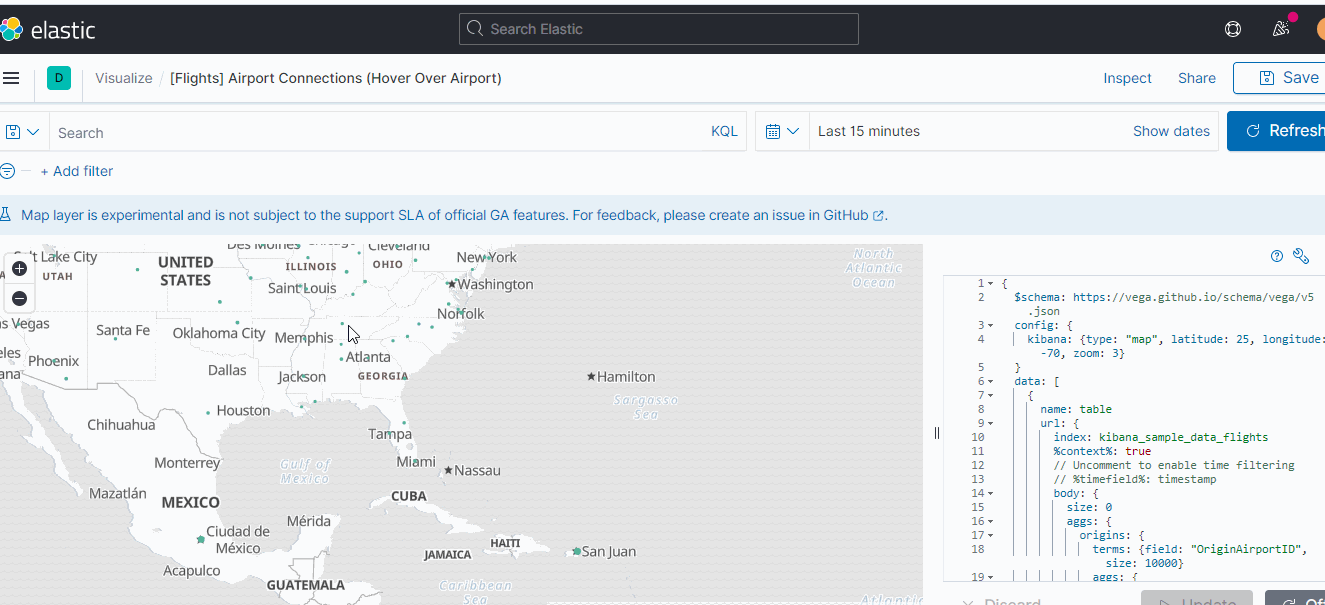

After:

For maintainers

This was checked for breaking API changes and was labeled appropriately

alexwizp · 2021-01-20T12:24:12Z

@elasticmachine merge upstream

add MapServiceSettings class some work add tms_raster_layer add LayerParameters type clenup view.ts some cleeanup fix grammar some refactoring and add attribution control Some refactoring Add some validation for zoom settings and destroy handler Some refactoring some work fix bundle size Move getZoomSettings to the separate file update licence some work move logger to createViewConfig add throttling for updating vega layer

alexwizp · 2021-01-21T16:48:48Z

@elasticmachine merge upstream

…ser open map layer

alexwizp · 2021-01-22T13:43:18Z

@elasticmachine merge upstream

thomasneirynck

nothing really jumping out for me. Works as expected.

Some minor comments for cleanup.

src/plugins/vis_type_vega/public/vega_view/vega_map_view/view.ts

elasticmachine · 2021-01-27T20:17:08Z

Pinging @elastic/kibana-app (Team:KibanaApp)

ryankeairns

Approving the SCSS change.
I will defer to @miukimiu for the UX review, if needed.

thomasneirynck

lgtm!

thanks a lot @VladLasitsa

This was an important PR for the Maps-team. It will enable us to:

continue to work on the removal of region/coordinate maps
- to remove leaflet from the Kibana codebase
- to remove dependency on the raster-image service of EMS
support on-prem deployments of EMS for Vega-maps users

💯

alexwizp · 2021-01-28T21:31:19Z

@elasticmachine merge upstream

src/plugins/vis_type_vega/public/vega_view/vega_map_view/utils/validataion_helper.ts

stratoula · 2021-01-29T10:28:35Z

@elasticmachine merge upstream

stratoula · 2021-01-29T10:38:32Z

Also @VladLasitsa we merged the ts references for vega and it seems that it fails. Can you fix it? cc @alexwizp

stratoula

LGTM, tested locally in chrome, everything seems fine 🙂

kibanamachine · 2021-01-29T13:36:06Z

💚 Build Succeeded

continuous-integration/kibana-ci/pull-request
Commit: 3c97d8a

Metrics [docs]

Module Count

Fewer modules leads to a faster build time

id	before	after	diff
`visTypeVega`	93	173	+80

Async chunks

Total size of all lazy-loaded chunks that will be downloaded as the user navigates the app

id	before	after	diff
`visTypeVega`	1.5MB	2.5MB	⚠️ +989.7KB

Page load bundle

Size of the bundles that are downloaded on every page load. Target size is below 100kb

id	before	after	diff
`visTypeVega`	53.6KB	57.4KB	+3.8KB

Unknown metric groups

async chunk count

id	before	after	diff
`visTypeVega`	7	8	+1

History

💔 Build #102084 failed 6dad8b7
💚 Build #101964 succeeded daca709
💚 Build #101714 succeeded 9f6e8e2
💔 Build #101703 failed 5b8e62f
💚 Build #101205 succeeded 9e1e3d5

To update your PR or re-run it, just comment with:
@elasticmachine merge upstream

* [WIP][Vega] Use mapbox instead of leaflet elastic#78395 add MapServiceSettings class some work add tms_raster_layer add LayerParameters type clenup view.ts some cleeanup fix grammar some refactoring and add attribution control Some refactoring Add some validation for zoom settings and destroy handler Some refactoring some work fix bundle size Move getZoomSettings to the separate file update licence some work move logger to createViewConfig add throttling for updating vega layer * move EMSClient to a separate bundle * [unit testing] add tests for validation_helper.ts * [Bundle optimization] lazy loading of '@elastic/ems-client' only if user open map layer * [Map] fix cursor: crosshair -> auto * [unit testing] add tests for tms_raster_layer.test * [unit testing] add tests for vega_layer.ts * VSI related code was moved into a separate file / unit tests were added * Add functional test for vega map * [unit testing] add tests for map_service_setting.ts * Add unload in function test and delete some unneeded code from test * road_map -> road_map_desaturated * [unit testing] add more tests for map_service_settings.test.ts * Add unit tests for view.ts * Fix some remarks * Fix unit tests * remove tms_tile_layers enum * [unit testing] fix map_service_settings.test.ts * Fix unit test for view.ts * Fix some comments * Fix type check * Fix CI Co-authored-by: Alexey Antonov <[email protected]> Co-authored-by: Kibana Machine <[email protected]>

* [WIP][Vega] Use mapbox instead of leaflet #78395 add MapServiceSettings class some work add tms_raster_layer add LayerParameters type clenup view.ts some cleeanup fix grammar some refactoring and add attribution control Some refactoring Add some validation for zoom settings and destroy handler Some refactoring some work fix bundle size Move getZoomSettings to the separate file update licence some work move logger to createViewConfig add throttling for updating vega layer * move EMSClient to a separate bundle * [unit testing] add tests for validation_helper.ts * [Bundle optimization] lazy loading of '@elastic/ems-client' only if user open map layer * [Map] fix cursor: crosshair -> auto * [unit testing] add tests for tms_raster_layer.test * [unit testing] add tests for vega_layer.ts * VSI related code was moved into a separate file / unit tests were added * Add functional test for vega map * [unit testing] add tests for map_service_setting.ts * Add unload in function test and delete some unneeded code from test * road_map -> road_map_desaturated * [unit testing] add more tests for map_service_settings.test.ts * Add unit tests for view.ts * Fix some remarks * Fix unit tests * remove tms_tile_layers enum * [unit testing] fix map_service_settings.test.ts * Fix unit test for view.ts * Fix some comments * Fix type check * Fix CI Co-authored-by: Alexey Antonov <[email protected]> Co-authored-by: Kibana Machine <[email protected]> Co-authored-by: Alexey Antonov <[email protected]> Co-authored-by: Kibana Machine <[email protected]>
