[Infrastructure UI] Host filtering controls

[jennypavlova]

Closes #140445

Summary

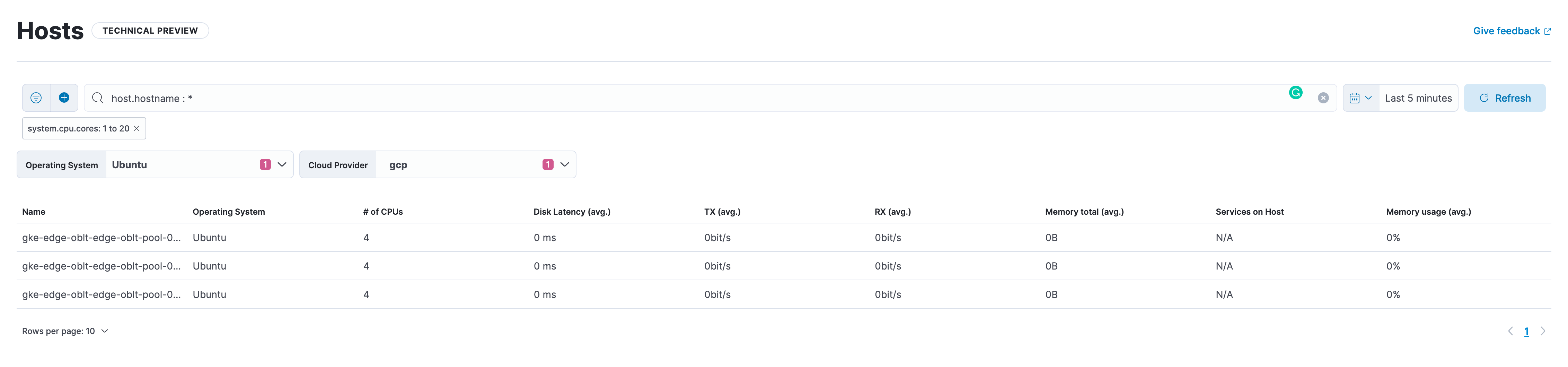

This PR adds 2 filters (Operating System and Cloud Provider) using Kibana Controls API to the Host view.

Testing

• Open Host View
• The Operating System and Cloud Provider filters should be visible under the search bar. Supported values:
  • Filter Include/exclude OS name / Cloud Provider name
  • Exist / Does not exist
  • Any (also when clearing the filters)
• The control filters should update the possible values when the other control filter or unified search query/filters are changes
• When the control group filters are updated the table is loading the filtered result.
• Combination with unified search query/filters should be possible.

• Copy the url after adding the filters and paste it into a separate tab
  • The control group AND the other filters/query should be prefilled

🎉 UPDATE the control panels are prefilled from the URL

The Workaround:

Together with @ThomThomson we found a way to prefill the control group selections from the URL state by adding the panels' objects to the URL state (using a separate key to avoid the infinite loop issue) and keeping the output filters (used for updating the table) separately.

Discovered issues with persisting the new filters to the URL state

⚠️ This PR does not support persisting those filters in the URL state. The reason behind this is that if we persist those filters inside the other filters parameter it will create an infinite loop (as those controls are relying on the filters to adjust the possible values).
In order to avoid that we can persist them in a different parameter (instead of adding them to the existing _a we can add a new one for example named controlFilters. This will work with filtering the table results.
BUT If we go with the solution to persist them in another urlStateKey we also need to prefill those selections from the url state to the control filters (Operating System and Cloud Provide).
Currently, the controls API supports setting selectedOptions as a string array.

Workaraound Ideas

Option 1: I tried first on a separate branch

• Persist the filters as an array of filter options.
• on load prefill the control filters
  • extract the string values from the filters and set them as selectedOptions inside the control group input panel (based on the field name for example)

Option 2 (Suggestion from Devon )

• on load pass in the selections from the URL to the control group input
• Don't render the table right away
• Wait until control group is ready .then
  • Get the filters from the control group output
  • Set filters from controls in the use state by doing controls.getOutput().filters
• Render the table with ...unifiedSearchFilters, ...filtersFromControls

❌ The issue with both 1 & 2

• With selectedOptions we can prefill only strings so Exist and Negate won't be supported

[elasticmachine]

Pinging @elastic/infra-monitoring-ui (Team:Infra Monitoring UI)

[tonyghiani]

suggestion: in my understanding (correct me if wrong, please), the useUrlState already returns a memorized handler setUrlState. This declaration is unnecessary since the function only forwards the argument to the updated handler.

You could rename it directly with a new variable and keep the same function reference:

const setControlPanels = setUrlState

[jennypavlova]

Good point! I don't need the useCallback anymore 🙂 I set it directly in the return same as the urlState so it will be even simpler:

return {
    controlPanel: urlState,
    setControlPanels: setUrlState,
}

[jennypavlova]

@elastic/kibana-presentation I saw that the input parameter was replaced with getCreationOptions in this PR, really nice progress there 🙌
I tried to use addDataControlFromField to add the panels like in your example but in my case, I want to prefill the control group selections from a URL parameter (Currently I am persisting the whole panels object in the URL state to achieve that) Do you know if I can archive something similar with the latest Controls API changes or it's not currently available?

[tonyghiani]

nit: since this function does not wait for any async operation, you can safely remove the async and keep your function synchronous.
Also, you don't need to restructure the args if not necessary, and to improve the readability of the return statement you could abstract the object into a factory function out of the return statement, something like this:

const makeCreationOption = ({dataViewId, timeRange, filters, query}): Partial<ControlGroupInput> => ({
  id: dataViewId,
  timeRange,
  viewMode: ViewMode.VIEW,
  filters,
  query,
  chainingSystem: 'HIERARCHICAL',
  controlStyle: 'oneLine',
  defaultControlWidth: 'small',
  panels: controlPanel,
});


...

const handleOptionCreation = () => makeCreationOption({dataViewId, timeRange, filters, query})

return (
  <LazyControlsRenderer
    getCreationOptions={handleOptionCreation}
    onEmbeddableLoad={...}
...

[jennypavlova]

The function (getCreationOptions) is defined to return a promise, that's why it has async. The methods that we need to wait are not used in this case but the returned type is still a promise.

[tonyghiani]

nit: if (panelFilters?.length > 0)

[jennypavlova]

In this case, panelFilters can be null - So if it's null the filters are not in the URL, it can be an empty array if there are no filters and an array with filter objects: so the type is Filter[] | null and type check is not passing if I change it to panelFilters?.length.
So to make it clear I used Array.isArray(panelFilters) && panelFilters.length > 0.

[tonyghiani]

question: just a detail, for stateful hooks like useState or useReducer the React convention is to return the result as a Array<Value, UpdaterHandler>. Following this convention, you could basically reduce this custom hook to a configurator custom hook in the form of

export const useControlPanels = (dataViewId: string) => {
  return useUrlState<ControlPanels>({
    defaultState: getDefaultPanels(dataViewId),
    decodeUrlState,
    encodeUrlState,
    urlStateKey: HOST_FILTERS_URL_STATE_KEY,
  });
};

and then use it as

const [ controlPanel, setControlPanels ] = useControlPanels(dataViewId);

Non-blocking at all, just curious if there is any reason for following this approach :)

[jennypavlova]

Good point, I changed this 👍

[tonyghiani]

LGTM 👏 Just left a couple of suggestions for readability improvements, but overall it looks functional 🚀

[kibana-ci]

💚 Build Succeeded

• Buildkite Build
• Commit: 217d609

Metrics [docs]

Module Count

Fewer modules leads to a faster build time

id	before	after	diff
infra	1147	1150	+3

Async chunks

Total size of all lazy-loaded chunks that will be downloaded as the user navigates the app

id	before	after	diff
infra	1.1MB	1.1MB	+2.3KB

Page load bundle

Size of the bundles that are downloaded on every page load. Target size is below 100kb

id	before	after	diff
infra	85.7KB	85.9KB	+138.0B

Unknown metric groups

ESLint disabled in files

id	before	after	diff
osquery	1	2	+1

ESLint disabled line counts

id	before	after	diff
enterpriseSearch	19	21	+2
fleet	59	65	+6
osquery	109	115	+6
securitySolution	442	448	+6
total			+20

Total ESLint disabled count

id	before	after	diff
enterpriseSearch	20	22	+2
fleet	68	74	+6
osquery	110	117	+7
securitySolution	519	525	+6
total			+21

History

• 💚 Build #91322 succeeded 657a5bd
• 💔 Build #91135 failed d252945
• 💔 Build #91107 failed 9e1dd7f
• 💚 Build #90771 succeeded ae5c245
• 💚 Build #90753 succeeded 461f52a
• 💚 Build #90053 succeeded ca97d87

To update your PR or re-run it, just comment with:
@elasticmachine merge upstream

cc @jennypavlova
