[TSVB] Fix shard failures are not reported by alexwizp · Pull Request #123474 · elastic/kibana

alexwizp · 2022-01-20T15:37:32Z

🏁 Shard failures are not reported #122944

Describe the feature:

TSVB does not report shard failures as long as there's at least one shard successfully returning data. This can make it hard to debug issues and bears a risk of misinterpreting charts because parts of data are silently missing

Screens:

Screen.Recording.2022-01-21.at.6.45.33.PM.mov

🏁 Allow Elasticsearch request bodies to be displayed #15424

Describe the feature:

For most of the Kibana visualizations, there's a UP arrow button in the lower left corner when on the Visualize tab that allows the user to see the data in table view, the raw request + response, and query stats. This doesn't seem to exist for the Time Series Visual Builder visualization.

I know it's more complicated because the TSVB supports multiple queries being executed but it'd be useful to see the request/response like with other visualizations.

Screens:

Screen.Recording.2022-01-21.at.6.46.14.PM.mov

Closes: elastic#122944

elasticmachine · 2022-01-21T15:55:10Z

Pinging @elastic/kibana-vis-editors @elastic/kibana-vis-editors-external (Team:VisEditors)

alexwizp · 2022-01-24T08:38:16Z

@elasticmachine merge upstream

flash1293 · 2022-01-24T17:05:11Z

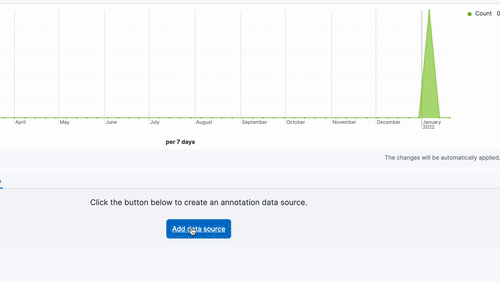

Not sure whether related to this PR, but on adding an annotations source, TSVB does a lot of requests (eventually it stops though):

flash1293

Some nits, but works great - thanks for this! We should look into the annotations thing though to make sure it's not caused by this PR - I tested on 8.0-beta and it's not happening there for some reason.

Otherwise this LGTM

src/plugins/vis_types/timeseries/server/ui_settings.ts

src/plugins/vis_types/timeseries/common/types/vis_data.ts

alexwizp · 2022-01-25T08:39:25Z

@elasticmachine merge upstream

flash1293

Tested and works well. LGTM 👍

src/plugins/vis_types/timeseries/server/ui_settings.ts

# Conflicts: # src/plugins/vis_types/timeseries/public/metrics_type.ts

kibana-ci · 2022-01-26T11:42:35Z

💚 Build Succeeded

Metrics [docs]

Public APIs missing comments

Total count of every public API that lacks a comment. Target amount is 0. Run node scripts/build_api_docs --plugin [yourplugin] --stats comments for more detailed information.

id	before	after	diff
`data`	2767	2771	+4

Async chunks

Total size of all lazy-loaded chunks that will be downloaded as the user navigates the app

id	before	after	diff
`visTypeTimeseries`	447.8KB	447.9KB	+69.0B

Page load bundle

Size of the bundles that are downloaded on every page load. Target size is below 100kb

id	before	after	diff
`data`	448.9KB	449.0KB	+53.0B
`inspector`	22.3KB	22.3KB	+38.0B
`visTypeTimeseries`	14.8KB	15.5KB	+741.0B
total			+832.0B

Unknown metric groups

API count

id	before	after	diff
`data`	3364	3368	+4

History

💔 Build #19622 failed 5ac0811
💚 Build #19340 succeeded 5a16f95
💚 Build #19296 succeeded 9183b31
💚 Build #18997 succeeded 9035822
💚 Build #18904 succeeded 831f03e

To update your PR or re-run it, just comment with:
@elasticmachine merge upstream

cc @alexwizp

alexwizp · 2022-01-26T13:36:00Z

@elastic/infra-monitoring-ui @elastic/kibana-app-services please have a look

Dosant

Nice improvement 👍 From my and app services code perspective lgtm

But have some questions/suggestions for TSVB code. Maybe some of the worth an issue:

It seems like error path of TSVB is handled poorly and hides a lot of info

For example:

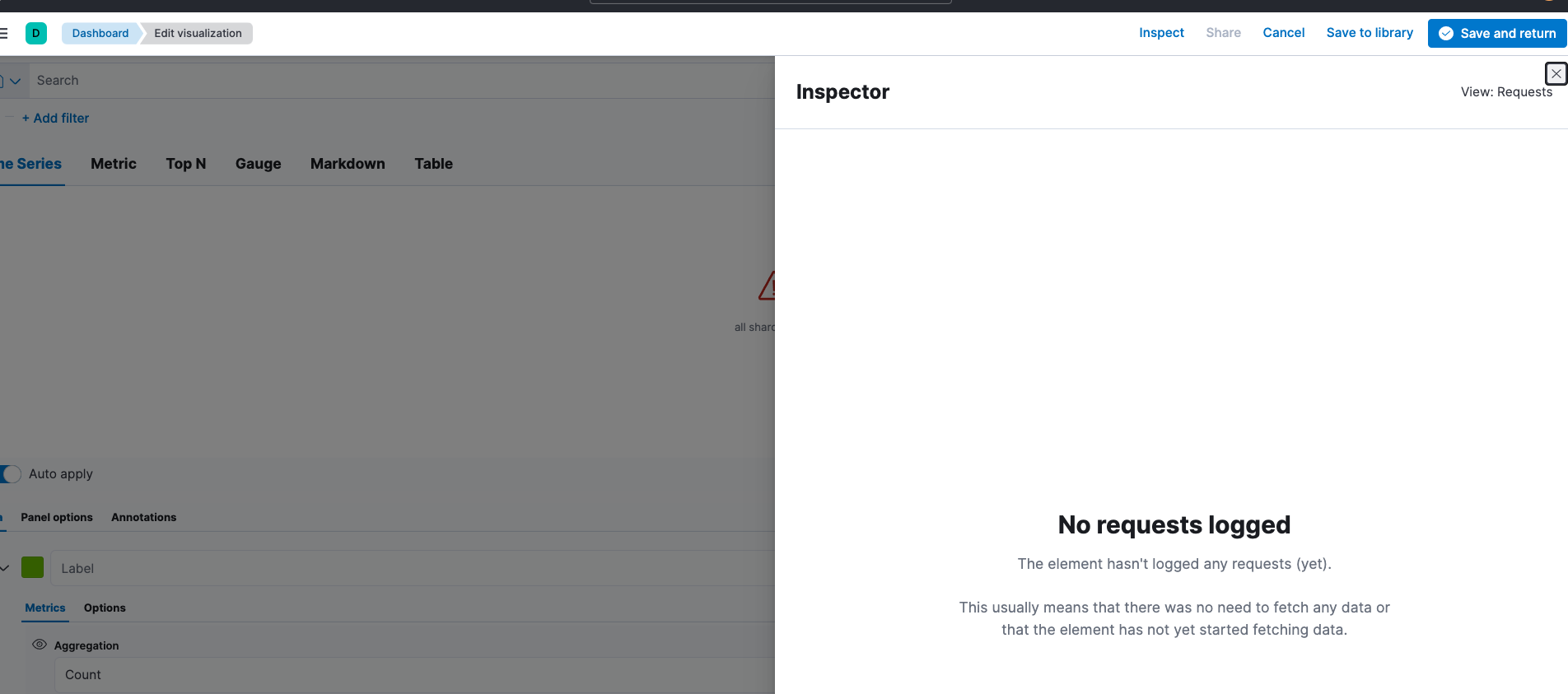

this is what I got:
All shards failed

And this is how much info inside the es response:

{"errBody":{"is_partial":true,"is_running":false,"start_time_in_millis":1643284656920,"expiration_time_in_millis":1643284716920,"response":{"took":3,"timed_out":false,"terminated_early":false,"num_reduce_phases":0,"_shards":{"total":1,"successful":0,"skipped":0,"failed":1,"failures":[{"shard":0,"index":"kibana_sample_data_ecommerce","node":"aTguCaz_QamVRWwzvm0LGA","reason":{"type":"query_shard_exception","reason":"failed to create query: [kibana_sample_data_ecommerce][0] Watch out!","index_uuid":"kq37gPxmRBSoaQs0xhbGnA","index":"kibana_sample_data_ecommerce","caused_by":{"type":"runtime_exception","reason":"[kibana_sample_data_ecommerce][0] Watch out!"}}}]},"hits":{"total":{"value":0,"relation":"gte"},"max_score":null,"hits":[]}},"error":{"type":"status_exception","reason":"error while executing search","caused_by":{"type":"search_phase_execution_exception","reason":"all shards failed","phase":"query","grouped":true,"failed_shards":[{"shard":0,"index":"kibana_sample_data_ecommerce","node":"aTguCaz_QamVRWwzvm0LGA","reason":{"type":"query_shard_exception","reason":"failed to create query: [kibana_sample_data_ecommerce][0] Watch out!","index_uuid":"kq37gPxmRBSoaQs0xhbGnA","index":"kibana_sample_data_ecommerce","caused_by":{"type":"runtime_exception","reason":"[kibana_sample_data_ecommerce][0] Watch out!"}}}]}}},"statusCode":400}

Currently errored es responses aren't propagated through trackedEsSearches. I think this would be very useful to add.
FYI, there is a testing module in es that could help with testing errors: elastic/elasticsearch#71674

Dosant · 2022-01-27T11:59:11Z

...ins/vis_types/timeseries/server/lib/search_strategies/strategies/abstract_search_strategy.ts

          )
+          .pipe(
+            tap((data) => {
+              if (trackingEsSearchMeta?.requestId && trackedEsSearches) {


I think that would be nice if this code also executed when searching request errors out completely.

Dosant · 2022-01-27T12:00:06Z

src/plugins/vis_types/timeseries/server/ui_settings.ts

    }),
    schema: schema.boolean(),
  },
+  [UI_SETTINGS.ALLOW_CHECKING_FOR_FAILED_SHARDS]: {


Not sure I understand the reason for adding the uiSetting

flash1293 · 2022-01-27T13:10:46Z

Agreed, reporting errors in the same way would be a nice addition. However I think it's fine to split that out into a separate PR as the issue is about shard warnings which were hidden completely from the users point of view previously (in case all shards fail it's very obvious from the state of the chart).

* [TSVB] Fix shard failures are not reported elastic#122944 Closes: elastic#122944 * fix PR comments * Update ui_settings.ts Co-authored-by: Kibana Machine <42973632+kibanamachine@users.noreply.github.com>

* [TSVB] Fix shard failures are not reported elastic#122944 Closes: elastic#122944 * fix PR comments * Update ui_settings.ts Co-authored-by: Kibana Machine <42973632+kibanamachine@users.noreply.github.com> (cherry picked from commit 7e1b780) # Conflicts: # src/plugins/vis_types/timeseries/common/constants.ts # src/plugins/vis_types/timeseries/kibana.json # src/plugins/vis_types/timeseries/public/metrics_type.ts # src/plugins/vis_types/timeseries/server/ui_settings.ts # x-pack/plugins/infra/server/lib/adapters/metrics/kibana_metrics_adapter.ts

* [TSVB] Fix shard failures are not reported (#123474) * [TSVB] Fix shard failures are not reported #122944 Closes: #122944 * fix PR comments * Update ui_settings.ts Co-authored-by: Kibana Machine <42973632+kibanamachine@users.noreply.github.com> (cherry picked from commit 7e1b780) # Conflicts: # src/plugins/vis_types/timeseries/common/constants.ts # src/plugins/vis_types/timeseries/kibana.json # src/plugins/vis_types/timeseries/public/metrics_type.ts # src/plugins/vis_types/timeseries/server/ui_settings.ts # x-pack/plugins/infra/server/lib/adapters/metrics/kibana_metrics_adapter.ts * fix CI Co-authored-by: Kibana Machine <42973632+kibanamachine@users.noreply.github.com>

* [TSVB] Fix shard failures are not reported elastic#122944 Closes: elastic#122944 * fix PR comments * Update ui_settings.ts Co-authored-by: Kibana Machine <42973632+kibanamachine@users.noreply.github.com> (cherry picked from commit 7e1b780) # Conflicts: # src/plugins/vis_types/timeseries/kibana.json # src/plugins/vis_types/timeseries/public/metrics_type.ts

* [TSVB] Fix shard failures are not reported (#123474) * [TSVB] Fix shard failures are not reported #122944 Closes: #122944 * fix PR comments * Update ui_settings.ts Co-authored-by: Kibana Machine <42973632+kibanamachine@users.noreply.github.com> (cherry picked from commit 7e1b780) # Conflicts: # src/plugins/vis_types/timeseries/kibana.json # src/plugins/vis_types/timeseries/public/metrics_type.ts * fix * fix telemetry Co-authored-by: Alexey Antonov <alexwizp@gmail.com> Co-authored-by: Kibana Machine <42973632+kibanamachine@users.noreply.github.com>
