[SPARK-41244][UI] Introducing a Protobuf serializer for UI data on KV store #38779

gengliangwang · 2022-11-23T23:07:15Z

What changes were proposed in this pull request?

Introducing Protobuf serializer for KV store, which is 3 times as fast as the default serializer according to end-to-end benchmark against RocksDB.

Serializer	Avg Write time(μs)	Avg Read time(μs)	RocksDB File Total Size(MB)	Result total size in memory(MB)
Spark’s KV Serializer(JSON+gzip)	352.2	119.26	837	868
Protobuf	109.9	34.3	858	2105

To move fast and make PR review easier, this PR will:

Cover the class JobDataWrapper only. We can handle more UI data later.
Not adding configuration for setting serializer in SHS. We will have it as a follow-up.

Why are the changes needed?

A faster serializer for KV store. It supports schema evolution so that in the future SHS can leverage it as well.
More details in the SPIP: https://docs.google.com/document/d/1cuKnFwlTodyVhUQPMuakq2YDaLH05jaY9FRu_aD1zMo/edit

Does this PR introduce any user-facing change?

No

How was this patch tested?

gengliangwang · 2022-11-23T23:08:36Z

cc @LuciferYang as well.

core/pom.xml

gengliangwang · 2022-11-23T23:30:41Z

pom.xml

    <hadoop.version>3.3.4</hadoop.version>
-    <protobuf.version>2.5.0</protobuf.version>
+    <!-- Protobuf version for building with Hadoop/Yarn dependencies -->
+    <protobuf.hadoopDependency.version>2.5.0</protobuf.hadoopDependency.version>


I don't have a better solution than this...

core/pom.xml

project/SparkBuild.scala

gengliangwang · 2022-11-24T05:07:03Z

Pending on #38783

LuciferYang · 2022-11-24T07:46:35Z

core/pom.xml

        </executions>
      </plugin>
+      <plugin>
+        <groupId>org.apache.maven.plugins</groupId>


SPARK-40593 and SPARK-41215 do some work to support Spark 3.4 to be compiled on CentOS6&7. I think the core module needs similar work, but may not be in this pr

@WolverineJiang Are you interested in solving this problem after PR merge? Just like what you did in SPARK-41215

@WolverineJiang Are you interested in solving this problem after PR merge? Just like what you did in SPARK-41215

More than willing, I'll start in a few days.

Thanks @WolverineJiang

core/pom.xml

project/SparkBuild.scala

core/pom.xml

LuciferYang · 2022-11-24T08:28:15Z

core/src/main/scala/org/apache/spark/status/protobuf/JobDataWrapperSerializer.scala

+      description = description,
+      submissionTime = submissionTime,
+      completionTime = completionTime,
+      stageIds = info.getStageIdsList.asScala.map(_.toInt),


need toSeq for Scala 2.13, or should we explicitly declare stageIds in JobData as scala.collection.Seq?

Added toSeq

core/src/main/scala/org/apache/spark/status/protobuf/KVStoreProtobufSerializer.scala

cloud-fan · 2022-11-25T07:09:20Z

core/src/main/protobuf/org/apache/spark/status/protobuf/store_types.proto

+}
+
+enum JobExecutionStatus {
+  RUNNING = 0;


do we nee to add UNSPECIFIED to follow protobuf style guideline? cc @amaliujia

probably it's fine as these proto message are only used by Spark internally.

I didn't get it. There is UNKNOWN status already. There is always a value set for JobExecutionStatus.

FYI that is a from the official style guide that 0 is used for UNSPECIFIED and keep UNSPECIFIED: https://developers.google.com/protocol-buffers/docs/style#enums

+1, please reserve 0 for unspecified to allow for evolution.

Sure, updated

cloud-fan · 2022-11-25T07:10:43Z

core/src/main/protobuf/org/apache/spark/status/protobuf/store_types.proto

+
+message JavaDate {
+  // The number of milliseconds since January 1, 1970, 00:00:00 GMT
+  optional int64 date = 1;


shall we use int64 directly instead of having JavaDate? milliseconds since epoch is a very common definition and not tied to java.

We will need utility methods for future encoding/decoding of java dates anyway. I prefer the current implementation. Looks more graceful.

JavaDate is not really a data structure. Here it's more like a marker to indicate that the deserializer should turn it into Java Date. I think this should be the responsibility of JobDataWrapperSerializer, not the proto message.

ok, changed to int64

cloud-fan · 2022-11-25T07:44:50Z

project/SparkBuild.scala

  lazy val settings = Seq(
+    // Setting version for the protobuf compiler. This has to be propagated to every sub-project
+    // even if the project is not using it.
+    PB.protocVersion := BuildCommons.protoVersion,


did we copy these code from somewhere?

Yes, both connect and protobuf connector have these code

mridulm · 2022-11-28T22:44:07Z

+CC @thejdeep, @shardulm94

mridulm

Just a few queries.
Thanks for working on this @gengliangwang !

mridulm · 2022-11-28T23:35:14Z

core/src/main/protobuf/org/apache/spark/status/protobuf/store_types.proto

+}
+
+message JobData {
+  int32 job_id = 1;


Discuss:

Since we are defining the schema here, do we want to make all id's (rdd, stage, job, etc) int64 instead of int32 ?
This will be a pain to change in future for protobuf, if we need to - unlike json.

(Example, see this PR).

ok, changed to int64

core/src/main/protobuf/org/apache/spark/status/protobuf/store_types.proto

core/src/main/scala/org/apache/spark/status/KVUtils.scala

core/src/test/scala/org/apache/spark/status/protobuf/KVStoreProtobufSerializerSuite.scala

gengliangwang · 2022-12-05T22:32:24Z

@mridulm I am back from vacation today. Shall we merge this one and move forward?

mridulm

Thanks for working on this @gengliangwang !

gengliangwang · 2022-12-06T05:46:00Z

@LuciferYang @cloud-fan @mridulm @amaliujia @tgravescs Thanks for the review.
I am merging this one to master

ulysses-you · 2022-12-09T07:51:37Z

core/pom.xml

      </plugin>
+      <plugin>
+        <groupId>org.apache.maven.plugins</groupId>
+        <artifactId>maven-shade-plugin</artifactId>


@gengliangwang It actually conflicts with parent pom.xml which causes the jetty can not be shaded into spark-core. The current master branch can not start Spark UI, see error message:

Setting default log level to "WARN". To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel). 22/12/09 14:58:54 WARN NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable java.lang.NoClassDefFoundError: org/eclipse/jetty/util/thread/Scheduler at org.apache.spark.ui.SparkUI.<init>(SparkUI.scala:67) at org.apache.spark.ui.SparkUI$.create(SparkUI.scala:223) at org.apache.spark.SparkContext.<init>(SparkContext.scala:484) at org.apache.spark.SparkContext$.getOrCreate(SparkContext.scala:2739) at org.apache.spark.sql.SparkSession$Builder.$anonfun$getOrCreate$2(SparkSession.scala:978) at scala.Option.getOrElse(Option.scala:189) at org.apache.spark.sql.SparkSession$Builder.getOrCreate(SparkSession.scala:972) at org.apache.spark.repl.Main$.createSparkSession(Main.scala:106) ... 55 elided Caused by: java.lang.ClassNotFoundException: org.eclipse.jetty.util.thread.Scheduler at java.net.URLClassLoader.findClass(URLClassLoader.java:387) at java.lang.ClassLoader.loadClass(ClassLoader.java:419) at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:352) at java.lang.ClassLoader.loadClass(ClassLoader.java:352) ... 63 more <console>:14: error: not found: value spark import spark.implicits._ ^

@ulysses-you Thanks for reporting it. Do you know how to fix it?

maybe should add combine.children="append" to <relocations> tag

Sent a PR to fix it. #38999

Ya, I also saw this when I build distributions. Thank you, @pan3793 !

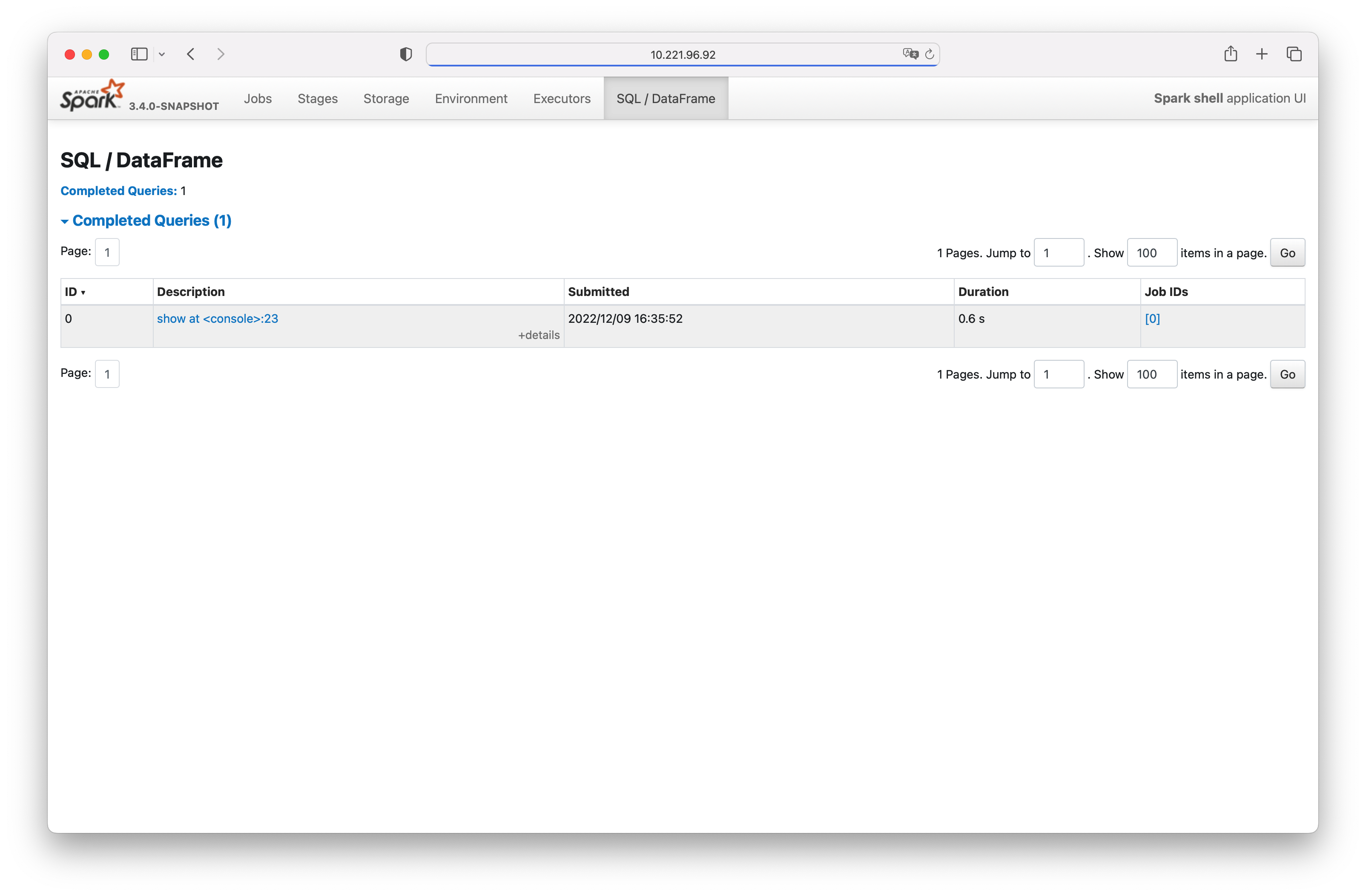

### What changes were proposed in this pull request? Fix shading in core module. ### Why are the changes needed? Fixed issue mentioned in #38779 (comment) ### Does this PR introduce _any_ user-facing change? No. ### How was this patch tested? ``` ➜ dist git:(SPARK-41244-followup) bin/spark-shell 22/12/09 16:35:43 WARN Utils: Your hostname, Chengs-MacBook-Pro.local resolves to a loopback address: 127.0.0.1; using 10.221.96.92 instead (on interface en0) 22/12/09 16:35:43 WARN Utils: Set SPARK_LOCAL_IP if you need to bind to another address Setting default log level to "WARN". To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel). 22/12/09 16:35:46 WARN NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable Spark context Web UI available at http://10.221.96.92:4040 Spark context available as 'sc' (master = local[*], app id = local-1670574946548). Spark session available as 'spark'. Welcome to ____ __ / __/__ ___ _____/ /__ _\ \/ _ \/ _ `/ __/ '_/ /___/ .__/\_,_/_/ /_/\_\ version 3.4.0-SNAPSHOT /_/ Using Scala version 2.12.17 (OpenJDK 64-Bit Server VM, Java 1.8.0_332) Type in expressions to have them evaluated. Type :help for more information. scala> spark.sql("select 1").show +---+ | 1| +---+ | 1| +---+ ``` <img width="1604" alt="image" src="https://user-images.githubusercontent.com/26535726/206659907-95d95d7f-dce2-4a4f-9aef-e54fb4612aba.png"> Closes #38999 from pan3793/SPARK-41244-followup. Authored-by: Cheng Pan <[email protected]> Signed-off-by: Dongjoon Hyun <[email protected]>

ahmed-mahran · 2022-12-11T12:47:32Z

core/src/main/scala/org/apache/spark/status/protobuf/JobDataWrapperSerializer.scala

+object JobDataWrapperSerializer {
+  def serialize(j: JobDataWrapper): Array[Byte] = {
+    val jobData = serializeJobData(j.info)
+    val builder = StoreTypes.JobDataWrapper.newBuilder()


Hi @gengliangwang

Where can we find StoreTypes object? I cannot locate it, is it auto generated?

It is generated during compile time. It should be under ./core/target/scala-2.12/src_managed/main/org/apache/spark/status/protobuf

… store ### What changes were proposed in this pull request? Introducing Protobuf serializer for KV store, which is 3 times as fast as the default serializer according to end-to-end benchmark against RocksDB. | Serializer | Avg Write time(μs) | Avg Read time(μs) | RocksDB File Total Size(MB) | Result total size in memory(MB) | |----------------------------------|--------------------|-------------------|-----------------------------|---------------------------------| | Spark’s KV Serializer(JSON+gzip) | 352.2 | 119.26 | 837 | 868 | | Protobuf | 109.9 | 34.3 | 858 | 2105 | To move fast and make PR review easier, this PR will: * Cover the class `JobDataWrapper` only. We can handle more UI data later. * Not adding configuration for setting serializer in SHS. We will have it as a follow-up. ### Why are the changes needed? A faster serializer for KV store. It supports schema evolution so that in the future SHS can leverage it as well. More details in the SPIP: https://docs.google.com/document/d/1cuKnFwlTodyVhUQPMuakq2YDaLH05jaY9FRu_aD1zMo/edit ### Does this PR introduce _any_ user-facing change? No ### How was this patch tested? Closes apache#38779 from gengliangwang/protobuf. Authored-by: Gengliang Wang <[email protected]> Signed-off-by: Gengliang Wang <[email protected]>

### What changes were proposed in this pull request? Fix shading in core module. ### Why are the changes needed? Fixed issue mentioned in apache#38779 (comment) ### Does this PR introduce _any_ user-facing change? No. ### How was this patch tested? ``` ➜ dist git:(SPARK-41244-followup) bin/spark-shell 22/12/09 16:35:43 WARN Utils: Your hostname, Chengs-MacBook-Pro.local resolves to a loopback address: 127.0.0.1; using 10.221.96.92 instead (on interface en0) 22/12/09 16:35:43 WARN Utils: Set SPARK_LOCAL_IP if you need to bind to another address Setting default log level to "WARN". To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel). 22/12/09 16:35:46 WARN NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable Spark context Web UI available at http://10.221.96.92:4040 Spark context available as 'sc' (master = local[*], app id = local-1670574946548). Spark session available as 'spark'. Welcome to ____ __ / __/__ ___ _____/ /__ _\ \/ _ \/ _ `/ __/ '_/ /___/ .__/\_,_/_/ /_/\_\ version 3.4.0-SNAPSHOT /_/ Using Scala version 2.12.17 (OpenJDK 64-Bit Server VM, Java 1.8.0_332) Type in expressions to have them evaluated. Type :help for more information. scala> spark.sql("select 1").show +---+ | 1| +---+ | 1| +---+ ``` <img width="1604" alt="image" src="https://user-images.githubusercontent.com/26535726/206659907-95d95d7f-dce2-4a4f-9aef-e54fb4612aba.png"> Closes apache#38999 from pan3793/SPARK-41244-followup. Authored-by: Cheng Pan <[email protected]> Signed-off-by: Dongjoon Hyun <[email protected]>

### What changes were proposed in this pull request? This pr aims to set `shadeTestJar` of `core` module to `false` to skip shade `spark-core**-tests.jar` process. ### Why are the changes needed? Before SPARK-41244, the core module used the `maven-shade-plugin` configuration in the `parent pom.xml` for shading, where the `shadeTestJar` configuration item was set to the default `false` in the `maven-shade-plugin` in `parent pom.xml`. In SPARK-41244 | SPARK-41244 #38779, the core module started using a separate `maven-shade-plugin` configuration and set the `shadeTestJar` configuration item to `true`. And when `shadeTestJar` is true, `maven-shade-plugin` always try to find(sometime is downloading) some non-existent jars: ``` [INFO] --- maven-shade-plugin:3.5.0:shade (default) spark-core_2.12 --- [INFO] Including org.eclipse.jetty:jetty-plus:jar:9.4.51.v20230217 in the shaded jar. Downloading from gcs-maven-central-mirror: https://maven-central.storage-download.googleapis.com/maven2/org/eclipse/jetty/jetty-plus/9.4.51.v20230217/jetty-plus-9.4.51.v20230217-tests.jar Downloading from central: https://repo.maven.apache.org/maven2/org/eclipse/jetty/jetty-plus/9.4.51.v20230217/jetty-plus-9.4.51.v20230217-tests.jar [WARNING] Could not get tests for org.eclipse.jetty:jetty-plus:jar:9.4.51.v20230217:compile [INFO] Including org.eclipse.jetty:jetty-security:jar:9.4.51.v20230217 in the shaded jar. Downloading from gcs-maven-central-mirror: https://maven-central.storage-download.googleapis.com/maven2/org/eclipse/jetty/jetty-security/9.4.51.v20230217/jetty-security-9.4.51.v20230217-tests.jar Downloading from central: https://repo.maven.apache.org/maven2/org/eclipse/jetty/jetty-security/9.4.51.v20230217/jetty-security-9.4.51.v20230217-tests.jar [WARNING] Could not get tests for org.eclipse.jetty:jetty-security:jar:9.4.51.v20230217:compile [INFO] Including org.eclipse.jetty:jetty-util:jar:9.4.51.v20230217 in the shaded jar. Downloading from gcs-maven-central-mirror: https://maven-central.storage-download.googleapis.com/maven2/org/eclipse/jetty/jetty-util/9.4.51.v20230217/jetty-util-9.4.51.v20230217-tests.jar Downloading from central: https://repo.maven.apache.org/maven2/org/eclipse/jetty/jetty-util/9.4.51.v20230217/jetty-util-9.4.51.v20230217-tests.jar [WARNING] Could not get tests for org.eclipse.jetty:jetty-util:jar:9.4.51.v20230217:compile [INFO] Including org.eclipse.jetty:jetty-server:jar:9.4.51.v20230217 in the shaded jar. [INFO] Including org.eclipse.jetty:jetty-io:jar:9.4.51.v20230217 in the shaded jar. Downloading from gcs-maven-central-mirror: https://maven-central.storage-download.googleapis.com/maven2/org/eclipse/jetty/jetty-io/9.4.51.v20230217/jetty-io-9.4.51.v20230217-tests.jar Downloading from central: https://repo.maven.apache.org/maven2/org/eclipse/jetty/jetty-io/9.4.51.v20230217/jetty-io-9.4.51.v20230217-tests.jar [WARNING] Could not get tests for org.eclipse.jetty:jetty-io:jar:9.4.51.v20230217:compile [INFO] Including org.eclipse.jetty:jetty-http:jar:9.4.51.v20230217 in the shaded jar. [INFO] Including org.eclipse.jetty:jetty-continuation:jar:9.4.51.v20230217 in the shaded jar. Downloading from gcs-maven-central-mirror: https://maven-central.storage-download.googleapis.com/maven2/org/eclipse/jetty/jetty-continuation/9.4.51.v20230217/jetty-continuation-9.4.51.v20230217-tests.jar Downloading from central: https://repo.maven.apache.org/maven2/org/eclipse/jetty/jetty-continuation/9.4.51.v20230217/jetty-continuation-9.4.51.v20230217-tests.jar [WARNING] Could not get tests for org.eclipse.jetty:jetty-continuation:jar:9.4.51.v20230217:compile [INFO] Including org.eclipse.jetty:jetty-servlet:jar:9.4.51.v20230217 in the shaded jar. [INFO] Including org.eclipse.jetty:jetty-proxy:jar:9.4.51.v20230217 in the shaded jar. Downloading from gcs-maven-central-mirror: https://maven-central.storage-download.googleapis.com/maven2/org/eclipse/jetty/jetty-proxy/9.4.51.v20230217/jetty-proxy-9.4.51.v20230217-tests.jar Downloading from central: https://repo.maven.apache.org/maven2/org/eclipse/jetty/jetty-proxy/9.4.51.v20230217/jetty-proxy-9.4.51.v20230217-tests.jar [WARNING] Could not get tests for org.eclipse.jetty:jetty-proxy:jar:9.4.51.v20230217:compile [INFO] Including org.eclipse.jetty:jetty-client:jar:9.4.51.v20230217 in the shaded jar. Downloading from gcs-maven-central-mirror: https://maven-central.storage-download.googleapis.com/maven2/org/eclipse/jetty/jetty-client/9.4.51.v20230217/jetty-client-9.4.51.v20230217-tests.jar Downloading from central: https://repo.maven.apache.org/maven2/org/eclipse/jetty/jetty-client/9.4.51.v20230217/jetty-client-9.4.51.v20230217-tests.jar [WARNING] Could not get tests for org.eclipse.jetty:jetty-client:jar:9.4.51.v20230217:compile [INFO] Including org.eclipse.jetty:jetty-servlets:jar:9.4.51.v20230217 in the shaded jar. Downloading from gcs-maven-central-mirror: https://maven-central.storage-download.googleapis.com/maven2/org/eclipse/jetty/jetty-servlets/9.4.51.v20230217/jetty-servlets-9.4.51.v20230217-tests.jar Downloading from central: https://repo.maven.apache.org/maven2/org/eclipse/jetty/jetty-servlets/9.4.51.v20230217/jetty-servlets-9.4.51.v20230217-tests.jar [WARNING] Could not get tests for org.eclipse.jetty:jetty-servlets:jar:9.4.51.v20230217:compile [INFO] Including com.google.protobuf:protobuf-java:jar:3.23.4 in the shaded jar. Downloading from gcs-maven-central-mirror: https://maven-central.storage-download.googleapis.com/maven2/com/google/protobuf/protobuf-java/3.23.4/protobuf-java-3.23.4-tests.jar Downloading from central: https://repo.maven.apache.org/maven2/com/google/protobuf/protobuf-java/3.23.4/protobuf-java-3.23.4-tests.jar [WARNING] Could not get tests for com.google.protobuf:protobuf-java:jar:3.23.4:compile [INFO] Including org.spark-project.spark:unused:jar:1.0.0 in the shaded jar. Downloading from gcs-maven-central-mirror: https://maven-central.storage-download.googleapis.com/maven2/org/spark-project/spark/unused/1.0.0/unused-1.0.0-tests.jar Downloading from central: https://repo.maven.apache.org/maven2/org/spark-project/spark/unused/1.0.0/unused-1.0.0-tests.jar [WARNING] Could not get tests for org.spark-project.spark:unused:jar:1.0.0:compile ``` Under poor network conditions, the time for Maven compilation will increase. On the other hand, setting shadeTestJar back to false has not resulted in any Maven test failures, so this pr reset `shadeTestJar` to `false`. ### Does this PR introduce _any_ user-facing change? No ### How was this patch tested? - Pass GitHub Action ### Was this patch authored or co-authored using generative AI tooling? No Closes #42766 from LuciferYang/SPARK-45046. Authored-by: yangjie01 <[email protected]> Signed-off-by: yangjie01 <[email protected]>
