[SPARK-40350][Kubernetes] Use spark config to configure the parameters of volcano podgroup

[zheniantoushipashi]

What changes were proposed in this pull request?

Use spark config to configure the parameters of volcano podgroup

Why are the changes needed?

If we use spark config to specify the parameters of the podgroup, it will be much more convenient,we don't need configmap to mount static files

In our scenario, we need to dynamically specify the volcano queue, but it is not convenient to create a static podgroup configuration file to mount

Does this PR introduce any user-facing change?

add spark config

spark.kubernetes.scheduler.volcano.podGroup.spec.queue
spark.kubernetes.scheduler.volcano.podGroup.spec.minResources.cpu
spark.kubernetes.scheduler.volcano.podGroup.spec.minResources.memory
spark.kubernetes.scheduler.volcano.podGroup.spec.minMember
spark.kubernetes.scheduler.volcano.podGroup.spec.PriorityClassName

[AmplabJenkins]

Can one of the admins verify this patch?

[Yikun]

Thanks for your contributions!

Actually, we had some discussion on the configuration to support volcano in featurestep, We make a trade-off between support parameters and generality and choose the pg template finally: #35783

@zheniantoushipashi Or you have more inputs in here?

also cc @dongjoon-hyun @holdenk

[Yikun]

This will force to overwrite existing MinResources and ignore existing template if one of configurations is set.

[Yikun]

val pg = template.map(client.podGroups.load(_).get).getOrElse(new PodGroup())
val builder = new PodGroupBuilder(pg)
  .editOrNewMetadata()
    .withName(podGroupName)
    .withNamespace(namespace)
  .endMetadata()
  .editOrNewSpec()
  .endSpec()

if (xxx) {
  builder.editOrNewSpec().endSpec()
}

return Seq(builder.build())

If we decided to add parameters support, the builder style might more stable and easy to maintainance.

[zheniantoushipashi]

I can refactor this, if my opinion is accepted,

[zheniantoushipashi]

I studied your previous discussions, but i still think the change i pull request is useful， i investigative this document https://docs.google.com/document/d/1xgQGRpaHQX6-QH_J9YV2C2Dh6RpXefUpLM7KGkzL6Fg/edit#heading=h.1quyr1r2kr5n , i known spark will support more scheduler in the future, but the configuration i add in this pr is just for volcano scheduler , and the change is just in the VolcanoFeatureStep.scala , and the configuration prefixed with spark.kubernetes.scheduler.volcano.podGroup , not a global spark configuration for all the scheduler,

We can arbitrarily create queues in volcano, and In our scenario, we need to dynamically specify the volcano queue， our users can dynamically use different queues , if we must create a template file Just to dynamically use the queue I created， it is very inconvenient， i must add some code to create a file or i must use configmap to mount the a new template file and restart the k8s application, it is no cool,

i think the template file and the configuration is not conflict，

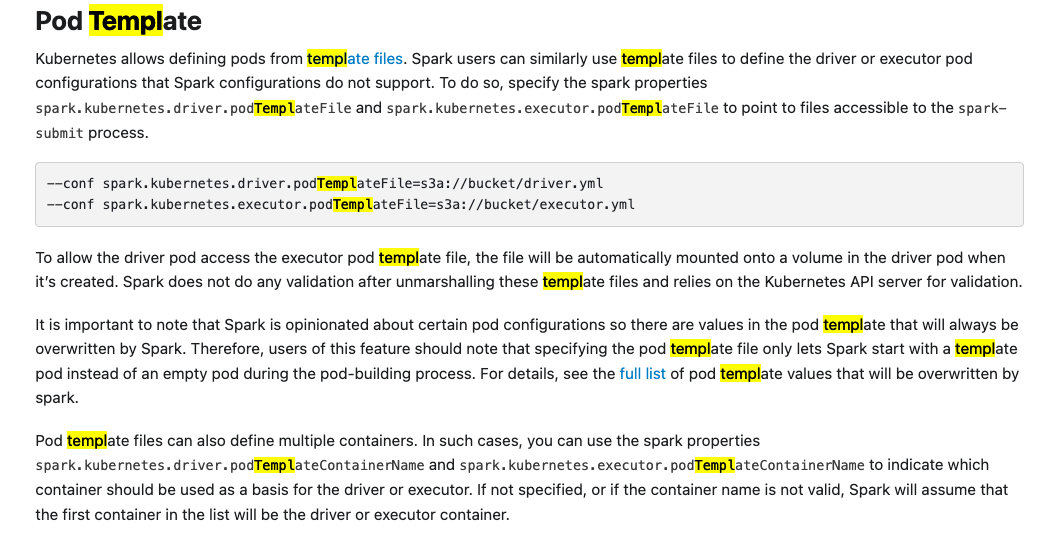

spark driver pod and executor pod can use template define the pod resource, and spark configuration can override the template file, I think this usage is reasonable。

[zheniantoushipashi]

@Yikun @dongjoon-hyun @holdenk

[Yikun]

@zheniantoushipashi Much thanks for you feedback. Most of spark + volcano users who I have come into contact with before, they also configure each job through configuration items.

There is no doubt that PodGroupTemplate's mechanism will be greatly improved for generality. Another previous consideration is to reduce the frequent addition of configuration items.

But it is worth noting that PodGroupTemplate is different from PodTemplate: the CRD of Pod has a lot of options, but the CRD of PodGroup, especially the commonly used configurations, is relatively fixed (Therefore, configuration items will not be added frequently). Commonly used are queue, minResource, priority. BTW, please note that minMember is a bit special, because minMember is set to 1 to monitor the driver/job life cycle (see more in volcano-sh/volcano#2038), then to ensure the accuracy of scheduling. Therefore, this parameter should not be set arbitrarily in spark + volcano case.

Therefore, I personally think it is reasonable to use PodGroupTemplate to cover the whole scene, and then increase flexibility through configuration items. But we still need more voice from spark community before this.

[dongjoon-hyun]

I understand your requirement, but Apache Spark avoids duplicating even official K8s entity like PriorityClass , @zheniantoushipashi . The custom scheduler configurations are less important than K8s entities, aren't they? Sorry, but I'd recommend to close this PR.

we need to dynamically specify the volcano queue, but it is not convenient to create a static podgroup configuration file to mount

[dongjoon-hyun]

Let me close this PR for now. We can continue our discussion on this PR.

[zheniantoushipashi]

@Yikun @dongjoon-hyun ok, If in principle we can't wrap volcano's configuration in spark configuration, then I can only implement this feature in our own version, Because in our scenario, if the queue used by the scheduler cannot be dynamically configured, the scheduler is basically useless. You can't imagine a resource manager compared to yarn, which can't dynamically specify queues when starting application

[dongjoon-hyun]

You can't imagine a resource manager compared to yarn, which can't dynamically specify queues when starting application

This is wrong because Apache YuniKorn is able to dynamically specify queues as you see #37877 via the existing Apache Spark labels and annotations without any modification, @zheniantoushipashi .

Because in our scenario, if the queue used by the scheduler cannot be dynamically configured, the scheduler is basically useless.

That doesn't sound like a common valid scenario. If you need to create a queue per a single Spark job, what is the meaning of scheduling?

[dongjoon-hyun]

Let's distinguish creating queues from specifying queues. They are not the same.

[zheniantoushipashi]

sorry, actually I mean specifying queues, Is there a way to specify a queue dynamically when using volcano to submit spark applicaiton ? do you mean that we should follow the YuniKorn way to implement the dynamically specified queue of volcano ?

[zheniantoushipashi]

@dongjoon-hyun

[Yikun]

Is there a way to specify a queue dynamically when using volcano to submit spark applicaiton?

@zheniantoushipashi Currnently, as you know we can only specify volcano queue by using PodGroupTemplate. @dongjoon-hyun meant Spark + Yunikorn can set queue by setting label but volcano couldn't.

Actually, there are mainly two style to specify scheduler hint in common scheduler:

• Using annotation/label
• Using a separate CRD

Because in K8S scheduling, the queue is only one of the capabilities, cooporate with other PodGroup information. If it is also placed in the label or annotation, will be very complicated, it is not the same way as K8S annotation suggests.

The queue and other parts of the PodGroup are usually considered at the same time, so the queue is used as a field of the PodGroup in Volcano. Users can configure all batch scheduling through the pod group CRD.

Therefore, you might want to use PodGroupTemplate to cover the whole scene, and then increase flexibility through configuration items in your own downstream version at current.

Also cc @william-wang
