[SPARK-39464][CORE][TESTS][FOLLOWUP] Use Utils.localHostNameForURI instead of Utils.localCanonicalHostName in tests #36876

LuciferYang · 2022-06-15T07:47:04Z

What changes were proposed in this pull request?

This PR aims to use Utils.localHostNameForURI instead of Utils.localCanonicalHostName in the following suites which changed in #36866

MasterSuite
MasterWebUISuite
RocksDBBackendHistoryServerSuite

Why are the changes needed?

These test cases fails when we run with SPARK_LOCAL_IP=::1 and -Djava.net.preferIPv6Addresses=true

Does this PR introduce any user-facing change?

No

How was this patch tested?

Pass GA
Manual test:

export SPARK_LOCAL_IP=::1

echo $SPARK_LOCAL_IP
::1

add -Djava.net.preferIPv6Addresses=true to MAVEN_OPTS, for example:

diff --git a/pom.xml b/pom.xml
index 1ce3b43faf..3356622985 100644
--- a/pom.xml
+++ b/pom.xml
@@ -2943,7 +2943,7 @@
               <include>**/*Suite.java</include>
             </includes>
             <reportsDirectory>${project.build.directory}/surefire-reports</reportsDirectory>
-            <argLine>-ea -Xmx4g -Xss4m -XX:MaxMetaspaceSize=2g -XX:ReservedCodeCacheSize=${CodeCacheSize} ${extraJavaTestArgs} -Dio.netty.tryReflectionSetAccessible=true</argLine>
+            <argLine>-ea -Xmx4g -Xss4m -XX:MaxMetaspaceSize=2g -XX:ReservedCodeCacheSize=${CodeCacheSize} ${extraJavaTestArgs} -Dio.netty.tryReflectionSetAccessible=true -Djava.net.preferIPv6Addresses=true</argLine>
             <environmentVariables>
               <!--
                 Setting SPARK_DIST_CLASSPATH is a simple way to make sure any child processes

maven test RocksDBBackendHistoryServerSuite, MasterSuite and MasterWebUISuite

mvn clean install -DskipTests -pl core -am
mvn clean test -pl core -Dtest=none -DwildcardSuites=org.apache.spark.deploy.history.RocksDBBackendHistoryServerSuite
mvn clean test -pl core -Dtest=none -DwildcardSuites=org.apache.spark.deploy.master.MasterSuite
mvn clean test -pl core -Dtest=none -DwildcardSuites=org.apache.spark.deploy.master.ui.MasterWebUISuite

Before

RocksDBBackendHistoryServerSuite:

- Redirect to the root page when accessed to /history/ *** FAILED ***
  java.net.ConnectException: Connection refused (Connection refused)
  at java.net.PlainSocketImpl.socketConnect(Native Method)
  at java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:350)
  at java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:206)
  at java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:188)
  at java.net.SocksSocketImpl.connect(SocksSocketImpl.java:392)
  at java.net.Socket.connect(Socket.java:613)
  at java.net.Socket.connect(Socket.java:561)
  at sun.net.NetworkClient.doConnect(NetworkClient.java:180)
  at sun.net.www.http.HttpClient.openServer(HttpClient.java:463)
  at sun.net.www.http.HttpClient.openServer(HttpClient.java:558)
  ...
Run completed in 31 seconds, 745 milliseconds.
Total number of tests run: 73
Suites: completed 2, aborted 0
Tests: succeeded 3, failed 70, canceled 0, ignored 0, pending 0
*** 70 TESTS FAILED ***

MasterSuite:

- master/worker web ui available behind front-end reverseProxy *** FAILED ***
  The code passed to eventually never returned normally. Attempted 487 times over 50.079685917 seconds. Last failure message: Connection refused (Connection refused). (MasterSuite.scala:405)
Run completed in 3 minutes, 48 seconds.
Total number of tests run: 32
Suites: completed 2, aborted 0
Tests: succeeded 29, failed 3, canceled 0, ignored 0, pending 0
*** 3 TESTS FAILED ***

MasterWebUISuite:

- Kill multiple hosts *** FAILED ***
  java.net.ConnectException: Connection refused (Connection refused)
  at java.net.PlainSocketImpl.socketConnect(Native Method)
  at java.net.AbstractPlainSocketImpl.doConnect(AbstractPlainSocketImpl.java:350)
  at java.net.AbstractPlainSocketImpl.connectToAddress(AbstractPlainSocketImpl.java:206)
  at java.net.AbstractPlainSocketImpl.connect(AbstractPlainSocketImpl.java:188)
  at java.net.SocksSocketImpl.connect(SocksSocketImpl.java:392)
  at java.net.Socket.connect(Socket.java:613)
  at java.net.Socket.connect(Socket.java:561)
  at sun.net.NetworkClient.doConnect(NetworkClient.java:180)
  at sun.net.www.http.HttpClient.openServer(HttpClient.java:463)
  at sun.net.www.http.HttpClient.openServer(HttpClient.java:558)
  ...
Run completed in 7 seconds, 83 milliseconds.
Total number of tests run: 4
Suites: completed 2, aborted 0
Tests: succeeded 0, failed 4, canceled 0, ignored 0, pending 0
*** 4 TESTS FAILED ***

After

RocksDBBackendHistoryServerSuite:

Run completed in 38 seconds, 205 milliseconds.
Total number of tests run: 73
Suites: completed 2, aborted 0
Tests: succeeded 73, failed 0, canceled 0, ignored 0, pending 0
All tests passed.

MasterSuite:

Run completed in 1 minute, 10 seconds.
Total number of tests run: 32
Suites: completed 2, aborted 0
Tests: succeeded 32, failed 0, canceled 0, ignored 0, pending 0
All tests passed.

MasterWebUISuite:

Run completed in 6 seconds, 330 milliseconds.
Total number of tests run: 4
Suites: completed 2, aborted 0
Tests: succeeded 4, failed 0, canceled 0, ignored 0, pending 0
All tests passed.

LuciferYang · 2022-06-15T07:53:35Z

@dongjoon-hyun Is the following steps of manually verifying SPARK-39464 correct?

export SPARK_LOCAL_IP=::1
add -Djava.net.preferIPv6Addresses=true to MAVEN_OPTS
mvn clean install -DskipTests -pl core -am
mvn clean test -pl core -Dtest=none -DwildcardSuites=org.apache.spark.deploy.history.RocksDBBackendHistoryServerSuite
mvn clean test -pl core -Dtest=none -DwildcardSuites=org.apache.spark.deploy.master.MasterSuite
mvn clean test -pl core -Dtest=none -DwildcardSuites=org.apache.spark.deploy.master.ui.MasterWebUISuite

I found the master branch still test failed with above commands.

dongjoon-hyun

I found the master branch still test failed with above commands.

For your question, as I wrote in #36868 , I verified it with the following commands.

$ SERIAL_SBT_TESTS=1 SPARK_LOCAL_HOSTNAME='[2600:.(omitted)..:60cd]' build/sbt "core/test" -Djava.net.preferIPv6Addresses=true -Dtest.exclude.tags=org.apache.spark.tags.ExtendedLevelDBTest
...
[info] Run completed in 18 minutes, 43 seconds.
[info] Total number of tests run: 2950
[info] Suites: completed 284, aborted 0
[info] Tests: succeeded 2950, failed 0, canceled 4, ignored 8, pending 0
[info] All tests passed.
[info] Passed: Total 3214, Failed 0, Errors 0, Passed 3214, Ignored 8, Canceled 4
[success] Total time: 1189 s (19:49), completed Jun 14, 2022, 4:45:55 PM

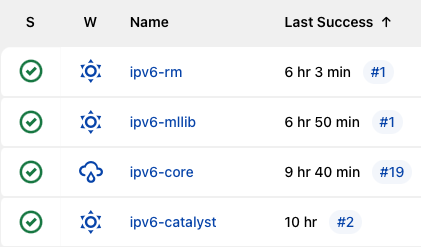

Here is my Jenkins result on IPv6-only machine.

LuciferYang · 2022-06-15T15:49:20Z

I found the master branch still test failed with above commands.

For your question, as I wrote in #36868 , I verified it with the following commands.

$ SERIAL_SBT_TESTS=1 SPARK_LOCAL_HOSTNAME='[2600:.(omitted)..:60cd]' build/sbt "core/test" -Djava.net.preferIPv6Addresses=true -Dtest.exclude.tags=org.apache.spark.tags.ExtendedLevelDBTest
...
[info] Run completed in 18 minutes, 43 seconds.
[info] Total number of tests run: 2950
[info] Suites: completed 284, aborted 0
[info] Tests: succeeded 2950, failed 0, canceled 4, ignored 8, pending 0
[info] All tests passed.
[info] Passed: Total 3214, Failed 0, Errors 0, Passed 3214, Ignored 8, Canceled 4
[success] Total time: 1189 s (19:49), completed Jun 14, 2022, 4:45:55 PM

Here is my Jenkins result on IPv6-only machine.

Thank you for your reply. Let me have a try

LuciferYang · 2022-06-15T15:52:41Z

core/src/test/scala/org/apache/spark/deploy/master/ui/MasterWebUISuite.scala


  test("Kill one host") {
-    testKillWorkers(Seq("${Utils.localCanonicalHostName()}"))
+    testKillWorkers(Seq(s"${Utils.localHostNameForURI()}"))


Should this line be changed to Seq(s"${Utils.localCanonicalHostName()}")

dongjoon-hyun · 2022-06-15T15:54:35Z

For this PR, I'll revisit today, @LuciferYang .

And, since you are interested in this work, here is the detail of my Jenkins conf on Java 17.

export SPARK_LOCAL_HOSTNAME="[$(ifconfig | grep temporary | awk '{print $2}')]"
export DEFAULT_ARTIFACT_REPOSITORY=https://ipv6.repo1.maven.org/maven2/
export MAVEN_OPTS="-Djava.net.preferIPv6Addresses=true -Dtest.exclude.tags=org.apache.spark.tags.ExtendedLevelDBTest"
export SBT_OPTS="-Djava.net.preferIPv6Addresses=true -Dtest.exclude.tags=org.apache.spark.tags.ExtendedLevelDBTest"
export SKIP_MIMA=true
export SKIP_UNIDOC=true
export SERIAL_SBT_TESTS=1

The following modules are passed already.

core
unsafe
kvstore
network-common
network-shuffle
repl,launcher,examples,sketch
graphx
catalyst
avro
mllib-local,mllib
yarn
mesos
kubernetes
hadoop-cloud
spark-ganglia-lgpl

dongjoon-hyun · 2022-06-15T16:32:33Z

@LuciferYang . Here is a doc PR for your question.

[SPARK-39482][DOCS] Add build and test documentation on IPv6 #36879

dongjoon-hyun · 2022-06-15T18:59:31Z

BTW, if you are using Mac, please disable Firewall during testing.

LuciferYang · 2022-06-16T02:41:26Z

Firewall

Thanks, fell asleep yesterday... I'll try this today

LuciferYang · 2022-06-16T04:08:17Z

Yes, using export SPARK_LOCAL_HOSTNAME ="[fe80::e63d:1aff:fe28:...]" can pass the suites on linux, but using export SPARK_LOCAL_IP=::1 is still not, so using export SPARK_LOCAL_IP=::1 is a wrong way?

dongjoon-hyun

Do we need this patch still, @LuciferYang ?

On master branch, could you confirm the following again? It works for me.

$ SPARK_LOCAL_IP=::1 SBT_OPTS=-Djava.net.preferIPv6Addresses=true build/sbt "core/testOnly org.apache.spark.deploy.master.MasterSuite"
[info] MasterSuite:
[info] - can use a custom recovery mode factory (524 milliseconds)
[info] - master correctly recover the application (56 milliseconds)
[info] - master/worker web ui available (392 milliseconds)
[info] - master/worker web ui available with reverseProxy (30 seconds, 160 milliseconds)
[info] - master/worker web ui available behind front-end reverseProxy (30 seconds, 127 milliseconds)
[info] - basic scheduling - spread out (22 milliseconds)
[info] - basic scheduling - no spread out (12 milliseconds)
[info] - basic scheduling with more memory - spread out (10 milliseconds)
[info] - basic scheduling with more memory - no spread out (9 milliseconds)
[info] - scheduling with max cores - spread out (9 milliseconds)
[info] - scheduling with max cores - no spread out (29 milliseconds)
[info] - scheduling with cores per executor - spread out (9 milliseconds)
[info] - scheduling with cores per executor - no spread out (9 milliseconds)
[info] - scheduling with cores per executor AND max cores - spread out (10 milliseconds)
[info] - scheduling with cores per executor AND max cores - no spread out (9 milliseconds)
[info] - scheduling with executor limit - spread out (9 milliseconds)
[info] - scheduling with executor limit - no spread out (8 milliseconds)
[info] - scheduling with executor limit AND max cores - spread out (8 milliseconds)
[info] - scheduling with executor limit AND max cores - no spread out (9 milliseconds)
[info] - scheduling with executor limit AND cores per executor - spread out (8 milliseconds)
[info] - scheduling with executor limit AND cores per executor - no spread out (8 milliseconds)
[info] - scheduling with executor limit AND cores per executor AND max cores - spread out (8 milliseconds)
[info] - scheduling with executor limit AND cores per executor AND max cores - no spread out (8 milliseconds)
[info] - SPARK-13604: Master should ask Worker kill unknown executors and drivers (23 milliseconds)
[info] - SPARK-20529: Master should reply the address received from worker (19 milliseconds)
[info] - SPARK-27510: Master should avoid dead loop while launching executor failed in Worker (46 milliseconds)
[info] - All workers on a host should be decommissioned (37 milliseconds)
[info] - No workers should be decommissioned with invalid host (33 milliseconds)
[info] - Only worker on host should be decommissioned (23 milliseconds)
[info] - SPARK-19900: there should be a corresponding driver for the app after relaunching driver (2 seconds, 50 milliseconds)
[info] - assign/recycle resources to/from driver (30 milliseconds)
[info] - assign/recycle resources to/from executor (29 milliseconds)
[info] Run completed in 1 minute, 5 seconds.
[info] Total number of tests run: 32
[info] Suites: completed 1, aborted 0
[info] Tests: succeeded 32, failed 0, canceled 0, ignored 0, pending 0
[info] All tests passed.
[success] Total time: 71 s (01:11), completed Jun 17, 2022, 4:20:08 PM

LuciferYang · 2022-06-18T12:07:14Z

@dongjoon-hyun with SPARK_LOCAL_IP=::1, SBT passed, Maven still not

LuciferYang · 2022-06-18T12:11:12Z

In addition, I have disabled firewall. If Maven fails is expected, I will close this pr first

dongjoon-hyun · 2022-06-19T03:05:24Z

I'm going to revisit this later after stabilizing SBT first.

dongjoon-hyun · 2022-06-19T03:18:11Z

Just allow me more time to validate your patch, @LuciferYang . Thank you for your patience.

dongjoon-hyun · 2022-06-19T03:28:21Z

BTW, may I ask if you did try to use SPARK_LOCAL_IP=[::1]? The bracket is required as the literal form of IPv6 technically (https://en.wikipedia.org/wiki/IPv6, https://datatracker.ietf.org/doc/html/rfc2732)

with SPARK_LOCAL_IP=::1, SBT passed, Maven still not
In addition, I have disabled firewall. If Maven fails is expected, I will close this pr first

LuciferYang · 2022-06-20T02:33:55Z

BTW, may I ask if you did try to use SPARK_LOCAL_IP=[::1]? The bracket is required as the literal form of IPv6 technically (https://en.wikipedia.org/wiki/IPv6, https://datatracker.ietf.org/doc/html/rfc2732)

with SPARK_LOCAL_IP=::1, SBT passed, Maven still not
In addition, I have disabled firewall. If Maven fails is expected, I will close this pr first

Also fail. I am going to add some logs today to investigate the difference between maven and sbt

dongjoon-hyun · 2022-06-20T08:40:51Z

Sorry for the too much delay . Let me merge this. Thanks, @LuciferYang .

LuciferYang · 2022-06-20T08:41:36Z

thanks @dongjoon-hyun

LuciferYang added 2 commits June 15, 2022 14:48

fix

052e619

revert pom change

2d938a4

github-actions bot added CORE WEB UI labels Jun 15, 2022

LuciferYang closed this Jun 15, 2022

LuciferYang reopened this Jun 15, 2022

for GA

f540805

dongjoon-hyun reviewed Jun 15, 2022

View reviewed changes

LuciferYang commented Jun 15, 2022

View reviewed changes

dongjoon-hyun requested changes Jun 17, 2022

View reviewed changes

Merge branch 'upmaster' into SPARK-39464-FOLLOWUP

7dd80e3

dongjoon-hyun approved these changes Jun 20, 2022

View reviewed changes

dongjoon-hyun closed this in 540e695 Jun 20, 2022

[SPARK-39464][CORE][TESTS][FOLLOWUP] Use Utils.localHostNameForURI instead of Utils.localCanonicalHostName in tests #36876

[SPARK-39464][CORE][TESTS][FOLLOWUP] Use Utils.localHostNameForURI instead of Utils.localCanonicalHostName in tests #36876

Uh oh!

Conversation

LuciferYang commented Jun 15, 2022

What changes were proposed in this pull request?

Why are the changes needed?

Does this PR introduce any user-facing change?

How was this patch tested?

Uh oh!

LuciferYang commented Jun 15, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

dongjoon-hyun left a comment • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

LuciferYang commented Jun 15, 2022

Uh oh!

LuciferYang Jun 15, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

dongjoon-hyun commented Jun 15, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

dongjoon-hyun commented Jun 15, 2022

Uh oh!

dongjoon-hyun commented Jun 15, 2022

Uh oh!

LuciferYang commented Jun 16, 2022

Uh oh!

LuciferYang commented Jun 16, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

dongjoon-hyun left a comment

Choose a reason for hiding this comment

Uh oh!

LuciferYang commented Jun 18, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

LuciferYang commented Jun 18, 2022

Uh oh!

dongjoon-hyun commented Jun 19, 2022

Uh oh!

dongjoon-hyun commented Jun 19, 2022

Uh oh!

dongjoon-hyun commented Jun 19, 2022

Uh oh!

LuciferYang commented Jun 20, 2022

Uh oh!

dongjoon-hyun commented Jun 20, 2022

Uh oh!

LuciferYang commented Jun 20, 2022

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

Development

Uh oh!

2 participants

LuciferYang commented Jun 15, 2022 •

edited

Loading

dongjoon-hyun left a comment •

edited

Loading

LuciferYang Jun 15, 2022 •

edited

Loading

dongjoon-hyun commented Jun 15, 2022 •

edited

Loading

LuciferYang commented Jun 16, 2022 •

edited

Loading

LuciferYang commented Jun 18, 2022 •

edited

Loading
