feat(web-shell): visualize and manage dynamic workflow runs - #10412
feat(web-shell): visualize and manage dynamic workflow runs#10412qqqys wants to merge 40 commits into
Conversation
…-api' into codex/issue-8941-workflow-web-shell
…-api' into codex/issue-8941-workflow-web-shell
Rework the Workflow run card as a flat surface: one background, one hairline, status carried by a single accent per node and edge. Drops the radial/dot-grid canvas, gradient node fills, drop shadows and glow filters, and raises the 9–10px type to 11–12px. - Lanes share the viewport width (196–336px) so a three-phase run fills the card instead of ending in a blank strip; the last lane absorbs any remaining width. Nodes grow with their lane up to 300px. - Node: 3px status bar on the left, lucide status icon, label on its own line with status and elapsed time beneath it. Queued nodes are dashed. - Run controls (pause / stop / retry / rerun) move from above the card into the graph's metrics strip so they sit next to what they act on. - Inspector drops its tinted panel and boxed key/value cells for a hairline-separated key/value list; callouts keep only a 2px bar. - Saved workflows list becomes one bordered list with row dividers instead of individually bordered, striped cards. Claude-Session: https://claude.ai/code/session_01Umbt74AQ1QDT8bGwFhRYks
…ell' into feat/workflow-viz-flat
A saved workflow row was name + scope + Run; the definition itself was
unreachable from the browser because the daemon only forwarded `{ name,
source }` and the `/file` route stops at the workspace boundary, which
excludes user-scope `~/.qwen/workflows`.
Add a read-only definition surface end to end:
- daemon: `GET /session/:id/saved-workflows/:name` →
`_qwen/session/saved_workflow` → `qwen/status/session/saved_workflow`.
The ACP child resolves the name through `resolveSavedWorkflowScript`
(so the existing saved-workflow-directory guard applies), parses the
`export const meta` block with `extractAndStripMeta`, and returns
`{ source, scriptPath, script, meta, metaError? }`. Every miss —
unknown name, illegal name, unreadable file, Workflow controls
unavailable, untrusted workspace — fails closed to `workflow: null`
with the same envelope on both transports, so the route cannot be used
to probe the filesystem.
- sdk / webui: `DaemonSessionSavedWorkflowStatus`, route-table entry,
`DaemonSessionClient.savedWorkflow`, and a `readSavedWorkflow` action.

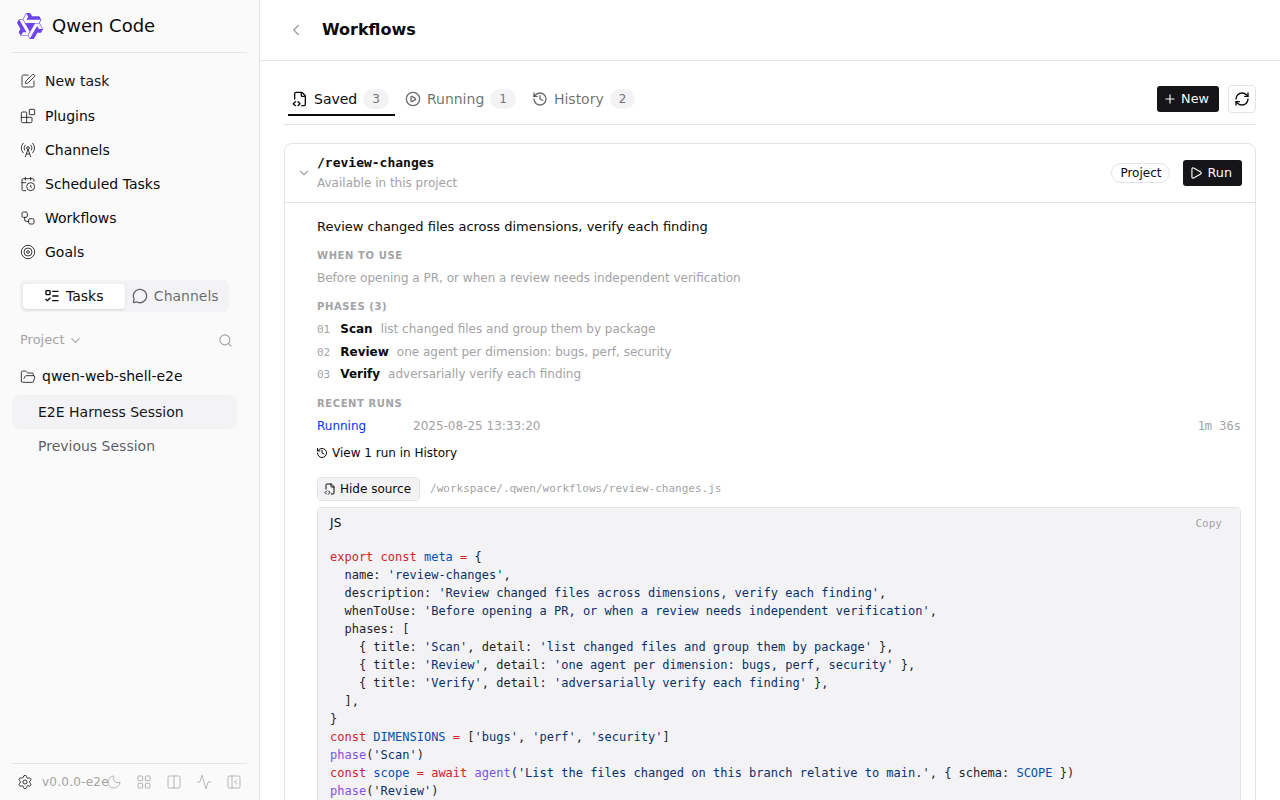

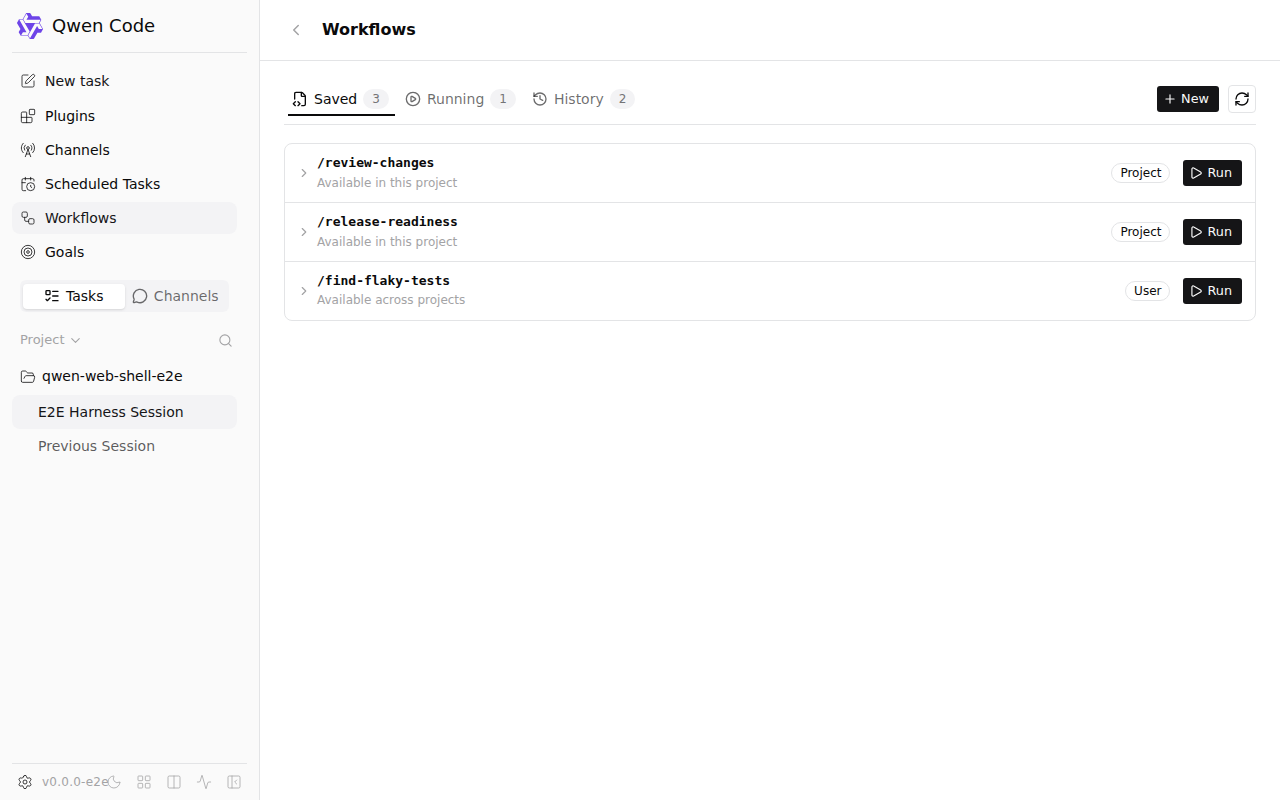

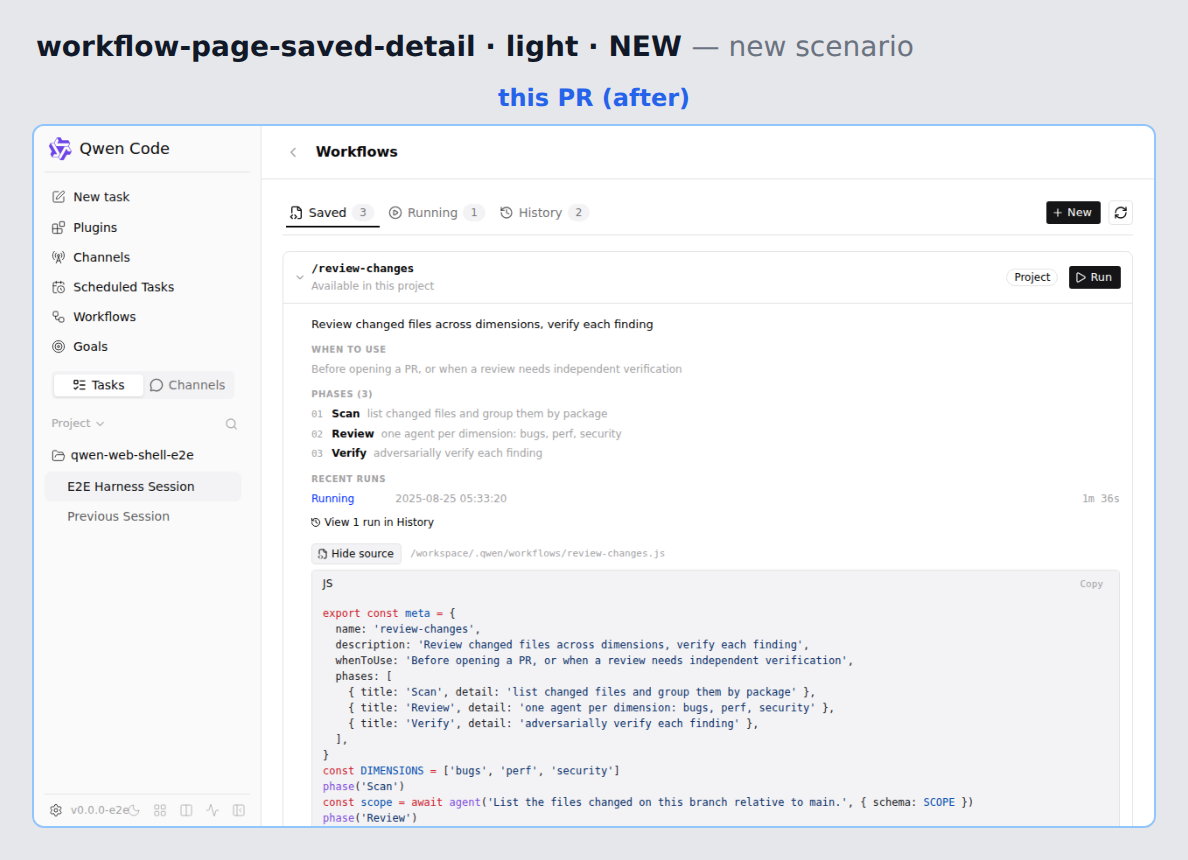

- web-shell: the Saved row's identity block is now a disclosure button.
Expanding it shows the description, "when to use", the phase list with
optional model badges, the script path, the definition's recent runs in
this session (with a jump to History), and a folded, highlighted copy of
the source. Stale reads across session switches are dropped, and a
definition that disappears from the list closes its detail.
- e2e: the mock daemon learns `/session/:id/tasks`, a configurable
`supported-commands`, and `/session/:id/saved-workflows/:name`, and a

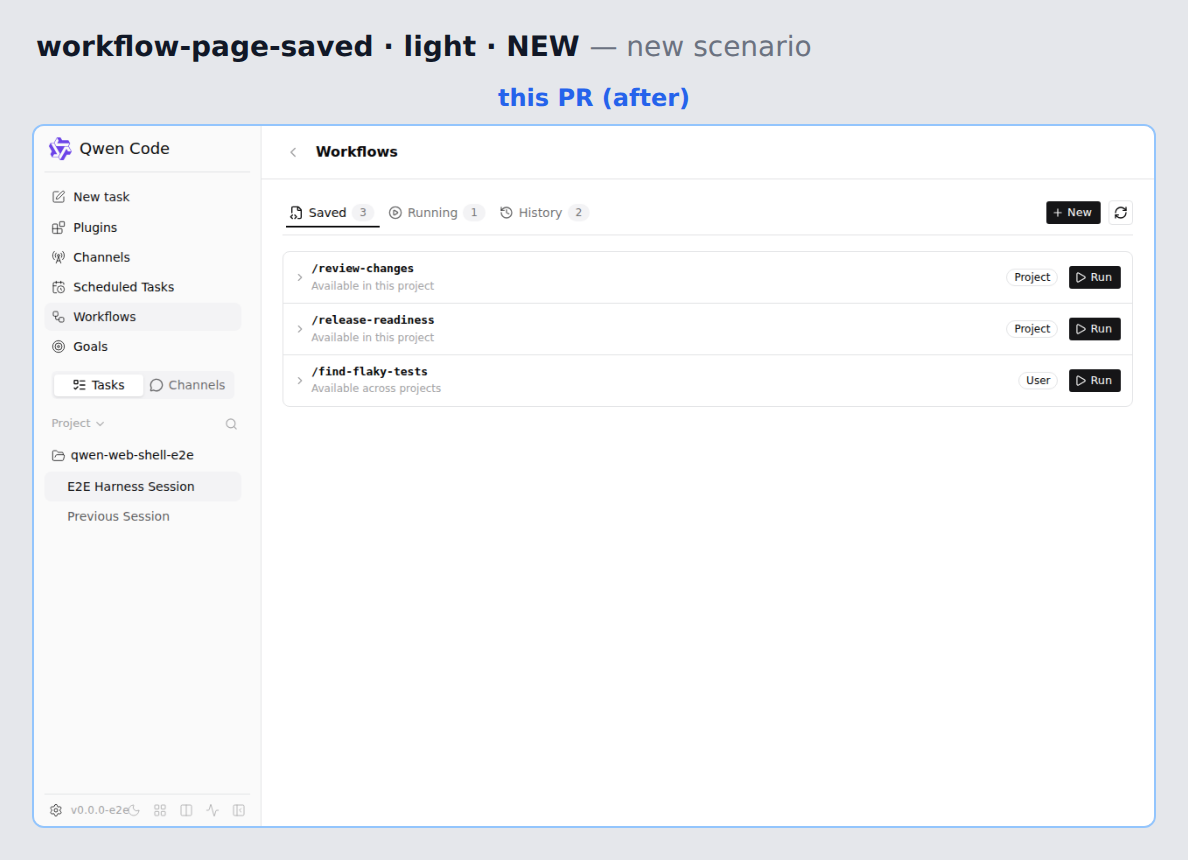

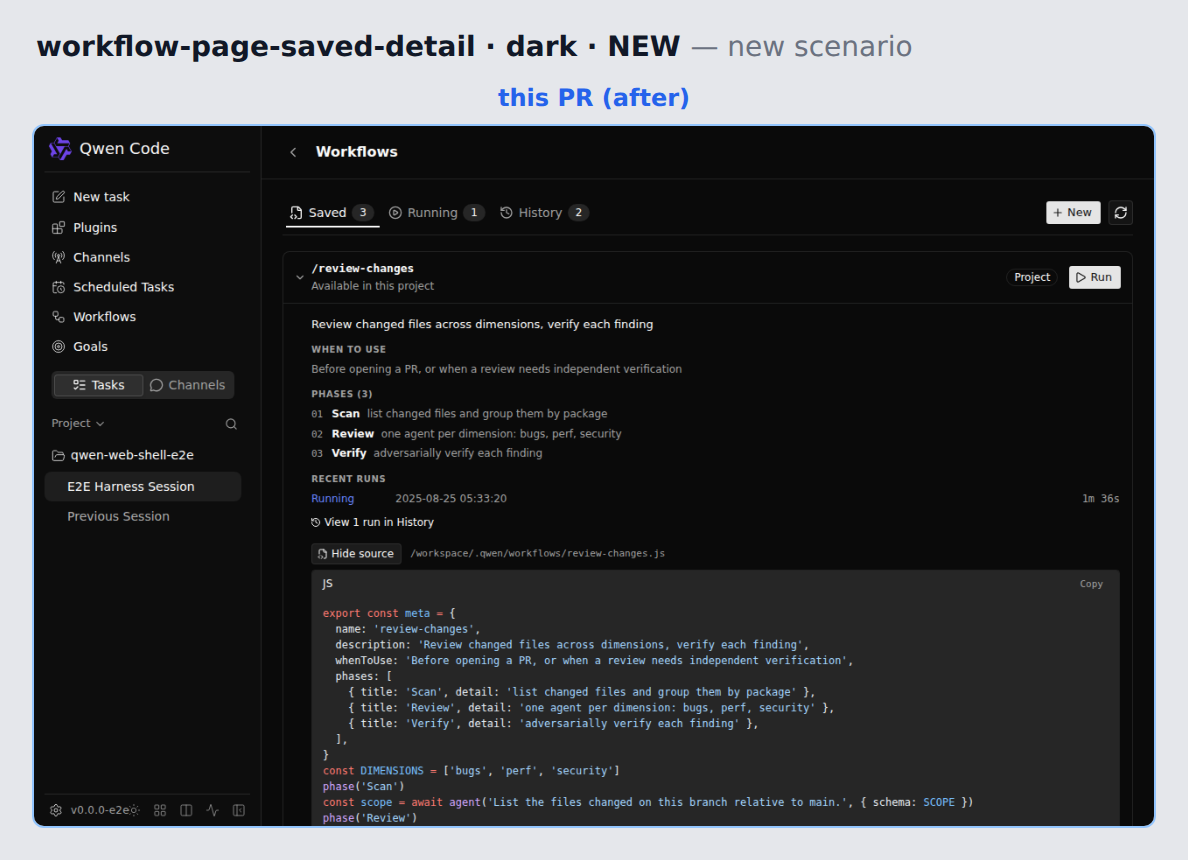

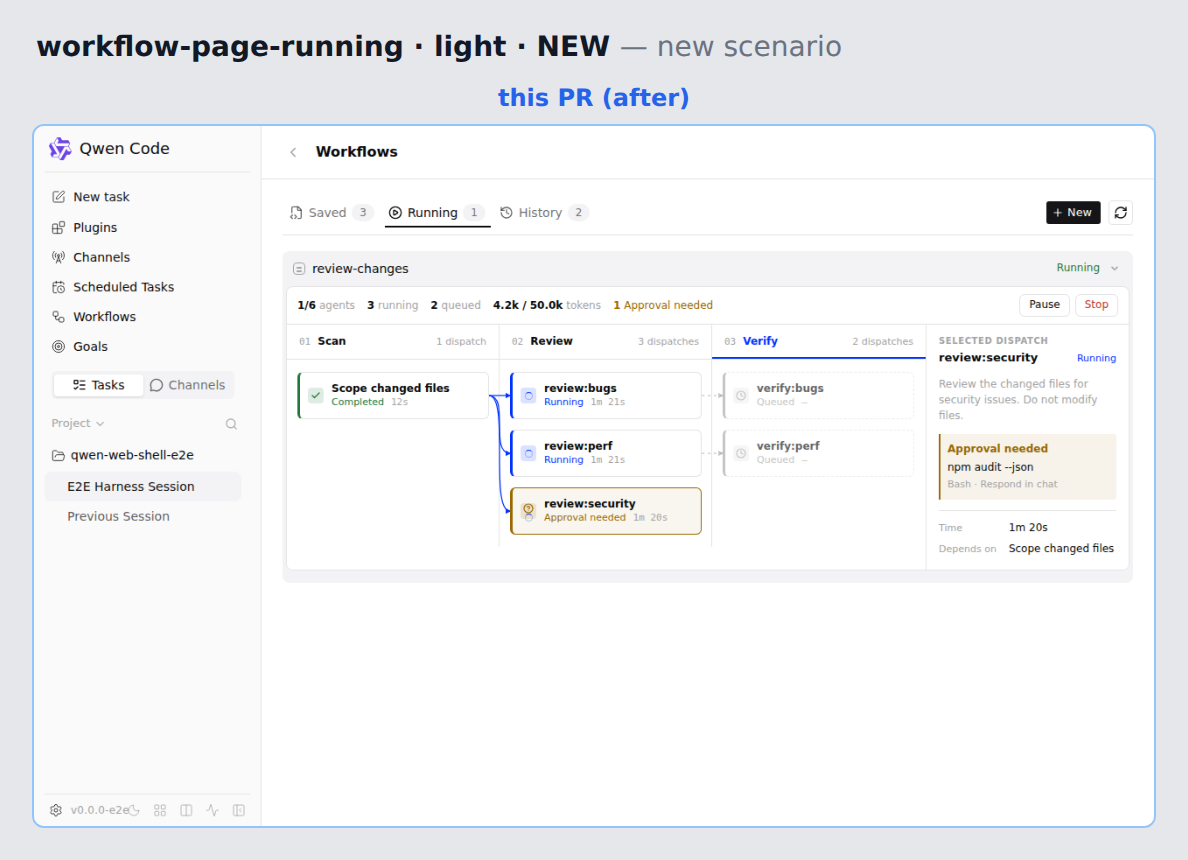

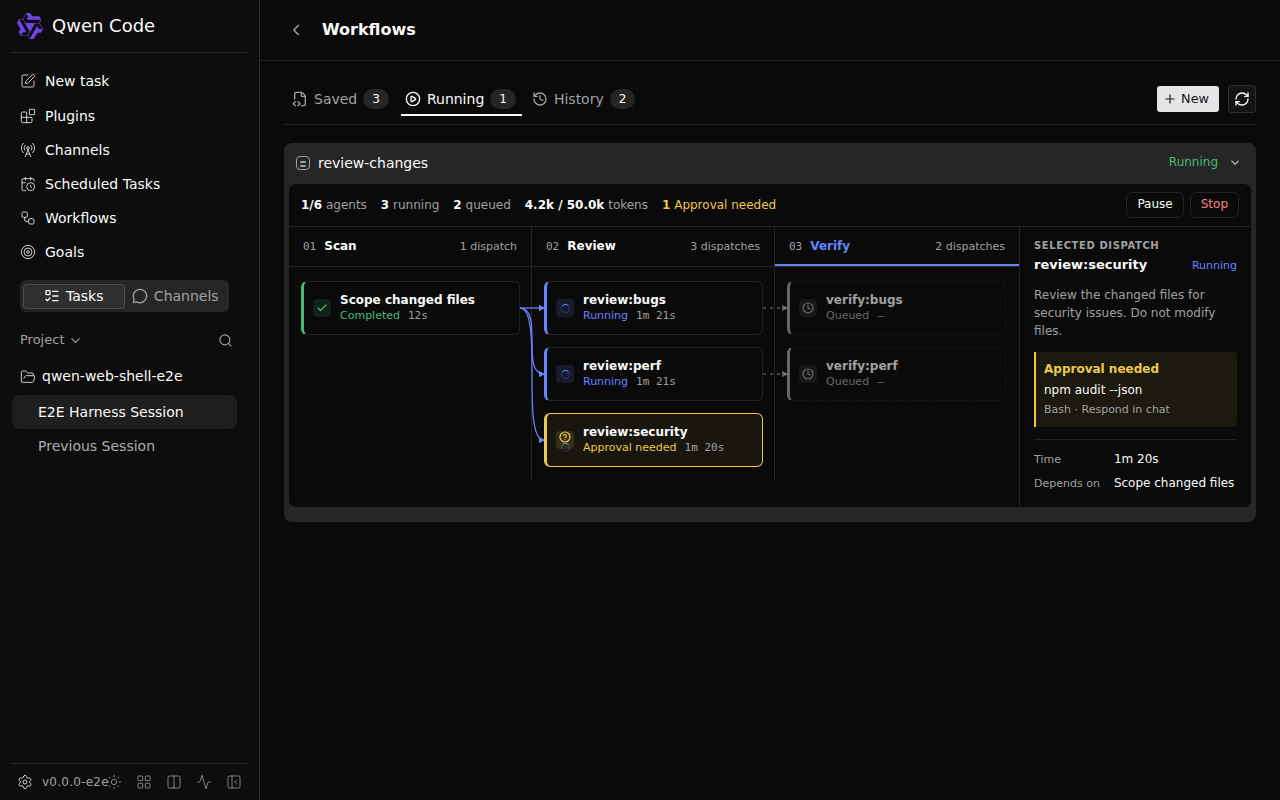

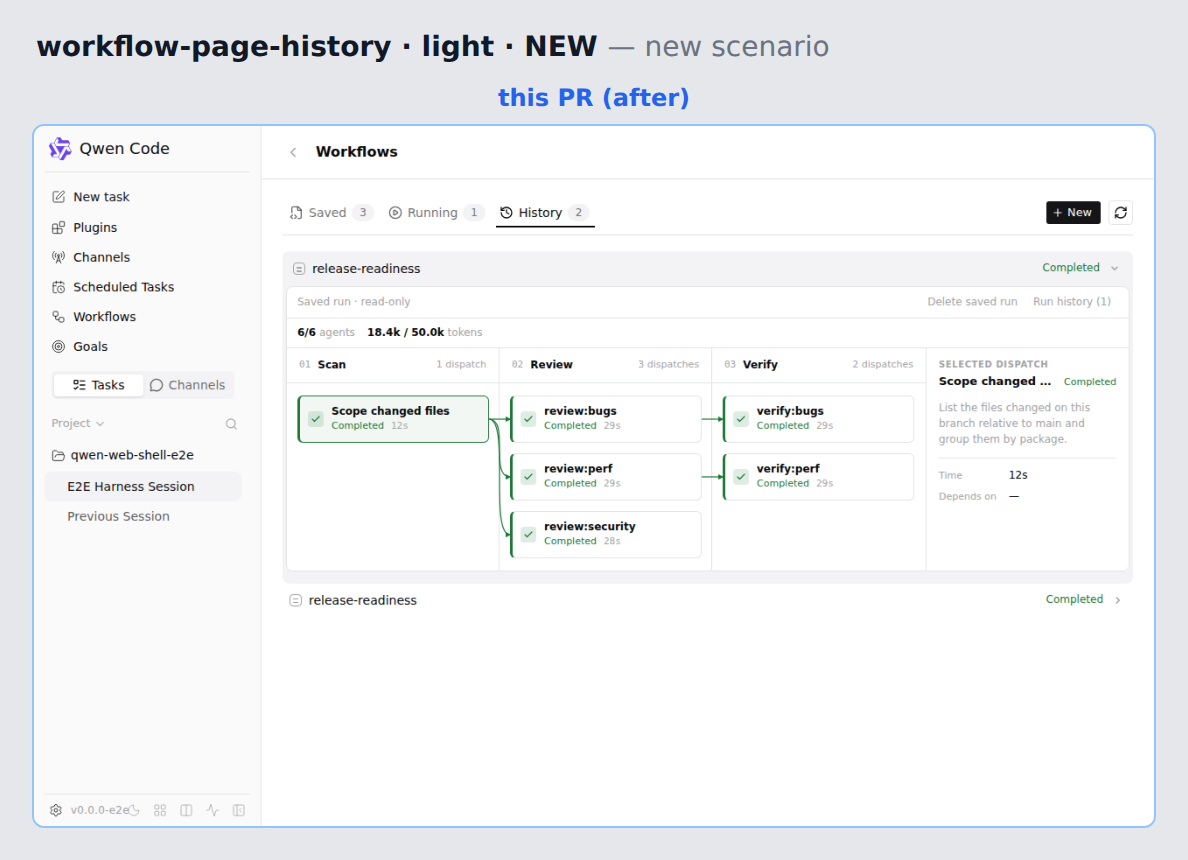

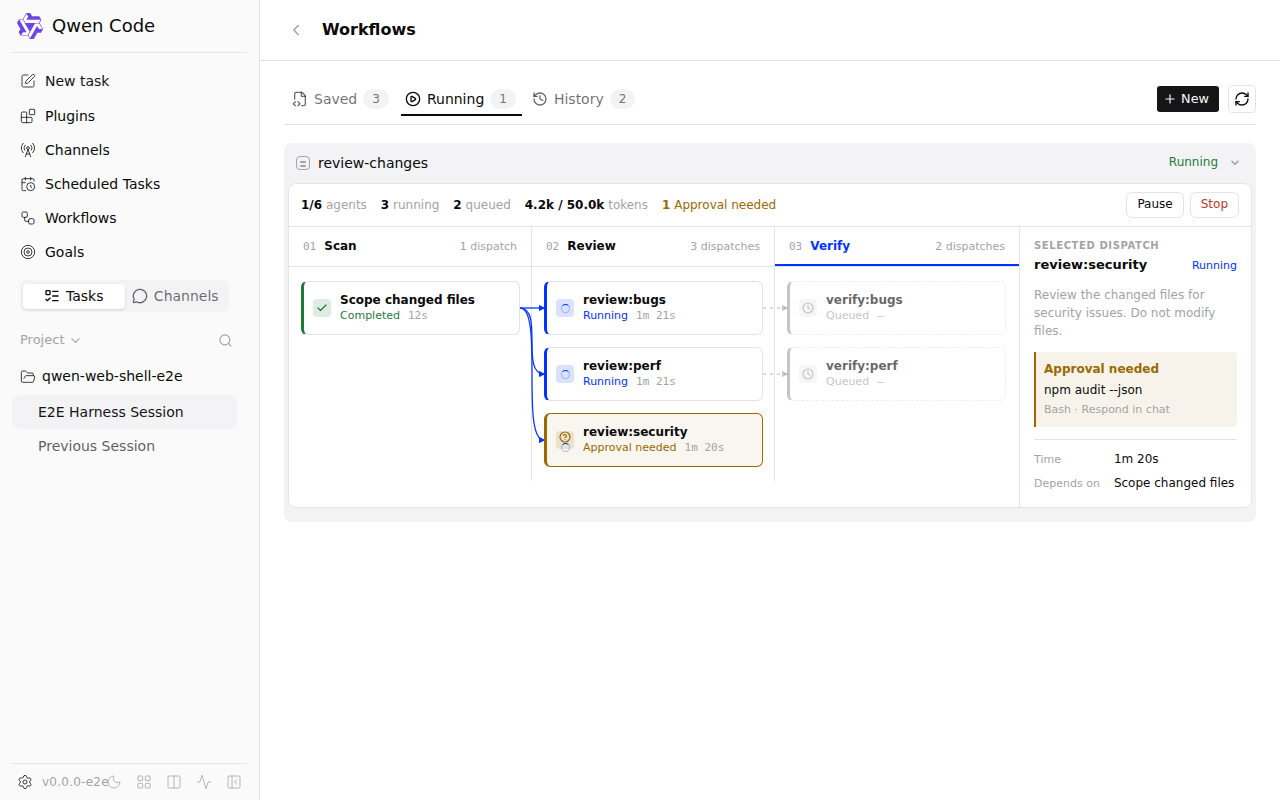

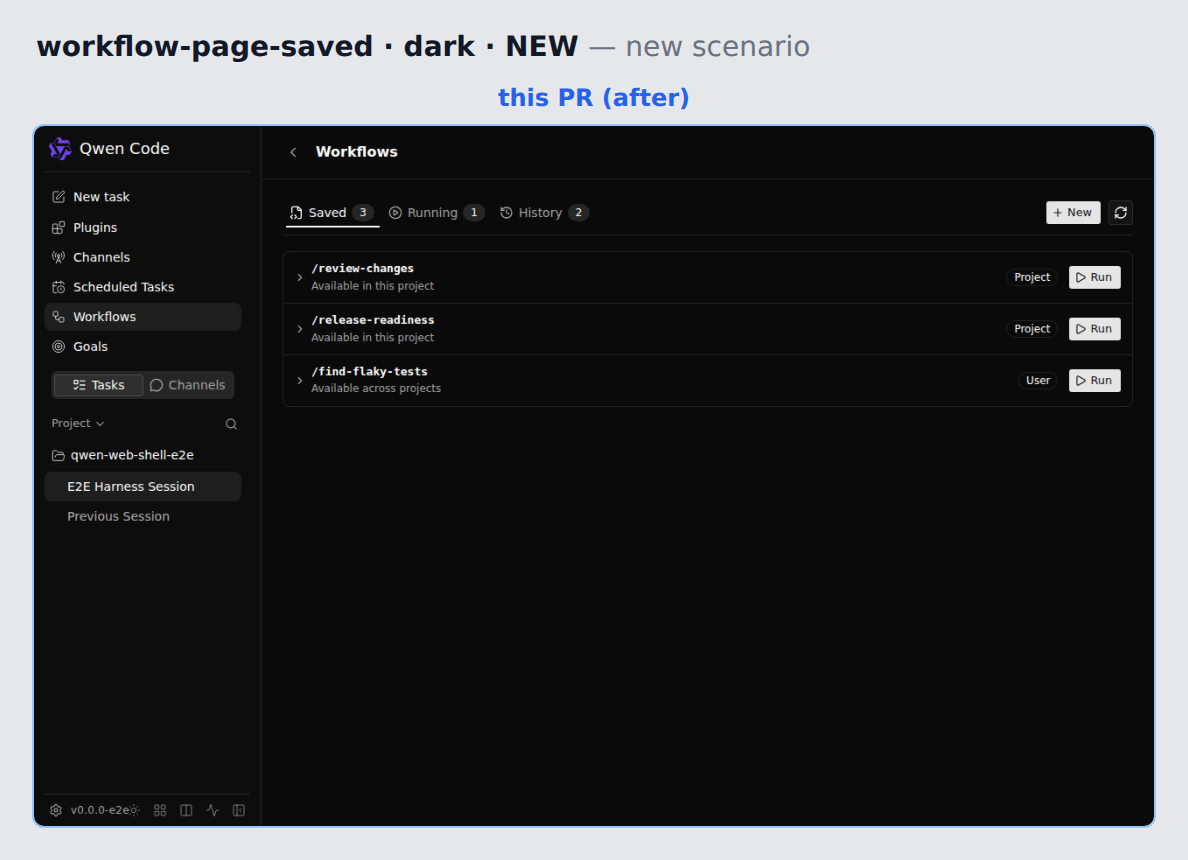

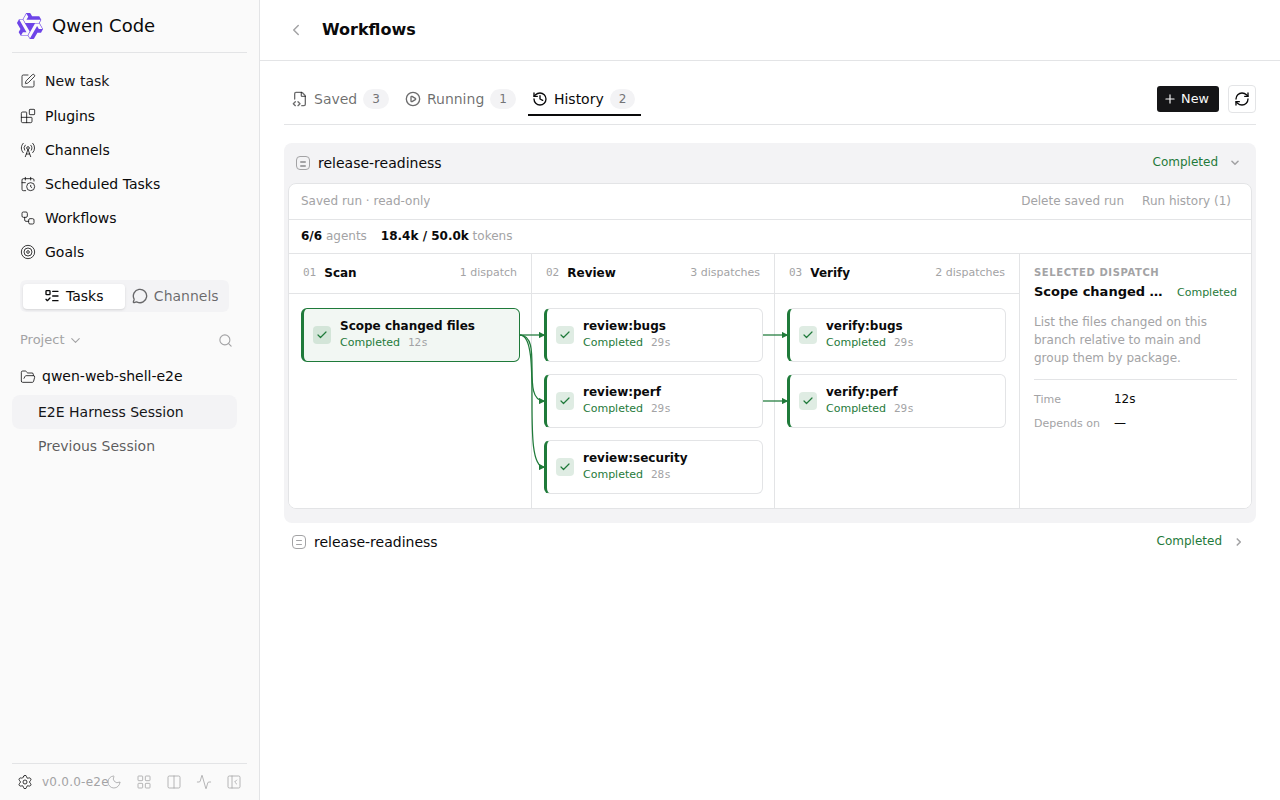

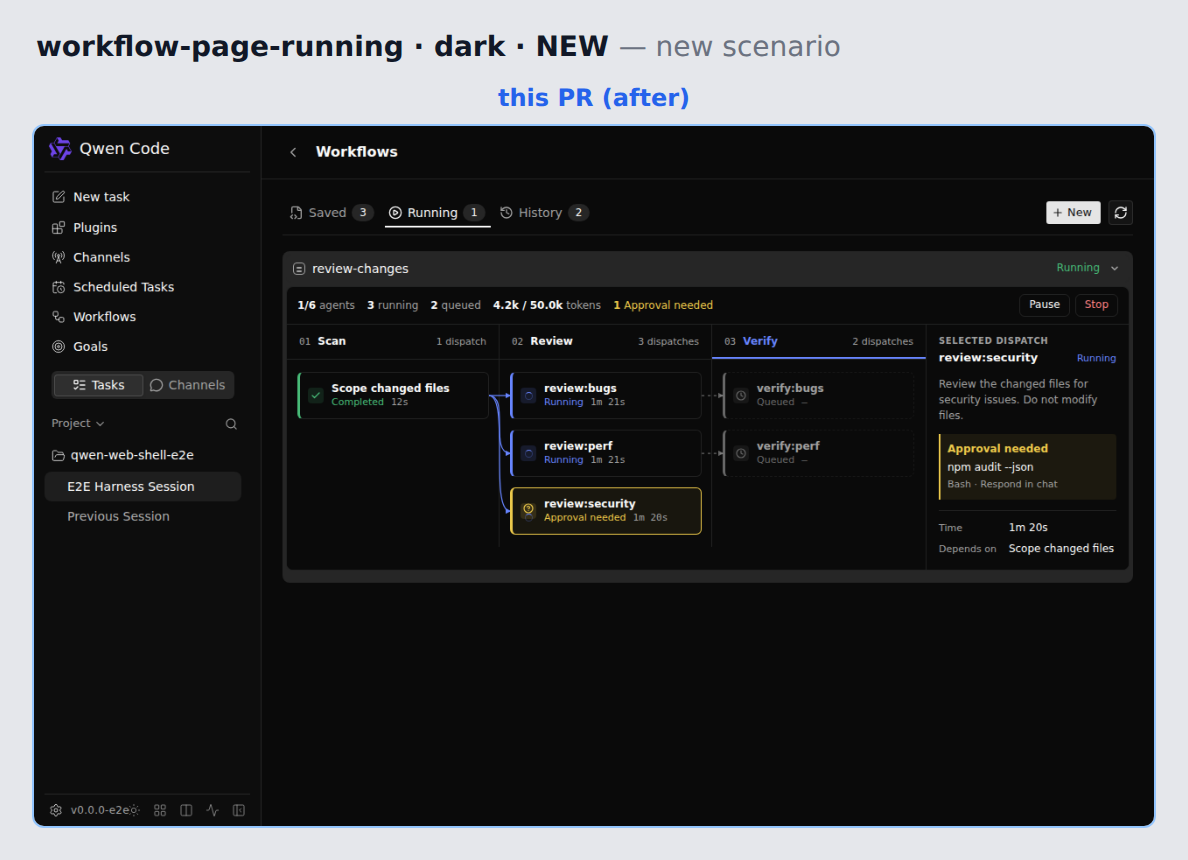

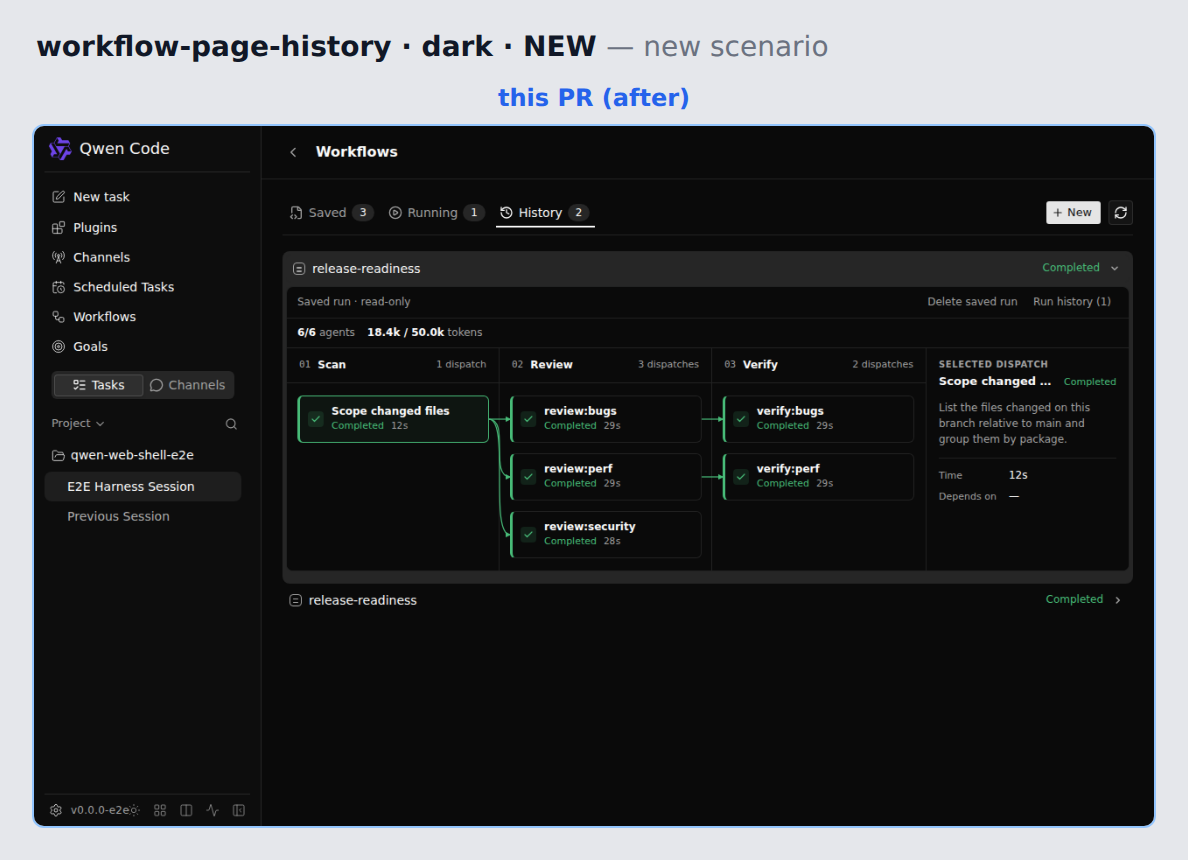

`workflow-page` visuals spec captures Saved, the expanded definition,
Running, and History in both themes for the CI preview.
Claude-Session: https://claude.ai/code/session_01Umbt74AQ1QDT8bGwFhRYks
… task reads (QwenLM#9546) - Session history merge now treats a persisted snapshot as authoritative over a stale callback cache, and retires the cache once the runner confirms the snapshot write (new registry snapshot-persisted hook), so a sibling's deletion is not resurrected on refresh. - History deletion consults every sibling session's run registry (live entries and settling handles) before deleting from the shared store, and a successful deletion purges sibling terminal entries so retries cannot re-persist a deleted run. - Workflow holds mirror the registry's hasRunningEntries: paused runs no longer pin the session indefinitely. - The includeWorkflows opt-in is gated on workspace trust at the daemon boundary in both the ACP-HTTP dispatch and the REST tasks route, matching the fail-closed shape of the other workflow surfaces.
…oles
Addresses R5-9, R7-4, R7-5 and R7-10 — all four Criticals open on this PR.
They are one family: a run's history can be deleted, retried, or listed
from any session, and each gate had a different idea of which runs exist.
R5-9 — the mutation claim is task-global, not session-scoped. Keyed
`sessionId\0taskId`, it serialized nothing that mattered: every session
shares one snapshot store. A sibling's retry passed canStart (`failed`,
no handle), took its own per-session claim, then awaited journal
load/compile before `register()`; a delete-history landing in that
structural window found the run terminal and handle-less in every
registry, removed the journal directory and snapshot, and answered
`{changed: true}` — after which the retry re-registered and its
settlement re-persisted the history the user was told was deleted. The
claim is now keyed by taskId alone and taken by delete-history, retry,
rerun and run-saved. `run-saved` keys off a saved workflow's NAME, so it
claims in its own `saved\0` namespace rather than colliding with runIds.
R7-4 — deletion tests membership against the uncapped merged set.
`buildSessionTasksStatus` serializes every registry entry
unconditionally while `refreshWorkflowHistory` truncates to
MAX_RETAINED_SNAPSHOTS by startTime, so a long run that settled after
~30 newer ones started stayed listed via the registry but fell out of
the window — terminal, handle-free, live in no sibling, and permanently
undeletable. `refreshWorkflowHistory` now records the merged id set
before the cap, and deletion gates on that, the registry, or the
unpersisted cache. `deleteWorkflowSnapshot` already tolerates an absent
target, so the wider gate cannot delete what is not there.
R7-5 — snapshot retirement is a latch. The registry's dispatch-drain
callbacks emit status changes on TERMINAL entries with no status gate,
and in-flight dispatches keep draining across the snapshot write, so a
terminal emission routinely landed after `notifySnapshotPersisted` had
retired the cache entry — re-inserting the run as "never persisted".
A sibling's deletion was then undone by the next refresh, which reads
"absent on disk, present in cache" as a pending write and republishes.
Persistence is now remembered per runId and `#rememberWorkflowHistory`
returns early for members; the latch releases when the runId goes active
again, so a genuine re-run is still cached.
R7-10 — the liveness gate sees runs whose session is gone. It iterated
`this.sessions` only, but close/kill/shutdown use force semantics and a
background run owns a detached controller, so after
`removeStoredSessionEntry` a still-settling run was invisible to the
gate and unreachable by the delete handler's sibling `removeTerminal`
loop: a sibling delete-history removed the LIVE run's journal and
snapshot, and the orphan's settlement write recreated it. Two halves —
`Session.dispose()` now aborts its workflow registry the way it already
aborts the agent registry (before the callbacks are torn down), and the
registry of a removed session is retained here until its runs drain, so
the gate still answers across the settlement window an abort cannot
compress to zero. Retention is bookkeeping: a Config that cannot answer
is logged, never turned into a shutdown failure.
Regressions, each mutation-checked against its own repair:
- acpAgent: a sibling's parked retry makes delete-history answer
`{changed: false}` without reaching the store, and the deletion goes
through once the claim releases
- acpAgent: a live run's registry stays visible to the gate across its
session's close, and is dropped once the handle is released
- Session: a status emission after `snapshotPersisted` no longer
resurrects a sibling-deleted run (reverting the latch reproduces the
reviewer's probe verbatim), and a re-registered runId is remembered
again
- Session: a run with the oldest startTime behind 30 newer snapshots is
deletable
- Session: dispose aborts the workflow registry before clearing its
callbacks
Verification: Session.test.ts 733 passed, acpAgent.test.ts 514 passed,
`tsc --noEmit -p packages/cli` clean, eslint and prettier clean. The 14
`packages/cli/src/serve` failures (fast-path import boundary,
capabilities-docs contract, workspace fs/agents/memory, conversation
runtime ownership) reproduce identically on the unmodified head — base
skew, untouched by this change.
Claude-Session: https://claude.ai/code/session_01M7z4PccYfDPyyfg3oGr8V1
Merging upstream/main (053f17b) clears the 9 `client.telemetrySwap` failures this branch had from predating QwenLM#10220, but main carries its own TS1117 on the same file: two commits added `getToolRegistry` to the same object literal independently and neither saw the other. 032b907 feat(serve): backfill session PR bindings ... (QwenLM#9729) 8241905 test(core): give the telemetry-swap client mock a getToolRegistry (QwenLM#10220) Checking that file out from upstream/main here and running `tsc --noEmit -p packages/core` reproduces `client.telemetrySwap.test.ts(103,5): error TS1117` verbatim, so taking the merge unmodified would have traded 9 test failures for a build that never reaches the tests at all. Removed as part of the merge rather than left for a follow-up: keeps QwenLM#10220's copy, which was added for this purpose and carries the explanation, and drops QwenLM#9729's incidental one. main still needs the same removal — this only keeps it out of the branch. Verified after the merge: `tsc --noEmit` clean for both packages/core and packages/cli; client.telemetrySwap 10 passed, Session.test.ts and acpAgent.test.ts 1260 passed together. Claude-Session: https://claude.ai/code/session_01M7z4PccYfDPyyfg3oGr8V1
Four of the behavioural items the review deferred across rounds 8-9; the test-coverage-only entries stay deferred. - Cancel during the start window (R9 acpAgent.ts:10884 + workflow-runner.ts:181). Between `reserveStart` and `register` the runner loads the script and replays the journal — seconds, for a resume of a large one — and the registry has no entry yet. `sessionTaskCancel` answered `not_found` for a run the client could see starting, and `registry.cancel` could not reach the reserved controller either. New `cancelStarting` aborts it (the reservation stays the runner's to release, as after `abortAll`), and the cancel handler routes there when the liveness gate would say "starting". Doing that exposed the second half: the runner threw a bare `Error` for an abort during start, and the tool's catch only recognised the CALLER's signal — a registry-side abort surfaced as an unexplained failure. It is now a typed `WorkflowStartCancelledError`, mapped to the same "cancelled before it could start" result. - `detachedWorkflowRegistries` (R8 acpAgent.ts:3386) was pruned only inside the delete-history liveness check. A daemon that closes sessions mid-run and never deletes history retained every registry for its lifetime. Prune on session close as well. - Refresh/delete race (R9 Session.ts:3428). `refreshWorkflowHistory` reads the directory and merges without a claim; a delete landing between the read and the merge was overwritten by the stale listing and the run reappeared until the next refresh. Deletions are now sequenced, and a refresh drops any run deleted after its read began — keyed by runId and compared against the refresh's own mark, so a later retry that reuses the id is not suppressed. - The "Register a new run" JSDoc sat on `reserveStart` (R9 registry:594). Mutation-verified, all four at once against the full suites: disabling the starting-window branch, the prune-on-close, the deletion filter, and the typed-error mapping reddens exactly the four new tests and nothing else. Claude-Session: https://claude.ai/code/session_01VXsC4f71S6U6YkW82NRw7m
- Key the starting-window cancel on a live reservation rather than on the absence of an entry: a retry reuses its runId, so its terminal entry shadowed the reservation and cancel answered `not_running` about a run that was actively starting. - Answer `changed: false` from retry when `execute()` reports a start that never registered (no `workflowRunId`), mirroring rerun and run-saved. - Classify a registry-side abort of the reserved controller as a cancel in foreground starts too, not only background ones; the tool maps `WorkflowStartCancelledError` in either mode. - Report reserved-but-unregistered runs as workflow active-work holds (`WorkflowRunRegistry.listStartingRunIds`), so a daemon conditional close cannot dispose the session under a start it just accepted. - Propagate a successful history deletion into every sibling session's deletion marker and cached history, symmetric to the `removeTerminal` sweep, so a sibling refresh that had already read the directory cannot republish the deleted run. Claude-Session: https://claude.ai/code/session_018dYE4LwSMeMPFchXk5UBdM
…rkflow-daemon-api
…ent across sessions Two cross-session gaps in the workflow control surface: - A retry consulted only the requesting session's registry. Every session shares one journal/snapshot store and the task-global claim is released as soon as the background start returns, so a sibling whose registry still showed the run `failed` started a second runner under the same runId. Retry now refuses while the runId is live in any session (or in its own starting window), checked synchronously beside canStart so the answer cannot go stale before the claim is taken. - Workspace reload updated `tools.workflowsEnabled` for `/capabilities` but never told existing sessions; `Config.workflowsEnabled` was set once at construction. The reload's `tools` branch now propagates the flag and pushes an available-commands update when it flips. Claude-Session: https://claude.ai/code/session_01NkW1J2aBKcsKS62dkPcWbT
…ry entry survived `deleteWorkflowHistory` ignored `removeTerminal()`'s answer. The registry refuses to remove a live or handle-held entry — its own last word on whether the run is still active in this session — so a `false` for an entry that exists meant the run re-registered under the deletion and would re-persist the history the client was just told was gone. The entry is now retired before the store is touched, and a refusal fails the deletion; a persisted-only run has no entry and is unaffected. Claude-Session: https://claude.ai/code/session_01NkW1J2aBKcsKS62dkPcWbT
…rkflow-daemon-api
Resolves ToolGroup conflicts against QwenLM#10231: hasExpandableContent and forceExpandable are gone (every row is expandable now); the workflow detailsVisible prop is kept.
github-actions
Bot
added
the
review/self-reported
🖼️ web-shell visual previewRendered against a mock daemon (no real backend): the PR base vs this PR head Screenshots · before / after
Full-resolution recordings (.webm) are attached to the workflow run. — Qwen Code · web-shell visuals |
🩺 serve daemon A/BBuilt the PR base vs this PR head ✅ No response changes against the PR base across 12 scenario(s). — Qwen Code · serve A/B |
wenshao
left a comment
wenshao
left a comment
There was a problem hiding this comment.
Partially reviewed — gaps disclosed.
Not reviewed: reverse audit — stopped before round 4 of the 5-round cap: rounds 1-3 each reported new findings and the loop was halted with rounds 4-5 unspent so the verified findings could be composed and posted; no convergence is claimed.
Test Plan (not a blocker): client/App.tsx:8359 — no such file or directory.
[Critical] R1-8: [certifies-falsely] refreshWorkflowHistory's merge branch treats ANY on-disk snapshot for a runId as newer than the cached unpersisted settlement, without comparing incarnations — wrong exactly when the runId was reused by a retry/resume and the disk holds the PREVIOUS incarnation: wf_a fails (snapshot on disk), the retry settles 'completed' cached unpersisted, and before the new write lands a poll merges the old failed copy unconditionally and deletes the cache entry — the run shows failed with the old times, and if the new write fails the newest settlement is gone permanently. Fix: keep the cached projection (skip the delete) when stored.startTime < snapshot.startTime. Witness: not run — the merge branch has no recency comparison; the persisted-newer direction is pinned at Session.test.ts:3125-3133, leaving the cached-newer direction untested. Acceptance: a mirrored test with times flipped (cache completed@5_000, disk failed@1_000) must show completed/5_000 after refresh — red at HEAD; the persisted-wins direction at >= must stay green and the R7-5 retirement must stay unconditional.
[Critical] R1-14: [certifies-falsely] After a reload flips workflowsEnabled off, the already-registered Workflow tool remains callable — no execute-time gate exists (zero references to isWorkflowsEnabled/disabled-tools in the tool; registration is evaluated once at construction), so the model keeps spawning live runs the user just disabled, invisible in tasks and uncancelable short of a daemon restart. Probe after setWorkflowsEnabled(false): stillRegistered=true and the session-owned start path still exposed; the env kill-switch likewise leaves it registered. Fix: refuse in WorkflowTool.execute when !config.isWorkflowsEnabled() (inherits the env kill switch for already-registered tools), or add workflow to the live-applied setDisabledTools on flip-off; consider letting cancel still settle runs live at flip time. Acceptance: a test registering the tool with the flag true, flipping false, and asserting an invocation is refused — no test today covers post-reload tool calls; a gate keyed on tool absence would break the retry/run-saved branches, so key on the flag.
中文说明
仅完成部分审查，审查缺口已披露。
未审查：reverse audit — stopped before round 4 of the 5-round cap: rounds 1-3 each reported new findings and the loop was halted with rounds 4-5 unspent so the verified findings could be composed and posted; no convergence is claimed。
Test Plan（非阻断）：client/App.tsx:8359 — no such file or directory。
[Critical] R1-8: [certifies-falsely] refreshWorkflowHistory's merge branch treats ANY on-disk snapshot for a runId as newer than the cached unpersisted settlement, without comparing incarnations — wrong exactly when the runId was reused by a retry/resume and the disk holds the PREVIOUS incarnation: wf_a fails (snapshot on disk), the retry settles 'completed' cached unpersisted, and before the new write lands a poll merges the old failed copy unconditionally and deletes the cache entry — the run shows failed with the old times, and if the new write fails the newest settlement is gone permanently. Fix: keep the cached projection (skip the delete) when stored.startTime < snapshot.startTime. Witness: not run — the merge branch has no recency comparison; the persisted-newer direction is pinned at Session.test.ts:3125-3133, leaving the cached-newer direction untested. Acceptance: a mirrored test with times flipped (cache completed@5_000, disk failed@1_000) must show completed/5_000 after refresh — red at HEAD; the persisted-wins direction at >= must stay green and the R7-5 retirement must stay unconditional.
[Critical] R1-14: [certifies-falsely] After a reload flips workflowsEnabled off, the already-registered Workflow tool remains callable — no execute-time gate exists (zero references to isWorkflowsEnabled/disabled-tools in the tool; registration is evaluated once at construction), so the model keeps spawning live runs the user just disabled, invisible in tasks and uncancelable short of a daemon restart. Probe after setWorkflowsEnabled(false): stillRegistered=true and the session-owned start path still exposed; the env kill-switch likewise leaves it registered. Fix: refuse in WorkflowTool.execute when !config.isWorkflowsEnabled() (inherits the env kill switch for already-registered tools), or add workflow to the live-applied setDisabledTools on flip-off; consider letting cancel still settle runs live at flip time. Acceptance: a test registering the tool with the flag true, flipping false, and asserting an invocation is refused — no test today covers post-reload tool calls; a gate keyed on tool absence would break the retry/run-saved branches, so key on the flag.
— glm-5.3 via Qwen Code /review (v0.22.2)
| private canUseWorkflowControls(config: Config): boolean { | ||
| return ( | ||
| config.isWorkflowsEnabled() && |
There was a problem hiding this comment.
[Critical] R1-6: [fails-closed] [new-surface] Every daemon workflow control fail-closes on canUseWorkflowControls (bare mode / untrusted folder refused), but the Workflow tool that creates those runs is registered on isWorkflowsEnabled() alone — core config.ts:9539 has no trust clause and packages/core/src/tools/workflow contains no gate. In an untrusted folder with the flag on, the model can start a run that is then invisible in every tasks poll (tasksSnapshot.ts:217-229 drops registry runs) and refused by cancel ({cancelled:false,reason:'disabled'} while the agent/shell/monitor branches in the same switch cancel unconditionally) — a live run that keeps dispatching until the session closes. Make one predicate authoritative: fold the trust/bare clauses into the registration condition, or let cancel fall through for already-live runs.
Witness:
witness: not run — controls-side links quoted line-by-line (cancel branch vs the
unconditional sibling branches; registration condition; zero trust references
under core/src/tools/workflow).
Extend config.workflow-registration.test.ts with untrusted-folder (and bare-mode) cases asserting the Workflow tool is NOT registered — deleting the added gate turns them red (or server-side: a bare-mode live-entry case asserting cancel resolves {cancelled:true}). Keep flag-off ⇒ unregistered (pinned at :128) and env-enabled-in-trusted-folder ⇒ registered (config.ts:7729-7730).
中文说明
daemon 侧所有 workflow 控制都按 canUseWorkflowControls 失败关闭，但 Workflow 工具本身只按 isWorkflowsEnabled 注册（无信任/裸模式检查）：在未受信任目录中模型可以启动运行，但该运行在任务列表中不可见、也无法取消，直到会话关闭。请让注册条件与控制谓词一致，或允许取消已在运行中的任务。— glm-5.3 via Qwen Code /review (v0.22.2)
| const workflowsWereEnabled = config.isWorkflowsEnabled(); | ||
| config.setWorkflowsEnabled( | ||
| newMerged.tools?.workflowsEnabled === true, | ||
| ); |
There was a problem hiding this comment.
[Critical] R1-13: [certifies-falsely] [new-surface] The settings-reload propagation only reaches idle sessions: the per-session loop returns before the tools block, so setWorkflowsEnabled — whose only production call site this is — never runs for a mid-turn session, with no queue and no catch-up (these ACP sessions never restart). After an operator flips the flag off, /capabilities (which reads the reloaded setting live) advertises off while that session still accepts run-saved/pause/resume/retry and advertises workflowsEnabled: true. Hoist the synchronous flag setters past the idle gate, deferring only sendAvailableCommandsUpdate.
Witness:
[probe] busy arm (isIdle mocked false): {"sessionsSkipped":["s-wf-reload"],
"setWorkflowsEnabledCalls":0,"cancelAfterReload":{"cancelled":true,"status":
"running"}} — the session cancelled a LIVE run after the operator's flip-off;
idle arm (the PR's tested path): setWorkflowsEnabledCalls=1,
{cancelled:false,reason:"disabled"}.
Extend the reload test with a second session whose isIdle returns false: after reload, assert its config received setWorkflowsEnabled(false) and cancel answers {cancelled:false,reason:'disabled'} — red while the sync stays inside the idle branch. The idle gate protects stateful refresh (switchModel/refreshAuth/sendAvailableCommandsUpdate) — hoist only the synchronous setters, and keep sessionsSkipped in the response contract.
中文说明
设置重载只作用于空闲会话：正在运行回合的会话永远保持旧标志和全部可用控制——探测显示操作者关闭开关后，忙会话仍取消了正在运行的 workflow。请把同步的标志设置提到空闲判断之外（仅延迟 sendAvailableCommandsUpdate）。— glm-5.3 via Qwen Code /review (v0.22.2)
| const workflowsWereEnabled = config.isWorkflowsEnabled(); | ||
| config.setWorkflowsEnabled( | ||
| newMerged.tools?.workflowsEnabled === true, | ||
| ); |
There was a problem hiding this comment.
[Critical] R1-7: [fails-closed] [new-surface] The reload flips workflowsEnabled on for live idle sessions and opens canUseWorkflowControls and the advertisement — but the Workflow tool is registered only at tool-registry construction (built once, config.ts:3480/9539; nothing on the reload path registers it later). A session created with the flag off then advertises workflowsEnabled: true + the saved-workflow list while every start action hits getTool(ToolNames.WORKFLOW) → undefined → "The workflow tool is unavailable; cannot run this saved workflow." Refresh cannot help — only a new session recovers (settings.md:377 documents the key as Requires restart: Yes). Gate the flipped-on state on the session actually owning the tool, or register WORKFLOW into the live registry on flip-on.
Witness:
witness: not run — construction-vs-reload asymmetry quoted (single registration
site; nothing on the reload path registers the tool; docs mark the key
restart-required).
A reload test mirroring acpAgent.test.ts:24827 in the false→true direction — flag-off session, reload flips on, assert buildSessionSupportedCommandsStatus still reports workflowsEnabled: false — is red when propagation alone opens the gate. The existing flip-off pin ({cancelled:false,reason:'disabled'} at :24924-24928) must stay green under a tool-presence gate.
中文说明
设置重载把 workflowsEnabled 置真时会打开广告与控制，但 Workflow 工具只在构建时注册一次：以关闭状态创建的会话重载后广告已开、每次启动却报“工具不可用”，刷新也无法恢复。请在翻转时检查会话是否真的持有该工具（扩展 canUseWorkflowControls），或在翻转时补注册。— glm-5.3 via Qwen Code /review (v0.22.2)
| const workflows = this.config.getWorkflowRunRegistry?.()?.list?.() ?? []; | ||
| if ( | ||
| workflows.some( |
There was a problem hiding this comment.
[Critical] R1-9: [fails-closed] [new-surface] The todo-stop-guard relevance gate counts a paused background workflow as live background input — but a paused run emits only status changes, never the completion notification the guard defers to, so the forced todo continuation is silently dropped and the turn ends with the todo list unfinished. The PR's own sibling gates exclude paused twice with the no-backstop rationale (hasRunningEntries' R12 comment; collectActiveWorkHolds). Count only running/pausing here, mirroring collectActiveWorkHolds — do NOT use isActiveWorkflowStatus (it includes paused and would not fix the bug).
Witness:
witness: not run — status-set mechanics quoted (terminal = completed/failed/
cancelled only; emitCompletion fires only for those; both sibling gates' paused
exclusions quoted with their rationale comments).
Beside 'classifies workflow notifications from the captured baseline': seed the registry with a post-baseline {status:'paused'} entry, rebuild the session, invoke #hasRelevantTodoStopGuardBackgroundInput via the internals cast the file already uses, and assert false — reverting to !isTerminalWorkflowStatus turns it red.
中文说明
todo 停止守卫把 paused 状态的 workflow 当作活跃后台输入，但 paused 的运行永远不会发出完成通知，守卫被无限推迟，强制续跑被静默丢弃。请与 collectActiveWorkHolds 一致只统计 running/pausing（不要用 isActiveWorkflowStatus，它包含 paused）。— glm-5.3 via Qwen Code /review (v0.22.2)
| ); | ||
| expect(keys).toHaveLength(61); | ||
| expect(new Set(keys).size).toBe(61); | ||
| expect(keys).toHaveLength(62); |
There was a problem hiding this comment.
[Critical] R1-1: The route-count assertions were bumped to 62 total / 60 handler_resolved, but this PR adds two handler_resolved entries to legacySessionTelemetryRoutes — the catalog now holds 63 routes / 61 handler_resolved + 2 pre_resolved, so this test is red at the reviewed commit (and it is the failing ubuntu CI check). Fix: toHaveLength(63), set size 63, handler_resolved 61, retitle to "63 unique routes with the audited 61/2 attribution split". telemetry-catalog.test.ts:101 already pins 63 and passes.
Witness:
Reproduced red twice on the PR tree (in-suite and standalone); the same file
passes clean on merge base d6533785b (65 passed / 0 failed).
The test itself is its own acceptance criterion — it is red at HEAD and green at 63/61. Note telemetry-catalog.test.ts pins registered==catalog==63, so raise the expected counts rather than removing an entry.
中文说明
路由计数断言更新为 62/60，但本 PR 新增了两个 handler_resolved 条目，实际为 63/61，该测试在当前提交是红的（也是 ubuntu CI 失败的原因）。请改为 63/61/2 并更新标题；telemetry-catalog.test.ts 已固定 63，不能通过删除条目来凑数。— glm-5.3 via Qwen Code /review (v0.22.2)
| agentsDispatched: 0, | ||
| agentsCompleted: 0, | ||
| tokensSpent: 0, | ||
| recentLogs: [], |
There was a problem hiding this comment.
[Suggestion] R1-63: PATTERN (3 locations in this diff): new workflow task fixtures omit required DaemonSessionWorkflowTaskStatus fields — WorkflowRunsPage.test.tsx:113 (missing tokenBudgetTotal), TasksStatusMessage.test.tsx:130 (missing tokenBudgetTotal), composerTasks.test.ts:59 (missing currentPhase + tokenBudgetTotal). All pass only because web-shell excludes *.test.ts from typecheck; every sibling fixture sets the fields. Any branch under test reading the field observes undefined where the type and the daemon guarantee number | null — budget display is never exercised through these suites.
Witness:
[probe] tsc with the exclusion lifted: TS2322 on composerTasks.test.ts(56,9)
'missing the following properties … currentPhase, tokenBudgetTotal'; adding
the fields → exit 0 (flip confirmed on the same class).
The compiler is the red gate: include the files in a tsc --noEmit run — errors without the fields, clean with them (measured flip). Fields are number | null / string | null (types.ts:2746/2766); null = 'no budget set' per sibling usage.
中文说明
模式问题（3 处）：新的 workflow 测试夹具缺少必填字段（tokenBudgetTotal / currentPhase），只因测试被排除在类型检查外才通过。请补齐 null 值；用 tsc 验证（现已实测可翻转）。— glm-5.3 via Qwen Code /review (v0.22.2)
| const [nextSnapshot] = await Promise.all([ | ||
| actions.getWorkflowTasks(), | ||
| actions.refreshCommands(), | ||
| ]); |
There was a problem hiding this comment.
[Suggestion] R1-34: reload's Promise.all fail-fasts on refreshCommands: a single rejection lands in the catch, sets loadError, and setSnapshot never runs — on first load the page renders only the "Failed to load workflow runs." banner with no tab content, though the runs data arrived and was thrown away (recovery requires clicking Refresh until both succeed). The codebase treats the same call as best-effort at App.tsx:5805. Settle independently (Promise.allSettled), apply the snapshot when the tasks arm fulfils, and log/ignore a refreshCommands rejection.
Witness:
witness: not run — Promise.all/catch/render-gating and the App.tsx contrast are
deterministic JS semantics over quoted lines.
A test where getWorkflowTasks resolves one task and refreshCommands rejects once must show runs content and no loadFailed banner — red without the fix. Note refreshCommands is the only writer of supportedCommands here (savedWorkflows derives from it): demote its failure, do not skip the call.
中文说明
reload 的 Promise.all 会因 refreshCommands 单独失败而整体失败：已取到的运行数据被丢弃，首屏只显示失败横幅。请用 allSettled 独立结算（仍需调用 refreshCommands，只是降级其失败）。— glm-5.3 via Qwen Code /review (v0.22.2)
| if ( | ||
| selectedName !== null && | ||
| !savedWorkflows.some((workflow) => workflow.name === selectedName) |
There was a problem hiding this comment.
[Suggestion] R1-62: The saved-list staleness invariant — collapse the expanded detail when its definition leaves supportedCommands.savedWorkflows — has no witness: deleting the entire effect keeps the suite green (measured), and no test ever changes the savedWorkflows list while a detail is expanded. Without the effect, a definition deleted and re-saved under the same name renders expanded with the stale detailState (old description, phases, script source) instead of reloading — exactly the stale content the comment promises to prevent.
Witness:
[probe] effect deleted → 11/11 passed; restored → byte-identical.
A test that expands deep-review, then sets savedWorkflows = [] with sessionId fixed and re-renders must assert no [data-workflow-detail] and aria-expanded='false' — run with the effect deleted it goes red; today nothing does. Keep sessionId unchanged in the test — the session-switch effect also resets selection and would mask the membership effect.
中文说明
“定义从列表消失时收起详情”这一不变量没有见证（删除整个 effect 全绿，已实测）：同名重存的定义会以陈旧详情展开。请补充列表变化后断言收起的用例（保持 sessionId 不变）。— glm-5.3 via Qwen Code /review (v0.22.2)
| const session = sessionRef.current; | ||
| if (!session) throw new Error('Daemon session is not connected'); |
There was a problem hiding this comment.
[Suggestion] R1-35: getWorkflowTasks' silent-poll error contract (transient rethrow under {silent:true} + once-key notice dispatch) is pinned by no test — only its happy path is covered, while its twin getTasks has failure variants in the same file. A regression dropping the silent-transient branch or the once-key ships green; a transient 503 during the routine 3-second poll would then surface a user-facing "Get tasks failed" notice — without the once-key, one per poll for the rest of the session.
Witness:
witness: not run — absence sweep over the harness that already pins the twin
(getTasks failure/silent tests exist in the same file).
Mirror the getTasks failure tests: mock a transient rejection and assert addNotice is not called under {silent:true}; add a hard-failure variant asserting exactly one notice across two calls.
中文说明
getWorkflowTasks 的静默轮询错误契约（瞬态重抛 + 一次性通知）没有测试：瞬态 503 会在每次轮询弹出用户可见错误。请照 getTasks 的失败用例补齐。— glm-5.3 via Qwen Code /review (v0.22.2)
| ); | ||
| try { | ||
| return await withActionTimeout( | ||
| session.controlWorkflowTask(taskId, action), |
There was a problem hiding this comment.
[Suggestion] R1-36: controlWorkflowTask's (taskId, action) forwarding is pinned by no test anywhere — the only test reaching this line mocks the session method with a promise that ignores arguments, and the UI tests assert against a mock that replaces this very function. A mutation swapping the action or the id keeps the entire suite green: every workflow control button would issue a wrong action with no failing test.
Witness:
witness: not run — grep: no toHaveBeenCalledWith on controlWorkflowTask exists
repo-wide; the stale-suppression test's mock ignores args.
Add a happy-path pin beside the runSavedWorkflow test: mockResolvedValueOnce({changed:true,status:'paused'}); await actions.controlWorkflowTask('wf-1','pause'); expect(...).toHaveBeenCalledWith('wf-1','pause') plus one second action.
中文说明
controlWorkflowTask 的参数转发全仓库无测试：参数换错的回归全绿，所有控制按钮都会发出错误动作。请补充参数精确断言。— glm-5.3 via Qwen Code /review (v0.22.2)
|
Superseded by #10594: #10411 merged, so this reopens on a fresh branch ( 由 #10594 取代：#10411 已合并，故在新分支上重开并合并 |
4 participants
What this PR does
Adds a capability-gated Workflow experience to Web Shell. Users can open a dedicated Runs page, browse saved workflows and live or historical runs, inspect phase and dispatch progress, view approvals and token usage, and pause, resume, cancel, retry, rerun, or delete history when the daemon exposes those controls. Workflow activity also appears in the existing task status surfaces and transcript tool details without changing the default task contract for older clients. A saved workflow can also be opened in place: its parsed
meta(description, when to use, phases), script path, recent runs, and highlighted source are read through a newGET /session/:id/saved-workflows/:nameroute that fails closed toworkflow: nullfor unknown names and untrusted workspaces.This supersedes the closed drafts #8950 and #9807 (same branch history, reopened on a fresh branch after the daemon PR was reopened as #10411) and is stacked on #10411. The current diff therefore includes the daemon/API layer until #10411 merges; after that lands, this branch will merge
mainnormally so the PR contains only the Web Shell layer. No force-push is planned. The branch is merged withmainatd6533785bd, which includes the collapsible tool summaries of #10231: every transcript tool row is expandable there, so the earlier workflow-specifichasExpandableContentrule is gone and only thedetailsVisiblecontrol for the inline execution view remains.Why it's needed
Dynamic workflows currently run without a first-class Web Shell surface, leaving users unable to see orchestration progress or safely manage a live or historical run. This completes the visualization and control layer tracked by #8941 while preserving the opt-in compatibility boundary introduced by #10411.
Reviewer Test Plan
How to verify
/workflows; expect Saved, Running, and History tabs with accurate counts./workflowspage to remain unavailable.Evidence (Before & After)
Before: Web Shell has no dedicated Workflow navigation, live execution graph, saved-run browser, or Workflow controls.
After: The new capability-gated Runs page and task details expose Workflow progress and controls. Live macOS browser validation against a bearer-authenticated local daemon covered the Saved entry, launch action, live phase and dispatch timing, Pause/Stop controls, completed History, and token usage. The execution graph uses a flat visual language (one surface, hairline dividers, status carried by a single accent per node/edge; no gradients or shadows) and renders in both themes; the captures below are 1280×800 Web Shell pages from the visuals harness (mock daemon, fixture runs), so they also show the sidebar entry and the New workflow action.
Saved workflows
Saved workflow definition
Running workflow
Completed workflow history
Running workflow (dark theme)
Tested on
Environment (optional)
macOS: Node.js 22.17.0; focused Web Shell Vitest suites and the production/library TypeScript build; live Web Shell at
localhost:5174against an isolated daemon atlocalhost:4270. Linux (this reopen): the 11 Web Shell test files this branch touches plusToolGroup.test.tsx(829 tests),tsc --noEmitforwebuiandcli, and builds ofcore,webui,sdk-typescriptafter mergingmain; theweb-shelltypecheck error atclient/App.tsx:8359is present onmaind6533785bditself.Risk & Scope
Linked Issues
Closes #8941
Depends on #10411
Supersedes #9807
中文说明
本 PR 做了什么
为 Web Shell 增加受 capability 控制的 Workflow 体验。用户可以打开独立的 Runs 页面，浏览已保存的 Workflow、运行中记录和历史记录，查看阶段与 dispatch 进度、审批和 token 使用情况，并在 daemon 提供对应能力时执行暂停、恢复、取消、重试、重新运行和删除历史。Workflow 活动也会进入现有任务状态区和 transcript 工具详情，同时不改变旧客户端依赖的默认 task 合约。已保存的 Workflow 也可以就地展开查看：通过新增的
GET /session/:id/saved-workflows/:name读取解析后的meta（描述、适用场景、阶段）、脚本路径、最近运行和高亮源码；名字未知或 workspace 未受信任时统一返回workflow: null，不暴露脚本。本 PR 取代已关闭的 Draft #8950 与 #9807（分支历史相同；daemon PR 重开为 #10411 后，本 PR 也在新分支上重开），并叠加在 #10411 之上。因此在 #10411 合入前，当前 diff 会包含 daemon/API 层；其合入后，本分支会通过普通方式合并
main，使 PR 只保留 Web Shell 层。不会使用 force-push。分支已合并到main的d6533785bd，其中包含 #10231 的可折叠工具摘要：那里每一行 transcript 工具都可展开，因此此前针对 workflow 的hasExpandableContent规则已不存在，只保留控制内联执行视图的detailsVisible。为什么需要
动态 Workflow 目前在 Web Shell 中没有一等展示入口，用户无法查看编排进度，也无法安全管理运行中或历史 run。本 PR 完成 #8941 跟踪的可视化与控制层，同时保留 #10411 引入的显式 opt-in 兼容边界。
Reviewer 测试计划
如何验证
/workflows；应看到 Saved、Running 和 History 标签及准确计数。/workflows页面都应不可用。证据（Before & After）
Before：Web Shell 没有独立的 Workflow 导航、实时执行图、已保存 run 浏览器或 Workflow 控制能力。
After：新增受 capability 控制的 Runs 页面和任务详情，展示 Workflow 进度与控制。已在 macOS 上连接带 bearer 认证的本地 daemon 完成浏览器验证，覆盖 Saved 入口、启动操作、实时 phase/dispatch 时序、Pause/Stop 控制、完成态 History 和 token 使用。执行图采用扁平视觉（单一底色、hairline 分隔、每个节点/边只用一种状态色，无渐变与投影），明暗主题均可用；上方五张截图为 visuals harness（mock daemon + fixture 运行）下 1280×800 的 Web Shell 整页，可同时看到侧栏入口和“New”新建按钮；更早的实机截图见验证评论。
测试平台
环境（可选）
Node.js 22.17.0；运行了 Web Shell 聚焦 Vitest 套件以及生产/library TypeScript build；Web Shell 使用
localhost:5174，连接隔离的localhost:4270daemon。 Linux（本次重开）：本分支涉及的 11 个 Web Shell 测试文件加ToolGroup.test.tsx（829 个用例）、对webui与cli执行tsc --noEmit、合并main后构建core、webui、sdk-typescript；web-shell在client/App.tsx:8359的类型错误在maind6533785bd上本身就存在。风险与范围
关联 Issue
Closes #8941
Depends on #10411
替代 #9807
