Add "more" menu in LVGL interface

[Malderin]

Description

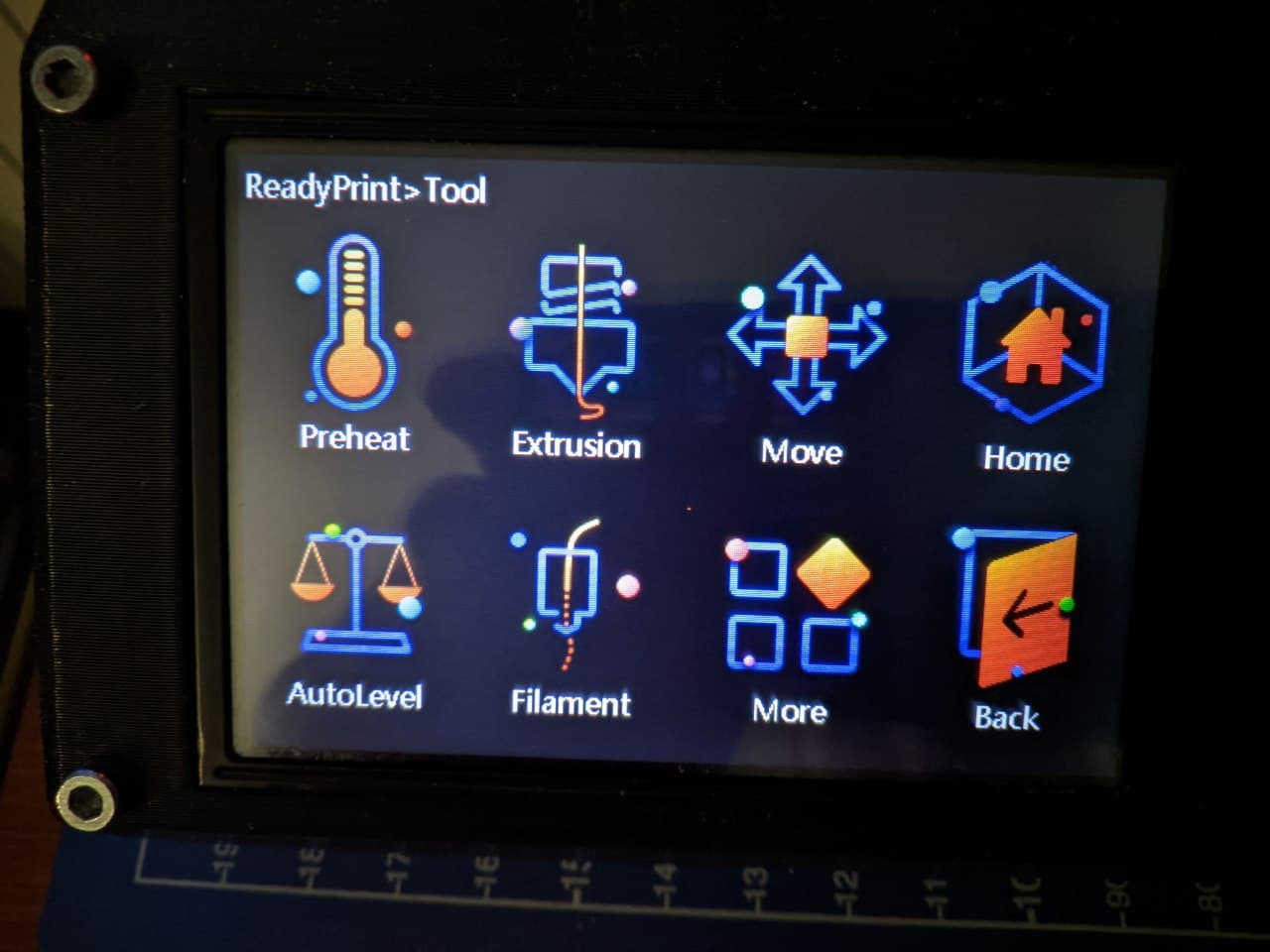

Added "more" menu when using the interface from MKS LVGL (#define TFT_LVGL_UI in configuration.h). The menu is activated by the #define CUSTOM_USER_MENUS parameter in configuration_adv.h It is possible to add up to 7 custom commands.
Tested on MKS Robin nano v.2 with mks tft 35.

[rhapsodyv]

Getting better :-)

You should not enable by default it, on the configuration_adv.

Test this branch too, to check if all the draw_more code are there

[Malderin]

You should not enable by default it, on the configuration_adv.

done

[rhapsodyv]

Congratulations! :-)

Scott may review the config you added and he may merge it soon.

[ETE-Design]

How to define what icon's the different custom buttons use?
@rhapsodyv The way this change is made seems not the best way to do it cause it also change the LCD12864 Custom Menu with lineshift in title menus and also remove some "/n" in the G-Code so it will break if used on LCD12864 Right? Mabye it would be better to make a Custom Menu for LVGL and one for the rest of us using LCD12864?
Also why change "Heat Bed/Home/Level" G-Code to "Turn On Cooling" theese changes seems to only been made cause the user who wan't this merge find it nice to have on his machine...
Pls. Don't merge before the Custom Menu's have been split up in two sections Like:

#define CUSTOM_USER_MENUS
#define CUSTOM_USER_MENUS_LVGL

[rhapsodyv]

The changes in the default config probably will be reverted by @thinkyhead.
There's no reason to change the default config.
And, even if so, no one should rely entire on the default values, because they aren't made for any specific printer in mind.

[Malderin]

@rhapsodyv .
To resolve the conflict with other displays (eg LCD12864), configuration_adv.h can be changed as follows?

//#define CUSTOM_USER_MENUS
#if ENABLED(CUSTOM_USER_MENUS)
  //#define CUSTOM_USER_MENU_TITLE "Custom Commands"
  #define USER_SCRIPT_DONE "M117 User Script Done"
  #define USER_SCRIPT_AUDIBLE_FEEDBACK
  //#define USER_SCRIPT_RETURN  // Return to status screen after a script

  #if ENABLED(TFT_LVGL_UI)
    #define USER_CMD_1_ENABLE
    #define USER_DESC_1 "Bed"
    #define USER_GCODE_1 "M140 S" STRINGIFY(PREHEAT_2_TEMP_BED)

    #define USER_CMD_2_ENABLE
    #define USER_DESC_2 "Preheat \n for " PREHEAT_1_LABEL
    #define USER_GCODE_2 "M140 S" STRINGIFY(PREHEAT_1_TEMP_BED) "\nM104 S" STRINGIFY(PREHEAT_1_TEMP_HOTEND)

    #define USER_CMD_3_ENABLE
    #define USER_DESC_3 "Preheat \n for " PREHEAT_2_LABEL
    #define USER_GCODE_3 "M140 S" STRINGIFY(PREHEAT_2_TEMP_BED) "\nM104 S" STRINGIFY(PREHEAT_2_TEMP_HOTEND)

    #define USER_CMD_4_ENABLE
    #define USER_DESC_4 "cooling"
    #define USER_GCODE_4 "M108\nM106 255"

    #define USER_CMD_5_ENABLE
    #define USER_DESC_5 "All home"
    #define USER_GCODE_5 "G28"
  #else
    #define USER_DESC_1 "Home & UBL Info"
    #define USER_GCODE_1 "G28\nG29W"

    #define USER_DESC_2 "Preheat for " PREHEAT_1_LABEL
    #define USER_GCODE_2 "M140 S" STRINGIFY(PREHEAT_1_TEMP_BED) "\nM104 S" STRINGIFY(PREHEAT_1_TEMP_HOTEND)

    #define USER_DESC_3 "Preheat for " PREHEAT_2_LABEL
    #define USER_GCODE_3 "M140 S" STRINGIFY(PREHEAT_2_TEMP_BED) "\nM104 S" STRINGIFY(PREHEAT_2_TEMP_HOTEND)

    #define USER_DESC_4 "Heat Bed/Home/Level"
    #define USER_GCODE_4 "M140 S" STRINGIFY(PREHEAT_2_TEMP_BED) "\nG28\nG29"

    #define USER_DESC_5 "Home & Info"
    #define USER_GCODE_5 "G28\nM503"
  #endif
#endif

[Malderin]

How to define what icon's the different custom buttons use?

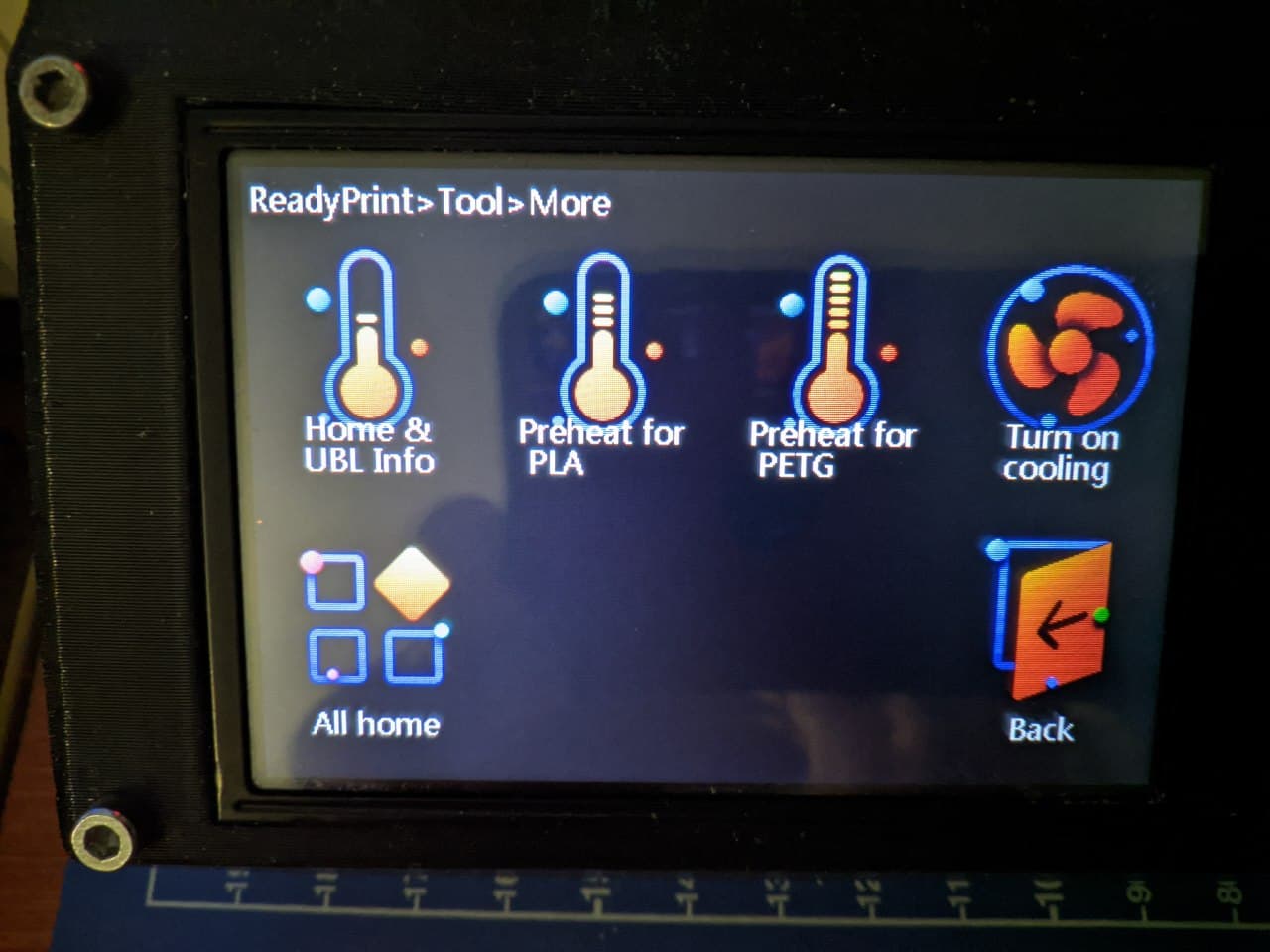

The icons are always the same, the first 4 are as in the screenshot above, the rest look the same as icon 5

[X-Ryl669]

I've made some change in the G-Code console in that does also reenable it : #20755

[rhapsodyv]

I made the custom user menus code in a "marlin way", so I think it's ready to be reviewed and merged.

[X-Ryl669]

Looks good to me. Thanks.

[Malderin]

Looks good to me. Thanks.

This pr is no longer relevant. See 7c3121c

[X-Ryl669]

What is the conflict you are referring to ?

[X-Ryl669]

Thanks!

[Malderin]

@rhapsodyv

  #if BUTTONS_EXIST(EN1, EN2, ENC)
    if (enc_ena) {
      lv_group_add_obj(g, buttonGCode);
      TERN_(USER_CMD_1_ENABLE, lv_group_add_obj(g, buttonCustom1));
      TERN_(USER_CMD_2_ENABLE, lv_group_add_obj(g, buttonCustom2));
      TERN_(USER_CMD_3_ENABLE, lv_group_add_obj(g, buttonCustom3));
      TERN_(USER_CMD_4_ENABLE, lv_group_add_obj(g, buttonCustom4));
      TERN_(USER_CMD_5_ENABLE, lv_group_add_obj(g, buttonCustom5));
      TERN_(USER_CMD_6_ENABLE, lv_group_add_obj(g, buttonCustom6));
      lv_group_add_obj(g, buttonBack);
    }
  #endif

In the draw_more.cpp file, USER_CMD_1_ENABLE (2, 3 ... 6) forgot to change to CUSTOM_USER_MENU_ITEM_1 (2, 3 ... 6)?
