Improve flexibility of cloud diagnostics #3016

axel-lauer · 2023-01-18T13:58:43Z

Description

This technical PR increases the flexibility of the cloud diagnostics stored in diag_script/clouds to allow for:

analyzing single model datasets, i.e. dropping the requirement for having multiple datasets and
splitting a variable in a recipe into two sections (e.g. "clt" and "clt_icon") in case two different preprocessors are required. Two different preprocessors are required e.g. for ICON data (unstructured data) as the same regridder cannot be applied (yet) to data on regular grids such as observations.

Test recipes

Multiple CMIP models + ICON (new): recipe_test_cmip.yml.txt
Single model (new): recipe_test_single.yml.txt

Checklist

It is the responsibility of the author to make sure the pull request is ready to review. The icons indicate whether the item will be subject to the 🛠 Technical or 🧪 Scientific review.

🛠 This pull request has a descriptive title
🛠 Code is written according to the code quality guidelines
🛠 Documentation is available
🛠 Tests run successfully
🛠 The list of authors is up to date
🛠 Any changed dependencies have been added or removed correctly
🛠 All checks below this pull request were successful

New or updated recipe/diagnostic

🧪 Recipe runs successfully
🧪 Recipe is well documented
🧪 Figure(s) and data look as expected from literature
🛠 Provenance information has been added

schlunma · 2023-01-20T08:57:24Z

Thanks for expanding your diagnostics @axel-lauer!

I tested both recipes, both ran successfully! 🎉 However, there were a couple of warnings from the NCL scripts:

recipe_test_cmip.yml:

WARNING [2341674] NCL: warning:Dimension (0) has not been defined
WARNING [2341674] There were warnings during the execution of NCL script clouds/clouds.ncl, for details, see the log /home/b/b309141/scratch/esmvaltool_output/recipe_test_cmip_20230120_083422/run/clouds_clim_cmip5/avgclt/log.txt

WARNING [2341674] NCL: INFO    warning: cannot calculate t-test for dataset ERA5; need at least 3 years, dataset length = 2 years; disabling t-test
WARNING [2341674] There were warnings during the execution of NCL script clouds/clouds_zonal.ncl, for details, see the log /home/b/b309141/scratch/esmvaltool_output/recipe_test_cmip_20230120_083422/run/clw_cmip5/zonal/log.txt

WARNING [2339109] NCL: warning:avg: Entire input array contains missing values, can't compute average
WARNING [2339109] NCL: warning:avg: Entire input array contains missing values, can't compute average
WARNING [2339109] NCL: warning:avg: Entire input array contains missing values, can't compute average
...
WARNING [2341674] NCL: warning:ContourPlotInitialize: no valid values in scalar field; ContourPlot not possible:[errno=1101]
WARNING [2341674] NCL: ^Mwarning:ContourPlotSetValues: Data values out of range of levels set by EXPLICITLEVELS mode
WARNING [2341674] NCL: ^Mwarning:ContourPlotInitialize: no valid values in scalar field; ContourPlot not possible:[errno=1101]
WARNING [2341674] NCL: ^Mwarning:ContourPlotInitialize: no valid values in scalar field; ContourPlot not possible:[errno=1101]
WARNING [2341674] NCL: ^Mwarning:ContourPlotSetValues: Data values out of range of levels set by EXPLICITLEVELS mode
WARNING [2341674] There were warnings during the execution of NCL script clouds/clouds_dyn_matrix.ncl, for details, see the log /home/b/b309141/scratch/esmvaltool_output/recipe_test_cmip_20230120_083422/run/clouds_dynmatrices_cmip5_ocean/dynclt/log.txt

WARNING [2341674] NCL: warning:TransformDataPolyline, not enough points for a line
WARNING [2341674] There were warnings during the execution of NCL script clouds/clouds_pdf.ncl, for details, see the log /home/b/b309141/scratch/esmvaltool_output/recipe_test_cmip_20230120_083422/run/pdf_clt_djf_cmip5/southernocean/log.txt

recipe_test_single.yml:

WARNING [2339113] NCL: warning:TransformDataPolyline, not enough points for a line
WARNING [2339113] There were warnings during the execution of NCL script clouds/clouds_pdf.ncl, for details, see the log /home/b/b309141/scratch/esmvaltool_output/recipe_test_single_20230120_083154/run/pdf_clt_djf_cmip5/southernocean/log.txt

WARNING [2339109] NCL: warning:avg: Entire input array contains missing values, can't compute average
WARNING [2339109] NCL: warning:avg: Entire input array contains missing values, can't compute average
WARNING [2339109] NCL: warning:avg: Entire input array contains missing values, can't compute average
...
WARNING [2339109] There were warnings during the execution of NCL script clouds/clouds_dyn_matrix.ncl, for details, see the log /home/b/b309141/scratch/esmvaltool_output/recipe_test_single_20230120_083154/run/clouds_dynmatrices_cmip5_ocean/dynclt/log.txt

WARNING [2339107] NCL: warning:Dimension (0) has not been defined
WARNING [2339107] There were warnings during the execution of NCL script clouds/clouds.ncl, for details, see the log /home/b/b309141/scratch/esmvaltool_output/recipe_test_single_20230120_083154/run/clouds_clim_cmip5/avgclt/log.txt

WARNING [2339101] NCL: INFO    warning: cannot calculate t-test for dataset ERA5; need at least 3 years, dataset length = 2 years; disabling t-test
WARNING [2339101] There were warnings during the execution of NCL script clouds/clouds_zonal.ncl, for details, see the log /home/b/b309141/scratch/esmvaltool_output/recipe_test_single_20230120_083154/run/cl_cmip5/zonal/log.txt

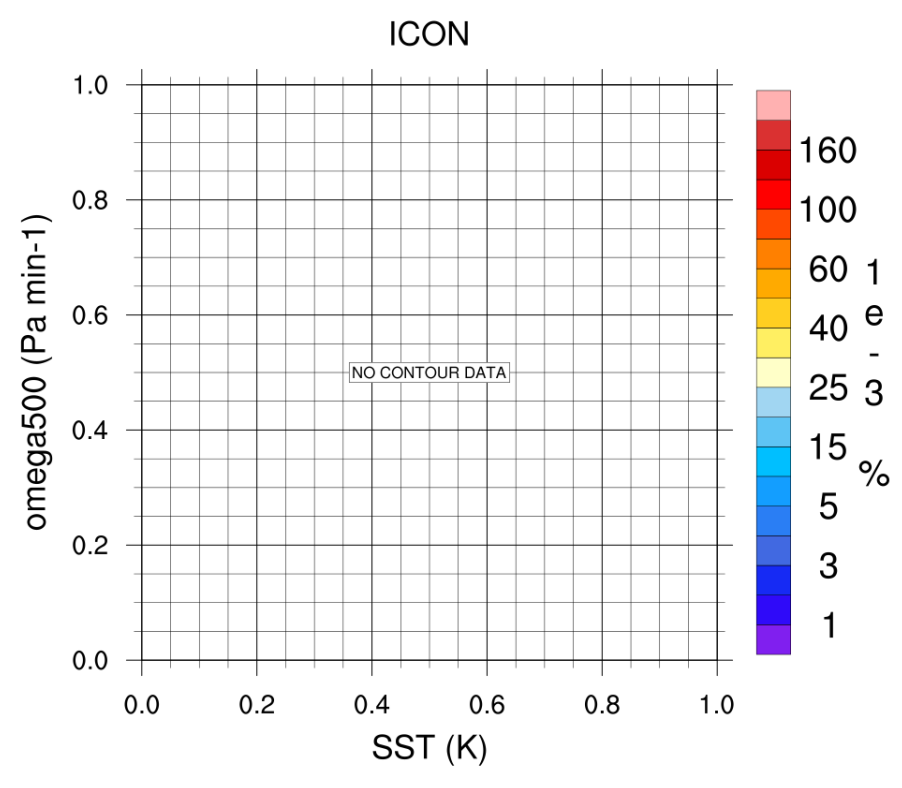

In addition, all dyn_matrix plots that involve ICON are empty, e.g.,

I am currently also running other cloud recipes to test if anything is broken. So far I found a problem with recipe_clouds_ipcc.yml in the diagnostic clouds_ipcc_lwcre/clim:

  6 INFO    Loading settings from /home/b/b309141/scratch/esmvaltool_output/recipe_clouds_ipcc_20230120_084545/run/clouds_ipcc_lwcre/clim/settings.ncl
  7 INFO    Loading input data description from /home/b/b309141/scratch/esmvaltool_output/recipe_clouds_ipcc_20230120_084545/preproc/clouds_ipcc_lwcre/lwcre/lwcre_info.ncl
  8 INFO    ++++++++++++++++++++++++++++++++++++++++++
  9 INFO    clim (var: lwcre)
 10 INFO    ++++++++++++++++++++++++++++++++++++++++++
 11 fatal:syntax error: line 211 in file /home/b/b309141/repos/ESMValTool/esmvaltool/diag_scripts/clouds/clouds_ipcc.ncl before or near delete
 12     delete
 13 ---------^
 14
 15 ^Mfatal:error in statement
 16 ^Mfatal:Syntax Error in block, block not executed
 17 ^Mfatal:error at line 780 in file /home/b/b309141/repos/ESMValTool/esmvaltool/diag_scripts/clouds/clouds_ipcc.ncl

valeriupredoi · 2023-01-20T13:49:02Z

@axel-lauer this looks very useful indeed (to my untrained NCL and sciencey eye), you should add the Milestone 2.8 to it, I reckon! @ESMValGroup/tech-reviewers can we have one NCL expert look at this please? 🍺

axel-lauer · 2023-01-20T13:51:37Z

Thanks @schlunma for taking a look! I found out that I made a mistake in the test recipes so only part of the functionality was actually tested. I updated the test recipes (sorry about this):

I think the NCL warnings about entire input arrays containing missing values resulting in the dyn_matrix plots for ICON being empty are caused by a problem with the extract_levels preprocessor. I use the preprocessor to select the 500 hPa level of wap, which results in an empty output field (containing only nan values). The preprocessor gives the following warning:

WARNING [1425940] There were warnings in variable wap:
 Cannot check requested values of 3D coordinate plev since it is not 1D
loaded from file /work/bd0854/b309141/icon_eval/data/cool014/cool014_atm_3d_ml_1979-2014.nc
WARNING [1425940] There were warnings in variable wap:
 Cannot check requested values of 3D coordinate plev since it is not 1D
loaded from file

This problem can be reprocuded with this test recipe: recipe_test_wap.yml.txt

If you think this could indeed be a more general problem, I would open an issue. In any case, I think the empty ICON plot and the many related NCL warnings are not a problem of the changes introduced in this PR.

schlunma · 2023-01-23T10:08:21Z

Thanks for the update Axel! I will test this again with the new recipe versions.

Regarding the preprocessor for wap: I think you need a coordinate: air_pressure for the extract_levels preprocessor since ICON does not have a 1D but 3D air_pressure field. The warning is not related to that. I fix that when testing the recipes; if it works I will update the corresponding ICON documentation!

schlunma

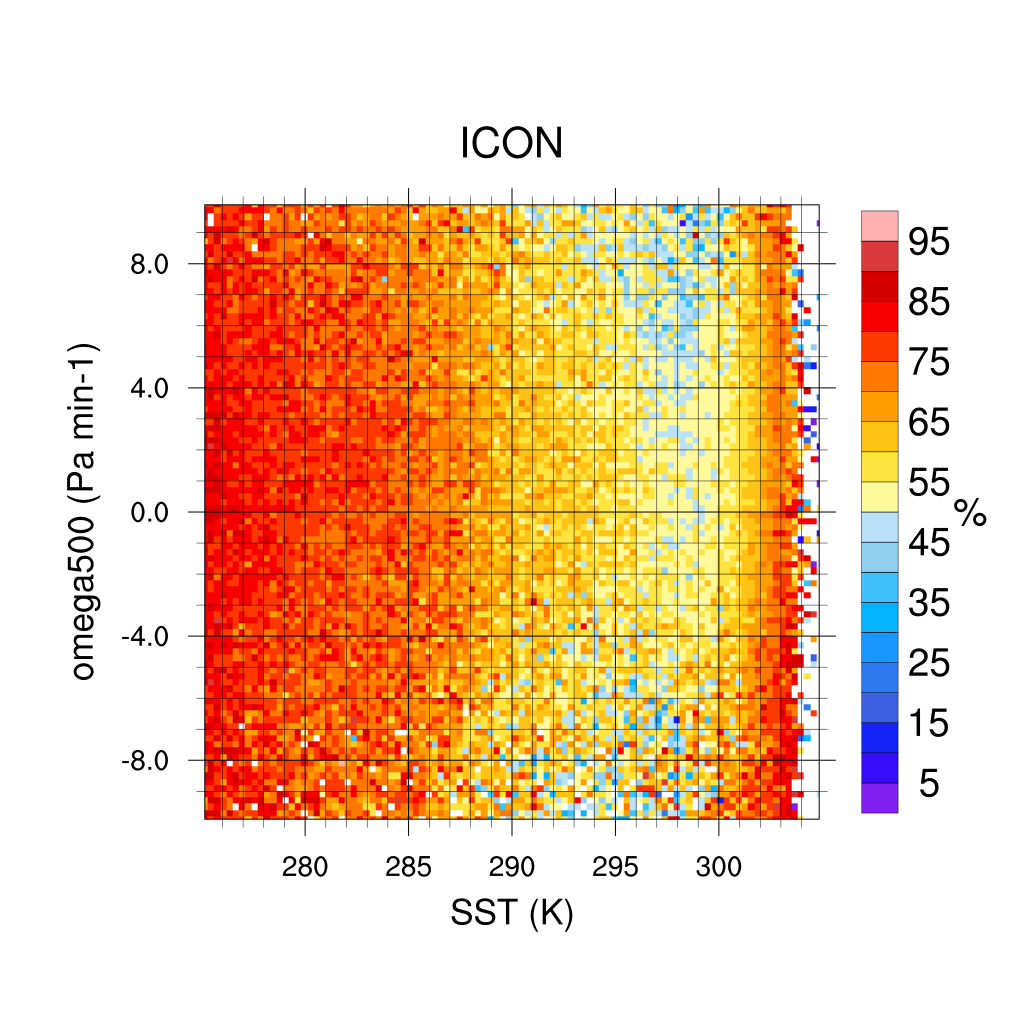

The adapted recipes (additional coordinate: air_pressure) both ran fine now and I get plots for all CMIP models. However, the dyn_matrix plots for ICON look a bit weird and very different to the other models:

but this is probably related to the data itself, not the changes in this PR. I still get the NCL warnings though, even with the fixed wap field for ICON.

The recipe that failed before now also runs fine 👍 Thanks!!

axel-lauer · 2023-01-23T13:18:57Z

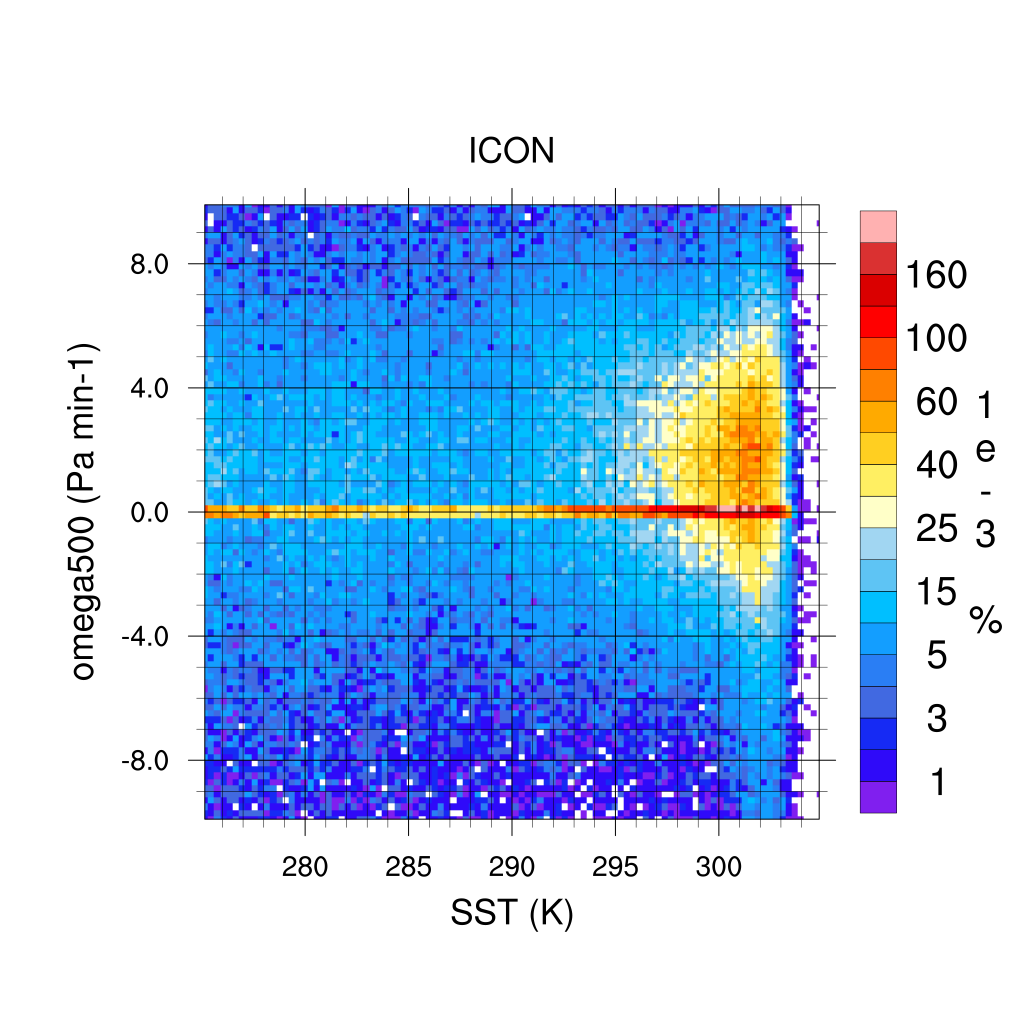

However, the dyn_matrix plots for ICON look a bit weird and very different to the other models:

I think there might be something strange going on with the unit conversion for ICON data.

    convert_units:
      units: "Pa min-1"

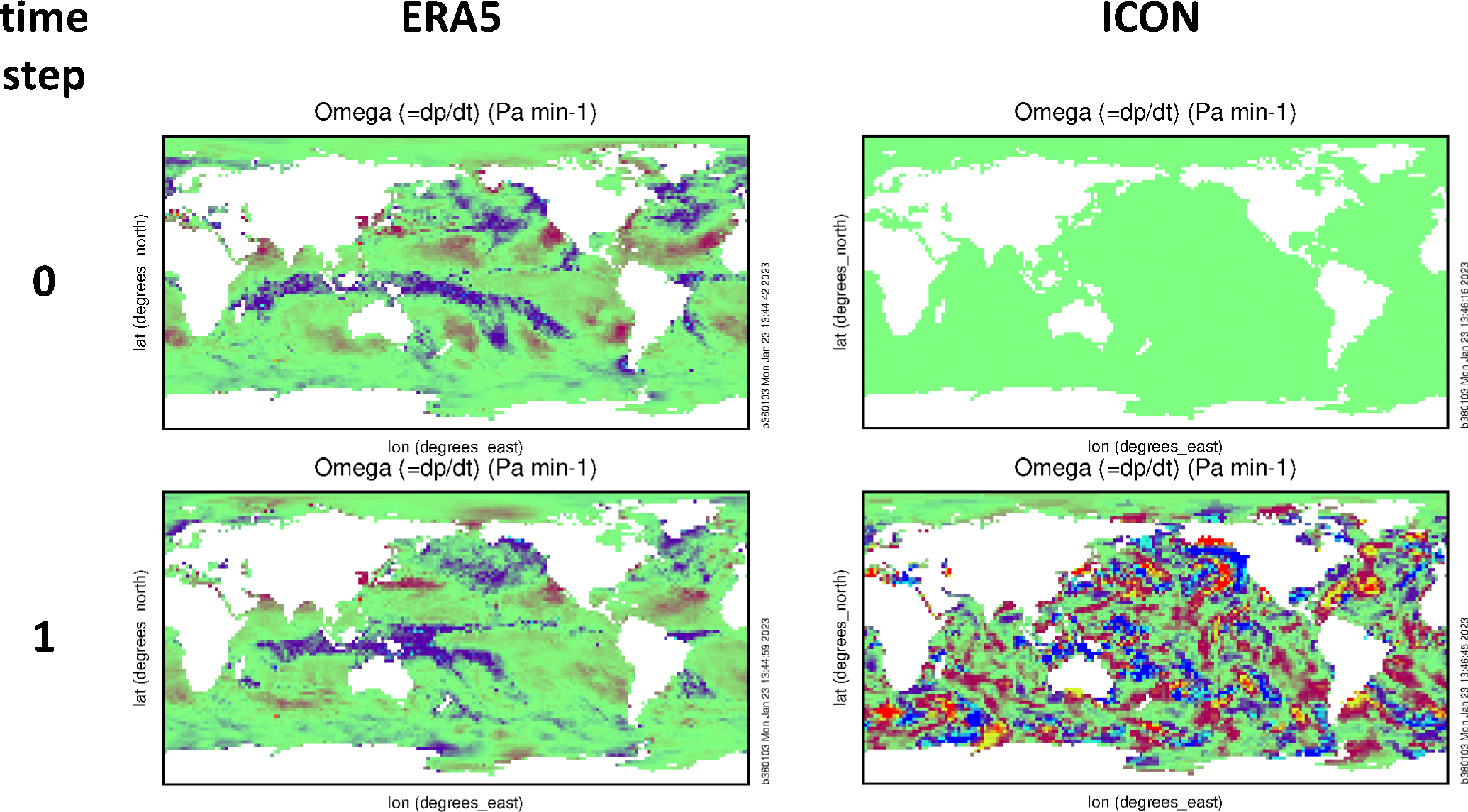

The first time step in the preprocessed files for ICON contains only very low values (in contrast to the other time steps). This seems wrong to me and might explain the "line" around wap=0 in the plot. Here an example of the first two time steps of the preprocessed files to illustrate what I mean (left = ERA5 and right = ICON). Btw, the other time steps also look strange. The values seem rather noisy and quite high compared to what I would expect.

schlunma · 2023-01-23T14:02:32Z

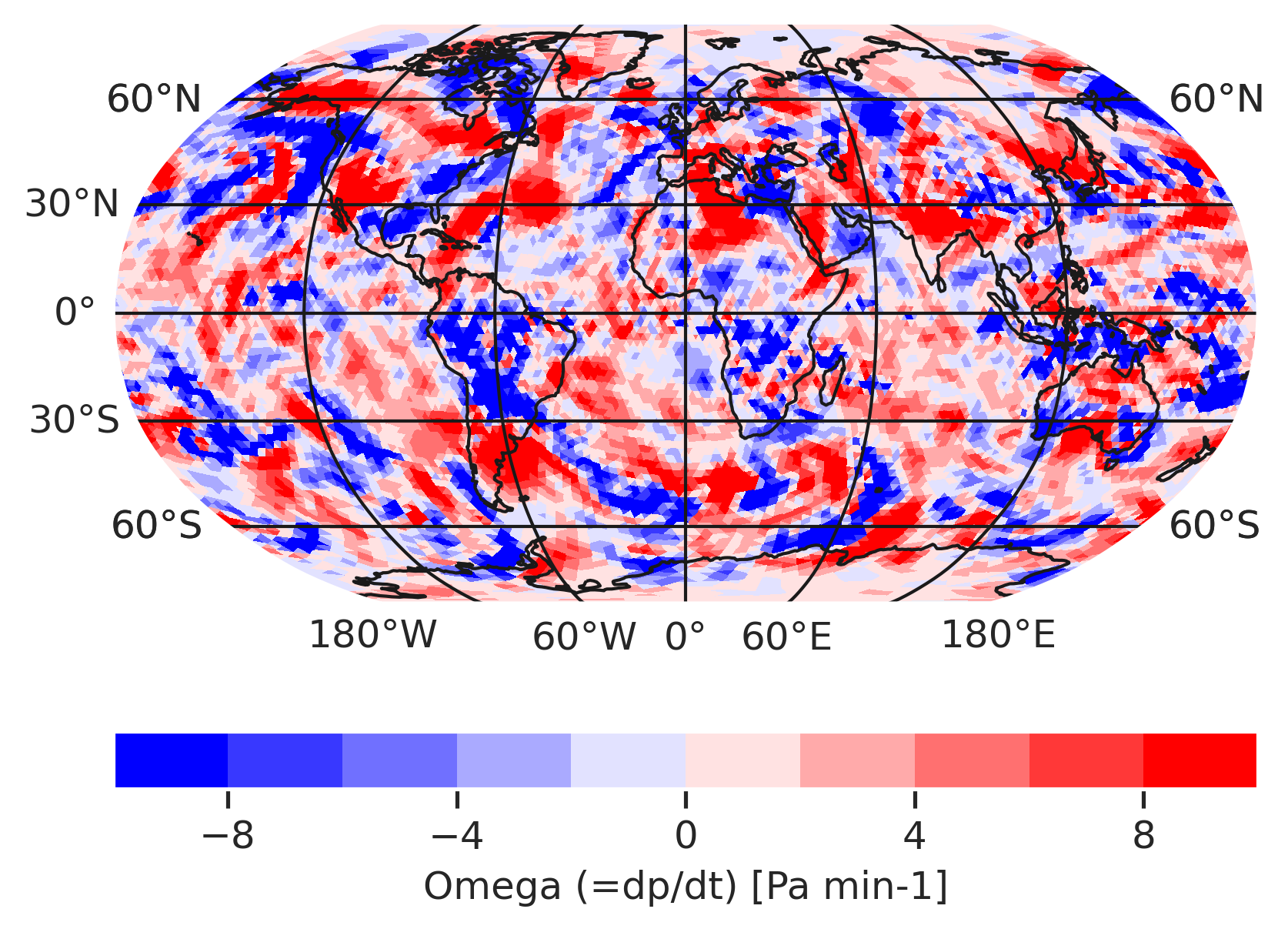

I don't think this is an issue with the convert_units preprocessor. This is the raw data for January 2004:

> cdo infon -seldate,2004-01-31 -selvar,wap cool014_atm_3d_ml_1979-2014.nc                                                                                                                                                                                       407ms
cdo(1) seldate: Process started
cdo(2) selname: Process started
    -1 :       Date     Time   Level Gridsize    Miss :     Minimum        Mean     Maximum : Parameter name
     1 : 2004-01-31 23:45:00       1    20480       0 : -7.1167e-09  2.9211e-13  7.7118e-09 : wap
     2 : 2004-01-31 23:45:00       2    20480       0 : -3.1761e-08 -4.9191e-11  3.0903e-08 : wap
     3 : 2004-01-31 23:45:00       3    20480       0 : -6.5397e-08 -5.7341e-11  7.3015e-08 : wap
     4 : 2004-01-31 23:45:00       4    20480       0 : -1.3055e-07 -5.4905e-11  1.0615e-07 : wap
     5 : 2004-01-31 23:45:00       5    20480       0 : -2.9226e-07  1.7382e-10  2.1725e-07 : wap
     6 : 2004-01-31 23:45:00       6    20480       0 : -6.8148e-07  4.0211e-10  3.0572e-07 : wap
     7 : 2004-01-31 23:45:00       7    20480       0 : -6.7034e-07  4.4165e-10  6.1205e-07 : wap
     8 : 2004-01-31 23:45:00       8    20480       0 : -7.8983e-07  8.1892e-10  7.2386e-07 : wap
     9 : 2004-01-31 23:45:00       9    20480       0 : -7.0851e-07  9.1138e-10  7.4135e-07 : wap
    10 : 2004-01-31 23:45:00      10    20480       0 : -9.2007e-07  9.0179e-10  9.1854e-07 : wap
    11 : 2004-01-31 23:45:00      11    20480       0 : -1.2227e-06  7.9684e-10  9.8680e-07 : wap
    12 : 2004-01-31 23:45:00      12    20480       0 : -1.5929e-06  2.7547e-10  1.2892e-06 : wap
    13 : 2004-01-31 23:45:00      13    20480       0 : -2.2430e-06 -1.6896e-10  1.3992e-06 : wap
    14 : 2004-01-31 23:45:00      14    20480       0 : -2.4143e-06 -5.5042e-10  2.0248e-06 : wap
    15 : 2004-01-31 23:45:00      15    20480       0 : -3.7398e-06 -1.9255e-09  2.4443e-06 : wap
    16 : 2004-01-31 23:45:00      16    20480       0 : -5.6178e-06 -3.6629e-09  4.0683e-06 : wap
    17 : 2004-01-31 23:45:00      17    20480       0 : -4.1424e-06 -5.8895e-09  4.2739e-06 : wap
    18 : 2004-01-31 23:45:00      18    20480       0 : -6.0425e-06 -9.0078e-09  6.2628e-06 : wap
    19 : 2004-01-31 23:45:00      19    20480       0 : -1.1072e-05 -1.3541e-08  6.6932e-06 : wap
    20 : 2004-01-31 23:45:00      20    20480       0 : -1.6428e-05 -1.6153e-08  1.1556e-05 : wap
    21 : 2004-01-31 23:45:00      21    20480       0 : -3.0966e-05 -1.9117e-08  1.2874e-05 : wap
    22 : 2004-01-31 23:45:00      22    20480       0 : -3.2487e-05 -2.0433e-08  1.6764e-05 : wap
    23 : 2004-01-31 23:45:00      23    20480       0 : -3.2672e-05 -2.9051e-08  3.7560e-05 : wap
    24 : 2004-01-31 23:45:00      24    20480       0 : -0.00011018 -4.5185e-08  8.6546e-05 : wap
    25 : 2004-01-31 23:45:00      25    20480       0 : -0.00024596 -5.7868e-08  0.00012716 : wap
    26 : 2004-01-31 23:45:00      26    20480       0 : -0.00034678 -6.3702e-08  0.00013203 : wap
    27 : 2004-01-31 23:45:00      27    20480       0 : -0.00041334 -4.1644e-08  0.00016758 : wap
    28 : 2004-01-31 23:45:00      28    20480       0 : -0.00044360 -3.1704e-09  0.00015490 : wap
    29 : 2004-01-31 23:45:00      29    20480       0 : -0.00044274  3.6188e-08  0.00021983 : wap
    30 : 2004-01-31 23:45:00      30    20480       0 : -0.00043368  6.6305e-08  0.00027186 : wap
    31 : 2004-01-31 23:45:00      31    20480       0 : -0.00051028  8.3887e-08  0.00028731 : wap
    32 : 2004-01-31 23:45:00      32    20480       0 : -0.00054055  9.7393e-08  0.00031635 : wap
    33 : 2004-01-31 23:45:00      33    20480       0 : -0.00054955  1.0517e-07  0.00032663 : wap
    34 : 2004-01-31 23:45:00      34    20480       0 : -0.00053920  1.0675e-07  0.00030782 : wap
    35 : 2004-01-31 23:45:00      35    20480       0 : -0.00054621  1.0248e-07  0.00027728 : wap
    36 : 2004-01-31 23:45:00      36    20480       0 : -0.00055896  9.3676e-08  0.00024290 : wap
    37 : 2004-01-31 23:45:00      37    20480       0 : -0.00055081  1.0464e-07  0.00026969 : wap
    38 : 2004-01-31 23:45:00      38    20480       0 : -0.00051664  1.3339e-07  0.00029790 : wap
    39 : 2004-01-31 23:45:00      39    20480       0 : -0.00046242  1.6843e-07  0.00028879 : wap
    40 : 2004-01-31 23:45:00      40    20480       0 : -0.00040076  2.2412e-07  0.00024659 : wap
    41 : 2004-01-31 23:45:00      41    20480       0 : -0.00033678  3.1324e-07  0.00025553 : wap
    42 : 2004-01-31 23:45:00      42    20480       0 : -0.00028845  4.7916e-07  0.00031654 : wap
    43 : 2004-01-31 23:45:00      43    20480       0 : -0.00030098  8.0699e-07  0.00039933 : wap
    44 : 2004-01-31 23:45:00      44    20480       0 : -0.00031034  1.4062e-06  0.00048213 : wap
    45 : 2004-01-31 23:45:00      45    20480       0 : -0.00032026  2.3831e-06  0.00058814 : wap
    46 : 2004-01-31 23:45:00      46    20480       0 : -0.00030654  3.1999e-06  0.00063805 : wap
    47 : 2004-01-31 23:45:00      47    20480       0 : -0.00029163  3.3656e-06  0.00066832 : wap
cdo(2) selname: Processed 415825920 values from 13 variables over 432 timesteps
cdo(1) seldate: Processed 962560 values from 1 variable over 302 timesteps

This is the data for February 2004:

> cdo infon -seldate,2004-02-29 -selvar,wap cool014_atm_3d_ml_1979-2014.nc                                                                                                                                                                                      1161ms
cdo(1) seldate: Process started
cdo(2) selname: Process started
    -1 :       Date     Time   Level Gridsize    Miss :     Minimum        Mean     Maximum : Parameter name
     1 : 2004-02-29 23:45:00       1    20480       0 : -2.1174e-05  8.6242e-10  2.2940e-05 : wap
     2 : 2004-02-29 23:45:00       2    20480       0 : -9.4485e-05 -1.4635e-07  9.1931e-05 : wap
     3 : 2004-02-29 23:45:00       3    20480       0 : -0.00019453 -1.7060e-07  0.00021722 : wap
     4 : 2004-02-29 23:45:00       4    20480       0 : -0.00038835 -1.6339e-07  0.00031578 : wap
     5 : 2004-02-29 23:45:00       5    20480       0 : -0.00086941  5.1721e-07  0.00064632 : wap
     6 : 2004-02-29 23:45:00       6    20480       0 :  -0.0020274  1.1968e-06  0.00090943 : wap
     7 : 2004-02-29 23:45:00       7    20480       0 :  -0.0019942  1.3146e-06   0.0018208 : wap
     8 : 2004-02-29 23:45:00       8    20480       0 :  -0.0023497  2.4369e-06   0.0021536 : wap
     9 : 2004-02-29 23:45:00       9    20480       0 :  -0.0021078  2.7117e-06   0.0022054 : wap
    10 : 2004-02-29 23:45:00      10    20480       0 :  -0.0027371  2.6831e-06   0.0027326 : wap
    11 : 2004-02-29 23:45:00      11    20480       0 :  -0.0036374  2.3709e-06   0.0029359 : wap
    12 : 2004-02-29 23:45:00      12    20480       0 :  -0.0047377  8.1947e-07   0.0038348 : wap
    13 : 2004-02-29 23:45:00      13    20480       0 :  -0.0066719 -5.0325e-07   0.0041623 : wap
    14 : 2004-02-29 23:45:00      14    20480       0 :  -0.0071829 -1.6383e-06   0.0060240 : wap
    15 : 2004-02-29 23:45:00      15    20480       0 :   -0.011125 -5.7302e-06   0.0072727 : wap
    16 : 2004-02-29 23:45:00      16    20480       0 :   -0.016713 -1.0901e-05    0.012105 : wap
    17 : 2004-02-29 23:45:00      17    20480       0 :   -0.012325 -1.7528e-05    0.012716 : wap
    18 : 2004-02-29 23:45:00      18    20480       0 :   -0.017976 -2.6806e-05    0.018631 : wap
    19 : 2004-02-29 23:45:00      19    20480       0 :   -0.032936 -4.0296e-05    0.019913 : wap
    20 : 2004-02-29 23:45:00      20    20480       0 :   -0.048872 -4.8070e-05    0.034375 : wap
    21 : 2004-02-29 23:45:00      21    20480       0 :   -0.092113 -5.6895e-05    0.038296 : wap
    22 : 2004-02-29 23:45:00      22    20480       0 :   -0.096644 -6.0815e-05    0.049871 : wap
    23 : 2004-02-29 23:45:00      23    20480       0 :   -0.097209 -8.6459e-05     0.11172 : wap
    24 : 2004-02-29 23:45:00      24    20480       0 :    -0.32778 -0.00013447     0.25749 : wap
    25 : 2004-02-29 23:45:00      25    20480       0 :    -0.73171 -0.00017222     0.37828 : wap
    26 : 2004-02-29 23:45:00      26    20480       0 :     -1.0317 -0.00018956     0.39279 : wap
    27 : 2004-02-29 23:45:00      27    20480       0 :     -1.2297 -0.00012390     0.49854 : wap
    28 : 2004-02-29 23:45:00      28    20480       0 :     -1.3198 -9.4015e-06     0.46081 : wap
    29 : 2004-02-29 23:45:00      29    20480       0 :     -1.3172  0.00010774     0.65397 : wap
    30 : 2004-02-29 23:45:00      30    20480       0 :     -1.2901  0.00019737     0.80877 : wap
    31 : 2004-02-29 23:45:00      31    20480       0 :     -1.5180  0.00024969     0.85475 : wap
    32 : 2004-02-29 23:45:00      32    20480       0 :     -1.6080  0.00028986     0.94114 : wap
    33 : 2004-02-29 23:45:00      33    20480       0 :     -1.6348  0.00031300     0.97170 : wap
    34 : 2004-02-29 23:45:00      34    20480       0 :     -1.6040  0.00031771     0.91573 : wap
    35 : 2004-02-29 23:45:00      35    20480       0 :     -1.6249  0.00030501     0.82489 : wap
    36 : 2004-02-29 23:45:00      36    20480       0 :     -1.6629  0.00027881     0.72265 : wap
    37 : 2004-02-29 23:45:00      37    20480       0 :     -1.6386  0.00031143     0.80220 : wap
    38 : 2004-02-29 23:45:00      38    20480       0 :     -1.5370  0.00039697     0.88614 : wap
    39 : 2004-02-29 23:45:00      39    20480       0 :     -1.3757  0.00050125     0.85904 : wap
    40 : 2004-02-29 23:45:00      40    20480       0 :     -1.1922  0.00066700     0.73351 : wap
    41 : 2004-02-29 23:45:00      41    20480       0 :     -1.0019  0.00093226     0.76024 : wap
    42 : 2004-02-29 23:45:00      42    20480       0 :    -0.85839   0.0014260     0.94201 : wap
    43 : 2004-02-29 23:45:00      43    20480       0 :    -0.89565   0.0024016      1.1884 : wap
    44 : 2004-02-29 23:45:00      44    20480       0 :    -0.92349   0.0041850      1.4348 : wap
    45 : 2004-02-29 23:45:00      45    20480       0 :    -0.95296   0.0070924      1.7502 : wap
    46 : 2004-02-29 23:45:00      46    20480       0 :    -0.91213   0.0095231      1.8987 : wap
    47 : 2004-02-29 23:45:00      47    20480       0 :    -0.86773    0.010016      1.9888 : wap
cdo(2) selname: Processed 415825920 values from 13 variables over 432 timesteps
cdo(1) seldate: Processed 962560 values from 1 variable over 303 timesteps

The values differ by a factor of ~10e4! The February values look much more similar than the data from other models, although the maximum is considerably higher. The noise you describe is also in the raw input data:

axel-lauer · 2023-01-24T08:20:12Z

I don't think this is an issue with the convert_units preprocessor. This is the raw data for January 2004:

I agree. Thanks for checking! I think this is ready to be merged then.

axel-lauer added 3 commits January 17, 2023 13:12

added support for ICON to lauer22jclim cloud diagnostics

d90cb67

increased flexibility of (old) cloud diagnostics

4b05cc9

fixed style issues

1e1b8f5

axel-lauer added enhancement diagnostic looking for technical reviewer labels Jan 18, 2023

axel-lauer requested a review from schlunma January 18, 2023 13:58

axel-lauer changed the title ~~Increase flexibility of cloud diagnostics~~ Improve flexibility of cloud diagnostics Jan 19, 2023

axel-lauer marked this pull request as ready for review January 19, 2023 05:40

Merge branch 'main' into clouds_add_icon_support

557a3f4

axel-lauer added 2 commits January 20, 2023 11:20

fixed syntax error in clouds_ipcc.ncl

88af783

fixed single dataset bug in clouds_ipcc.ncl

94f3dbc

axel-lauer added this to the v2.8.0 milestone Jan 20, 2023

schlunma approved these changes Jan 23, 2023

View reviewed changes

schlunma mentioned this pull request Jan 23, 2023

Updated ICON doc with information on usage of extract_levels preprocessor ESMValGroup/ESMValCore#1903

Merged

9 tasks

schlunma added approved by technical reviewer approved by scientific reviewer and removed looking for technical reviewer labels Jan 24, 2023

schlunma merged commit b21b1a5 into main Jan 24, 2023

schlunma deleted the clouds_add_icon_support branch January 24, 2023 08:23

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

Improve flexibility of cloud diagnostics #3016

Improve flexibility of cloud diagnostics #3016

Uh oh!

axel-lauer commented Jan 18, 2023 •

edited

Loading

Uh oh!

schlunma commented Jan 20, 2023

Uh oh!

valeriupredoi commented Jan 20, 2023

Uh oh!

axel-lauer commented Jan 20, 2023 •

edited

Loading

Uh oh!

schlunma commented Jan 23, 2023

Uh oh!

schlunma left a comment

Uh oh!

axel-lauer commented Jan 23, 2023

Uh oh!

schlunma commented Jan 23, 2023

Uh oh!

axel-lauer commented Jan 24, 2023

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

Development

Uh oh!

4 participants

Improve flexibility of cloud diagnostics #3016

Improve flexibility of cloud diagnostics #3016

Uh oh!

Conversation

axel-lauer commented Jan 18, 2023 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Description

Test recipes

Checklist

New or updated recipe/diagnostic

Uh oh!

schlunma commented Jan 20, 2023

Uh oh!

valeriupredoi commented Jan 20, 2023

Uh oh!

axel-lauer commented Jan 20, 2023 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

schlunma commented Jan 23, 2023

Uh oh!

schlunma left a comment

Choose a reason for hiding this comment

Uh oh!

axel-lauer commented Jan 23, 2023

Uh oh!

schlunma commented Jan 23, 2023

Uh oh!

axel-lauer commented Jan 24, 2023

Uh oh!

Reviewers

Assignees

Labels

Projects

Milestone

Development

Uh oh!

4 participants

axel-lauer commented Jan 18, 2023 •

edited

Loading

axel-lauer commented Jan 20, 2023 •

edited

Loading
