LG-7620: Update IPP CTA language to include Baltimore option

[allthesignals]

Update FR, ES, and EN IPP CTA language to include Baltimore option.

Ran these changes through make normalize_yaml

Follow up should include updates to: https://github.com/18F/identity-site/blob/20e3e81cd7ff94491f8709e4b1d2b52efd18bfa8/content/_help/verify-your-identity/verify-your-identity-in-person._en.md.

🎫 Ticket

Link to the relevant ticket.

🛠 Summary of changes

Change IPP CTA language to include Baltimore, MD. Note the intentional newline after "or".

📜 Testing Plan

Provide a checklist of steps to confirm the changes.

• Check that CI passes
• Visual check after local setup?

👀 Screenshots

If relevant, include a screenshot or screen capture of the changes.

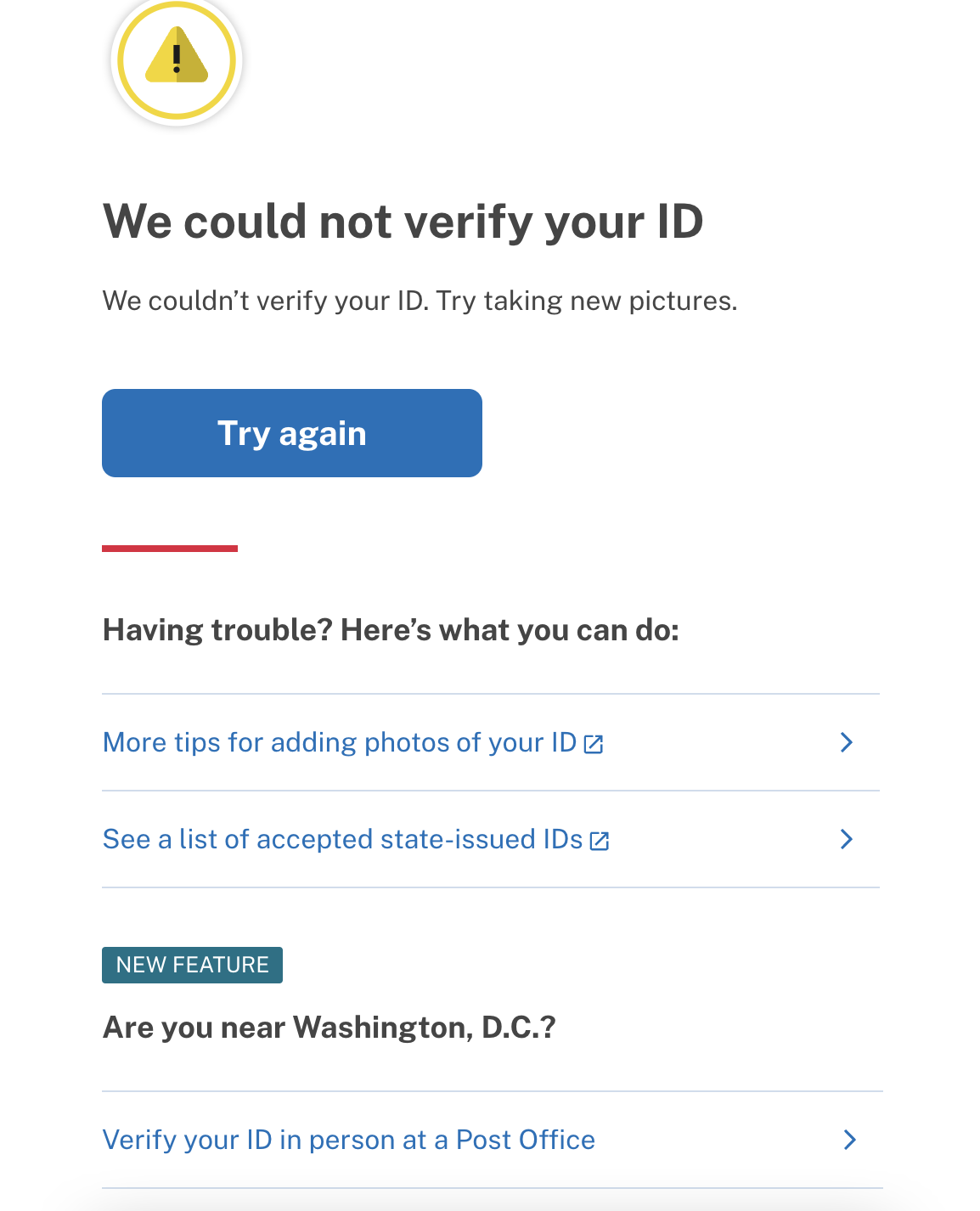

Before:

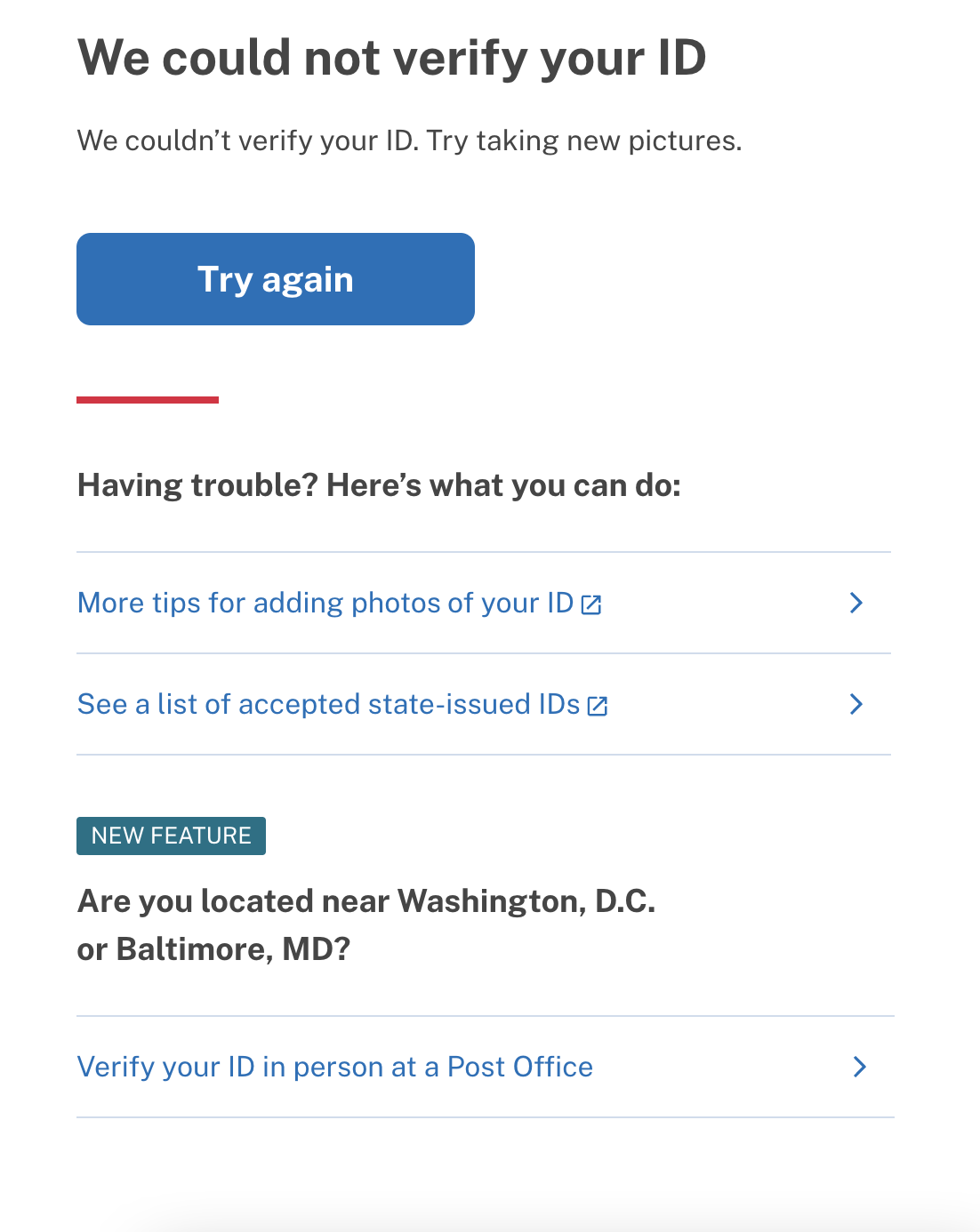

After:

[allthesignals]

Is there special guidance on adding new CSS rules?

[aduth]

There's a bit of general guidance in this documentation: https://github.com/18F/identity-idp/blob/main/docs/frontend.md#css--html

For this, I would be most cautious about potential impact on other places we're using this troubleshooting component, whether white-space: pre could have any undesirable side-effects like preventing natural line breaks.

[allthesignals]

Sure! There seem to be some other CSS options for white-space that might help avoid that scenario, but I'm just going to investigate the solution you propose. Thank you!

[aduth]

There's a bit of general guidance in this documentation: https://github.com/18F/identity-idp/blob/main/docs/frontend.md#css--html

For this, I would be most cautious about potential impact on other places we're using this troubleshooting component, whether white-space: pre could have any undesirable side-effects like preventing natural line breaks.

[aduth]

As an alternative to styling this with white-space: pre, I wonder if we could use HTML, such as the <wbr> element?

Suggested change

	are_you_near: 'Are you located near Washington, D.C. or
	Baltimore, MD?'
	are_you_near_html: 'Are you located near Washington, D.C. or<wbr>Baltimore, MD?'

Because the string is used in JavaScript (React), there's a bit of extra work to make the HTML show up. Specifically, there is a helper function formatHTML in the @18f/identity-react-i18n package which allows for HTML to be inserted. Unfortunately, I just noticed that (a) it's not very well-documented outside this function DocBlock, and (b) apparently it doesn't work for self-closing (void) tags like <wbr />. I can try to see if I can get that fixed up, since I was the one who had implemented the helper.

[aduth]

I can try to see if I can get that fixed up, since I was the one who had implemented the helper.

Fix proposed at #7034

[allthesignals]

Thanks, @aduth — I went ahead and pulled in your code (temporarily) to develop on top of this. This is what I'm trying:

          heading={formatHTML('Are you located near Washington, D.C.<wbr/>or Baltimore, MD?', {
            wbr: () => <wbr />,
          })}

And seeing:

I removed the i18n lookup for simplicity and testing. I've also tried { wbr: 'wbr' }, as it's showing here. Hmm I'll keep poking around. Thanks!

This was a yarn workspace issue... update:

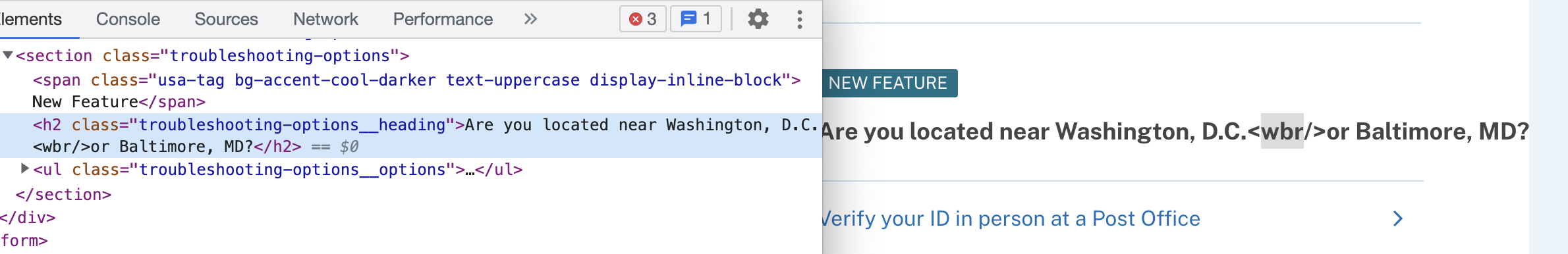

Now, I'm seeing it render a proper node, however, it drops the rest of the text. Going to play around some more...:

[svalexander]

in the before section under screenshots can you add one of what that screen looks like w/o these changes?

[allthesignals]

Pushed a commit that anticipates merge of #7034

[aduth]

It appears that the heading prop uses string as the TypeScript type, which isn't compatible with the return value of formatHTML (ReactNode). I think it would be straightforward/valid to update the string type to ReactNode to indicate that the prop can be anything that React can render.

Updating the type on this line from string to ReactNode (already imported in the file):

identity-idp/app/javascript/packages/components/troubleshooting-options.tsx

Line 17 in 7415a07

heading?: string;

Original error:

$ yarn typecheck
yarn run v1.22.19
$ tsc
app/javascript/packages/document-capture/components/document-capture-troubleshooting-options.tsx:85:11 - error TS2322: Type 'ReactNode' is not assignable to type 'string | undefined'.
  Type 'null' is not assignable to type 'string | undefined'.

85           heading={formatHTML(t('idv.troubleshooting.headings.are_you_near'), {
             ~~~~~~~

  app/javascript/packages/components/troubleshooting-options.tsx:17:3
    17   heading?: string;
         ~~~~~~~
    The expected type comes from property 'heading' which is declared here on type 'IntrinsicAttributes & TroubleshootingOptionsProps'


Found 1 error in app/javascript/packages/document-capture/components/document-capture-troubleshooting-options.tsx:85

error Command failed with exit code 2.
info Visit https://yarnpkg.com/en/docs/cli/run for documentation about this command.

[aduth]

Couple observations:

• The <wbr /> doesn't appear to create any space on its own in situations where there might not need to be a line break, so I think we should include one:

Suggested change

	are_you_near: 'Are you located near Washington, D.C.<wbr/>or Baltimore, MD?'
	are_you_near: 'Are you located near Washington, D.C. <wbr/>or Baltimore, MD?'

• Anecdotally, <wbr /> doesn't work quite as I'd expect if the idea is to keep "or Baltimore, MD?" as a single continuous piece of text. Maybe we ought to be using non-breaking space characters instead?
  • Codepen demo: https://codepen.io/aduth/pen/oNdEZdm
  • Prior art: https://github.com/18F/identity-idp/blob/7415a07/app/javascript/packages/document-capture/higher-order/with-background-encrypted-upload.jsx#L13-L38
  • Another option could be to force the line break by just using a <br /> element, though my understanding with this is the intended behavior would be to show the full text on a single line if it could fit, and to have specific control over how it breaks iff it needs to break.

[allthesignals]

@aduth Hmm, I see what you mean with <wbr />. I don't think it does exactly what we need. I think when I tried it in the app, it seemed to accidentally work correctly.

My understanding is that design wants to force a line break there in every situation, rather than simply to prefer it there. Let me know if that sounds wrong to you, but I'm going to switch to <br/>.

[allthesignals]

• Prior art: https://github.com/18F/identity-idp/blob/7415a07/app/javascript/packages/document-capture/higher-order/with-background-encrypted-upload.jsx#L13-L38

This is interesting. My understanding is that it prevents the try_again portion of the message from wrapping to a new line. Maybe this was solving a design issue? I can't infer much of the reasoning behind it from the blame. That approach also does similar string manipulation. I wonder if the helper belongs alongside formatHtml...

Still, we use lots of HTML throughout the locales yaml files. In the spirit of using a single approach, maybe that prior attempt should be changed to use explicit   inside the yaml content? And remove the post-processing helper? Although that might miss something that the usage of the unicode representation of the non-breaking space was trying to solve...

[aduth]

This is interesting. My understanding is that it prevents the try_again portion of the message from wrapping to a new line. Maybe this was solving a design issue? I can't infer much of the reasoning behind it from the blame. That approach also does similar string manipulation. I wonder if the helper belongs alongside formatHtml...

Still, we use lots of HTML throughout the locales yaml files. In the spirit of using a single approach, maybe that prior attempt should be changed to use explicit   inside the yaml content? And remove the post-processing helper? Although that might miss something that the usage of the unicode representation of the non-breaking space was trying to solve...

Yes, as the person who had implemented that, I can confirm it was for design / legibility reasons to explicitly control the line breaks.

I don't have a strong opinion whether that should happen in the YAML or as a post-processing step, but I have a soft preference for the latter, to keep the YAML concerned with just the content, and any presentational concerns in the realm of the application code.

[allthesignals]

We should continue this in the next PR, but I'm wondering if the best practice would be: prefer to separate content into segments and keep HTML/display logic in application code. In this case, maybe we'd maintain a list of IPP pilot sites, which will change as we scale up. Not try to belabor this, but I'll try an alternative approach... (still need to get Gitlab access)

[allthesignals]

Closing in favor of #7058.
