LG-5213: IAL2 document capture tips prior to submission

[aduth]

Why: As an end user, if I am attempting to take images of my ID with the Acuant SDK, I want to see messaging to help me troubleshoot if I try multiple times, so that I get additional help when I need it.

Implementation Notes:

• Improve flexibility of FormSteps to allow steps more control over how content is presented, specifically being less opinionated about the placement of heading and submit buttons, while offering equivalent conveniences (e.g. FormStepsContinueButton).
• TroubleshootingOptions and BlockLink components are mostly one-to-one ports of ERB _troubleshooting_options.html.erb and _block_link.html.erb.

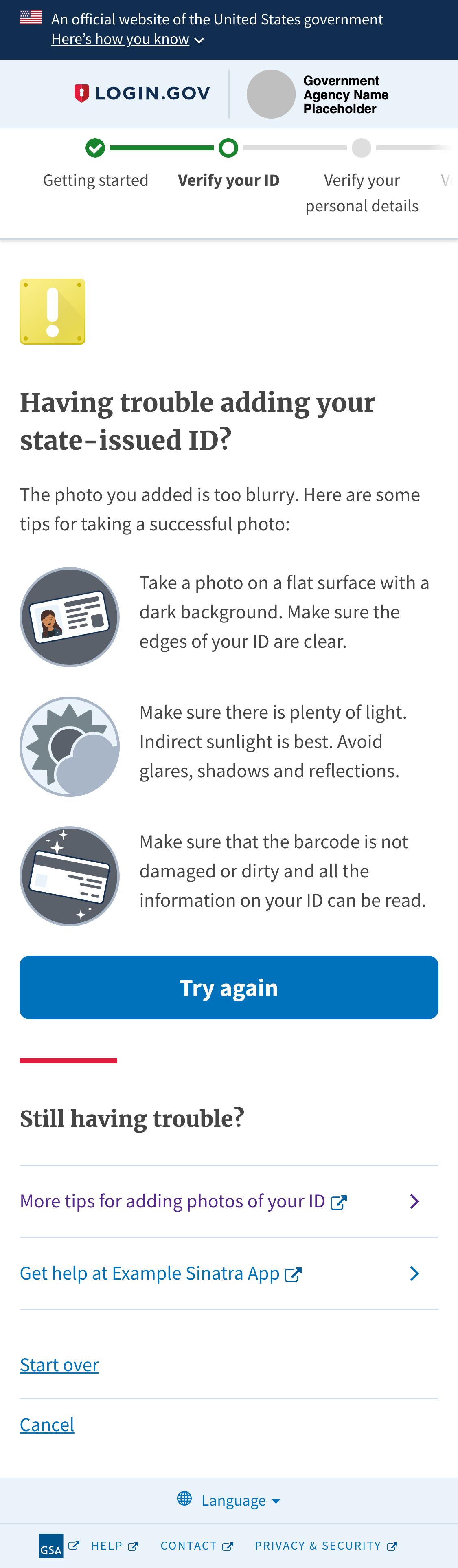

Screenshot:

[aduth]

Something to consider following-up on, since there's a lot of inconsistency with how we pull attributes from the root element. This was also sparked from discussion point at #5535 (comment) .

A few observations:

• Renaming properties from naive dataset auto-conversion (e.g. documentCaptureTipsUrl -> documentCaptureTipsURL)
• Casting type from dataset string to target type (e.g. Number(maxCaptureAttemptsBeforeTips))

I'm familiar with some related validation libraries (e.g. joi, JSON Schema implementations like ajv). On closer inspection, Ajv has a "type coercion" feature which could be quite nice 🤔 A shame it's a very large library.

Maybe we could do some minimal utility to pick / format / rename:

const {
  documentCaptureTipsURL,
  maxCaptureAttemptsBeforeTips,
  appName,
} = pick(appRoot.dataset, {
  documentCaptureTipsUrl: compose(renameTo('documentCaptureTipsURL'), castAs(Number)),
  maxCaptureAttemptsBeforeTips: castAs(Number),
  appName: identity,
});

[amathews-fs]

LGTM

[anniehirshman-gsa]

Reviewed sandbox (iOS, Chrome and Safari) and tested glare errors. The main issue is that the tips screen appears on the second error, not the third? Also noticed that the scroll position does not appear to reset which can obscure the icon/heading at the top - would make sense to reset it to the top, I think.

Visually, couple tiny things:

1. A little more space before and after the Try Again button (2.5 rem total top/bottom)
2. Thanks for catching that the Try Again button should be full width on mobile, I actually had that wrong in my mockups but it's fixed now! Is the button the big or regular size, though? (should be big)
3. Remove Start Over and Cancel here

Lastly, I didn't check that this doesn't appear on desktop/manual upload or other scenarios outside of blur and glare, anything like that worth manually testing? Thanks!

[aduth]

Thanks @anniehirshman-gsa ! Most of this looks like it should be relatively straight-forward to fix up.

Also noticed that the scroll position does not appear to reset which can obscure the icon/heading at the top - would make sense to reset it to the top, I think.

The intention is that the title of the warning screen should be focused, which should at least reset the scroll to bring that element into view, even if not to the very top. I'll check to make sure that's working. Though based on what you're suggesting, maybe it would be better to reset it to the top regardless?

Lastly, I didn't check that this doesn't appear on desktop/manual upload or other scenarios outside of blur and glare, anything like that worth manually testing? Thanks!

Correct, we're only counting these attempts in response to photos submitted through the Acuant SDK, so neither desktop nor manual upload would be a factor.

[anniehirshman-gsa]

Great thanks! Re: scroll position, I think setting it to the very top is fine, but it at least should show the main content area in view (if the heading is the first thing in view, you miss the warning icon/design element).

Glad to hear we're all set for desktop and manual testing... I'm assuming other front-end scenarios that are not blur and glare (like image size) are unaffected as well. In that case, with these changes should be all set 👍

[aduth]

Is the button the big or regular size, though? (should be big)

Missed this question: It's big, yes.

[aduth]

I just pushed the following revisions:

• Increase failed attempts before tips from 2 to 3
• Increase vertical margin of try again to 2.5rem

As discussed on Slack, I'm going to leave the following items for quick follow-on pull requests, since they're non-trivial and this pull request is already quite large and blocking other effort:

• Reset scroll position to the top of the page on form step transitions
• Hide "Start Over" and "Cancel" links from troubleshooting tips
