treat the type of 'dual' table as 'TypeReference'

[tinyblink]

JDBC Driver may produce the following sql which includes pseudo table 'dual':

• select @@session.tx_read_only from dual

• select @@session.tx_isolation from dual

• select 1 from dual

• ... etc.

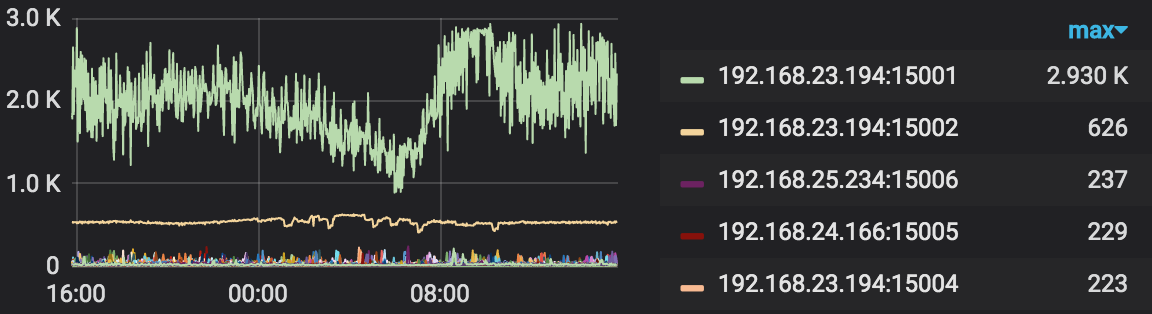

The default behavior of vtgate to treat those sql queries is routing them to a default shard, which will significantly increase the burden on a specific vttablet.
why not treating the route type of those sql queries as SelectDBA? Since these sql queries will be executed on any shard and will not result in any hotspot among vttablets.

[tinyblink]

@sougou In this case can we return response from cache or just return a canned response?

failed test
***database calls should be substituted***
"select database() from dual"
{
  "Original": "select database() from dual",
  "Instructions": {
    "Opcode": "SelectUnsharded",
    "Keyspace": {
      "Name": "main",
      "Sharded": false
    },
    "Query": "select database() from dual",
    "FieldQuery": "select database() from dual where 1 != 1"
  }
}
 ***last_insert_id for unsharded route***
"select last_insert_id() from main.dual"
{
  "Original": "select last_insert_id() from main.dual",
  "Instructions": {
    "Opcode": "SelectUnsharded",
    "Keyspace": {
      "Name": "main",
      "Sharded": false
    },
    "Query": "select last_insert_id() from dual",
    "FieldQuery": "select last_insert_id() from dual where 1 != 1"
  }
}
***select from dual on unqualified keyspace***
"select @@session.auto_increment_increment from dual"
{
  "Original": "select @@session.auto_increment_increment from dual",
  "Instructions": {
    "Opcode": "SelectUnsharded",
    "Keyspace": {
      "Name": "main",
      "Sharded": false
    },
    "Query": "select @@session.auto_increment_increment from dual",
    "FieldQuery": "select @@session.auto_increment_increment from dual where 1 != 1"
  }
}
***select from dual on sharded keyspace***
"select @@session.auto_increment_increment from user.dual"
{
  "Original": "select @@session.auto_increment_increment from user.dual",
  "Instructions": {
    "Opcode": "SelectEqualUnique",
    "Keyspace": {
      "Name": "user",
      "Sharded": true
    },
    "Query": "select @@session.auto_increment_increment from dual",
    "FieldQuery": "select @@session.auto_increment_increment from dual where 1 != 1",
    "Vindex": "binary",
    "Values": ["\u0000"]
  }
}

[sougou]

I agree in principle. However, we also need to remove the dual table from the vschema. We also have to make sure that the new approach doesn't break any existing use cases that may already be in use.

Another alternative is to categorize dual as a reference table, and change the logic to pick a random shard in such cases.

[sougou]

This is an interesting approach, but it will work incorrectly for non-idempotent expressions like last_insert_id() or rand().

I think changing dual to be a Reference table will be the better approach. However, we should continue to fail last_insert_id() like we already do. We should add a test to show that it fails for dual.

[tinyblink]

@sougou Thanks for your advice. I've updated this PR, and only changed a small piece of logic. I also add a test case for last_insert_id().
However, the CI failed unexpectedly, is it an external error or did I miss something?

[sougou]

Sorry about not being clear on this one. The change should actually be much simpler. All you have to do is change this function: https://github.com/vitessio/vitess/blob/master/go/vt/vtgate/vindexes/vschema.go#L367 to create dual as a reference table instead of one that's pinned to keyspace id 0.

[tinyblink]

@sougou I was just thinking of not changing exist test cases. But what you have mentioned above are totally right, I've fixed it.
