Support DML operations on Delta tables with `name` column mapping by mx123 · Pull Request #15837 · trinodb/trino

mx123 · 2023-01-25T11:47:11Z

Description

This functionality correspond to writer version 5 for DML operations
https://github.com/delta-io/delta/blob/master/PROTOCOL.md#writer-version-requirements

Relates to #12638

Release notes

(x) Release notes are required, with the following suggested text:

# Delta Lake
* Support DML operations on Delta tables with `name` column mapping. ({issue}`12638`)

findinpath · 2023-01-26T13:22:23Z

Please address the conflicts with master.

Do consider relying now on Trino to perform DML statements instead of doing this over Databricks in io.trino.tests.product.deltalake.TestDeltaLakeColumnMappingMode

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMergeSink.java

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMetadata.java

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeWriter.java

...uct-tests/src/main/java/io/trino/tests/product/deltalake/TestDeltaLakeColumnMappingMode.java

lib/trino-parquet/src/main/java/io/trino/parquet/writer/ParquetSchemaConverter.java

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMergeSink.java

findinpath · 2023-01-27T16:54:28Z

...uct-tests/src/main/java/io/trino/tests/product/deltalake/TestDeltaLakeColumnMappingMode.java

can we have a test for nested types as well?

i guess it's unrelated since no SQL syntax change this PR contained.

+1 to add nested column type case because we sometimes face row type specific issue.

added tests for nested types. but tests are failed with column mapping id tables. looking into...

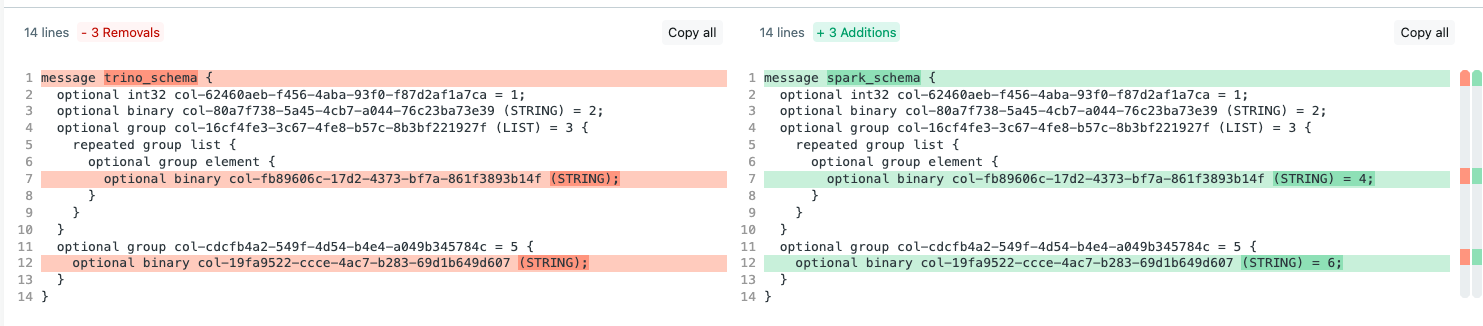

We seem to have an issue in dealing with nested types during the creation of the parquet schema for delta.columnMapping.mode set to id

This limitation is probably related to d468fb7
I'm not sure though why it works on the read side.

cc @ebyhr

One possibility that I see is to add into DeltaLakeColumnMetadata & DeltaLakeColumnHandle a mapping of <physical name String, field id Optionalnt> to have all the field ids available in the ParquetSchemaConverter.

This construct would replace

trino/plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeColumnHandle.java

Line 61 in 6f28dc9

private final OptionalInt fieldId;

lib/trino-parquet/src/main/java/io/trino/parquet/writer/TypedColumn.java

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakePageSink.java

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeWriter.java

findinpath · 2023-01-31T09:51:04Z

Tests are failing

Error:  Failures:
Error:    TestDeltaLakeConnectorSmokeTest>BaseDeltaLakeConnectorSmokeTest.testInsertIntoPartitionedNonLowercaseColumnTable:1029->AbstractTestQueryFramework.assertUpdate:370->AbstractTestQueryFramework.assertUpdate:375 » QueryFailed
Error:    TestDeltaLakeLegacyWriterConnectorSmokeTest>BaseDeltaLakeConnectorSmokeTest.testInsertIntoPartitionedNonLowercaseColumnTable:1029->AbstractTestQueryFramework.assertUpdate:370->AbstractTestQueryFramework.assertUpdate:375 » QueryFailed

...uct-tests/src/main/java/io/trino/tests/product/deltalake/TestDeltaLakeColumnMappingMode.java

mx123 · 2023-01-31T10:25:18Z

Tests are failing

Error:  Failures:
Error:    TestDeltaLakeConnectorSmokeTest>BaseDeltaLakeConnectorSmokeTest.testInsertIntoPartitionedNonLowercaseColumnTable:1029->AbstractTestQueryFramework.assertUpdate:370->AbstractTestQueryFramework.assertUpdate:375 » QueryFailed
Error:    TestDeltaLakeLegacyWriterConnectorSmokeTest>BaseDeltaLakeConnectorSmokeTest.testInsertIntoPartitionedNonLowercaseColumnTable:1029->AbstractTestQueryFramework.assertUpdate:370->AbstractTestQueryFramework.assertUpdate:375 » QueryFailed

fixed by ad5d1d9

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakePageSink.java

lib/trino-parquet/src/main/java/io/trino/parquet/writer/ParquetTypeMapping.java

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMergeSink.java

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMetadata.java

...uct-tests/src/main/java/io/trino/tests/product/deltalake/TestDeltaLakeColumnMappingMode.java

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMetadata.java

...uct-tests/src/main/java/io/trino/tests/product/deltalake/TestDeltaLakeColumnMappingMode.java

ebyhr · 2023-02-01T08:44:12Z

...uct-tests/src/main/java/io/trino/tests/product/deltalake/TestDeltaLakeColumnMappingMode.java

+1 to add nested column type case because we sometimes face row type specific issue.

...uct-tests/src/main/java/io/trino/tests/product/deltalake/TestDeltaLakeColumnMappingMode.java

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMetadata.java

findepi · 2023-02-08T15:34:47Z

per offline discussion, please split the work into name and id mappings separately.
Let's focus on the name first, since this is the portion that works already, right?

ebyhr

Please check CI failure.

...uct-tests/src/main/java/io/trino/tests/product/deltalake/TestDeltaLakeColumnMappingMode.java

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMetadata.java

...uct-tests/src/main/java/io/trino/tests/product/deltalake/TestDeltaLakeColumnMappingMode.java

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/AbstractDeltaLakePageSink.java

findinpath · 2023-02-12T09:08:01Z

@mx123 there seem to be some issues discovered by the tests (about collecting stats):

see https://github.com/trinodb/trino/pull/15837/checks?check_run_id=11266685083

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMetadata.java

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/AbstractDeltaLakePageSink.java

...uct-tests/src/main/java/io/trino/tests/product/deltalake/TestDeltaLakeColumnMappingMode.java

findinpath · 2023-02-13T16:58:34Z

...uct-tests/src/main/java/io/trino/tests/product/deltalake/TestDeltaLakeColumnMappingMode.java

Do the stats settings play any role?

findinpath · 2023-02-13T17:02:58Z

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMetadata.java

Does this apply only for column mapping NONE ?
If yes, please specify the column mapping as a parameter for the method and use it in the if statement.

Agreed, if the behavior is very different for name mapping I'd rewrite this method to only do the name mapping and call it getPartitionColumnsForNameMapping

In the case of a none mapping you're just returning the input handle.getMetadataEntry().getOriginalPartitionColumns() right?

findinpath · 2023-02-13T17:08:23Z

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMetadata.java

nit: there is no need for the "Note:" prefix in the statement. The comment implies that this is a developer note.

If we add the column mapping as a parameter for the method, we may not need this comment anymore.
If the column mapping is NONE perform the mapping of the column names as in the original code, otherwise for NAME use physical column name and for ID throw illegal argument exception.

alexjo2144 · 2023-02-13T18:25:05Z

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeColumnHandle.java

        return new DeltaLakeColumnHandle(FILE_MODIFIED_TIME_COLUMN_NAME, FILE_MODIFIED_TIME_TYPE, OptionalInt.empty(), FILE_MODIFIED_TIME_COLUMN_NAME, FILE_MODIFIED_TIME_TYPE, SYNTHESIZED);
    }
+
+    public Type getSupportedType()


Needs an @JsonIgnore annotation

I'd also call this getPhysicalType

alexjo2144 · 2023-02-13T18:31:19Z

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMergeSink.java

Let's try to avoid iterating over the column list twice

Suggested change

List<String> dataColumnNames = dataColumns.stream().map(DeltaLakeColumnHandle::getPhysicalName).collect(toImmutableList());

List<Type> parquetTypes = dataColumns.stream().map(DeltaLakeColumnHandle::getSupportedType).collect(toImmutableList());

ImmutableList.Builder<String> dataColumnNames = ImmutableList.builder();

ImmutableList.Builder<Type> parquetTypes = ImmutableList.builder();

for (DeltaLakeColumnHandle column : dataColumns) {

dataColumnNames.add(..);

parquetTypes.add(...);

}

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMetadata.java

alexjo2144 · 2023-02-13T18:48:05Z

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMetadata.java

This is O(n^2) on the column list size, not terrible but not awesome. Can we do better by pre-generating a Map lookup for the list traversal you're doing here?

alexjo2144 · 2023-02-13T18:49:26Z

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMetadata.java

Agreed, if the behavior is very different for name mapping I'd rewrite this method to only do the name mapping and call it getPartitionColumnsForNameMapping

alexjo2144 · 2023-02-13T18:50:05Z

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMetadata.java

In the case of a none mapping you're just returning the input handle.getMetadataEntry().getOriginalPartitionColumns() right?

ebyhr · 2023-02-13T21:25:46Z

/test-with-secrets sha=853658543ad1a765ba3c89b557fbdad664f4236d

ebyhr · 2023-02-13T23:17:03Z

CheckpointWriterManager#writeCheckpoint method seems failing internally:

spark> CREATE TABLE default.test (c1 int) using delta LOCATION 's3://trino-ci-test/test' TBLPROPERTIES('delta.columnMapping.mode'='name', 'delta.checkpointInterval' = 1);

trino> INSERT INTO delta.default.test VALUES (1);
INSERT: 1 row

2023-02-14T08:13:42.832+0900	ERROR	20230213_231339_00001_vs9gg.0.0.0-8-131	io.trino.plugin.deltalake.DeltaLakeMetadata	Failed to write checkpoint for table default.test for version 1
java.lang.IllegalArgumentException: Error: : expected at the position 495 of 'struct<id:string,name:string,description:string,format:struct<provider:string,options:map<string,string>>,schemaString:string,partitionColumns:array<string>,configuration:map<string,string>,createdTime:bigint>:struct<minReaderVersion:int,minWriterVersion:int>:struct<appId:string,version:bigint,lastUpdated:bigint>:struct<path:string,partitionValues:map<string,string>,size:bigint,modificationTime:bigint,dataChange:boolean,stats:string,stats_parsed:struct<numRecords:bigint,minValues:struct<col-f6f46225-adf5-4d70-ba3c-27f55e909663:int>,maxValues:struct<col-f6f46225-adf5-4d70-ba3c-27f55e909663:int>,nullCount:struct<col-f6f46225-adf5-4d70-ba3c-27f55e909663:bigint>>,tags:map<string,string>>:struct<path:string,deletionTimestamp:bigint,dataChange:boolean>' but '-' is found.
	at org.apache.hadoop.hive.serde2.typeinfo.TypeInfoUtils$TypeInfoParser.expect(TypeInfoUtils.java:413)
	at org.apache.hadoop.hive.serde2.typeinfo.TypeInfoUtils$TypeInfoParser.expect(TypeInfoUtils.java:384)
	at org.apache.hadoop.hive.serde2.typeinfo.TypeInfoUtils$TypeInfoParser.parseType(TypeInfoUtils.java:541)
	at org.apache.hadoop.hive.serde2.typeinfo.TypeInfoUtils$TypeInfoParser.parseType(TypeInfoUtils.java:542)
	at org.apache.hadoop.hive.serde2.typeinfo.TypeInfoUtils$TypeInfoParser.parseType(TypeInfoUtils.java:542)
	at org.apache.hadoop.hive.serde2.typeinfo.TypeInfoUtils$TypeInfoParser.parseTypeInfos(TypeInfoUtils.java:358)
	at org.apache.hadoop.hive.serde2.typeinfo.TypeInfoUtils.getTypeInfosFromTypeString(TypeInfoUtils.java:848)
	at io.trino.plugin.hive.HiveType.toHiveTypes(HiveType.java:206)
	at io.trino.plugin.hive.util.HiveUtil.getColumnTypes(HiveUtil.java:1085)
	at io.trino.plugin.hive.RecordFileWriter.<init>(RecordFileWriter.java:97)
	at io.trino.plugin.deltalake.transactionlog.checkpoint.CheckpointWriter.write(CheckpointWriter.java:136)
	at io.trino.plugin.deltalake.transactionlog.checkpoint.CheckpointWriterManager.writeCheckpoint(CheckpointWriterManager.java:135)
	at io.trino.plugin.deltalake.DeltaLakeMetadata.writeCheckpointIfNeeded(DeltaLakeMetadata.java:1866)
	at io.trino.plugin.deltalake.DeltaLakeMetadata.finishInsert(DeltaLakeMetadata.java:1403)
	at io.trino.plugin.base.classloader.ClassLoaderSafeConnectorMetadata.finishInsert(ClassLoaderSafeConnectorMetadata.java:519)
	at io.trino.metadata.MetadataManager.finishInsert(MetadataManager.java:911)
	at io.trino.sql.planner.LocalExecutionPlanner.lambda$createTableFinisher$4(LocalExecutionPlanner.java:4039)
	at io.trino.operator.TableFinishOperator.getOutput(TableFinishOperator.java:319)
	at io.trino.operator.Driver.processInternal(Driver.java:394)
	at io.trino.operator.Driver.lambda$process$8(Driver.java:297)
	at io.trino.operator.Driver.tryWithLock(Driver.java:689)
	at io.trino.operator.Driver.process(Driver.java:289)
	at io.trino.operator.Driver.processForDuration(Driver.java:260)
	at io.trino.execution.SqlTaskExecution$DriverSplitRunner.processFor(SqlTaskExecution.java:773)
	at io.trino.execution.executor.PrioritizedSplitRunner.process(PrioritizedSplitRunner.java:165)
	at io.trino.execution.executor.TaskExecutor$TaskRunner.run(TaskExecutor.java:523)
	at io.trino.$gen.Trino_dev____20230213_231142_2.run(Unknown Source)
	at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1136)
	at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:635)
	at java.base/java.lang.Thread.run(Thread.java:833)

github-actions · 2023-02-14T00:04:37Z

The CI workflow run with tests that require additional secrets finished as failure: https://github.com/trinodb/trino/actions/runs/4168182591

findinpath · 2023-02-14T07:04:40Z

@mx123 regarding #15837 (comment)
please verify the checkpoint creation:

trino/testing/trino-product-tests/src/main/java/io/trino/tests/product/deltalake/TestDeltaLakeDatabricksCheckpointsCompatibility.java

Line 122 in d630d35

assertThat(listCheckpointFiles(bucketName, tableDirectory)).hasSize(1);

ebyhr · 2023-02-15T02:49:58Z

I'm looking into the above checkpoints creation bug now and taking over this PR.

mx123 · 2023-02-20T09:54:05Z

closed due to #15837 (comment)

cla-bot bot added the cla-signed label Jan 25, 2023

github-actions bot added the tests:hive label Jan 25, 2023

mx123 requested a review from findinpath January 25, 2023 11:47

mx123 force-pushed the delta-brx-dml-column-mapping branch from c6d6b65 to 0a94f95 Compare January 26, 2023 13:56

findinpath reviewed Jan 26, 2023

View reviewed changes

mx123 force-pushed the delta-brx-dml-column-mapping branch 3 times, most recently from 95c6be2 to 1f2d377 Compare January 27, 2023 11:23

findinpath reviewed Jan 27, 2023

View reviewed changes

...uct-tests/src/main/java/io/trino/tests/product/deltalake/TestDeltaLakeColumnMappingMode.java Outdated Show resolved Hide resolved

mx123 force-pushed the delta-brx-dml-column-mapping branch from 1f2d377 to 1e1d87e Compare January 27, 2023 13:31

findinpath reviewed Jan 27, 2023

View reviewed changes

lib/trino-parquet/src/main/java/io/trino/parquet/writer/ParquetSchemaConverter.java Outdated Show resolved Hide resolved

mx123 force-pushed the delta-brx-dml-column-mapping branch 2 times, most recently from 9095186 to 30bf882 Compare January 27, 2023 14:44

findinpath reviewed Jan 27, 2023

View reviewed changes

mx123 force-pushed the delta-brx-dml-column-mapping branch from 30bf882 to dbe553f Compare January 30, 2023 12:00

findinpath reviewed Jan 31, 2023

View reviewed changes

...uct-tests/src/main/java/io/trino/tests/product/deltalake/TestDeltaLakeColumnMappingMode.java Outdated Show resolved Hide resolved

mx123 force-pushed the delta-brx-dml-column-mapping branch from dbe553f to ad5d1d9 Compare January 31, 2023 10:22

findinpath reviewed Jan 31, 2023

View reviewed changes

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakePageSink.java Outdated Show resolved Hide resolved

findinpath reviewed Jan 31, 2023

View reviewed changes

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakePageSink.java Outdated Show resolved Hide resolved

findinpath reviewed Jan 31, 2023

View reviewed changes

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/DeltaLakeMetadata.java Outdated Show resolved Hide resolved

mx123 force-pushed the delta-brx-dml-column-mapping branch from ad5d1d9 to 1490323 Compare January 31, 2023 15:14

mx123 marked this pull request as ready for review January 31, 2023 16:54

mx123 force-pushed the delta-brx-dml-column-mapping branch from 1490323 to a6e5dfb Compare February 1, 2023 08:04

findinpath requested review from alexjo2144 and ebyhr February 1, 2023 08:49

ebyhr reviewed Feb 1, 2023

View reviewed changes

mx123 force-pushed the delta-brx-dml-column-mapping branch 2 times, most recently from db22c34 to 3ee29d9 Compare February 3, 2023 10:28

mx123 force-pushed the delta-brx-dml-column-mapping branch from 3ee29d9 to b7f8872 Compare February 9, 2023 14:43

ebyhr changed the title ~~Support DML operations on Delta tables with id / name column mapping~~ Support DML operations on Delta tables with name column mapping Feb 10, 2023

ebyhr reviewed Feb 10, 2023

View reviewed changes

mx123 force-pushed the delta-brx-dml-column-mapping branch 2 times, most recently from 7932ff5 to 9c45512 Compare February 10, 2023 12:02

findinpath reviewed Feb 10, 2023

View reviewed changes

plugin/trino-delta-lake/src/main/java/io/trino/plugin/deltalake/AbstractDeltaLakePageSink.java Outdated Show resolved Hide resolved

mx123 force-pushed the delta-brx-dml-column-mapping branch from 9c45512 to a53a7e8 Compare February 10, 2023 14:56

findinpath reviewed Feb 12, 2023

View reviewed changes

mx123 force-pushed the delta-brx-dml-column-mapping branch from a53a7e8 to 3716ee9 Compare February 13, 2023 12:11

Move getting supported column types to DeltaLakeColumnHandle

ca3793d

mx123 force-pushed the delta-brx-dml-column-mapping branch from 3716ee9 to 8536585 Compare February 13, 2023 16:12

findinpath reviewed Feb 13, 2023

View reviewed changes

...uct-tests/src/main/java/io/trino/tests/product/deltalake/TestDeltaLakeColumnMappingMode.java Outdated Show resolved Hide resolved

findinpath reviewed Feb 13, 2023

View reviewed changes

...uct-tests/src/main/java/io/trino/tests/product/deltalake/TestDeltaLakeColumnMappingMode.java Outdated Show resolved Hide resolved

findinpath reviewed Feb 13, 2023

View reviewed changes

alexjo2144 reviewed Feb 13, 2023

View reviewed changes

Support DML operations on Delta tables with name column mapping

d469d0c

mx123 force-pushed the delta-brx-dml-column-mapping branch from 8536585 to d469d0c Compare February 14, 2023 09:15

mx123 closed this Feb 20, 2023

-            List<String> dataColumnNames = dataColumns.stream().map(DeltaLakeColumnHandle::getPhysicalName).collect(toImmutableList());
-            List<Type> parquetTypes = dataColumns.stream().map(DeltaLakeColumnHandle::getSupportedType).collect(toImmutableList());
+ImmutableList.Builder<String> dataColumnNames = ImmutableList.builder();
+ImmutableList.Builder<Type> parquetTypes = ImmutableList.builder();
+for (DeltaLakeColumnHandle column : dataColumns) {
+    dataColumnNames.add(..);
+     parquetTypes.add(...);
+}

Conversation

mx123 commented Jan 25, 2023 • edited by ebyhr Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Description

Release notes

Uh oh!

findinpath commented Jan 26, 2023

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Choose a reason for hiding this comment

Uh oh!

mx123 Jan 30, 2023 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

mx123 Feb 3, 2023 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

findinpath Feb 3, 2023 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Choose a reason for hiding this comment

Uh oh!

findinpath Feb 3, 2023 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Uh oh!

Uh oh!

Uh oh!

findinpath commented Jan 31, 2023

Uh oh!

Uh oh!

mx123 commented Jan 31, 2023

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Choose a reason for hiding this comment

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

findepi commented Feb 8, 2023

Uh oh!

ebyhr left a comment

Choose a reason for hiding this comment

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

findinpath commented Feb 12, 2023

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

mx123 commented Jan 25, 2023 •

edited by ebyhr

Loading

mx123 Jan 30, 2023 •

edited

Loading

mx123 Feb 3, 2023 •

edited

Loading

findinpath Feb 3, 2023 •

edited

Loading

findinpath Feb 3, 2023 •

edited

Loading

findinpath Feb 13, 2023 •

edited

Loading

findinpath Feb 13, 2023 •

edited

Loading

ebyhr commented Feb 15, 2023 •

edited

Loading
