Decrease a lock contention in PipelinedStageExecution

[radek-kondziolka]

Description

We observed that there is a high lock contention on io.trino.execution.scheduler.PipelinedStageExecution's monitor.

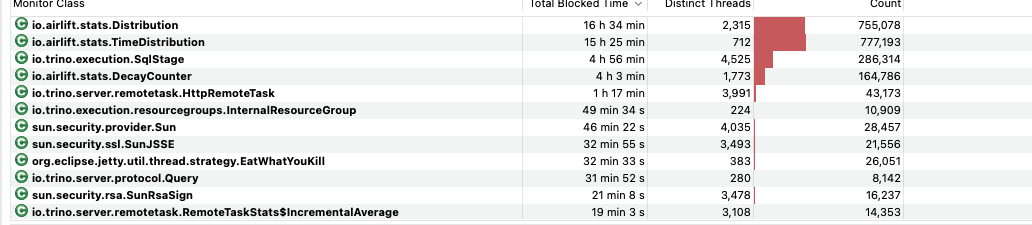

Lock contention before:

Lock contention after:

We measured the throughput (80 trino workers, 40 r5.4xlarge nodes, 64 concurrent queries) before/after

Throughput (queries/h) before:
6000 queries / h

Throughput (queries/h) after:
6600 queries / h (10% difference)

Non-technical explanation

The Trino is able to process more queries within one hour.

Release notes

( ) This is not user-visible and no release notes are required.
( ) Release notes are required, please propose a release note for me.
(* ) Release notes are required, with the following suggested text:
Increase throughput when running highly concurrent workloads on big Trino clusters

[losipiuk]

Looks good. Some questions and editorials.

[lukasz-stec]

some comments added.
Additionally, I think using both allTasksLock and concurrent map + atomicIntegers does not increase thread safety.

[radek-kondziolka]

Additionally, I think using both allTasksLock and concurrent map + atomicIntegers does not increase thread safety.

What do you mean?

[sopel39]

I think this can be simplified without introducing too much complex multi-threaded code. A lot of the code in updateTaskStatus doesn't need to be synchronized:

private void updateTaskStatus(TaskStatus taskStatus) {
        State stageState = stateMachine.getState();
        if (stageState.isDone()) {
            return;
        }

        TaskState taskState = taskStatus.getState();
        switch (taskState) {
            case FAILED:
                RuntimeException failure = taskStatus.getFailures().stream()
                        .findFirst()
                        .map(this::rewriteTransportFailure)
                        .map(ExecutionFailureInfo::toException)
                        .orElse(new TrinoException(GENERIC_INTERNAL_ERROR, "A task failed for an unknown reason"));
                fail(failure);
                break;
            case CANCELED:
                // A task should only be in the canceled state if the STAGE is cancelled
                fail(new TrinoException(GENERIC_INTERNAL_ERROR, "A task is in the CANCELED state but stage is " + stageState));
                break;
            case ABORTED:
                // A task should only be in the aborted state if the STAGE is done (ABORTED or FAILED)
                fail(new TrinoException(GENERIC_INTERNAL_ERROR, "A task is in the ABORTED state but stage is " + stageState));
                break;
            case FLUSHING:
                addFlushingTask(taskStatus.getTaskId());
                break;
            case FINISHED:
                addFinishedTask(taskStatus.getTaskId());
                break;
            default:
        }

        if (stageState == SCHEDULED || stageState == RUNNING || stageState == FLUSHING) {
            if (taskState == TaskState.RUNNING) {
                stateMachine.transitionToRunning();
            }
            if (isFlushing()) {
                stateMachine.transitionToFlushing();
            }
            if (isAllTaskFinished()) {
                stateMachine.transitionToFinished();
            }
        }
}

private synchronized void addFlushingTask(TaskId taskId) {
        flushingTasks.add(taskStatus.getTaskId());
}

private synchronized void addFinishedTask(TaskId taskId) {
        finishedTasks.add(taskStatus.getTaskId());
        flushingTasks.remove(taskStatus.getTaskId());
}

private synchronized boolean isAllTaskFinished() {
        return finishedTasks.containsAll(allTasks);
}

Then in subsequent commit I would probably make flushingTasks, finishedTasks lock free, e.g: use ConcurrentHashMap.newKeySet(); (still @Guarded(this) if method touches both finishedTasks and flushingTasks at same time) and:

private void addFlushingTask(TaskId taskId) {
        flushingTasks.add(taskStatus.getTaskId());
}

private void addFinishedTask(TaskId taskId) {
        if (!finishedTasks.contains(taskId)) {
          synchronized(this) {
              // atomically move task to finished set.
              // nit: MAYBE it's not needed
              finishedTasks.add(taskStatus.getTaskId());
              flushingTasks.remove(taskStatus.getTaskId());
          }
        }
}

[radek-kondziolka]

Yes, it is easier but it does not resolve the source problem. You are still locking this in every call of updateTaskStatus. I tried that approach and there was still a high contention on this's monitor.

[sopel39]

You can make addFlushingTask and addFinishedTask return boolean (true if element was added), e.g:

        boolean taskStateChanged = addFlushingTask(taskStatus.getTaskId());
        ...
        if (!stateChanged) {
            return;
        }
        if (stageState == SCHEDULED || stageState == RUNNING || stageState == FLUSHING) {
            if (taskState == TaskState.RUNNING) {
                stateMachine.transitionToRunning();
            }
            if (isFlushing()) {
                stateMachine.transitionToFlushing();
            }
            if (isAllTaskFinished()) {
                stateMachine.transitionToFinished();
            }
        }

Alternatively we could probably make isFlushing() and isAllTaskFinished() lock-free somehow

[radek-kondziolka]

I've implemented the version where the updateTaskStatus was not called when taskState was not changed.
It helped a bit, but the lock contention was still too high to be accepted. (like totally 1 day).

Alternatively we could probably make isFlushing() and isAllTaskFinished() lock-free somehow

This what I did in that PR.

[sopel39]

I've implemented the version where the updateTaskStatus was not called when taskState was not changed.
It helped a bit, but the lock contention was still too high to be accepted. (like totally 1 day).

It could be because the whole updateTaskStatus was synchronized. That seems like a waste. There is no reason why transotionToXX should be synchronized and they do some non-trivial stuff like firing executor task

[radek-kondziolka]

Well, it could be and could not be. It is hard to say. I did not check the version:
(1) decrease the number of calls updateTaskStatus & (2) change the scope of synchronized section
when I've checked that (1) does not help and (2) does not help (separately) I decided to make this method completly lock-free (lock-less)

[radek-kondziolka]

closed in favor of #14395
