[Spec] DFlash: remove per-step host syncs so the CPU runs a full step ahead (spec-v2 overlap) by thanhhao98 · Pull Request #31468 · sgl-project/sglang

thanhhao98 · 2026-07-16T14:02:49Z

Motivation

Under spec-v2 overlap scheduling, DFlash stalls the host every decode step: nsys shows a large cudaStreamSynchronize between the draft and verify cuda graphs, so cudaGraphLaunch for step N+1 is only issued after step N has finished (launch lead ≈ −50 µs). EAGLE3 spec-v2 runs a full step ahead; DFlash should too. This PR removes every per-step host↔device sync on that path. Result: the CPU queues step N+1 a full step early (launch lead +19 ms, run-ahead fraction 0.88 → 0.995), worth +12–13% tok/s/user at low concurrency and +3–5% at high, with GSM8K and accept-length unchanged.

Modifications

Each item removes one per-step host block:

Compact draft-cache rebuild → one triton kernel (rebuild_compact_draft_req_to_token). The old rebuild synced three times per step (lengths.max().item(), a boolean-mask gather's implicit nonzero D2H, and a blocking .to("cpu")), each waiting on the previous verify step. The kernel writes the suffix window + verify-block slots directly into the draft req_to_token row with no data-dependent shapes. The host seq_lens_cpu planning bound becomes min(len, window+page) — deliberately an envelope, not a mirror of the exact page-align math, which is a non-monotonic sawtooth and would under-shoot when fed the reserved over-estimate.
HybridAttnBackend: OR-delegate needs_cpu_seq_lens to the sub-backends. The missing attribute defaulted to True, forcing FutureMap.resolve_seq_lens_cpu's pinned D2H + stream.synchronize() before every step's launches — zero run-ahead on hybrid arms even when both sub-backends opt out.
Fold the TP>1 draft greedy sampler into the draft cuda graph (tp=1 fold already existed): per-rank shard (max, global id) → two in-graph NCCL all-gathers → first-max select. Bit-exact vs a full-vocab argmax including shard-boundary ties. SGLANG_DFLASH_EAGER_DRAFT_SAMPLER=1 restores the eager path.

Correctness

Unit tests in this PR (test/registered/unit/spec/test_dflash_overlap_hostsync.py): kernel bit-exact vs the legacy path (incl. no writes past the verify block), sampler == full-vocab argmax incl. a shard-boundary tie, the sawtooth-envelope bound with its counterexample, hybrid flag delegation, filter_batch host-list equivalence.
8×B200 probes at production dims (tp=8, vocab 163840): fused rebuild and folded sampler bit-exact, cross-rank identical.
GSM8K 5-shot: 0.965 == 0.965 (main vs main+PR); accept-length 2.47 / 2.51.

Benchmarks (Kimi-K2.6-NVFP4 + DFlash draft, 8×B200 TP=8, aiperf 50K-prefix)

Same-base A/B, identical stack, only this PR's commits differ:

cc	main `40a3bd76`	main + PR	Δ
1	256.9	288.0	+12.1%
2	215.0	243.6	+13.3%
4	169.7	174.4	+2.8%
8	125.2	131.8	+5.3%
16	80.5	84.5	+5.0%

nsys (cc16, same pair): launch lead median −51 µs → +19.1 ms; run-ahead fraction 0.883 → 0.995; per-thread cudaStreamSynchronize 336×/3816 ms → 9×/11 ms. The only remaining per-step host sync is the intended copy_done in result processing (identical to EAGLE3 spec-v2). Same shape on the tokenspeed_mla arm (K2.7: +11.5% cc1, lead −57 µs → +17.1 ms); details in the PR comments.

Checklist

Format your code according to the Code Formatting with Pre-Commit.
Add unit tests as outlined in the Running Unit Tests (test/registered/unit/spec/test_dflash_overlap_hostsync.py, 7 tests, validated on B200).
Update documentation / docstrings / example tutorials as needed, according to Writing Documentation.
Provide throughput / latency benchmark results and accuracy evaluation results as needed, according to Benchmark and Profiling and Accuracy Results.
For reviewers: If you haven't made any contributions to this PR and are only assisting with merging the main branch, please remove yourself as a co-author when merging the PR.

🤖 Generated with Claude Code

CI States

Latest PR Test (Base): ⏳ Run #29632179798
Latest PR Test (Extra): ❌ Run #29632179752

gemini-code-assist · 2026-07-16T14:03:04Z

Warning

You have reached your daily quota limit. Please wait up to 24 hours and I will start processing your requests again!

…to the draft graph Two per-step host-stall fixes for spec-v2 run-ahead (the CPU must launch step N+1's cuda graphs while step N still executes): 1) Compact draft req_to_token rebuild: replace the masked segment gather (+ 2x assign_req_to_token_pool) with one fused fixed-grid triton kernel. The old path blocked the host twice per decode step: lengths.max().item() and the boolean-mask packed gather (data-dependent shape => implicit nonzero D2H), serializing the CPU behind the previous verify step. The draft-forward host planning bound (seq_lens_cpu) is now computed on CPU from the scheduler-maintained host lens via the monotonic envelope min(len, window+page) instead of a blocking D2H. The exact page-align mapping is a non-monotonic sawtooth, so the envelope (not a mirror of the arithmetic) is required to stay an upper bound when fed the reserved overlap over-estimate. Legacy path kept only for non-GPU-triton platforms. 2) Extend _DflashDraftSampler to the vocab-parallel (TP>1) head and lift the tp>1 eager bail: per-rank shard max/argmax -> global id, two NCCL all-gathers (captured into the draft graph like the draft model's own collectives), first-max select. Tie resolution is bit-exact vs a full-vocab argmax (contiguous ascending shards + first-max argmax). A/B escape hatch: SGLANG_DFLASH_EAGER_DRAFT_SAMPLER=1 forces eager. Removes the eager between-graphs sampler cluster (matmul + reduce + 2x all_gather + gather) from the host launch path.

decide_needs_cpu_seq_lens ORs the flag across attn backends; the hybrid prefill/decode wrapper had no attribute so the getattr default (True) forced FutureMap.resolve_seq_lens_cpu into its per-step pinned D2H + fwd_prepare_d2h_stream.synchronize() even when both sub-backends opted out (trtllm_mla prefill + cutedsl_mla decode). That host sync sits before any of step N's launches and blocks on step N-1's verify completing on GPU, forcing zero CPU run-ahead on the hybrid arm.

DFlashDraftInputV2.filter_batch sliced reserved_seq_lens_cpu with new_indices.cpu(), a blocking D2H of the GPU index tensor on the scheduler thread every time batch composition changed. ScheduleBatch already holds the host-side keep list; pass it through and index the CPU tensor directly. EAGLE/ngram accept the kwarg unchanged.

…prep churn - init_forward_metadata: never derive max_seq from the GPU tensor (the .max().item() drains the whole stream backlog under spec-v2 overlap); fall back to the static context bound when no host mirror exists. - DCP eager paths: set dcp_local_max_seq_len / dcp_prefix_local_max host-side (ceil(global/world) bound covers get_dcp_lens on every rank), so forward_decode/_forward_verify_dcp never hit the per-layer local .max().item() device sync (61 syncs/step on Kimi) off-graph. - _apply_cuda_graph_metadata target-verify: fuse the seq_lens+T add straight into the captured int32 seq_lens_k buffer (out= same-kind downcast) and feed that buffer to the block-table kernel: one kernel, no per-step temp alloc. - WAR fastpath: reuse a 2-deep event ring instead of allocating a fresh cuda Event per graph replay (DFlash records twice per step).

…comments further, add unit tests - SGLANG_DFLASH_EAGER_DRAFT_SAMPLER moves to the typed envs registry. - Second comment pass: keep only the load-bearing invariants (sawtooth envelope, tie-safety, needs_cpu_seq_lens OR-default trap, re-record safety, legacy-path sync rationale). - test_dflash_overlap_hostsync.py: fused rebuild bit-exact vs legacy path (+ no write past the verify block), vocab-parallel sampler == full-vocab argmax incl. shard-boundary ties (simulated TP group, single GPU), host-bound envelope >= exact incl. the sawtooth counterexample, HybridAttnBackend needs_cpu_seq_lens delegation, filter_batch host keep-list equivalence.

thanhhao98 · 2026-07-17T08:31:16Z

nsys before/after — the overlap improvement, Kimi-K2.6-NVFP4 cuteDSL, cc16

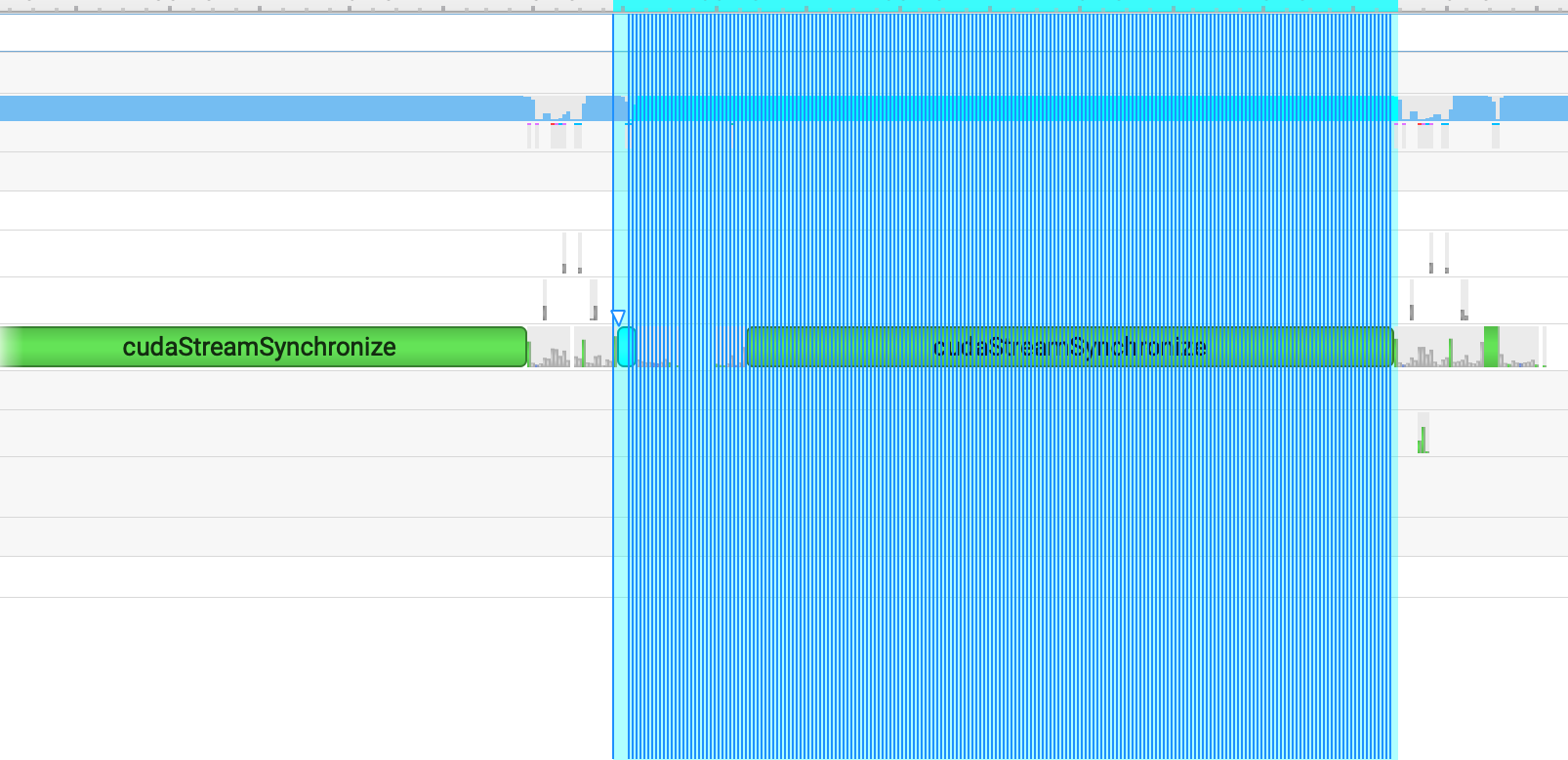

BEFORE (main 40a3bd7):

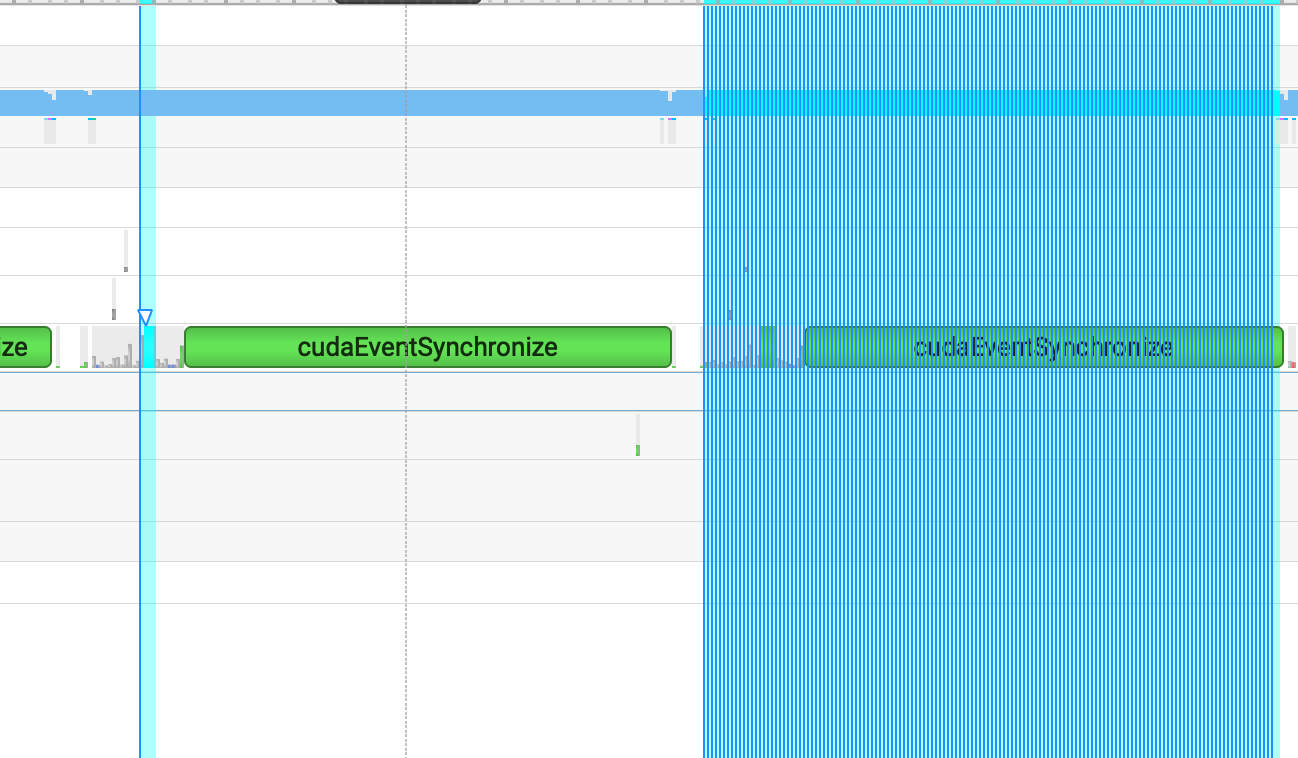

AFTER (this PR):

hnyls2002 · 2026-07-18T04:59:03Z

/rerun-test registered/unit/spec/test_dflash_overlap_hostsync.py registered/spec/dflash/test_dflash.py registered/core/test_basic_sanity_dflash.py registered/spec/eagle/test_spec_eagle.py registered/spec/test_spec_ngram.py registered/attention/test_hybrid_attn_backend.py registered/attention/unittests/mla/test_trtllm_mla.py

hnyls2002 · 2026-07-18T04:59:21Z

/tag-and-rerun-ci

github-actions · 2026-07-18T04:59:28Z

⚠️ Rebase Required Before Re-run

A major update has landed on main. Your PR is diverged relative to required base commit a5c0b94034.

Re-run was not dispatched. What to do:

Rebase your branch onto the latest main and push again
Follow issue #21065 for context
CI-fix PRs may request the bypass-maintenance label to skip this check

github-actions · 2026-07-18T05:00:11Z

Results for /rerun-test registered/unit/spec/test_dflash_overlap_hostsync.py registered/spec/dflash/test_dflash.py registered/core/test_basic_sanity_dflash.py registered/spec/eagle/test_spec_eagle.py registered/spec/test_spec_ngram.py registered/attention/test_hybrid_attn_backend.py registered/attention/unittests/mla/test_trtllm_mla.py:

🚀 1-gpu-5090 (4 tests): ✅ View workflow run

cd test/ && python3 registered/unit/spec/test_dflash_overlap_hostsync.py
cd test/ && python3 registered/spec/dflash/test_dflash.py
cd test/ && python3 registered/core/test_basic_sanity_dflash.py
cd test/ && python3 registered/spec/eagle/test_spec_eagle.py

🚀 1-gpu-h100 (3 tests): ✅ View workflow run

cd test/ && python3 registered/spec/test_spec_ngram.py
cd test/ && python3 registered/attention/test_hybrid_attn_backend.py
cd test/ && python3 registered/attention/unittests/mla/test_trtllm_mla.py

🚀 4-gpu-b200 (1 test): ✅ View workflow run

cd test/ && python3 registered/attention/unittests/mla/test_trtllm_mla.py

hnyls2002 · 2026-07-18T05:00:32Z

@thanhhao98 I reverted the read_done event ring on your branch (commit 4a488a5) — it is orthogonal to this PR's goal: it removes a per-step allocation, not a host sync, and the same per-replay Event() pattern exists elsewhere (e.g. copy_done in scheduler result processing), so it should be done uniformly rather than for one site.

Could you resubmit the event-ring change as a separate PR covering all the per-step Event() sites? Please also drop the event-ring bullet from this PR's description (item 4) since it is no longer part of the diff.

hnyls2002 · 2026-07-18T05:04:58Z

/rerun-failed-test

thanhhao98 · 2026-07-19T06:29:10Z

Thanks @hnyls2002 @kpham-sgl for pushing this. I removed event-ring in PR description.
I will create separate PR for it.
