feat(engine): backpressure by pepyakin · Pull Request #23244 · paradigmxyz/reth

pepyakin · 2026-03-26T15:58:23Z

No description provided.

pepyakin · 2026-03-26T16:00:02Z

derek bench blocks=big otlp=false

decofe · 2026-03-26T16:00:15Z

cc @pepyakin

❌ Benchmark failed while running baseline benchmark (1/2). View logs

github-actions · 2026-03-26T16:00:48Z

⚠️ Changelog not found.

A changelog entry is required before merging. We've generated a suggested changelog based on your changes:

Preview

---
reth-engine-primitives: minor
reth-engine-tree: minor
reth-bench: minor
---

Added persistence backpressure to the engine tree: when the canonical-minus-persisted block gap reaches a configurable threshold (`DEFAULT_PERSISTENCE_BACKPRESSURE_THRESHOLD = 16`), incoming beacon messages (newPayload, forkchoiceUpdated) are stashed and processing stalls until persistence catches up. Added `backpressure_wait` timing to `NewPayloadTimings` and bench output so the wait is visible in metrics and benchmark CSV results.

Add changelog to commit this to your branch.

pepyakin · 2026-03-26T16:42:24Z

derek bench

decofe · 2026-03-26T16:42:40Z

cc @pepyakin

✅ Benchmark complete! View job

Benchmark Results

⚠️ Feature is 5 commits behind main. Consider rebasing for accurate results.

Metric	`main`	`pep/backpressure`	Change
Mean	22.95ms	23.15ms	+0.85% ❌ (±0.51%)
StdDev	13.38ms	13.98ms
P50	20.32ms	20.52ms	+0.95% ⚪ (±1.24%)
P90	34.24ms	34.33ms	+0.25% ⚪ (±1.89%)
P99	81.04ms	81.47ms	+0.53% ⚪ (±7.32%)
Mgas/s	1382.06	1378.09	-0.29% ⚪ (±0.41%)
Wall Clock	23.64s	23.84s	+0.85% ❌ (±0.53%)

500 blocks

Wait Time Breakdown

Persistence Wait

Metric	`main`	`pep/backpressure`
Mean	65.59ms	66.31ms
P50	0.00ms	0.00ms
P95	257.63ms	258.38ms

Trie Cache Update Wait

Metric	`main`	`pep/backpressure`
Mean	0.13ms	0.11ms
P50	0.00ms	0.00ms
P95	0.60ms	0.58ms

Execution Cache Update Wait

Metric	`main`	`pep/backpressure`
Mean	0.00ms	0.00ms
P50	0.00ms	0.00ms
P95	0.00ms	0.00ms

Grafana Dashboard

Charts

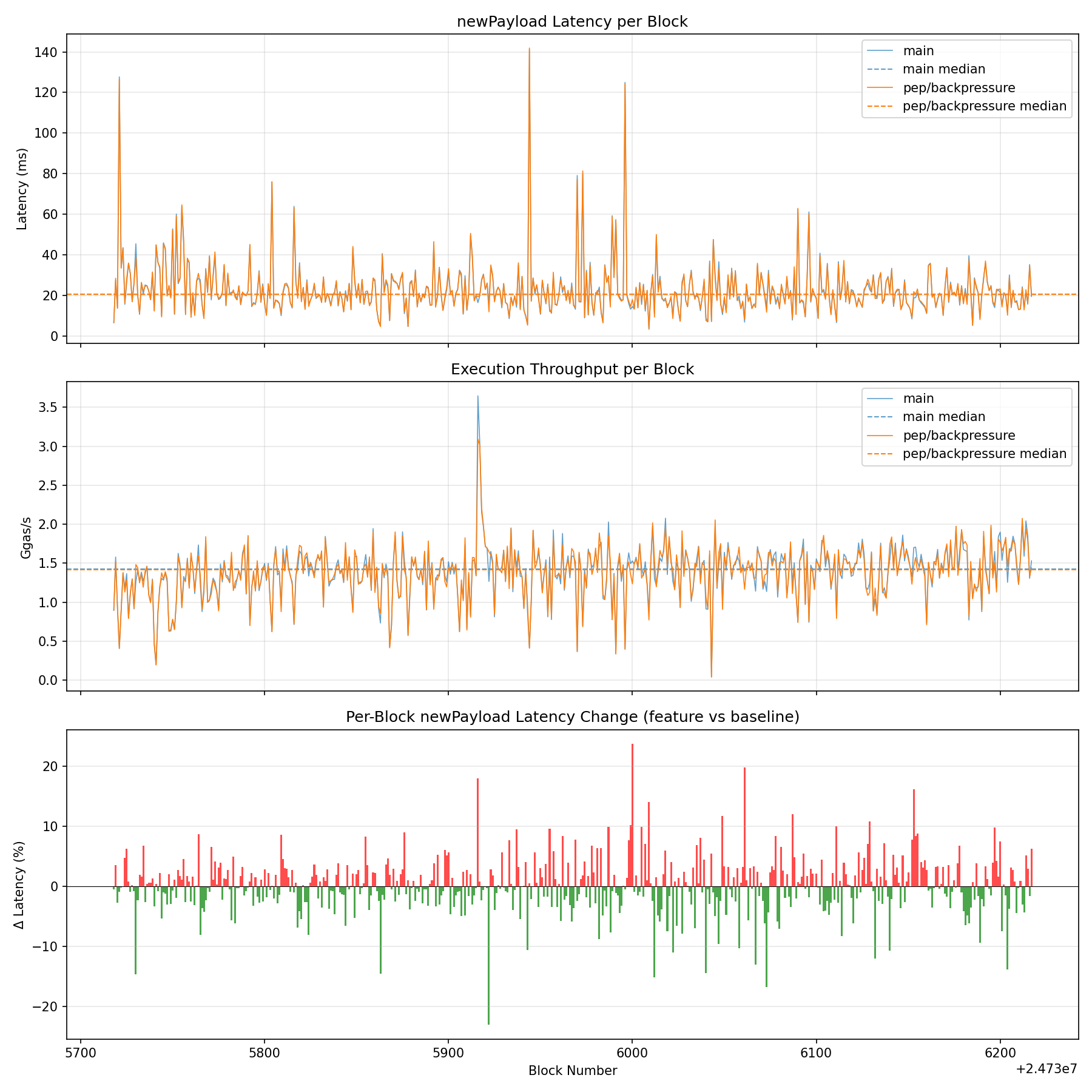

Latency, Throughput & Diff

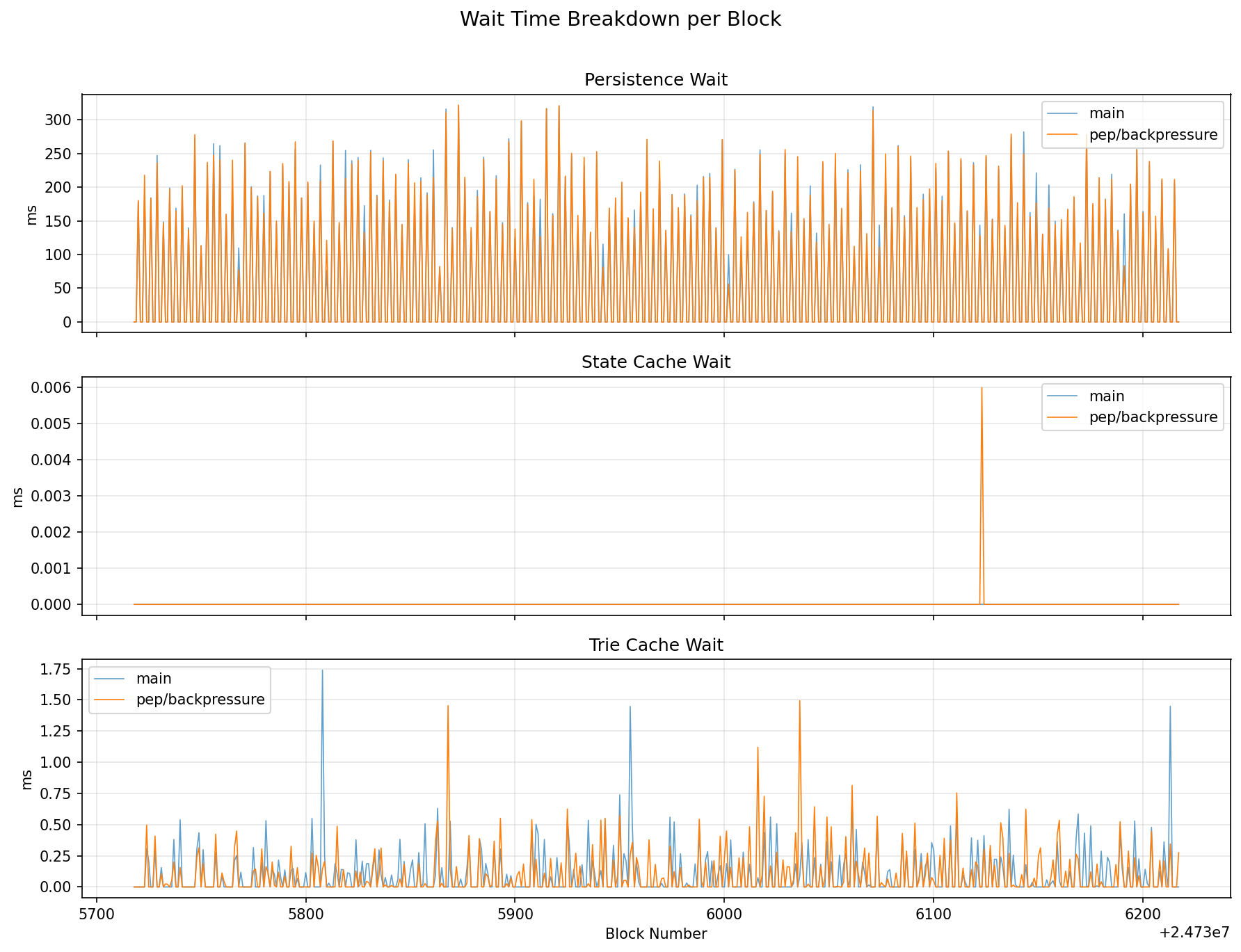

Wait Time Breakdown

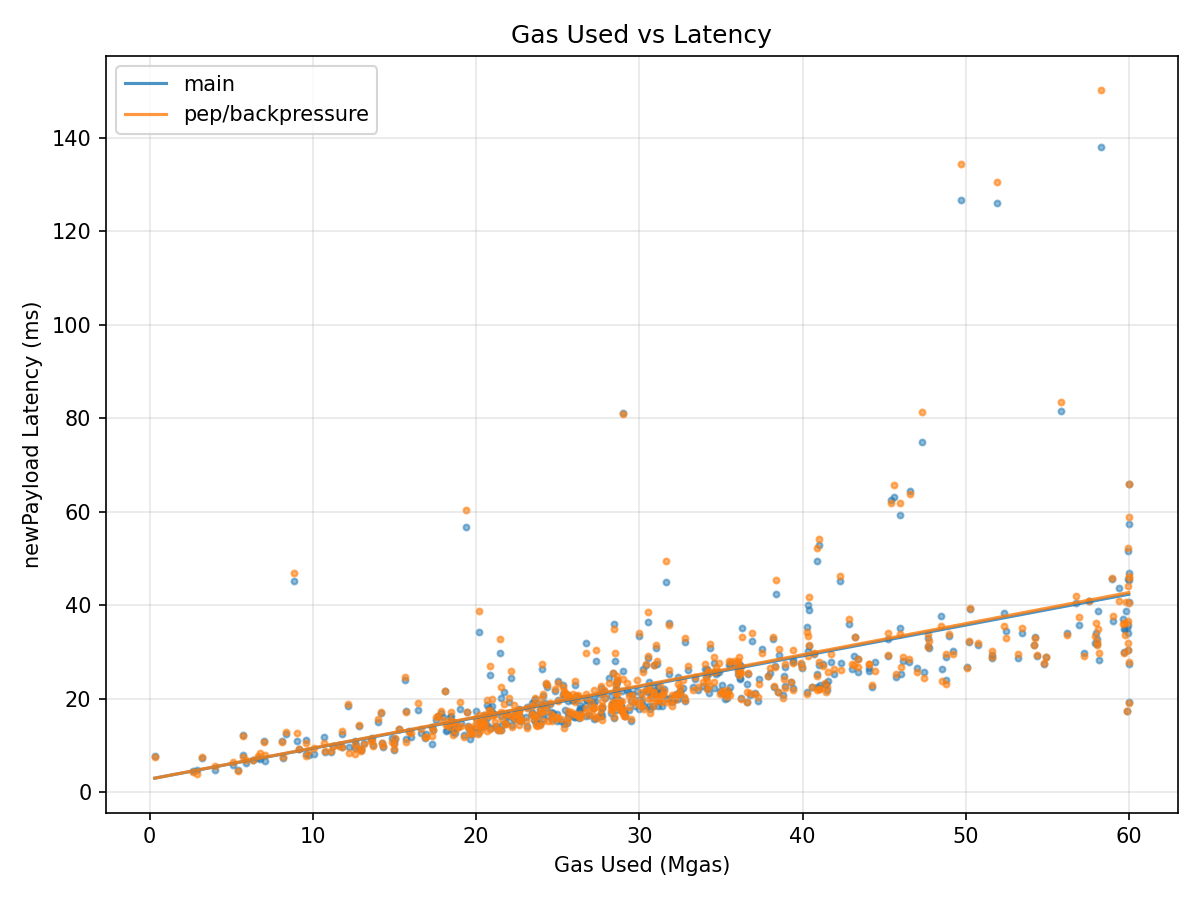

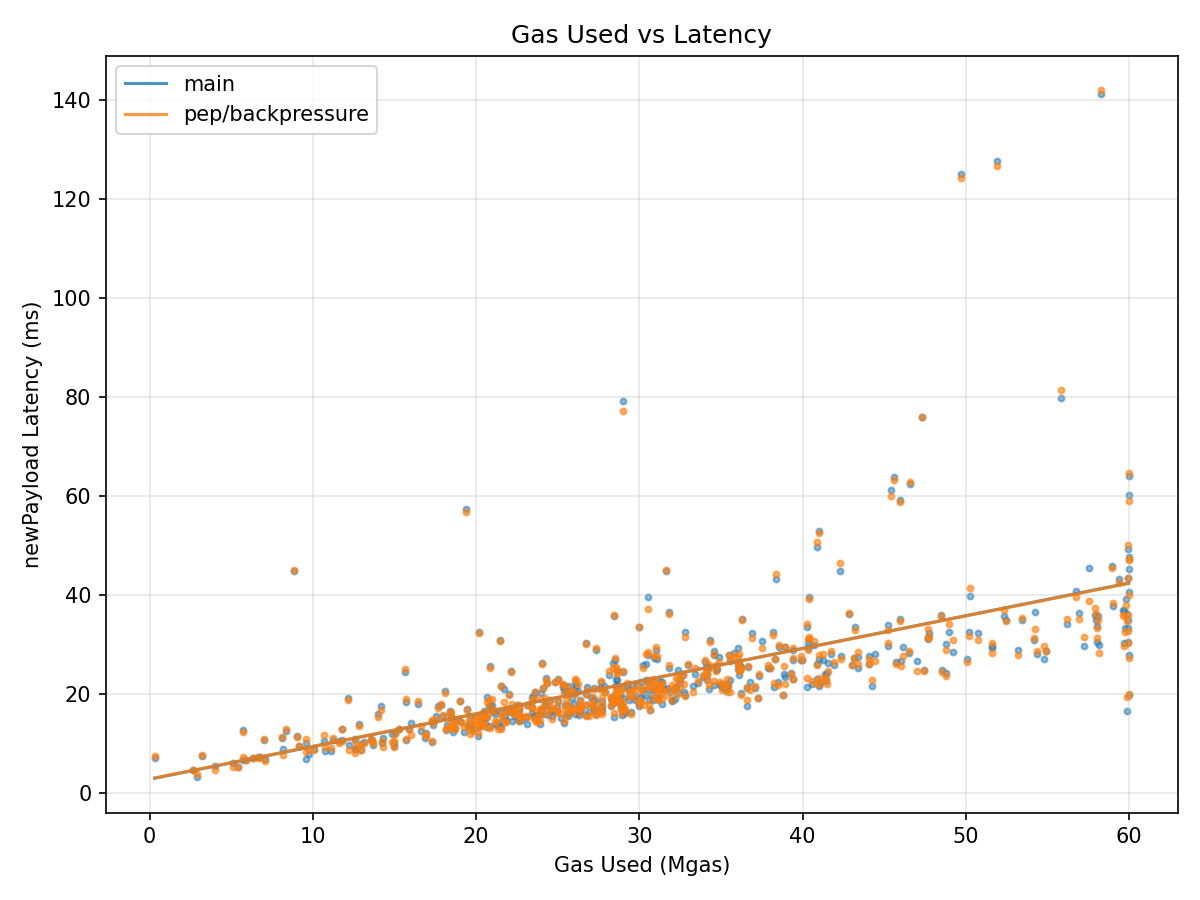

Gas vs Latency

Grafana Dashboard

View real-time metrics

pepyakin · 2026-03-26T17:07:34Z

derek bench

decofe · 2026-03-26T17:07:48Z

cc @pepyakin

✅ Benchmark complete! View job

Benchmark Results

Metric	`main`	`pep/backpressure`	Change
Mean	22.90ms	22.89ms	-0.05% ⚪ (±0.35%)
StdDev	13.39ms	13.34ms
P50	20.46ms	20.37ms	-0.47% ⚪ (±1.23%)
P90	34.71ms	34.56ms	-0.45% ⚪ (±2.24%)
P99	77.44ms	76.86ms	-0.75% ⚪ (±3.85%)
Mgas/s	1385.81	1385.14	-0.05% ⚪ (±0.42%)
Wall Clock	23.61s	23.59s	-0.09% ⚪ (±0.39%)

500 blocks

Wait Time Breakdown

Persistence Wait

Metric	`main`	`pep/backpressure`
Mean	64.27ms	64.11ms
P50	0.00ms	0.00ms
P95	252.24ms	250.79ms

Trie Cache Update Wait

Metric	`main`	`pep/backpressure`
Mean	0.10ms	0.10ms
P50	0.00ms	0.00ms
P95	0.54ms	0.50ms

Execution Cache Update Wait

Metric	`main`	`pep/backpressure`
Mean	0.00ms	0.00ms
P50	0.00ms	0.00ms
P95	0.00ms	0.00ms

Grafana Dashboard

Charts

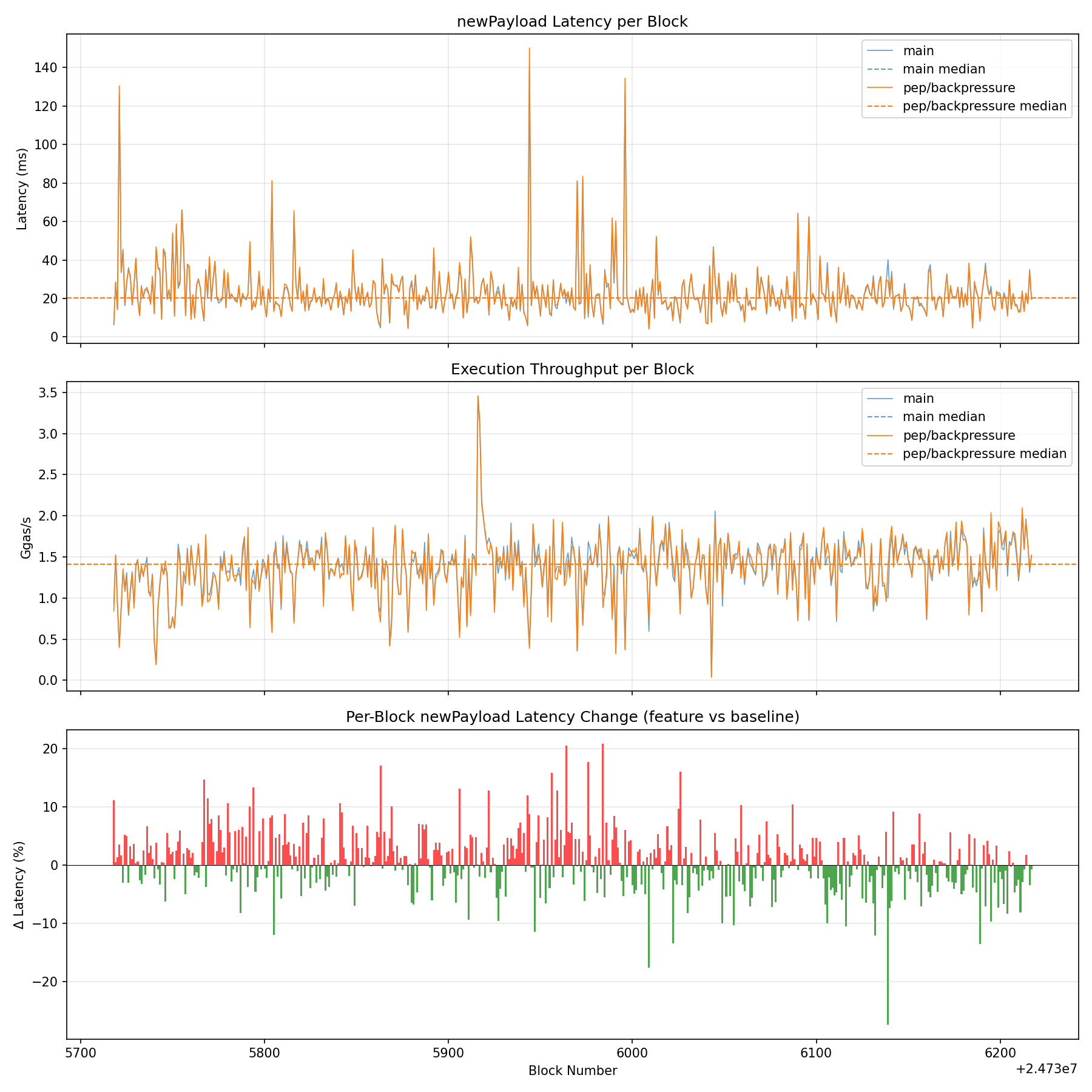

Latency, Throughput & Diff

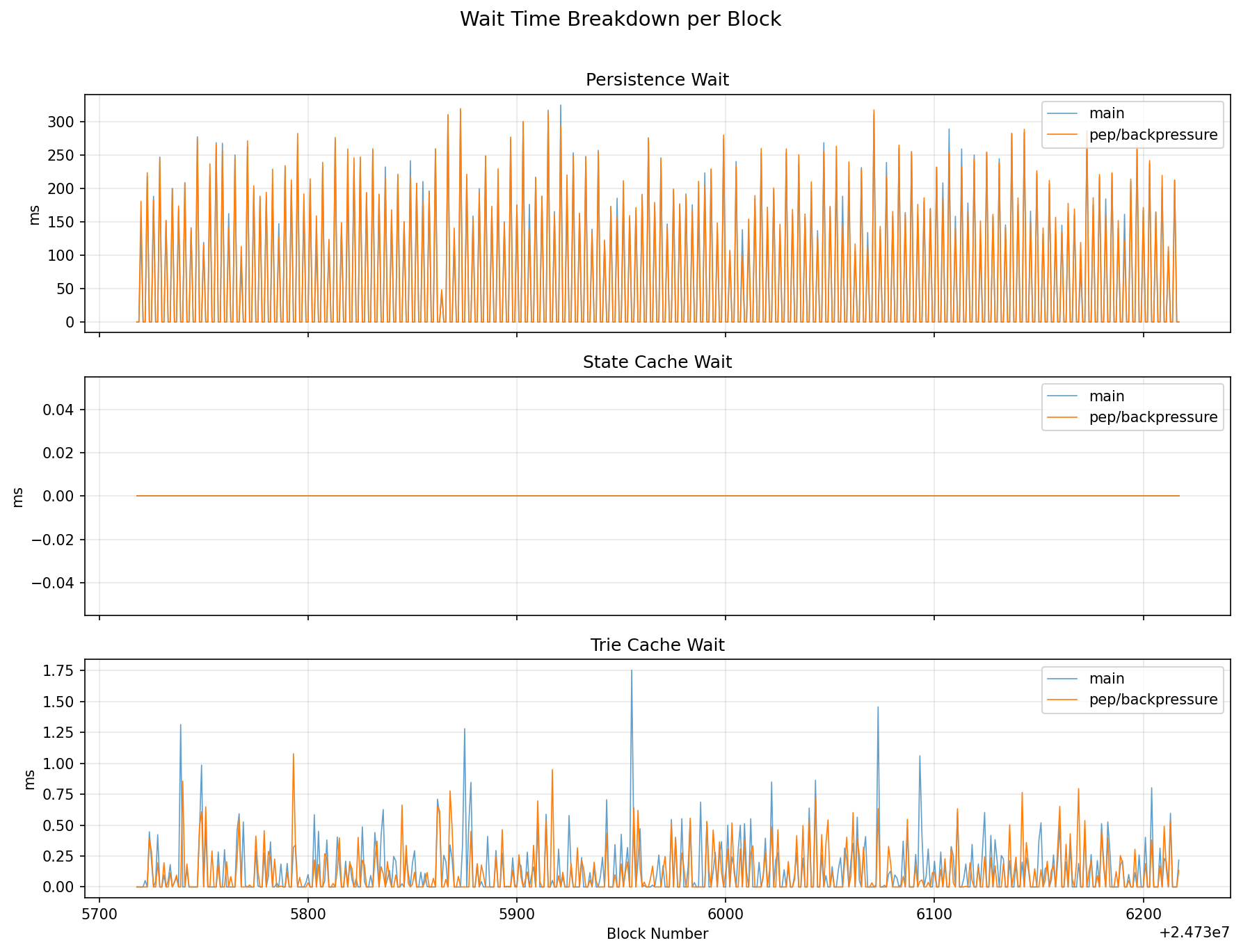

Wait Time Breakdown

Gas vs Latency

Grafana Dashboard

View real-time metrics

decofe · 2026-03-26T17:27:51Z

cc @pepyakin

✅ Benchmark complete! View job

Benchmark Results

Metric	`main`	`pep/backpressure`	Change
Mean	473.50ms	470.21ms	-0.70% ✅ (±0.37%)
StdDev	200.59ms	199.32ms
P50	500.59ms	498.76ms	-0.37% ⚪ (±1.86%)
P90	672.13ms	667.74ms	-0.65% ⚪ (±1.54%)
P99	949.53ms	945.80ms	-0.39% ⚪ (±1.13%)
Mgas/s	2030.91	2048.31	+0.86% ✅ (±0.49%)
Wall Clock	41.06s	40.77s	-0.71% ✅ (±0.37%)

43 big blocks

Wait Time Breakdown

Persistence Wait

Metric	`main`	`pep/backpressure`
Mean	517.54ms	517.96ms
P50	0.00ms	0.00ms
P95	1927.80ms	1929.22ms

Trie Cache Update Wait

Metric	`main`	`pep/backpressure`
Mean	0.00ms	0.00ms
P50	0.00ms	0.00ms
P95	0.00ms	0.00ms

Execution Cache Update Wait

Metric	`main`	`pep/backpressure`
Mean	0.00ms	0.00ms
P50	0.00ms	0.00ms
P95	0.00ms	0.00ms

Grafana Dashboard

Charts

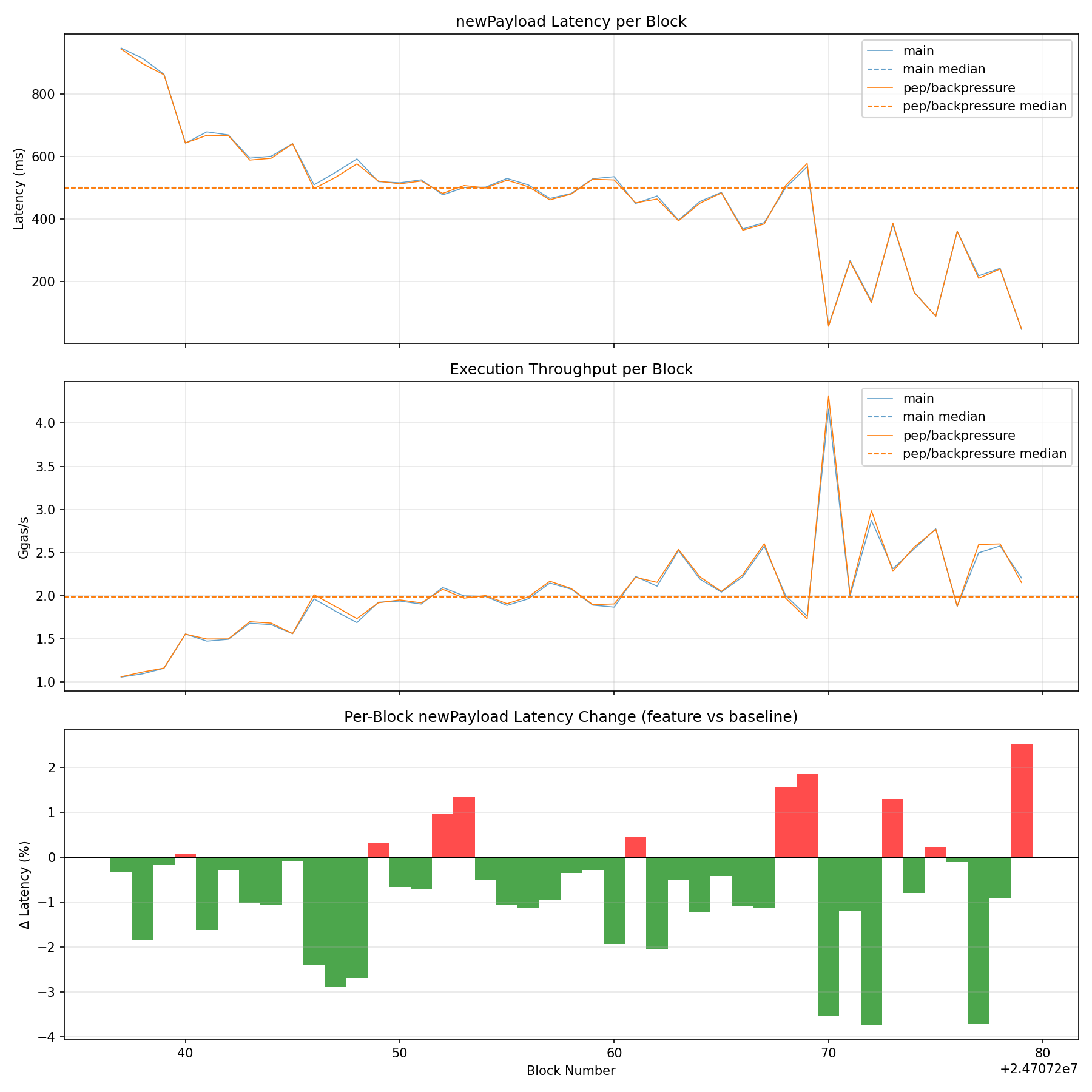

Latency, Throughput & Diff

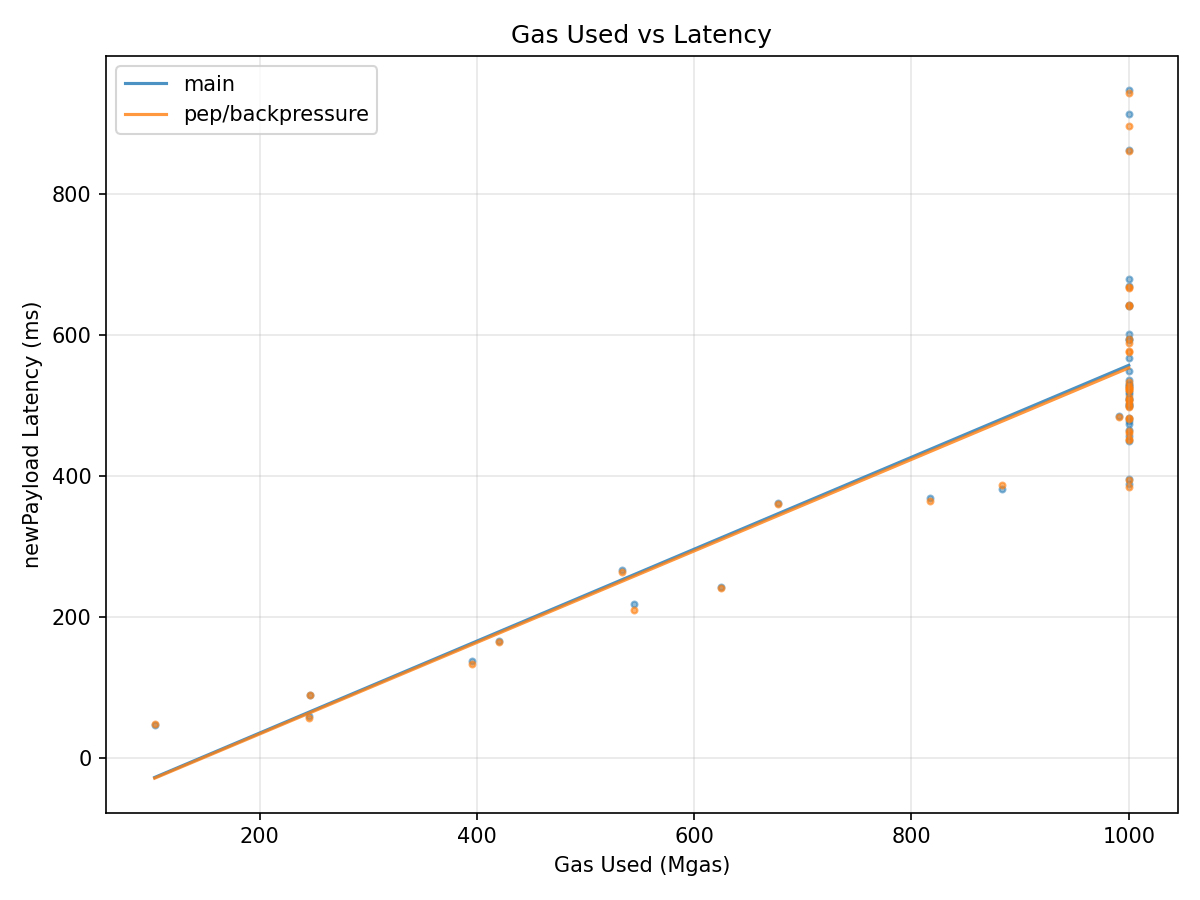

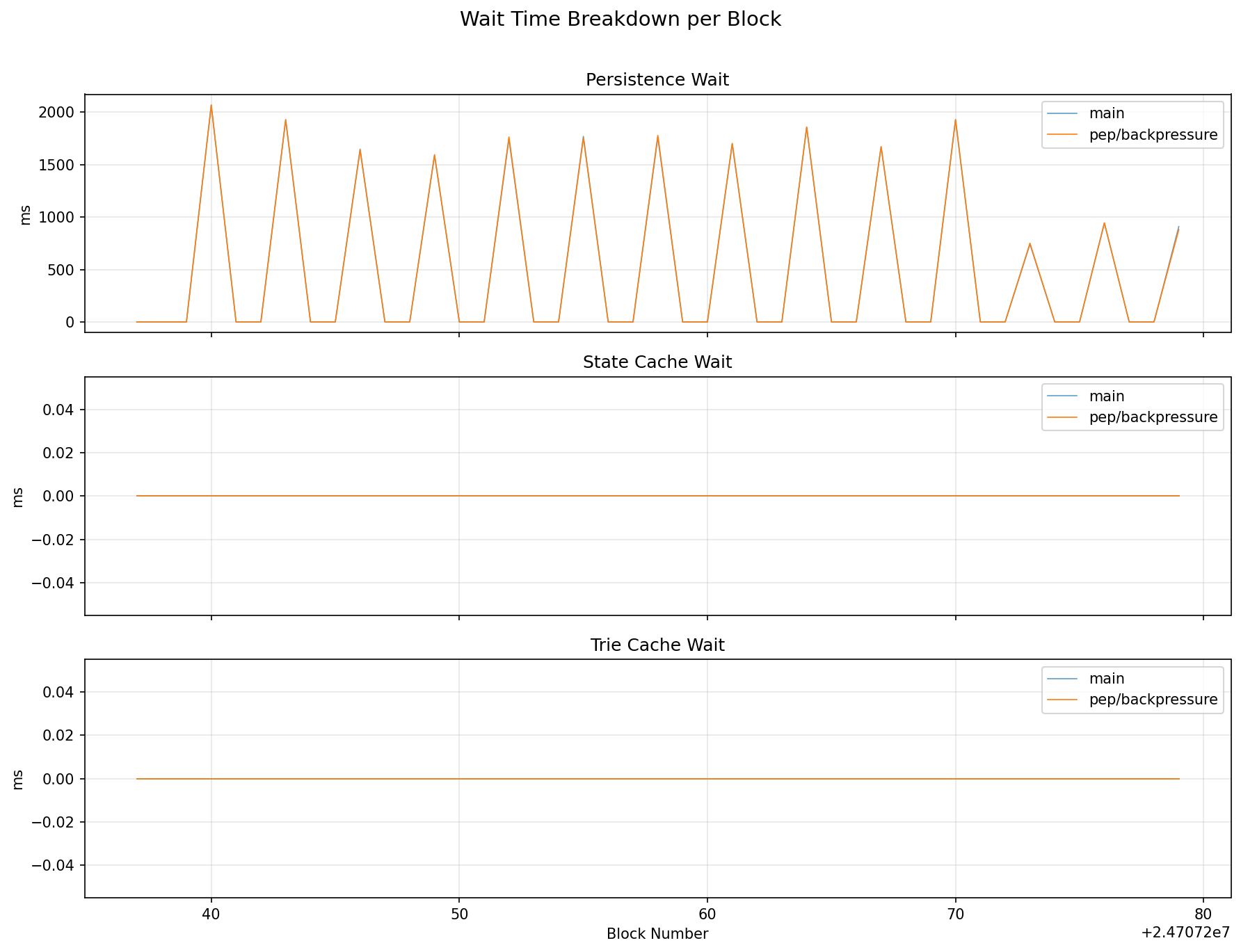

Wait Time Breakdown

Gas vs Latency

Grafana Dashboard

View real-time metrics

mediocregopher · 2026-03-27T09:40:20Z

-        let safe_hash = B256::random();
-        let finalized_hash = B256::random();
-        let non_matching_hash = B256::random();
+        let head_hash = B256::with_last_byte(1);


What was this about?

mediocregopher · 2026-03-27T09:51:48Z

        }
    }

+    #[cfg(test)]


nit: let's just remove the cfg(test) and not have two methods

pepyakin · 2026-03-30T15:20:17Z

superseded by #23280

github-project-automation Bot added this to Reth Tracker Mar 26, 2026

github-project-automation Bot moved this to Backlog in Reth Tracker Mar 26, 2026

pepyakin added 5 commits March 26, 2026 17:03

engine: add persistence backpressure for beacon requests

b37a77f

engine: fix backpressure stall handling

8fbcf7f

engine-primitives: make forkchoice test deterministic

624a1eb

tidy up

32c55d3

engine: fix rebase CI fallout

5732c3c

pepyakin force-pushed the pep/backpressure branch from 931636d to 5732c3c Compare March 26, 2026 17:07

mediocregopher approved these changes Mar 27, 2026

View reviewed changes

github-project-automation Bot moved this from Backlog to In Progress in Reth Tracker Mar 27, 2026

pepyakin mentioned this pull request Mar 30, 2026

feat(engine): backpressure, take 2. #23280

Merged

pepyakin closed this Mar 30, 2026

github-project-automation Bot moved this from In Progress to Done in Reth Tracker Mar 30, 2026

emmajam deleted the pep/backpressure branch May 1, 2026 10:10
