Bug 2041765: Adjust the startup order of httpd container #5541

zhouhao3 · 2022-01-17T09:22:53Z

Run the httpd container after the coreos-downloader completes to ensure that the kernel parameters can be added correctly.

Fixes: #5504

Signed-off-by: Zhou Hao [email protected]

Run the httpd container after the coreos-downloader completes to ensure that the kernel parameters can be added correctly. Signed-off-by: Zhou Hao <[email protected]>

openshift-ci · 2022-01-17T09:24:33Z

Hi @zhouhao3. Thanks for your PR.

I'm waiting for a openshift member to verify that this patch is reasonable to test. If it is, they should reply with /ok-to-test on its own line. Until that is done, I will not automatically test new commits in this PR, but the usual testing commands by org members will still work. Regular contributors should join the org to skip this step.

Once the patch is verified, the new status will be reflected by the ok-to-test label.

I understand the commands that are listed here.

Details

Instructions for interacting with me using PR comments are available here. If you have questions or suggestions related to my behavior, please file an issue against the kubernetes/test-infra repository.

rhjanders · 2022-01-17T10:27:25Z

/ok-to-test

rhjanders · 2022-01-17T10:29:12Z

/retest

zaneb · 2022-01-17T22:32:58Z

So the runhttpd script is rendering inspector.ipxe, which contains a reference to IRONIC_KERNEL_PARAMS, which is only set correctly if the rootfs file exists.

What's most confusing about this is how it could have been working anywhere?

We'll need to link this to a (public) bugzilla in order to merge it.

/approve
/label platform/baremetal
/test e2e-metal-ipi

zhouhao3 · 2022-01-18T00:59:01Z

What's most confusing about this is how it could have been working anywhere?

We are also very confused, what environment do you test in so that this issue will not occur? Maybe it's just an iPXE issue.

rhjanders · 2022-01-18T02:07:23Z

/test e2e-aws-workers-rhel8

rhjanders · 2022-01-18T02:07:36Z

/test e2e-metal-ipi-ovn-dualstack

zhouhao3 · 2022-01-18T09:25:37Z

/retitle Bug 2041765: Adjust the startup order of httpd container

zhouhao3 · 2022-01-18T09:26:55Z

We'll need to link this to a (public) bugzilla in order to merge it.

Sent bugzilla https://bugzilla.redhat.com/show_bug.cgi?id=2041765

openshift-ci · 2022-01-18T09:28:01Z

@zhouhao3: This pull request references Bugzilla bug 2041765, which is invalid:

expected the bug to target the "4.10.0" release, but it targets "---" instead

Comment /bugzilla refresh to re-evaluate validity if changes to the Bugzilla bug are made, or edit the title of this pull request to link to a different bug.

Details

In response to this:

Bug 2041765: Adjust the startup order of httpd container

Instructions for interacting with me using PR comments are available here. If you have questions or suggestions related to my behavior, please file an issue against the kubernetes/test-infra repository.

openshift-ci · 2022-01-18T09:29:18Z

@zhouhao3: Re-titling can only be requested by trusted users, like repository collaborators.

Details

In response to this:

/retitle Bug 2041765: Adjust the startup order of httpd container

Instructions for interacting with me using PR comments are available here. If you have questions or suggestions related to my behavior, please file an issue against the kubernetes/test-infra repository.

zaneb · 2022-01-18T17:14:49Z

/bugzilla refresh

openshift-ci · 2022-01-18T17:16:58Z

@zaneb: This pull request references Bugzilla bug 2041765, which is valid. The bug has been moved to the POST state.

3 validation(s) were run on this bug

bug is open, matching expected state (open)
bug target release (4.10.0) matches configured target release for branch (4.10.0)
bug is in the state NEW, which is one of the valid states (NEW, ASSIGNED, ON_DEV, POST, POST)

No GitHub users were found matching the public email listed for the QA contact in Bugzilla ([email protected]), skipping review request.

Details

In response to this:

/bugzilla refresh

Instructions for interacting with me using PR comments are available here. If you have questions or suggestions related to my behavior, please file an issue against the kubernetes/test-infra repository.

derekhiggins · 2022-01-18T17:33:06Z

What's most confusing about this is how it could have been working anywhere?

We are also very confused, what environment do you test in so that this issue will not occur? Maybe it's just an iPXE issue.

AIUI there are two paths to inspecting a host, requesting ironic-conducor to inspect a specific host will cause ironic to create a pxe config specific for the host, this uses dualboot.ipxe this doesn't not use inspector.ipxe as a config is present for the MAC of the host

The alternative also uses dualboot.ipxe but fails to get a host specific config and then fallsback to inspector.ipxe , this could happen if
inspection is not being managed by ironic-conductor, perhaps by talking directly to inspector?
or the MAC address for the host is incorrect, causing the config created for the host to fail to be found

zhouhao3 · 2022-01-19T06:17:50Z

The alternative also uses dualboot.ipxe but fails to get a host specific config and then fallsback to inspector.ipxe , this could happen if
inspection is not being managed by ironic-conductor, perhaps by talking directly to inspector?
or the MAC address for the host is incorrect, causing the config created for the host to fail to be found

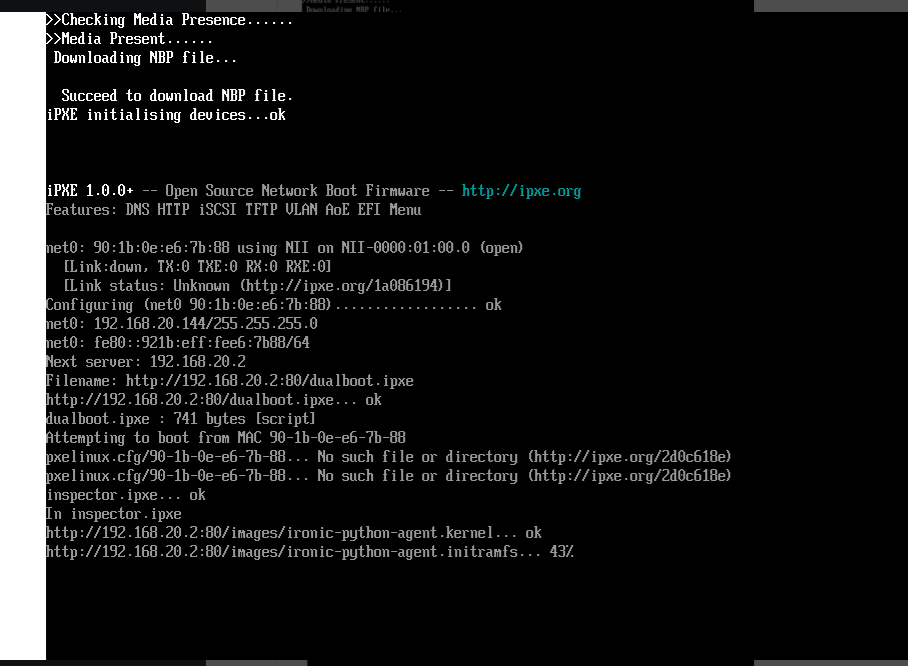

As we can see from the PXE startup interface, the MAC address for the host is correct, inspector.ipxe is used because there is no corresponding file in the pxelinux.cfg folder.

We can see that the pxelinux.cfg folder is empty in bootstrap.

[root@bootstrap html]# pwd
/var/lib/containers/storage/volumes/ironic/_data/html
[root@bootstrap html]# ls
boot.ipxe  dualboot.ipxe  images  inspector.ipxe  pxelinux.cfg  uefi_esp.img
[root@bootstrap html]# ls pxelinux.cfg/

FYI， here is the content of the tftpboot folder：

[root@bootstrap _data]# pwd
/var/lib/containers/storage/volumes/ironic/_data
[root@bootstrap _data]# ls
html  ironic_prometheus_exporter  log  tftpboot
[root@bootstrap _data]# ls tftpboot/pxelinux.cfg/
01-90-1b-0e-e6-37-dd  01-90-1b-0e-e6-7b-70  01-90-1b-0e-e6-7b-88
[root@bootstrap _data]# pwd
/var/lib/containers/storage/volumes/ironic/_data
[root@bootstrap _data]# ls
html  ironic_prometheus_exporter  log  tftpboot
[root@bootstrap _data]# ls tftpboot/
01e9193d-b574-4daa-922b-96204e9b0ca6            90:1b:0e:e6:37:dd.conf                          grub.cfg-01-90-1b-0e-e6-37-dd  snponly.efi
19c783cc-80f1-56d9-b495-de809b584454.converted  90:1b:0e:e6:7b:70.conf                          grub.cfg-01-90-1b-0e-e6-7b-70  undionly.kpxe
207cca95-4faf-5c21-b7ac-05c88802adec.converted  90:1b:0e:e6:7b:88.conf                          grub.cfg-01-90-1b-0e-e6-7b-88
5dcaec5b-7e86-5ba6-849b-5d554febc5fc.converted  bb03b882-cb00-41ad-bf24-1dd6dd6fc8a9            ipxe.efi
80c6b42d-fc31-42c9-b712-0d968f261488            efab1372-ace5-5041-922e-851381838617.converted  pxelinux.cfg
[root@bootstrap _data]# ls -l tftpboot/pxelinux.cfg/
total 0
lrwxrwxrwx. 1 root root 46 Jan 19 05:47 01-90-1b-0e-e6-37-dd -> ../80c6b42d-fc31-42c9-b712-0d968f261488/config
lrwxrwxrwx. 1 root root 46 Jan 19 05:47 01-90-1b-0e-e6-7b-70 -> ../01e9193d-b574-4daa-922b-96204e9b0ca6/config
lrwxrwxrwx. 1 root root 46 Jan 19 05:47 01-90-1b-0e-e6-7b-88 -> ../bb03b882-cb00-41ad-bf24-1dd6dd6fc8a9/config

zaneb · 2022-01-19T19:28:12Z

The files in the tftpboot dir have 01- prepended to the MAC, which happens when ipxe_enabled is false, but the dualboot.ipxe script is just looking for the MAC. So it sounds to me like we are somehow using ipxe but with ipxe_enabled = False in the irmc driver/config somehow.

We are setting the boot interface to pxe, so that is probably wrong: https://github.com/metal3-io/baremetal-operator/blob/main/pkg/hardwareutils/bmc/irmc.go#L77-L79

According to https://docs.openstack.org/ironic/latest/admin/drivers/irmc.html#hardware-interfaces the pxe interface is deprecated and we should use irmc-pxe.
https://docs.openstack.org/ironic/latest/admin/drivers/irmc.html#boot-from-remote-volume says that both of those use iPXE, but that does not appear to be true - pxe and ipxe are different boot interfaces, and IRMCPXEBoot inherits from pxe.PXEBoot (with ipxe_enabled = False), not ipxe.iPXEBoot.

I suspect if we change the boot interface to ipxe, this will work.

zhouhao3 · 2022-01-20T06:19:49Z

I suspect if we change the boot interface to ipxe, this will work.

After changing the boot interface to ipxe, there will be no previous issue, thank you very much, I will close this PR, and I will create a fixed PR later.

zhouhao3 · 2022-01-20T07:20:11Z

After solving this problem by changing the boot interface to ipxe, there is a issue that the Master cannot download the Ironic Agent image. See #5552 for details.

zaneb · 2022-01-20T16:52:36Z

I think we should still merge this, since it's clearly correct even if it isn't strictly needed in this case.
/reopen

openshift-ci · 2022-01-20T16:53:12Z

@zaneb: Reopened this PR.

Details

In response to this:

I think we should still merge this, since it's clearly correct even if it isn't strictly needed in this case.
/reopen

Instructions for interacting with me using PR comments are available here. If you have questions or suggestions related to my behavior, please file an issue against the kubernetes/test-infra repository.

openshift-ci · 2022-01-20T16:53:17Z

@zhouhao3: This pull request references Bugzilla bug 2041765, which is valid. The bug has been moved to the POST state. The bug has been updated to refer to the pull request using the external bug tracker.

3 validation(s) were run on this bug

bug is open, matching expected state (open)
bug target release (4.10.0) matches configured target release for branch (4.10.0)
bug is in the state NEW, which is one of the valid states (NEW, ASSIGNED, ON_DEV, POST, POST)

No GitHub users were found matching the public email listed for the QA contact in Bugzilla ([email protected]), skipping review request.

Details

In response to this:

Bug 2041765: Adjust the startup order of httpd container

Instructions for interacting with me using PR comments are available here. If you have questions or suggestions related to my behavior, please file an issue against the kubernetes/test-infra repository.

rhjanders · 2022-01-25T10:55:38Z

/ok-to-test

derekhiggins · 2022-01-25T14:24:26Z

/lgtm

rhjanders · 2022-01-26T23:59:27Z

/test e2e-metal-single-node-live-iso

rhjanders · 2022-01-27T00:53:37Z

/test e2e-metal-single-node-live-iso

rhjanders · 2022-01-27T00:53:49Z

/test e2e-aws-workers-rhel8

ardaguclu · 2022-01-27T06:21:05Z

/approve

openshift-ci · 2022-01-27T06:21:38Z

[APPROVALNOTIFIER] This PR is APPROVED

This pull-request has been approved by: ardaguclu, zaneb

The full list of commands accepted by this bot can be found here.

The pull request process is described here

Details

Needs approval from an approver in each of these files:

~~data/data/bootstrap/baremetal/OWNERS~~ [ardaguclu]

Approvers can indicate their approval by writing /approve in a comment
Approvers can cancel approval by writing /approve cancel in a comment

openshift-bot · 2022-01-27T08:55:56Z

/retest-required

Please review the full test history for this PR and help us cut down flakes.

openshift-bot · 2022-01-27T10:08:55Z

/retest-required

Please review the full test history for this PR and help us cut down flakes.

openshift-bot · 2022-01-27T10:56:56Z

/retest-required

Please review the full test history for this PR and help us cut down flakes.

openshift-bot · 2022-01-27T12:21:57Z

/retest-required

Please review the full test history for this PR and help us cut down flakes.

openshift-bot · 2022-01-27T15:09:56Z

/retest-required

Please review the full test history for this PR and help us cut down flakes.

patrickdillon · 2022-01-27T15:19:07Z

alibaba should no longer be required.

/skip

openshift-bot · 2022-01-28T03:20:07Z

/retest-required

Please review the full test history for this PR and help us cut down flakes.

openshift-ci · 2022-01-28T09:42:23Z

@zhouhao3: The following tests failed, say /retest to rerun all failed tests or /retest-required to rerun all mandatory failed tests:

Test name	Commit	Details	Required	Rerun command
ci/prow/e2e-metal-ipi-ovn-dualstack	`df59cb1`	link	false	`/test e2e-metal-ipi-ovn-dualstack`
ci/prow/e2e-metal-single-node-live-iso	`df59cb1`	link	false	`/test e2e-metal-single-node-live-iso`
ci/prow/e2e-aws-workers-rhel8	`df59cb1`	link	false	`/test e2e-aws-workers-rhel8`
ci/prow/e2e-alibaba	`df59cb1`	link	true	`/test e2e-alibaba`

Full PR test history. Your PR dashboard.

Details

Instructions for interacting with me using PR comments are available here. If you have questions or suggestions related to my behavior, please file an issue against the kubernetes/test-infra repository. I understand the commands that are listed here.

openshift-ci · 2022-01-28T09:56:07Z

@zhouhao3: All pull requests linked via external trackers have merged:

Bugzilla bug 2041765 has been moved to the MODIFIED state.

Details

In response to this:

Bug 2041765: Adjust the startup order of httpd container

Instructions for interacting with me using PR comments are available here. If you have questions or suggestions related to my behavior, please file an issue against the kubernetes/test-infra repository.

Adjust the startup order of httpd container

df59cb1

Run the httpd container after the coreos-downloader completes to ensure that the kernel parameters can be added correctly. Signed-off-by: Zhou Hao <[email protected]>

openshift-ci bot requested review from andfasano and celebdor January 17, 2022 09:24

openshift-ci bot added the needs-ok-to-test Indicates a PR that requires an org member to verify it is safe to test. label Jan 17, 2022

hs0210 mentioned this pull request Jan 17, 2022

IPI fails on iRMC servers due to inspect timeout #5504

Closed

openshift-ci bot added the platform/baremetal IPI bare metal hosts platform label Jan 17, 2022

zhouhao3 changed the title ~~Adjust the startup order of httpd container~~ Bug 2041765: Adjust the startup order of httpd container Jan 18, 2022

openshift-ci bot added bugzilla/severity-high Referenced Bugzilla bug's severity is high for the branch this PR is targeting. bugzilla/invalid-bug Indicates that a referenced Bugzilla bug is invalid for the branch this PR is targeting. labels Jan 18, 2022

openshift-ci bot added bugzilla/valid-bug Indicates that a referenced Bugzilla bug is valid for the branch this PR is targeting. and removed bugzilla/invalid-bug Indicates that a referenced Bugzilla bug is invalid for the branch this PR is targeting. labels Jan 18, 2022

zaneb mentioned this pull request Jan 18, 2022

IPI fails on iRMC servers due to the loss of Ignition file #5542

Closed

zhouhao3 closed this Jan 20, 2022

openshift-ci bot reopened this Jan 20, 2022

openshift-ci bot mentioned this pull request Jan 24, 2022

Bug 2041765: irmc: change BootInterface to ipxe openshift/baremetal-operator#200

Merged

zaneb mentioned this pull request Jan 24, 2022

Add coreos.live.rootfs_url boot parameter openshift/ironic-image#253

Closed

openshift-ci bot added ok-to-test Indicates a non-member PR verified by an org member that is safe to test. and removed needs-ok-to-test Indicates a PR that requires an org member to verify it is safe to test. labels Jan 25, 2022

openshift-ci bot assigned derekhiggins Jan 25, 2022

openshift-ci bot added the lgtm Indicates that a PR is ready to be merged. label Jan 25, 2022

openshift-ci bot added the approved Indicates a PR has been approved by an approver from all required OWNERS files. label Jan 27, 2022

openshift-merge-robot merged commit 81ac782 into openshift:master Jan 28, 2022

openshift-ci bot mentioned this pull request Apr 27, 2022

[release-4.10] Bug 2041765: Update BMO vendor #5705

Merged

Bug 2041765: Adjust the startup order of httpd container #5541

Bug 2041765: Adjust the startup order of httpd container #5541

Uh oh!

Conversation

zhouhao3 commented Jan 17, 2022

Uh oh!

openshift-ci bot commented Jan 17, 2022

Uh oh!

rhjanders commented Jan 17, 2022

Uh oh!

rhjanders commented Jan 17, 2022

Uh oh!

zaneb commented Jan 17, 2022

Uh oh!

zhouhao3 commented Jan 18, 2022

Uh oh!

rhjanders commented Jan 18, 2022

Uh oh!

rhjanders commented Jan 18, 2022

Uh oh!

zhouhao3 commented Jan 18, 2022

Uh oh!

zhouhao3 commented Jan 18, 2022

Uh oh!

openshift-ci bot commented Jan 18, 2022

Uh oh!

openshift-ci bot commented Jan 18, 2022

Uh oh!

zaneb commented Jan 18, 2022

Uh oh!

openshift-ci bot commented Jan 18, 2022

Uh oh!

derekhiggins commented Jan 18, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

zhouhao3 commented Jan 19, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

zaneb commented Jan 19, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

zhouhao3 commented Jan 20, 2022

Uh oh!

zhouhao3 commented Jan 20, 2022

Uh oh!

zaneb commented Jan 20, 2022

Uh oh!

openshift-ci bot commented Jan 20, 2022

Uh oh!

openshift-ci bot commented Jan 20, 2022

Uh oh!

rhjanders commented Jan 25, 2022

Uh oh!

derekhiggins commented Jan 25, 2022

Uh oh!

rhjanders commented Jan 26, 2022

Uh oh!

rhjanders commented Jan 27, 2022

Uh oh!

rhjanders commented Jan 27, 2022

Uh oh!

ardaguclu commented Jan 27, 2022

Uh oh!

openshift-ci bot commented Jan 27, 2022

Uh oh!

openshift-bot commented Jan 27, 2022

Uh oh!

openshift-bot commented Jan 27, 2022

Uh oh!

openshift-bot commented Jan 27, 2022

Uh oh!

openshift-bot commented Jan 27, 2022

Uh oh!

openshift-bot commented Jan 27, 2022

Uh oh!

patrickdillon commented Jan 27, 2022

Uh oh!

openshift-bot commented Jan 28, 2022

Uh oh!

openshift-ci bot commented Jan 28, 2022

derekhiggins commented Jan 18, 2022 •

edited

Loading

zhouhao3 commented Jan 19, 2022 •

edited

Loading

zaneb commented Jan 19, 2022 •

edited

Loading
