Make '-x' a PRTE personality CLI option

[jjhursey]

• Fixes Make -x a core prte CLI option #801
• Move the -x handling from the ompi personality to the prte personality

[jjhursey]

shell$ env FOO=bar prterun -x FOO -n 1  env | grep FOO
FOO=bar
shell$ env FOO=bar prterun -x FOO=baz  -n 1  env | grep FOO
FOO=baz

shell$ prte --daemonize
shell$ env FOO=bar prun -x FOO --mca schizo_base_personalities prte -n 1  env | grep FOO
FOO=bar
shell$ env FOO=bar prun -x FOO=baz --mca schizo_base_personalities prte -n 1  env | grep FOO
FOO=baz
shell$ pterm

I did notice the with prun I needed to explicitly set the prte personality for the schizo/prte to be active for that job. Is that expected? Nevermind - that was a bug in my testing

shell$ prte --daemonize
shell$ env FOO=bar prun -x FOO  -n 1  env | grep FOO
shell$ env FOO=bar prun -x FOO --mca schizo_base_personalities prte -n 1  env | grep FOO
FOO=bar
shell$ pterm

[jjhursey]

@acolinisi This should fix the problem you were working on in PR #795

[jjhursey]

Some documentation on expected behavior. I'll add something to the man page with this PR, but want to preview it here in case there are any objections.

I was working towards behavior parity with Open MPI v4.1.x. The PRRTE output below represents the current behavior in this branch without having to specify the personality. I'm working on the prun side now.

Open MPI v4.1.x

shell$ mpirun --version
mpirun (Open MPI) 4.1.1rc1

Report bugs to http://www.open-mpi.org/community/help/

Default: Do not forward envars (except for MCA)

shell$ env FOO=bar mpirun -n 1 env | grep FOO

Forward version from environment (warn if not present)

shell$ env FOO=bar mpirun -n 1 -x FOO  env | grep FOO
FOO=bar
shell$ env FOO=bar mpirun -n 1 -x FOO1  env | grep FOO
[c712f6n01:117477] Warning: could not find environment variable "FOO1"

Allow command line to override the environment

shell$ env FOO=bar mpirun -n 1 -x FOO=baz  env | grep FOO
FOO=baz

If multiple '-x' options match the same parameter then the last takes precedence

shell$ env FOO=bar mpirun -n 1 -x FOO=baz  env | grep FOO
FOO=baz
shell$ env FOO=bar mpirun -n 1 -x FOO=baz -x FOO env | grep FOO
FOO=bar
shell$ env FOO=bar mpirun -n 1 -x FOO=baz -x FOO -x FOO=bip env | grep FOO
FOO=bip
shell$ env FOO=bar mpirun -n 1 -x FOO=baz -x FOO -x FOO=bip -x FOO env | grep FOO
FOO=bar

PRRTE master

shell$ prterun --version
prterun (PMIx Reference RunTime Environment) 2.0.0a1

Report bugs to https://github.com/openpmix/prte/

Default: Do not forward envars (except for MCA)

shell$ env FOO=bar prterun -n 1 env | grep FOO

Forward version from environment (warn if not present)

shell$ env FOO=bar prterun -n 1 -x FOO  env | grep FOO
FOO=bar
shell$ env FOO=bar prterun -n 1 -x FOO1  env | grep FOO
--------------------------------------------------------------------------
WARNING: Could not find the environment variable: FOO1
--------------------------------------------------------------------------

Allow command line to override the environment

shell$ env FOO=bar prterun -n 1 -x FOO=baz  env | grep FOO
FOO=baz

If multiple '-x' options match the same parameter then the last takes precedence

shell$ env FOO=bar prterun -n 1 -x FOO=baz  env | grep FOO
FOO=baz
shell$ env FOO=bar prterun -n 1 -x FOO=baz -x FOO env | grep FOO
FOO=bar
shell$ env FOO=bar prterun -n 1 -x FOO=baz -x FOO -x FOO=bip env | grep FOO
FOO=bip
shell$ env FOO=bar prterun -n 1 -x FOO=baz -x FOO -x FOO=bip -x FOO env | grep FOO
FOO=bar

Different rule for MCA parameters

shell$ env PRTE_MCA_FOO=bar prterun -n 1 -x PRTE_MCA_FOO=123 env | grep FOO
--------------------------------------------------------------------------
Error: an MCA parameter was listed more than once on the command line, or
multiple times in one or more files, but with conflicting values:

  Param:  PRTE_MCA_FOO
  Value:  123
  Value:  bar

We cannot determine which value was intended, and therefore are unable to proceed.
Please correct your command line.
--------------------------------------------------------------------------
shell$ prterun -n 1 -x PRTE_MCA_FOO=bip -x PRTE_MCA_FOO=123 env | grep FOO
--------------------------------------------------------------------------
Error: an MCA parameter was listed more than once on the command line, or
multiple times in one or more files, but with conflicting values:

  Param:  PRTE_MCA_FOO
  Value:  123
  Value:  bip

We cannot determine which value was intended, and therefore are unable to proceed.
Please correct your command line.
--------------------------------------------------------------------------

Note that the below is redundant since we automatically forward MCA parameters

shell$ env PRTE_MCA_FOO=bar prterun -n 1 env | grep FOO
PRTE_MCA_FOO=bar
shell$ env PRTE_MCA_FOO=bar prterun -n 1 -x PRTE_MCA_FOO env | grep FOO
PRTE_MCA_FOO=bar

[jjhursey]

This also works correctly with prun

shell$ prte --daemonize
shell$ env FOO=bar prun -n 1 env | grep FOO
shell$ env FOO=bar prun -n 1 -x FOO env | grep FOO
FOO=bar
shell$ env FOO=bar prun -n 1 -x FOO=baz env | grep FOO
FOO=baz
shell$ pterm

[rhc54]

This looks fine - thanks for doing it!

prun should not require the prte personality - even though it doesn't call prte_init, it is still a PRRTE tool.

We will probably have to do something about -x in the OMPI personality as there is some cross-talk between it and the --tune option. Can look at that as a separate problem.

This will conflict with my schizo refactor branch (where I fully separate out the command lines), but I'll take care of it once this is merged.

[jjhursey]

I think this is ready now. I just pushed a clarification to the man page - no code changes since Ralph's review.

The prun personality thing was a red herring. I had a bug in the code that I fixed this morning.

[rhc54]

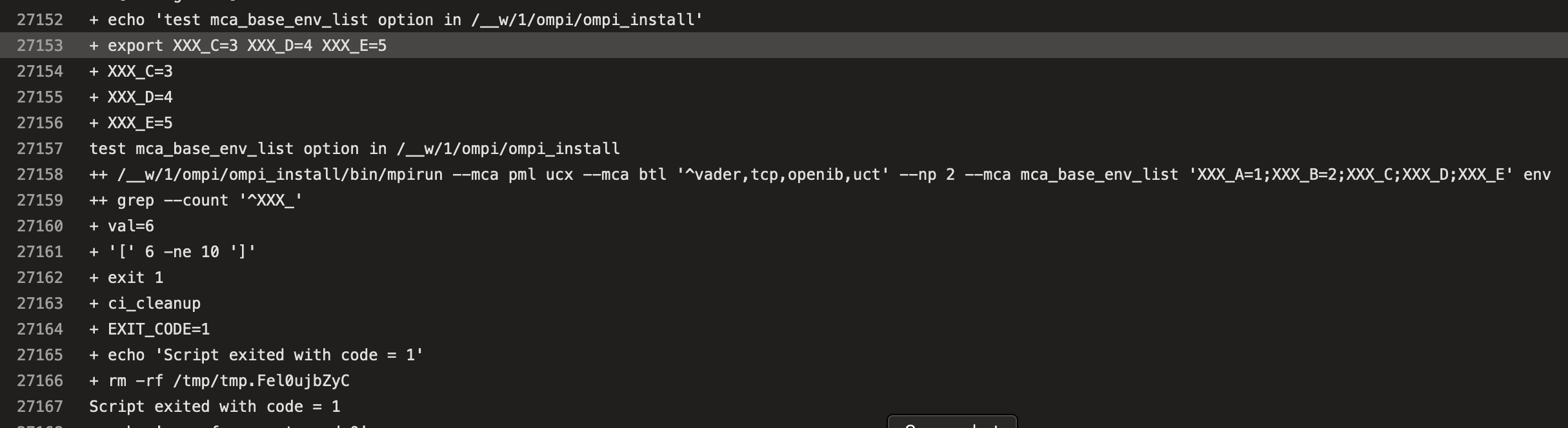

I was afraid of this - the OMPI cmd line parsing wrt envars is a horrid mess, and this change broke the expected behavior for Mellanox:

I'll restore the original -x processing in OMPI in my schizo cleanup branch where we completely separate the personalities instead of layering them like we do here.

[jjhursey]

Wow. OMPI v5 is a good time for them to fix that, but that's for them to discuss.

As long as we preserve the -x option for PRRTE's core personality (so we can use it with prun and prterun - and maybe prte) I'm ok with that.

[rhc54]

Yeah, I can preserve it. What I'm doing is ensuring that only one schizo component gets to define and parse the cmd line. That way OMPI can do whatever the heck it wants without worries about cross-talk with PRRTE, and vice-versa. It's the only solution I could come up with. I've had the argument about all this envar/tune crud - not worth revisiting. There is too much history already out there that would break if we force the required changes.

[jjhursey]

Ref: #413
