Optimize batch span processor

Description:
Batch span processor currently is aggressive in the sense that any new spans are sent to the exporter,
this involves lots of overhead from signalling under heavy load and overhead from constant polling by exporter thread
under less load.

This approach uses a multi producer and single consumer bounded concurrent queue. Worker threads add the spans to the queue and signal the exporter when the queue size reaches maxExportBatchSize, exporter thread copies the queue into an array and initiates IO.

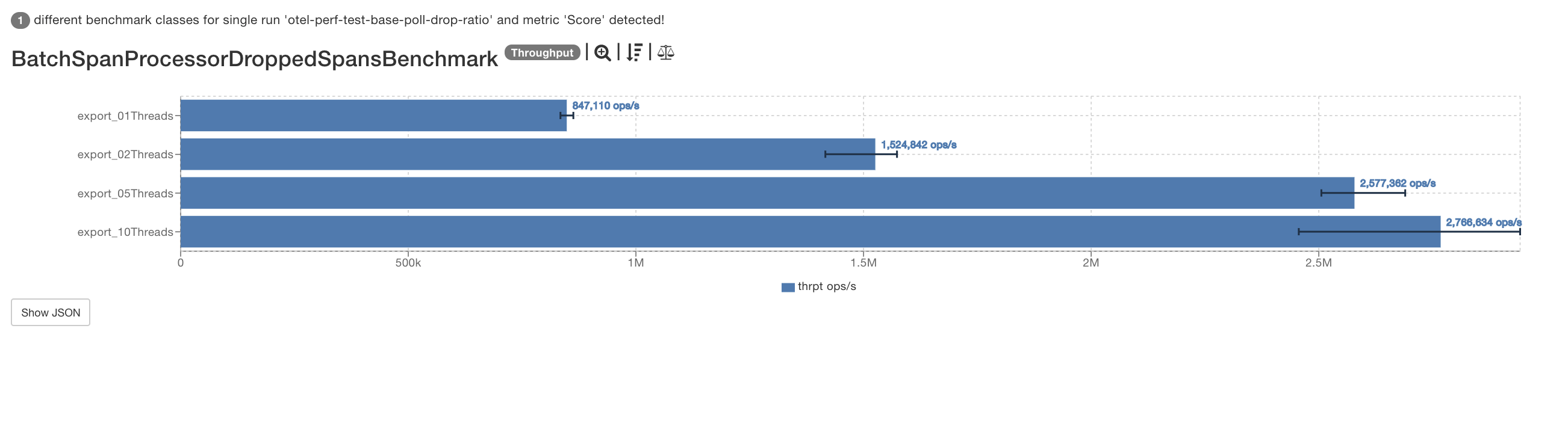

![image](https://user-images.githubusercontent.com/62265954/110030822-03551b00-7ceb-11eb-89e8-4c5107fe434e.png)

![image](https://user-images.githubusercontent.com/62265954/110030844-094afc00-7ceb-11eb-8973-886f9982e8fe.png)

Context and more benchmarking results are in #2968.

dependencyManagement/build.gradle.kts

@@ -92,6 +92,7 @@ val DEPENDENCIES = listOf(
         "org.awaitility:awaitility:4.0.3",
         "org.codehaus.mojo:animal-sniffer-annotations:1.20",
         "org.curioswitch.curiostack:protobuf-jackson:1.2.0",
+        "org.jctools:jctools-core:3.2.0",
         "org.junit-pioneer:junit-pioneer:1.3.8",
         "org.skyscreamer:jsonassert:1.5.0",
         "org.slf4j:slf4j-simple:1.7.30"

sdk-extensions/autoconfigure/build.gradle.kts

@@ -39,6 +39,7 @@ dependencies {
     testImplementation(project(":sdk:testing"))
     testImplementation("com.linecorp.armeria:armeria-junit5")
     testImplementation("com.linecorp.armeria:armeria-grpc")
+    testImplementation("org.jctools:jctools-core")
     testRuntimeOnly("io.grpc:grpc-netty-shaded")
     testRuntimeOnly("org.slf4j:slf4j-simple")


sdk-extensions/autoconfigure/src/test/java/io/opentelemetry/sdk/autoconfigure/TracerProviderConfigurationTest.java

@@ -19,8 +19,8 @@
 import java.util.Collections;
 import java.util.HashMap;
 import java.util.Map;
-import java.util.concurrent.ArrayBlockingQueue;
 import java.util.concurrent.TimeUnit;
+import org.jctools.queues.MpscArrayQueue;
 import org.junit.jupiter.api.Test;
 import org.junit.jupiter.api.extension.ExtendWith;
 import org.mockito.Mock;
@@ -86,8 +86,8 @@ void configureSpanProcessor_empty() {
                 assertThat(worker)
                     .extracting("queue")
                     .isInstanceOfSatisfying(
-                        ArrayBlockingQueue.class,
-                        queue -> assertThat(queue.remainingCapacity()).isEqualTo(2048));
+                        MpscArrayQueue.class,
+                        queue -> assertThat(queue.capacity()).isEqualTo(2048));
                 assertThat(worker).extracting("spanExporter").isEqualTo(exporter);
               });
     } finally {
@@ -122,8 +122,7 @@ void configureSpanProcessor_configured() {
                 assertThat(worker)
                     .extracting("queue")
                     .isInstanceOfSatisfying(
-                        ArrayBlockingQueue.class,
-                        queue -> assertThat(queue.remainingCapacity()).isEqualTo(2));
+                        MpscArrayQueue.class, queue -> assertThat(queue.capacity()).isEqualTo(2));
                 assertThat(worker).extracting("spanExporter").isEqualTo(exporter);
               });
     } finally {

sdk/trace/build.gradle.kts

@@ -45,6 +45,7 @@ dependencies {
     jmh("io.grpc:grpc-api")
     jmh("io.grpc:grpc-netty-shaded")
     jmh("org.testcontainers:testcontainers") // testContainer for OTLP collector
+    implementation("org.jctools:jctools-core")
 }

 sourceSets {

sdk/trace/src/main/java/io/opentelemetry/sdk/trace/export/BatchSpanProcessor.java

@@ -18,14 +18,15 @@
 import io.opentelemetry.sdk.trace.SpanProcessor;
 import io.opentelemetry.sdk.trace.data.SpanData;
 import java.util.ArrayList;
-import java.util.Collections;
-import java.util.concurrent.ArrayBlockingQueue;
-import java.util.concurrent.BlockingQueue;
+import java.util.Collection;
 import java.util.concurrent.TimeUnit;
 import java.util.concurrent.atomic.AtomicBoolean;
 import java.util.concurrent.atomic.AtomicReference;
+import java.util.concurrent.locks.Condition;
+import java.util.concurrent.locks.ReentrantLock;
 import java.util.logging.Level;
 import java.util.logging.Logger;
+import org.jctools.queues.MpscArrayQueue;

 /**
  * Implementation of the {@link SpanProcessor} that batches spans exported by the SDK then pushes
@@ -72,7 +73,7 @@ public static BatchSpanProcessorBuilder builder(SpanExporter spanExporter) {
             scheduleDelayNanos,
             maxExportBatchSize,
             exporterTimeoutNanos,
-            new ArrayBlockingQueue<>(maxQueueSize));
+            new MpscArrayQueue<ReadableSpan>(maxQueueSize));
     Thread workerThread = new DaemonThreadFactory(WORKER_THREAD_NAME).newThread(worker);
     workerThread.start();
   }
@@ -113,7 +114,7 @@ public CompletableResultCode forceFlush() {

   // Visible for testing
   ArrayList<SpanData> getBatch() {
-    return worker.batch;
+    return new ArrayList<>(worker.batch);
   }

   // Worker is a thread that batches multiple spans and calls the registered SpanExporter to export
@@ -128,26 +129,27 @@ private static final class Worker implements Runnable {
     private final long scheduleDelayNanos;
     private final int maxExportBatchSize;
     private final long exporterTimeoutNanos;
-
     private long nextExportTime;
-
-    private final BlockingQueue<ReadableSpan> queue;
-
+    private final MpscArrayQueue<ReadableSpan> queue;
     private final AtomicReference<CompletableResultCode> flushRequested = new AtomicReference<>();
     private volatile boolean continueWork = true;
-    private final ArrayList<SpanData> batch;
+    private final Collection<SpanData> batch;
+    private final ReentrantLock lock;
+    private final Condition needExport;

     private Worker(
         SpanExporter spanExporter,
         long scheduleDelayNanos,
         int maxExportBatchSize,
         long exporterTimeoutNanos,
-        BlockingQueue<ReadableSpan> queue) {
+        MpscArrayQueue<ReadableSpan> queue) {
       this.spanExporter = spanExporter;
       this.scheduleDelayNanos = scheduleDelayNanos;
       this.maxExportBatchSize = maxExportBatchSize;
       this.exporterTimeoutNanos = exporterTimeoutNanos;
       this.queue = queue;
+      this.lock = new ReentrantLock();
+      this.needExport = lock.newCondition();
       Meter meter = GlobalMetricsProvider.getMeter("io.opentelemetry.sdk.trace");
       meter
           .longValueObserverBuilder("queueSize")
@@ -181,27 +183,38 @@ private void addSpan(ReadableSpan span) {
       if (!queue.offer(span)) {
         droppedSpans.add(1);
       }
+      if (queue.size() >= maxExportBatchSize) {
+        lock.lock();
+        try {
+          needExport.signal();
+        } finally {
+          lock.unlock();
+        }
+      }
     }

     @Override
     public void run() {
       updateNextExportTime();
-
       while (continueWork) {
         if (flushRequested.get() != null) {
           flush();
         }
-
+        lock.lock();
         try {
-          ReadableSpan lastElement = queue.poll(100, TimeUnit.MILLISECONDS);
-          if (lastElement != null) {
-            batch.add(lastElement.toSpanData());
+          long pollWaitTime = nextExportTime - System.nanoTime();
+          if (pollWaitTime > 0) {
+            needExport.awaitNanos(pollWaitTime);
           }
         } catch (InterruptedException e) {
           Thread.currentThread().interrupt();
           return;
+        } finally {
+          lock.unlock();
+        }
+        while (!queue.isEmpty() && batch.size() < maxExportBatchSize) {
+          batch.add(queue.poll().toSpanData());
         }
-
         if (batch.size() >= maxExportBatchSize || System.nanoTime() >= nextExportTime) {
           exportCurrentBatch();
           updateNextExportTime();
@@ -210,12 +223,8 @@ public void run() {
     }

     private void flush() {
-      int spansToFlush = queue.size();
-      while (spansToFlush > 0) {
-        ReadableSpan span = queue.poll();
-        assert span != null;
-        batch.add(span.toSpanData());
-        spansToFlush--;
+      while (!queue.isEmpty()) {
+        batch.add(queue.poll().toSpanData());
         if (batch.size() >= maxExportBatchSize) {
           exportCurrentBatch();
         }
@@ -252,8 +261,15 @@ private CompletableResultCode shutdown() {

     private CompletableResultCode forceFlush() {
       CompletableResultCode flushResult = new CompletableResultCode();
-      // we set the atomic here to trigger the worker loop to do a flush on its next iteration.
-      flushRequested.compareAndSet(null, flushResult);
+      // we set the atomic here to trigger the worker loop to do a flush of the entire queue.
+      if (flushRequested.compareAndSet(null, flushResult)) {
+        lock.lock();
+        try {
+          needExport.signal();
+        } finally {
+          lock.unlock();
+        }
+      }
       CompletableResultCode possibleResult = flushRequested.get();
       // there's a race here where the flush happening in the worker loop could complete before we
       // get what's in the atomic. In that case, just return success, since we know it succeeded in
@@ -267,8 +283,7 @@ private void exportCurrentBatch() {
       }

       try {
-        final CompletableResultCode result =
-            spanExporter.export(Collections.unmodifiableList(batch));
+        final CompletableResultCode result = spanExporter.export(batch);
         result.join(exporterTimeoutNanos, TimeUnit.NANOSECONDS);
         if (result.isSuccess()) {
           exportedSpans.add(batch.size());
