4.Netty核心之Netty高性能之道.md

Netty高性能之道

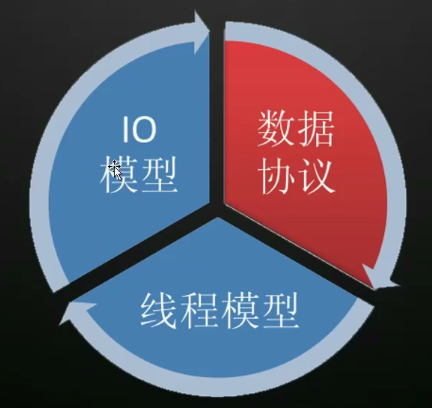

高性能的三个主题

零拷贝

1、接受和发送ByteBuffer使用堆外直接内存进行Socket读写。

2、提供了组合Buffer对象，可以聚合多个ByteBuffer对象。

3、transferTo直接将文件缓冲区的数据发送到目标Channel。

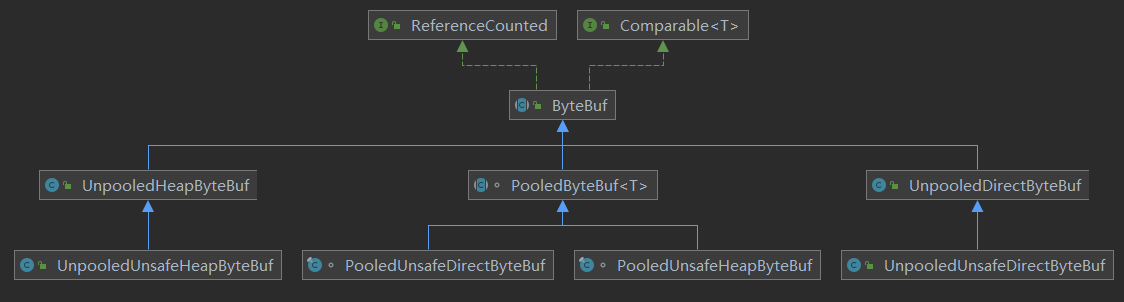

内存池

1、Pooled和UnPooled（池化和非池化）

2、UnSafe和非UnSafe（底层读写与应用程序读写）

3、Heap和Direct（堆内存和对外内存）

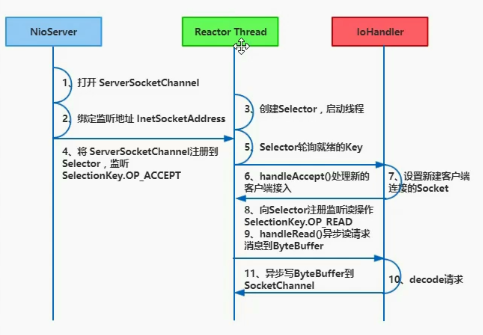

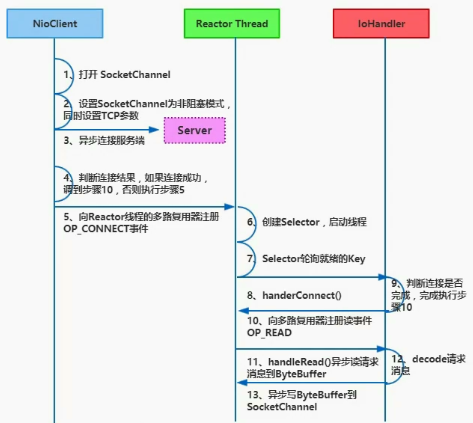

高效的Reactor线程模型

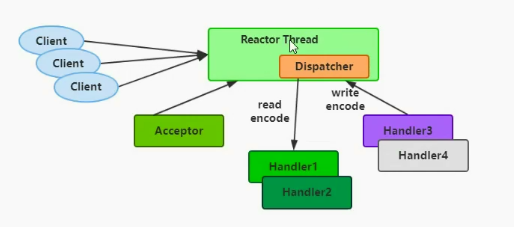

1、Reactor单线程模型

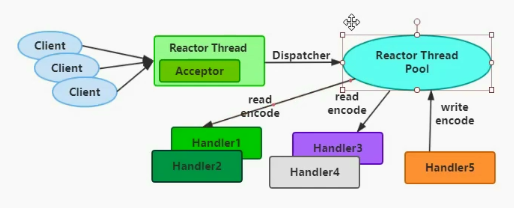

2、Reactor多线程模型

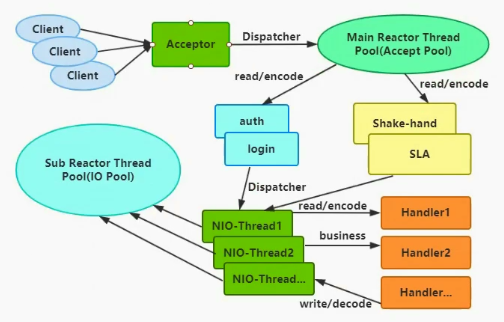

3、主从Reactor多线程模型

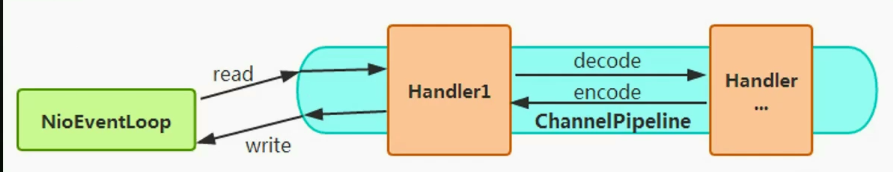

无锁串行化设计

Netty高效并发编程的主要体现

1、volatile的大量、正确使用；

2、CAS和原子类的广泛使用；

3、线程安全容器的使用；

4、通过读写锁提升并发性能。

影响序列化性能的关键因素如下：

1、序列化后的码流大小（网络带宽的占用）；

2、序列化&反序列化的性能（CPU资源占用）；

3、是否支持跨语言（异构系统的对接和开发语言切换）

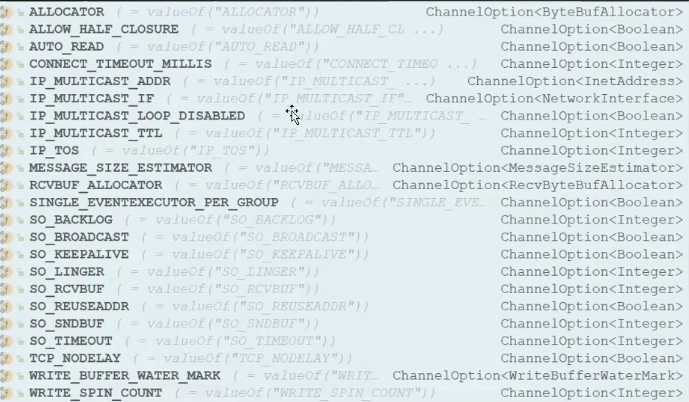

灵活的TCP参数配置能力

Netty核心组件之Channel启动

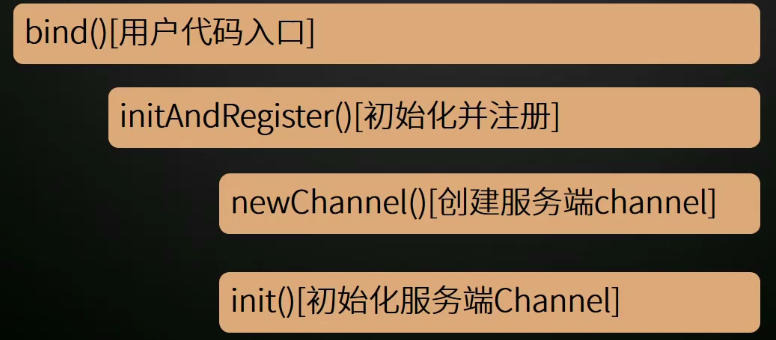

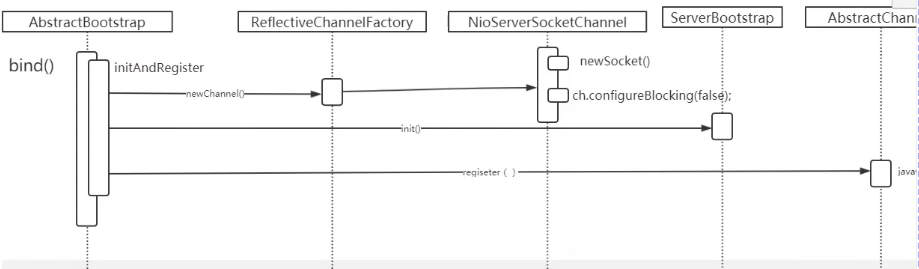

服务端启动核心路径总结

• NewChannel()创建Channel对象



      public T newChannel() {
          try {
              return constructor.newInstance();
          } catch (Throwable t) {
              throw new ChannelException("Unable to create Channel from class " + constructor.getDeclaringClass(), t);
          }
      }

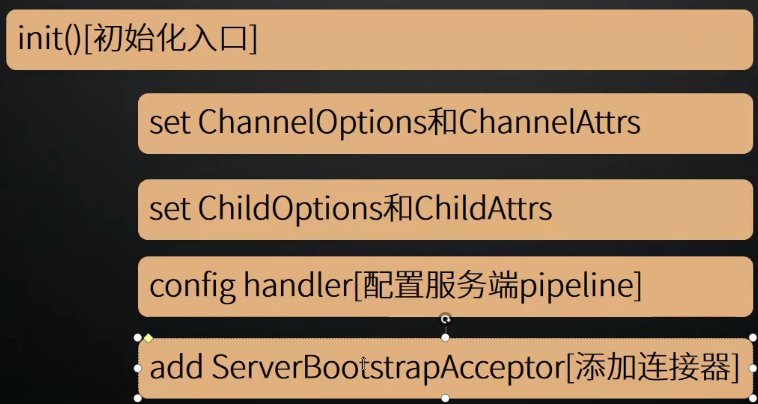

• init()初始化预设参数

  // ServerBootstrap.java
  void init(Channel channel) {
          setChannelOptions(channel, options0().entrySet().toArray(newOptionArray(0)), logger);
          setAttributes(channel, attrs0().entrySet().toArray(newAttrArray(0)));

          ChannelPipeline p = channel.pipeline();

          final EventLoopGroup currentChildGroup = childGroup;
          final ChannelHandler currentChildHandler = childHandler;
          final Entry<ChannelOption<?>, Object>[] currentChildOptions =
                  childOptions.entrySet().toArray(newOptionArray(0));
          final Entry<AttributeKey<?>, Object>[] currentChildAttrs = childAttrs.entrySet().toArray(newAttrArray(0));

          p.addLast(new ChannelInitializer<Channel>() {
              @Override
              public void initChannel(final Channel ch) {
                  final ChannelPipeline pipeline = ch.pipeline();
                  ChannelHandler handler = config.handler();
                  if (handler != null) {
                      pipeline.addLast(handler);
                  }

                  ch.eventLoop().execute(new Runnable() {
                      @Override
                      public void run() {
                          pipeline.addLast(new ServerBootstrapAcceptor(
                                  ch, currentChildGroup, currentChildHandler, currentChildOptions, currentChildAttrs));
                      }
                  });
              }
          });
      }

     // NioServerSocketChannel.java
     public NioServerSocketChannel(ServerSocketChannel channel) {
          super(null, channel, SelectionKey.OP_ACCEPT);
          config = new NioServerSocketChannelConfig(this, javaChannel().socket());
      }

  // AbstractChannel.java
  protected AbstractChannel(Channel parent) {
          this.parent = parent;
          id = newId();
          unsafe = newUnsafe();
          pipeline = newChannelPipeline();
      }

• doBind()绑定端口

  private ChannelFuture doBind(final SocketAddress localAddress) {
          final ChannelFuture regFuture = initAndRegister();
          final Channel channel = regFuture.channel();
          if (regFuture.cause() != null) {
              return regFuture;
          }

          if (regFuture.isDone()) {
              // At this point we know that the registration was complete and successful.
              ChannelPromise promise = channel.newPromise();
              doBind0(regFuture, channel, localAddress, promise);
              return promise;
          } else {
              // Registration future is almost always fulfilled already, but just in case it's not.
              final PendingRegistrationPromise promise = new PendingRegistrationPromise(channel);
              regFuture.addListener(new ChannelFutureListener() {
                  @Override
                  public void operationComplete(ChannelFuture future) throws Exception {
                      Throwable cause = future.cause();
                      if (cause != null) {
                          // Registration on the EventLoop failed so fail the ChannelPromise directly to not cause an
                          // IllegalStateException once we try to access the EventLoop of the Channel.
                          promise.setFailure(cause);
                      } else {
                          // Registration was successful, so set the correct executor to use.
                          // See https://github.com/netty/netty/issues/2586
                          promise.registered();

                          doBind0(regFuture, channel, localAddress, promise);
                      }
                  }
              });
              return promise;
          }
      }

      final ChannelFuture initAndRegister() {
          Channel channel = null;
          try {
              channel = channelFactory.newChannel();
              init(channel);
          } catch (Throwable t) {
              if (channel != null) {
                  // channel can be null if newChannel crashed (eg SocketException("too many open files"))
                  channel.unsafe().closeForcibly();
                  // as the Channel is not registered yet we need to force the usage of the GlobalEventExecutor
                  return new DefaultChannelPromise(channel, GlobalEventExecutor.INSTANCE).setFailure(t);
              }
              // as the Channel is not registered yet we need to force the usage of the GlobalEventExecutor
              return new DefaultChannelPromise(new FailedChannel(), GlobalEventExecutor.INSTANCE).setFailure(t);
          }

          ChannelFuture regFuture = config().group().register(channel);
          if (regFuture.cause() != null) {
              if (channel.isRegistered()) {
                  channel.close();
              } else {
                  channel.unsafe().closeForcibly();
              }
          }

          // If we are here and the promise is not failed, it's one of the following cases:
          // 1) If we attempted registration from the event loop, the registration has been completed at this point.
          //    i.e. It's safe to attempt bind() or connect() now because the channel has been registered.
          // 2) If we attempted registration from the other thread, the registration request has been successfully
          //    added to the event loop's task queue for later execution.
          //    i.e. It's safe to attempt bind() or connect() now:
          //         because bind() or connect() will be executed *after* the scheduled registration task is executed
          //         because register(), bind(), and connect() are all bound to the same thread.

          return regFuture;
      }

• register()注册到Selector

反射创建服务端Channel

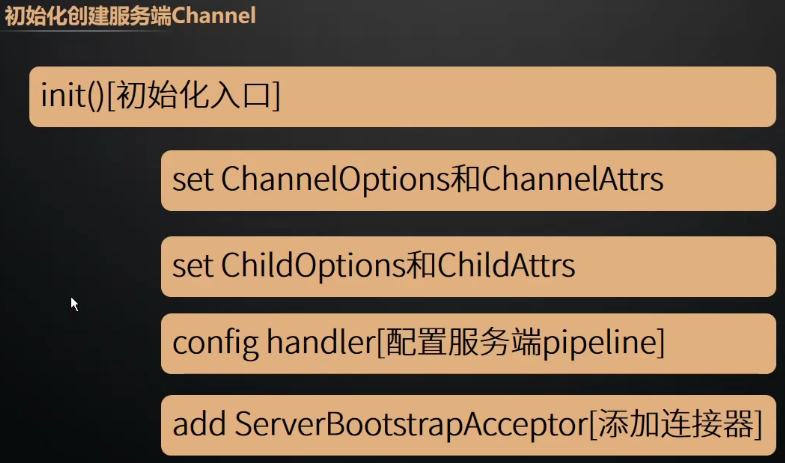

初始化创建服务端Channel

注册Selector

AbstractChannel.this.eventLoop = eventLoop;

// Provider 获得一个Selector
// 把Server注册到一个Selector
// 显式的设置一个ConfigureBlocking(false)
// 调用原生的bind方法

// 注册一个空事件
NioServerSocketChannel
ServerSocketChannel
attr(NioServerSocketChannel)
// 便于扩展

API是原生NIO设计的，又是基于系统网卡设计的

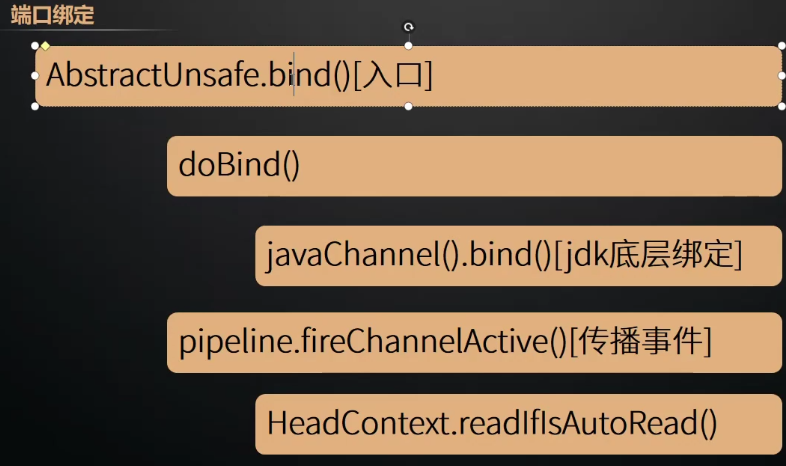

端口绑定
