improve notification on android 12

[Zayankovsky]

Description

With Android 12 we can no longer customize the whole notification area: https://developer.android.com/about/versions/12/behavior-changes-12#custom-notifications. But we can use setColorized to apply background color to the rest on the notification.
Also with Android 12 it is no longer possible to set only those attributes to RemoteViews that changed since the last notification. Since we are creating a new RemoteViews instance every time, we have to set all attributes.
I would appreciate if someone tested this in long trips, as I'm worried about possible performance degradation.

Changelog

<changelog>Fixed notification appearance on Android 12</changelog>

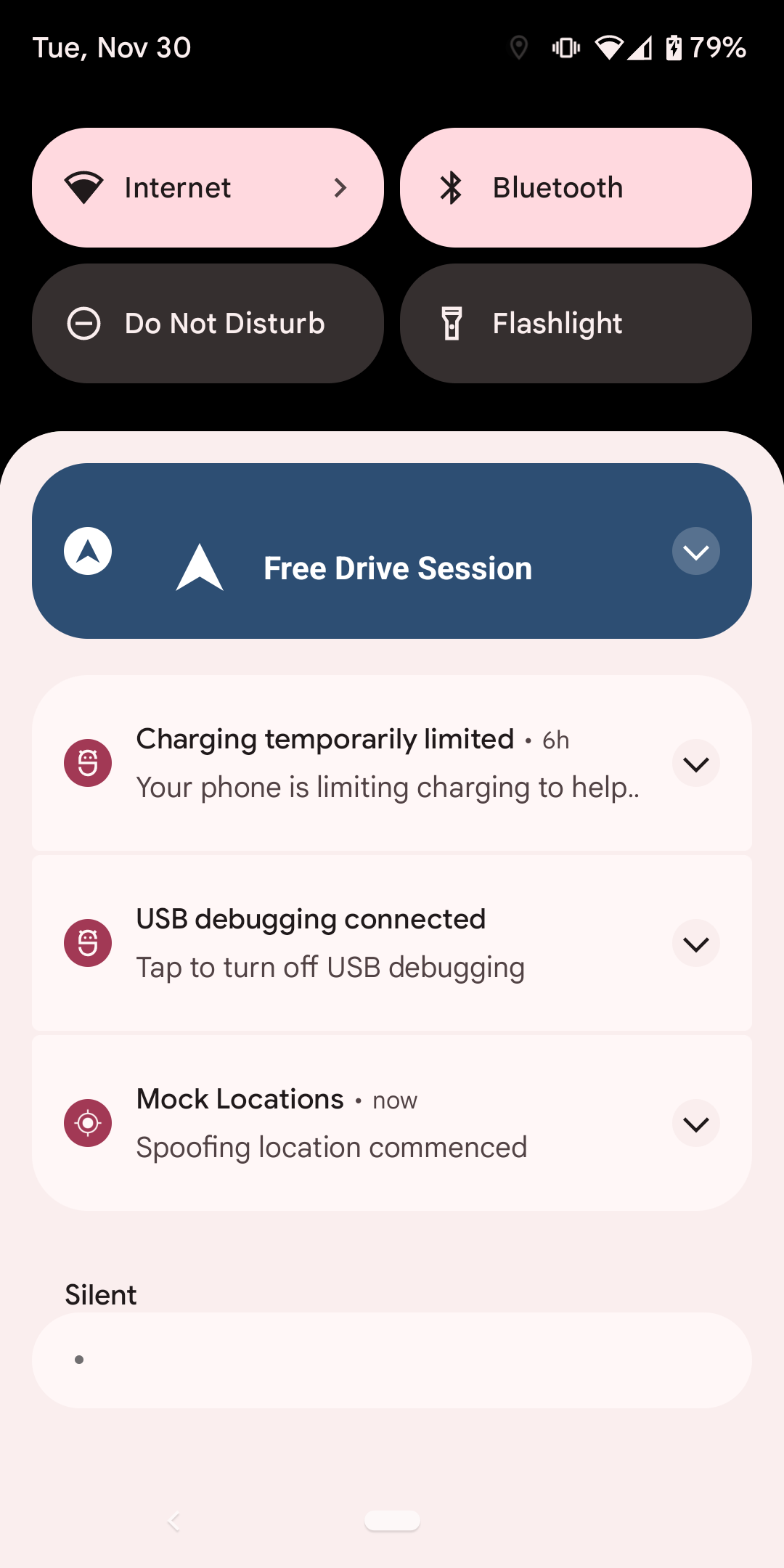

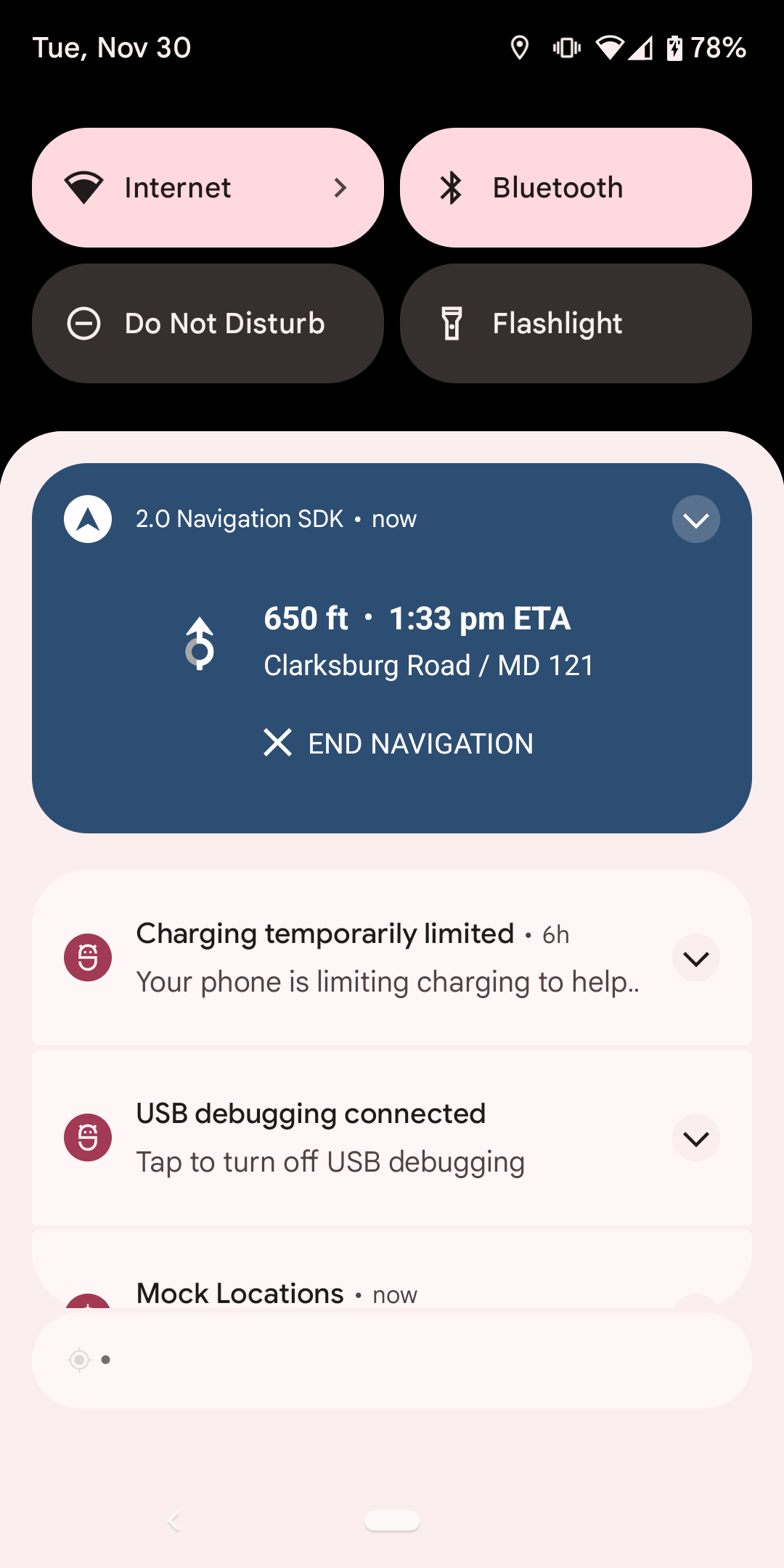

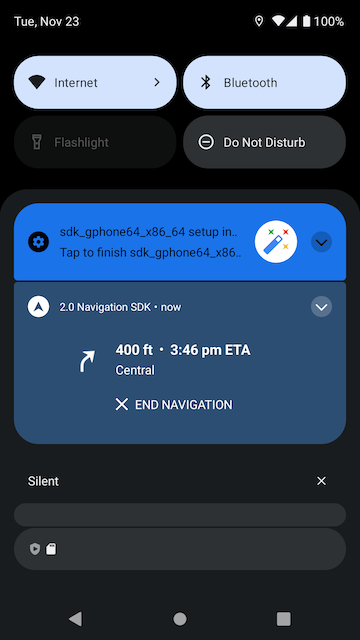

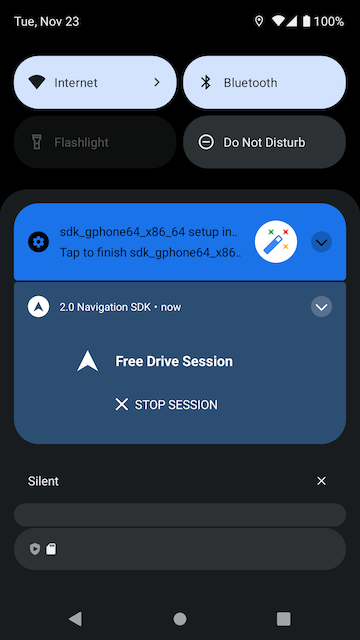

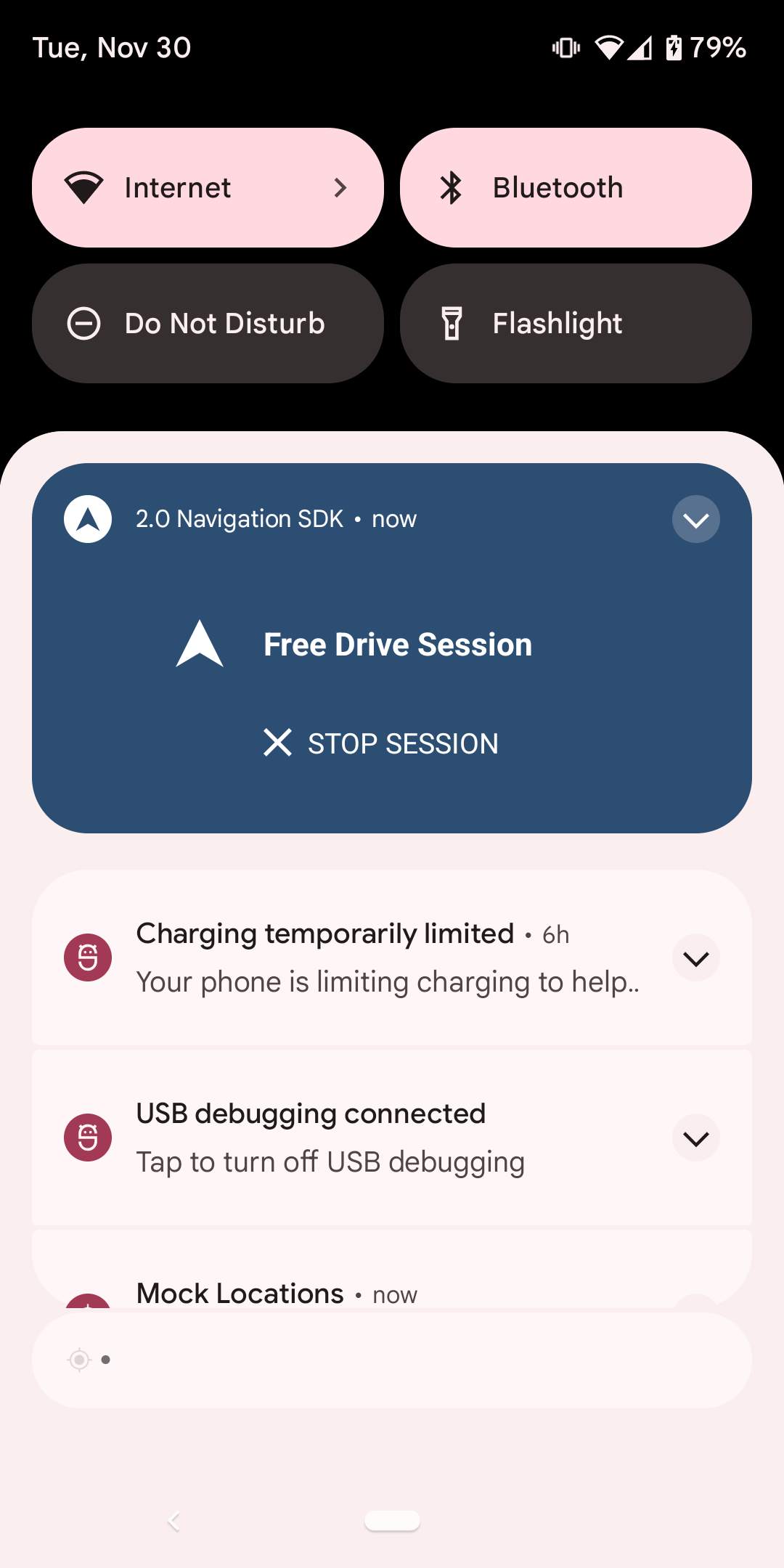

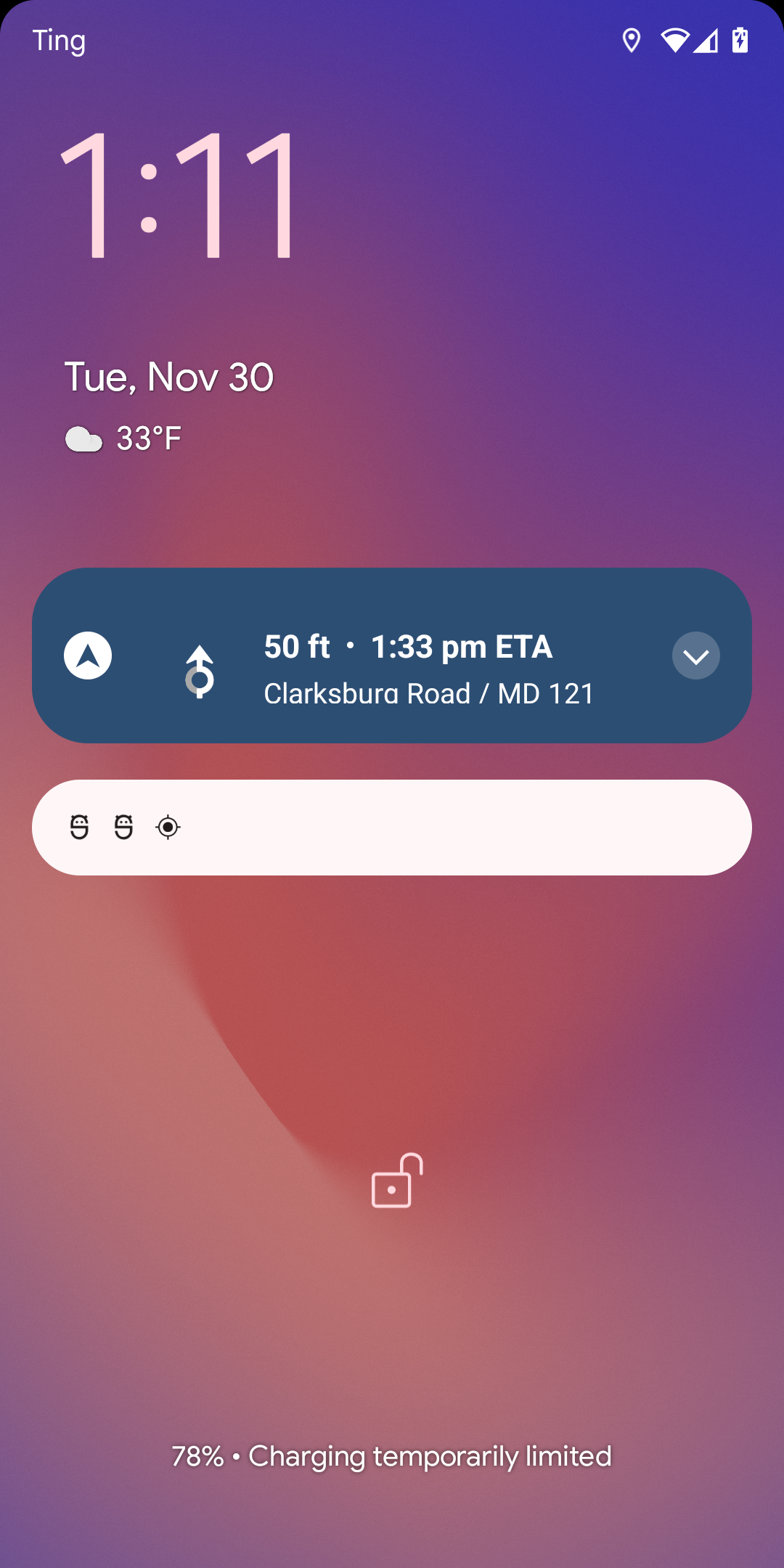

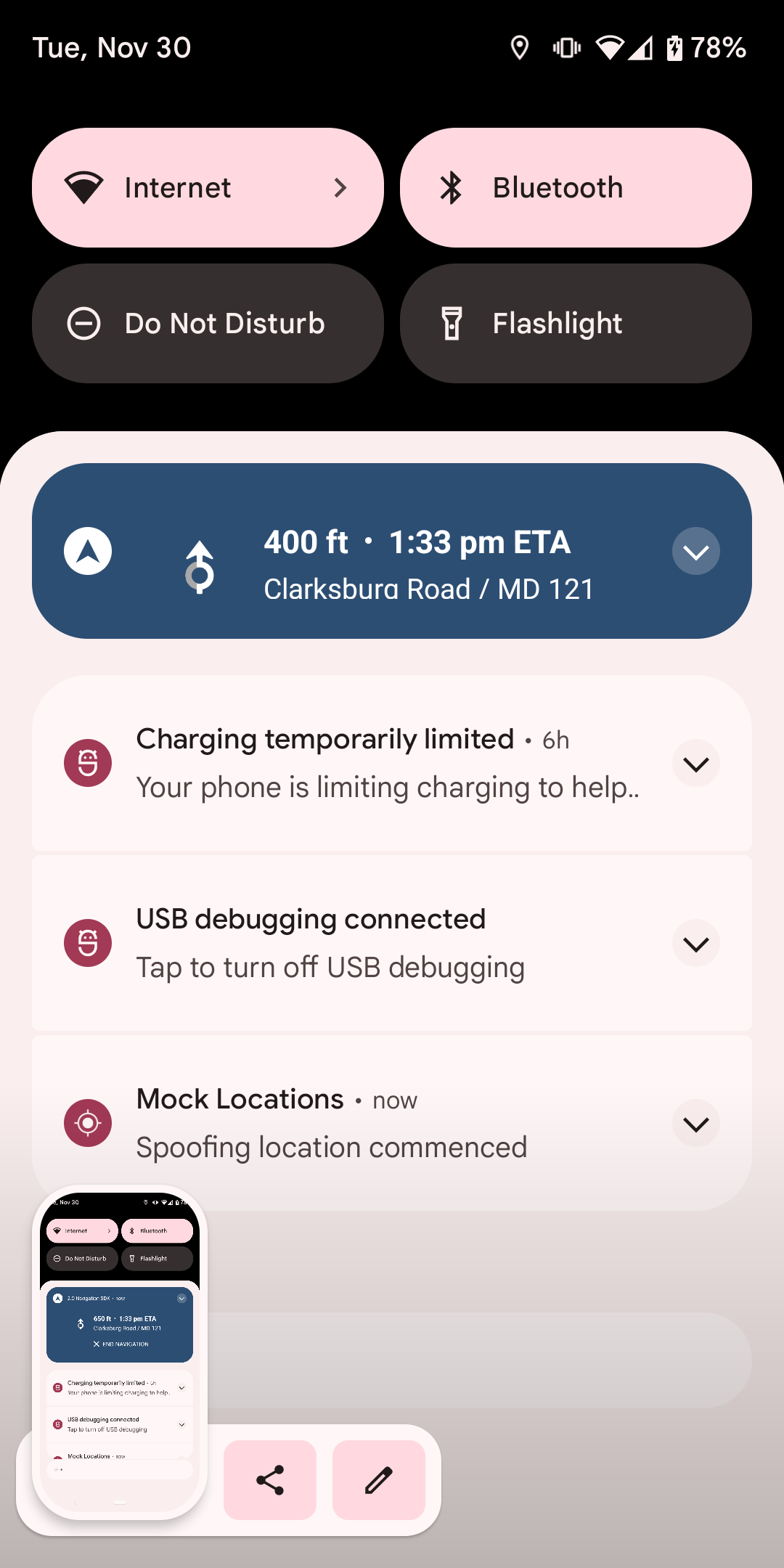

Screenshots or Gifs

[LukasPaczos]

Since we are creating a new RemoteViews instance every time, we have to set all attributes.

Do we need to do that? is there possibly a better way to recycle the bitmaps/actions instead of rebuilding the whole view?

[Zayankovsky]

Since we are creating a new RemoteViews instance every time, we have to set all attributes.

Do we need to do that? is there possibly a better way to recycle the bitmaps/actions instead of rebuilding the whole view?

We actually still cache bitmaps and other stuff, e.g. there is currentManeuverImage in MapboxTripNotification. So we don't redraw the same bitmap over and over.
To be honest I don't understand why this trick of setting only the data that changed works on older Android versions. Since we create a new RemoteViews instance every time, I would expect Android to forget attributes we set for previous RemoteViews. And I haven't seen anywhere in documentation that those attributes are retained.

[Guardiola31337]

To be honest I don't understand why this trick of setting only the data that changed works on older Android versions. Since we create a new RemoteViews instance every time, I would expect Android to forget attributes we set for previous RemoteViews. And I haven't seen anywhere in documentation that those attributes are retained.

Noting that this implementation was added in an attempt to workaround #1188 #1188 (comment) Apparently it's a downstream issue in the RemoteViews, maybe fixed by the latest versions? 🤔

[Guardiola31337]

Took this for a quick spin and so far it's looking good.

I'm currently testing 👇

I would appreciate if someone tested this in long trips, as I'm worried about possible performance degradation.

With Android 12 we can no longer customize the whole notification area: https://developer.android.com/about/versions/12/behavior-changes-12#custom-notifications.

What can we do exactly? I'd love to hear from @avi-c @d-prukop as to how we can improve it from a design standpoint. I personally see the roundabout icons too small now 👀

Also wondering if we can move everything to the left and make it a big bigger (it feels we're not taking advantage of the whole notification area) 👀

In any case, this shouldn't block the PR. We can follow up later.

cc @abhishek1508

[Guardiola31337]

Also noting that I had to bump LeakCanary to 2.7 (and set JDK version to 11+) to workaround the following install error:

11/30 12:57:48: Launching 'examples' on Google Pixel 3.
Installation did not succeed.
The application could not be installed: INSTALL_PARSE_FAILED_MANIFEST_MALFORMED

List of apks:
[0] '/Users/pabloguardiola/mapbox/mapbox-navigation-android/examples/build/outputs/apk/debug/examples-debug.apk'
Installation failed due to: 'Failed to commit install session 656700 with command cmd package install-commit 656700. Error: INSTALL_PARSE_FAILED_MANIFEST_MALFORMED: Failed parse during installPackageLI: /data/app/vmdl656700.tmp/base.apk (at Binary XML file line #241): leakcanary.internal.activity.LeakLauncherActivity: Targeting S+ (version 31 and above) requires that an explicit value for android:exported be defined when intent filters are present'
Retry

[Zayankovsky]

Also wondering if we can move everything to the left and make it a big bigger (it feels we're not taking advantage of the whole notification area) 👀

I reduced paddings for Android 12, since the system already offsets our content.

[Zayankovsky]

Also noting that I had to bump LeakCanary to 2.7 (and set JDK version to 11+) to workaround the following install error:

11/30 12:57:48: Launching 'examples' on Google Pixel 3.
Installation did not succeed.
The application could not be installed: INSTALL_PARSE_FAILED_MANIFEST_MALFORMED

List of apks:
[0] '/Users/pabloguardiola/mapbox/mapbox-navigation-android/examples/build/outputs/apk/debug/examples-debug.apk'
Installation failed due to: 'Failed to commit install session 656700 with command cmd package install-commit 656700. Error: INSTALL_PARSE_FAILED_MANIFEST_MALFORMED: Failed parse during installPackageLI: /data/app/vmdl656700.tmp/base.apk (at Binary XML file line #241): leakcanary.internal.activity.LeakLauncherActivity: Targeting S+ (version 31 and above) requires that an explicit value for android:exported be defined when intent filters are present'
Retry

I removed targetSdkVersion bump for now. You can bump it locally, if you want to test the notification on Android 12.

[LukasPaczos]

I tested on Android 11 and the performance looks acceptable to me.

I replayed a very long route with 10x speed and memory didn't seem to grow and the update time of the notification was taking on average ~4-5ms on my device and is on par with main. Admittedly, this is still a lot of time, especially if we consider 10Hz location signal and effectively a notification update every 100ms. In this case we're looking at ~5% of time of the main thread spent just at updating the notification. However, most of that is spent in the Android SDK's notify which we have no control over.

This is where efforts like #5172 might be very important to limit the updates to the notification that are not essential.
