PR magento/magento2#35535: Magento 2.4.4 Mini cart item images not showing

[craig-bartlett]

• Cast resized image dimensions from floats to integers for GD and ImageMagick as imagecopy expects ints

Description (*)

If images have odd dimensions then when they are resized in the image adapters for GD and ImageMagick the resulting dimensions are stored as floats:

$positionX = $this->_imageSrcWidth / 2 - imagesx($watermark) / 2;

These are later passed to PHP's imagecopy function which expects integers and so throws warnings. This results in the offending image size being missed when generating catalog images. Simply casting the results of the resizing lines to ints fixes this.

$positionX = (int) ($this->_imageSrcWidth / 2 - imagesx($watermark) / 2);

Related Pull Requests

Fixed Issues (if relevant)

1. Fixes Magento 2.4.4 Mini cart item images not showing #35535

Manual testing scenarios (*)

1. As mentioned in the issue thread by @benyatesvortex, this can be tested by running the image resize command manually (bin/magento catalog:image:resize). If either the width or height are odd (and the watermark is even), the result will be a float causing imagecopy() to throw a warning and the image to be skipped.

Questions or comments

Contribution checklist (*)

• Pull request has a meaningful description of its purpose
• All commits are accompanied by meaningful commit messages
• All new or changed code is covered with unit/integration tests (if applicable)
• README.md files for modified modules are updated and included in the pull request if any README.md predefined sections require an update
• All automated tests passed successfully (all builds are green)

[m2-assistant]

Hi @craig-bartlett. Thank you for your contribution
Here are some useful tips how you can test your changes using Magento test environment.
Add the comment under your pull request to deploy test or vanilla Magento instance:

• @magento give me test instance - deploy test instance based on PR changes
• @magento give me 2.4-develop instance - deploy vanilla Magento instance

❗ Automated tests can be triggered manually with an appropriate comment:

• @magento run all tests - run or re-run all required tests against the PR changes
• @magento run <test-build(s)> - run or re-run specific test build(s)
  For example: @magento run Unit Tests

<test-build(s)> is a comma-separated list of build names. Allowed build names are:

1. Database Compare
2. Functional Tests CE
3. Functional Tests EE,
4. Functional Tests B2B
5. Integration Tests
6. Magento Health Index
7. Sample Data Tests CE
8. Sample Data Tests EE
9. Sample Data Tests B2B
10. Static Tests
11. Unit Tests
12. WebAPI Tests
13. Semantic Version Checker

You can find more information about the builds here

ℹ️ Run only required test builds during development. Run all test builds before sending your pull request for review.

For more details, review the Magento Contributor Guide documentation.

⚠️ According to the Magento Contribution requirements, all Pull Requests must go through the Community Contributions Triage process. Community Contributions Triage is a public meeting.

🕙 You can find the schedule on the Magento Community Calendar page.

📞 The triage of Pull Requests happens in the queue order. If you want to speed up the delivery of your contribution, join the Community Contributions Triage session to discuss the appropriate ticket.

✏️ Feel free to post questions/proposals/feedback related to the Community Contributions Triage process to the corresponding Slack Channel

[ihor-sviziev]

@magento run all tests

[magento-automated-testing]

The requested builds are added to the queue. You should be able to see them here within a few minutes. Please re-request them if they don't show in a reasonable amount of time.

[ishakhsuvarov]

Would be nice to cover this with an automated test in case manual QA passes.

[engcom-Lima]

Hi @craig-bartlett ,

Thanks for your contribution and collaboration.

I have tried to reproduce the issue but issue is not reproducible to me.
I have followed below steps to reproduce the issue:

1. Created a product with image having dimensions in odd and with watermark.
2. Add Products to Cart
3. Ran bin/magento catalog:image:resize
4. Open Minicart

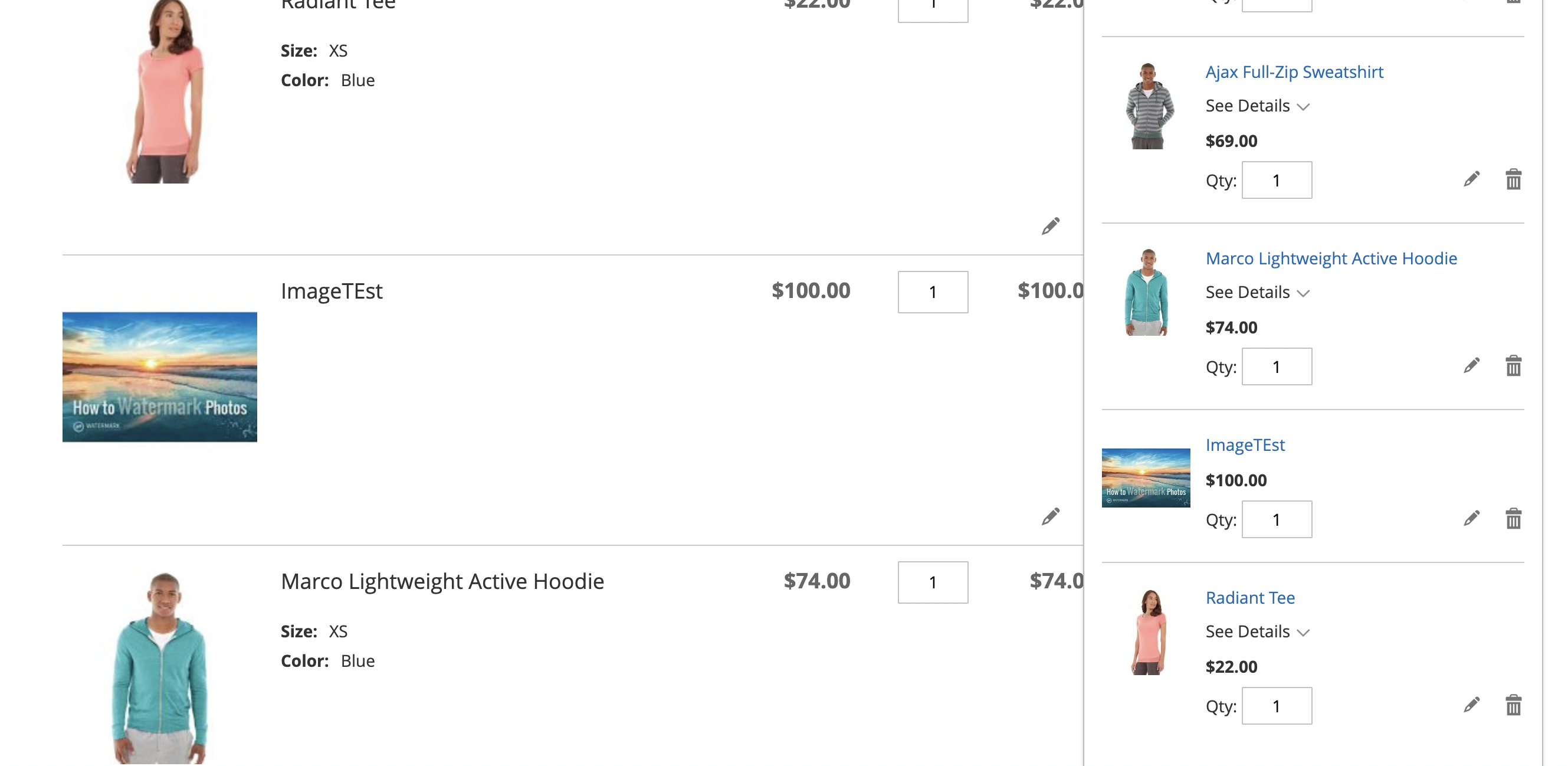

But I am image is displaying in the mini cart. Below is the screenshot for your reference:

Please provide us more information in order to reproduce the issue.

Thanks

[craig-bartlett]

@engcom-Lima Hi, was the instance running PHP 8.1? The theme's image size width or height should be odd and the watermark position must be set to centred. I forgot to mention that last part - it must be set to centred to reach the code in question.

[engcom-Lima]

@magento give me 2.4-develop instance

[magento-deployment-service]

Hi @engcom-Lima. Thank you for your request. I'm working on Magento instance for you.

[magento-deployment-service]

Hi @engcom-Lima, here is your Magento Instance: https://11e9c13494e8747f38fd6ea269b46e26.instances.magento-community.engineering
Admin access: https://11e9c13494e8747f38fd6ea269b46e26.instances.magento-community.engineering/admin_4ffe
Login: 1ce70b8a
Password: dcf3288f9866

[engcom-Lima]

Hi @craig-bartlett ,

Thanks for your contribution and collaboration.

I have tried to reproduce the issue but issue is not reproducible to me. I am testing it on 2.4-develop with PHP 8.1 . Also checked in Magento with and without sample data.
Below are the images which I have used as sample for testing:

---

---

---

---

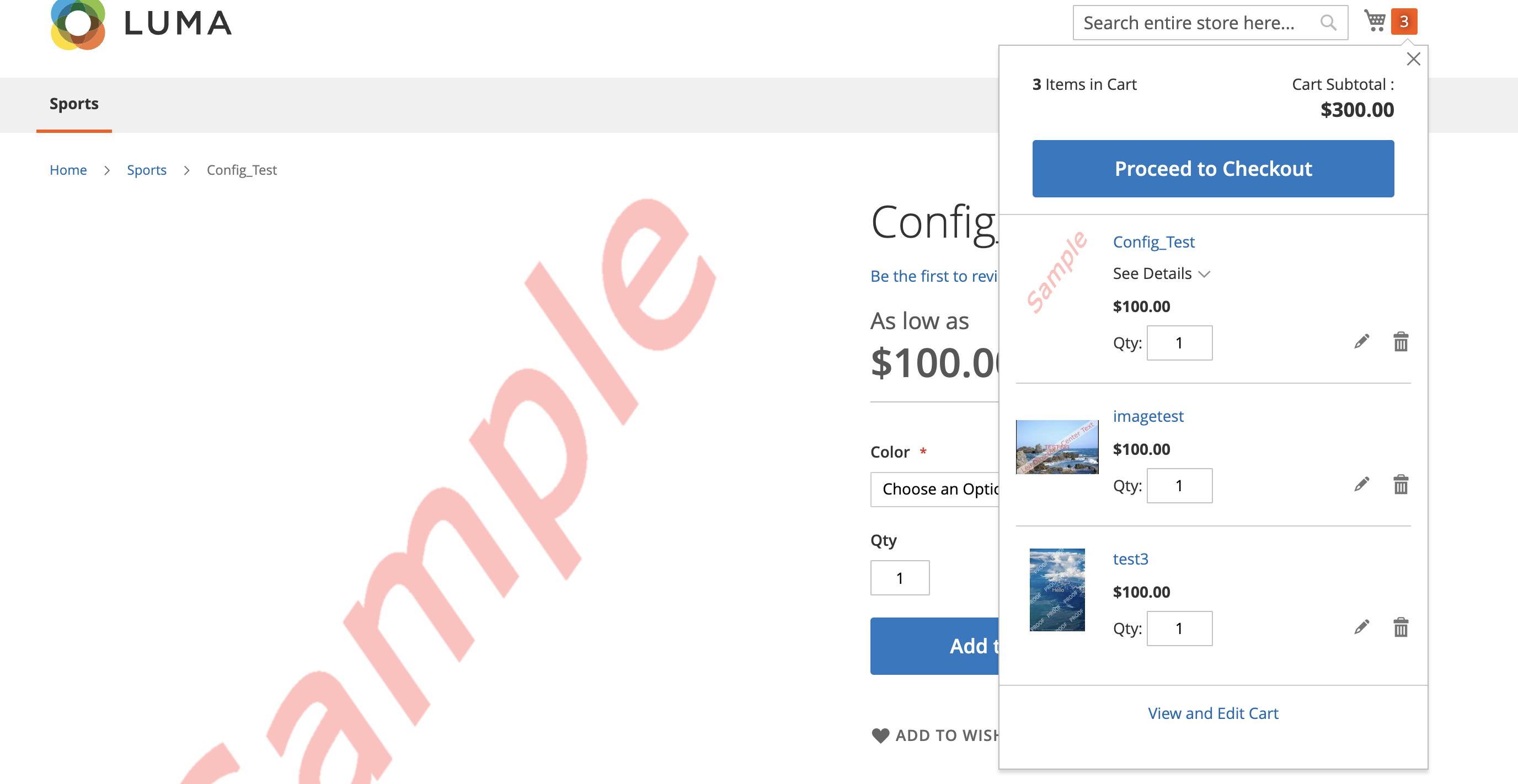

Below is the screenshot for your reference as images in mini cart is displaying properly:

---

__________________________________________________________________________________________________

As mentioned I have used image size in odd and I ran indexer as well as bin/magento catalog:image:resize command but no luck. Kindly provide us sample image which you have used also provide more information inorder to reproduce the issue. Kindly test it in latest 2.4-develop and let us know if you are facing any issue.

Thanks

[craig-bartlett]

Hi @engcom-Lima

Was the image size in the theme set to an odd dimension? It's not the physical image size but the theme's image size set in the theme file (etc/view.xml) for the particular image you are using (in this case mini_cart_product_thumbnail).

[engcom-Lima]

@magento give me 2.4-develop instance

[magento-deployment-service]

Hi @engcom-Lima. Thank you for your request. I'm working on Magento instance for you.

[magento-deployment-service]

Hi @engcom-Lima, here is your Magento Instance: https://11e9c13494e8747f38fd6ea269b46e26.instances.magento-community.engineering
Admin access: https://11e9c13494e8747f38fd6ea269b46e26.instances.magento-community.engineering/admin_801e
Login: ed6f910f
Password: b9f9e1e01e03

[engcom-Lima]

✔️ QA Passed

Preconditions:

• Install fresh Magento 2.4-develop

Manual testing scenario:

1. Go to Content >> Design >> Configuration >>Edit theme >>Product Image Watermarks >> Thumbnail
2. Upload image with Thumbnail and set image position as "Center"
3. Add Products to Cart that all products have images.
4. Open Minicart.
5. Run bin/magento catalog:image:resize and observe the error in the terminal.

Before: ✖️ Mini cart image disappeared.

Minicart:

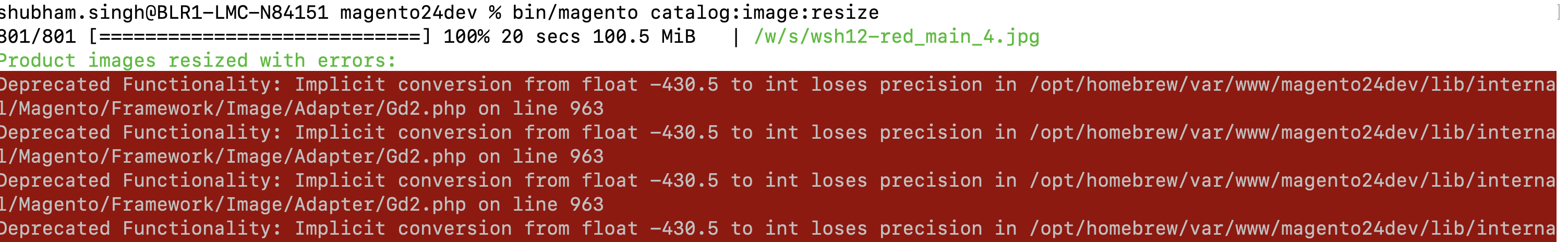

Terminal:

After: ✔️ Now image is displaying in the mini cart.

Minicart:

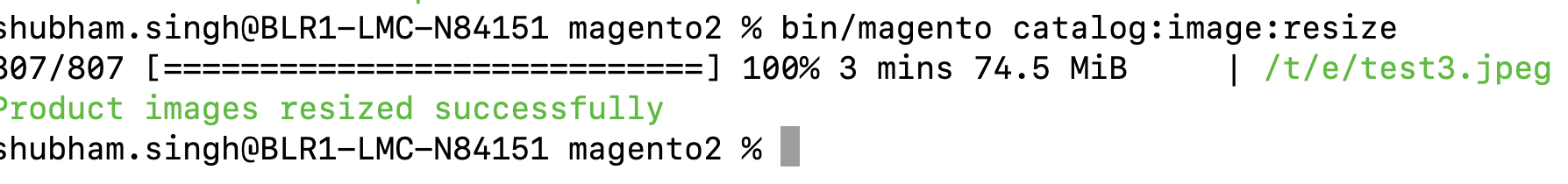

Terminal:

Additionally tested:

1. Added configurable and simple product to the cart from guest / customer.
2. Placed an order from guest/ customer.

Added to regression scope.
