LoveLace Light Card by zsarnett · Pull Request #1874 · home-assistant/frontend

zsarnett · 2018-10-27T08:24:49Z

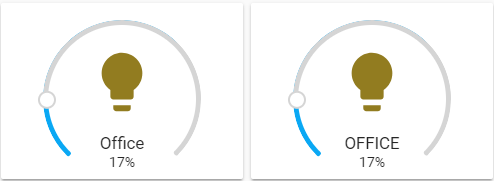

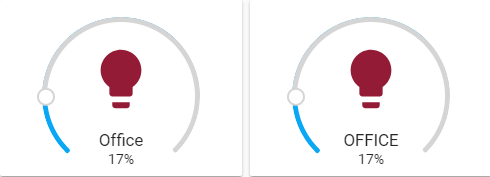

I put this together while not knowing what to do with a websocket call

Configuration Variables

Name	Type	Default	Description
type	string	Required	`light`
entity	string	optional	Required `light.my_light`
name	string	friendly_name	Name of card

Example

- type: light
  entity: light.living_room

- type: entity-button
  entity: light.bedroom
  name: Living Room

src/panels/lovelace/cards/hui-light-card.ts

balloob · 2018-10-27T09:04:30Z

What happens if light supports no brightness?

zsarnett · 2018-10-27T09:36:02Z

What happens if light supports no brightness?

If it has no brightness its set to 0% or off. The only time it should have no brightness. If the entity they are using has no brightness use the button card :)

zsarnett · 2018-10-27T14:05:01Z

Made the Brightness Percentage above Name so that a longer name can be added.

src/panels/lovelace/cards/hui-light-card.ts

balloob · 2018-10-28T18:58:28Z

Can you add a demo

balloob · 2018-10-28T20:43:17Z

https://deploy-preview-1874--home-assistant-lovelace-gallery.netlify.com/#demo-hui-light-card

When I click on the slider rail (not the slider knob), it toggles the light. That's not what I would expect. The toggle area of the icon should be limited to the icon only.

The slider knob is not centered on the rail:

I don't think that we should always show percentage. Maybe we can only show it when dragging as an overlay on the icon?

gallery/src/demos/demo-hui-light-card.js

src/panels/lovelace/cards/hui-light-card.ts

zsarnett · 2018-10-28T21:16:35Z

~~I can not replicate the clicking on the rail toggling the light effect~~

I see the effect in the gallery

balloob · 2018-10-29T07:20:39Z

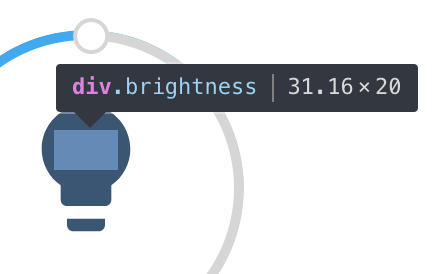

The middle of the icon is not clickable because the brightness label still exists when not in use:

balloob · 2018-10-29T07:21:44Z

In demos, clicking on the rail works: http://roundsliderui.com/demos.html

In this implementation, it doesn't.

balloob · 2018-10-29T07:24:57Z

src/panels/lovelace/cards/hui-light-card.ts

+  }
+
+  private _hideBrightness() {
+    brightnessTimout = setTimeout(() => {


You think that it's a good idea to share a timeout between all instances of this element?

Nope. Meant to make a comment on the best way to do this. This is how it's done for the notification drawer but there is one of those.

what about an instance variable? this._brightnessTimeout

I'm always so conflicted when creating properties in LitElement. I would need to set that as private _brightneesTimeout?: Any;

Never use any. Hover with your mouse over setTimeout, what is the defined returned value?

With TS you have to define the type like you said, then just assign it wherever you want yes.

src/panels/lovelace/cards/hui-light-card.ts

balloob · 2018-10-29T07:27:00Z

src/panels/lovelace/cards/hui-light-card.ts

+    return `brightness(${(brightness + 245) / 5}%)`;
+  }
+
+  private _computeColor(stateObj) {


Can you add a type for light state objects like we have for climate?

marked as resolved but this state object does not have a type yet. Add types to all functions you define in your class.

balloob · 2018-10-29T07:28:28Z

src/panels/lovelace/cards/hui-light-card.ts

+        padding-top: 40px;
+        font-size: 1.2rem;
+      }
+      .brightness {


The text is not always very visible as the icon color, which is the background of brightness, changes.

Added a stroke to it but not sure how material design esque this is

it's a good start, we can iterate on it.

zsarnett · 2018-10-29T13:10:30Z

@balloob clicking the slider rail works in the demo of round slider because they aren't using a custom overlay for the tool tip. Because we are the overlay is above the rail and can't make it a higher z index with out overlaying a white background on our tool tip. At least when I try to change the zindex of the rail that's what I get

frenck · 2018-10-29T13:59:05Z

Just a small note: Could not find a related PR on the documentation repository.

balloob · 2018-10-29T18:02:24Z

script/version_bump.js

@@ -0,0 +1,52 @@
+#!/usr/bin/env node


Nice script.

balloob · 2018-10-29T18:03:07Z

src/panels/lovelace/cards/hui-light-card.ts

+  implements LovelaceCard {
+  public hass?: HomeAssistant;
+  private _config?: Config;
+  private brightnessTimout?: any;


let's prefix names of private vars with _. I know it's "double", but we're also interacting with JS and they don't know the concept of private.

If you don't know the type, you can hover with your mouse on the function (if it's a built-in), otherwise use unknown. With unknown, you are not allowed to do any operation besides passing it on or comparing it, until you know the type. With any, anything goes and we're back to caveman untyped world.

Gotcha. I started to do that that but it was a NodeJS Type so I left it off. I added it in because it was accepted with no errors

balloob · 2018-10-29T18:07:40Z

src/panels/lovelace/cards/hui-light-card.ts

+  private _setBrightness(e) {
+    this.hass!.callService("light", "turn_on", {
+      entity_id: this._config!.entity,
+      brightness_pct: e.value,


Now I know why the gallery is flaky. We don't have support for brightness_pct in our demo hass for the gallery.

How can I add that?

Where did you look?

You need to update the logic here https://github.com/home-assistant/home-assistant-polymer/blob/dev/gallery/src/data/entity.js#L56-L65

src/panels/lovelace/cards/hui-light-card.ts

balloob · 2018-10-29T20:40:38Z

src/panels/lovelace/cards/hui-light-card.ts

+  implements LovelaceCard {
+  public hass?: HomeAssistant;
+  private _config?: Config;
+  private _brightnessTimout?: NodeJS.Timer;


We're running in a browser, not under NodeJS. Also:

number

When changing to number I am getting Type Time is not assignable to Type Number here: this._brightnessTimout = setTimeout(() => {

I think Node is messing with things or something.. Because researching setTimeout shows it returns a "unique" number that is used when clearing the timeout

Fix this by using window.setTimeout so node doesnt overload

balloob

ok to merge when fixing type of setTimeout.
