Separate row entity elements for Lovelace by c727 · Pull Request #1461 · home-assistant/frontend

c727 · 2018-07-17T14:47:48Z

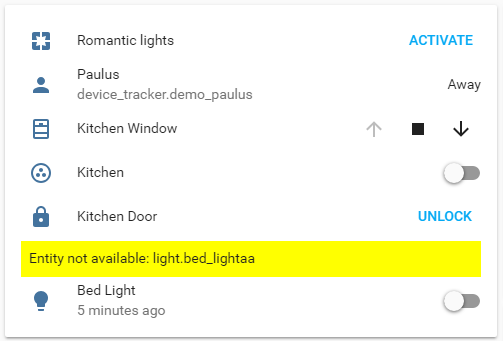

    cards:
      - type: entities
        entities:
          - scene.romantic_lights
          - entity: device_tracker.demo_paulus
            secondary_info: entity-id
          - cover.kitchen_window
          - group.kitchen
          - lock.kitchen_door
          - entity: light.bed_light
            secondary_info: last-changed

fix: home-assistant/ui-schema#97
fix: home-assistant/ui-schema#69

balloob · 2018-07-17T17:40:24Z

 import fireEvent from '../../../common/dom/fire_event.js';

-import stateCardType from '../../../common/entity/state_card_type.js';
+import '../entity-row-elements/hui-generic-entity-row-element.js';


I think that the folder name can just be entity-row.

balloob · 2018-07-17T17:41:56Z

I think this is great. Our current entity rows are too coupled between display on left side and controls on right side. We should be able to extract all the controls on the right side and make the left configurable. It's just things like input_select that might need an override. Which is fine.

balloob · 2018-07-17T17:42:15Z

It's also great as it allows to maybe just override the controls instead of the full entity row with a custom web component.

balloob · 2018-07-17T22:27:54Z

Since you're making a generic row, consider use slot to fill in control

balloob · 2018-07-18T07:20:47Z

      const element = createEntityRowElement(entity, this.hass);
-      if (entityId && !DOMAINS_HIDE_MORE_INFO.includes(computeDomain(entityId))) {
-        element.classList.add('state-card-dialog');
-        element.addEventListener('click', () => this.fire('hass-more-info', { entityId }));


We should keep this here. We don't know where EntityRow will be used.

Although, I do really like if we only attach click listener to the left part of the generic row. Interacting with controls should never open more info.

balloob · 2018-07-18T07:32:31Z

  }

-  element.stateObj = stateObj;
  element.hass = hass;


Do we still need this or can we start removing hass from this file ? (as it should be)

balloob · 2018-07-18T07:52:06Z

+          color: var(--secondary-text-color);
+        }
+      </style>
+      <template is="dom-if" if="[[_stateObj]]">


If we hide everything when there is no stateObj, can we instead show a light yellow div saying "State X not found"?

balloob · 2018-07-18T07:54:16Z

+  }
+
+  _computeStateObj(states, entityId) {
+    return states && entityId && entityId in states ? states[entityId] : null;


No need to check entityId, config is invalid and this component should not be instantiated with it?

balloob · 2018-07-18T07:55:46Z

+  static get template() {
+    return html`
+      <style>
+        paper-button {


I don't see paper-button in this component

balloob · 2018-07-18T07:56:32Z

+          hass="[[hass]]"
+          config="[[_config]]"
+        >
+        <paper-input no-label-float=


remove " at end

balloob · 2018-07-18T07:57:10Z

+class HuiInputTextEntityRow extends PolymerElement {
+  static get template() {
+    return html`
+      <template is="dom-if" if="[[_stateObj]]">


Really not a fan of these guards for stateObj :(

balloob · 2018-07-18T07:59:16Z

+          margin: 0;
+        }
+      </style>
+      <template is="dom-if" if="[[_stateObj]]">


Not needed, already is in hui-generic-entity-row.

balloob · 2018-07-18T08:02:31Z

+          margin: 0;
+        }
+      </style>
+      <template is="dom-if" if="[[_stateObj]]">


Already in hui-generic-entity-row

balloob · 2018-07-18T08:03:16Z

+          hass="[[hass]]"
+          config="[[_config]]"
+        >
+          <div>


Why wrap it in div?

I need an element for my flexbox

balloob · 2018-07-18T08:03:28Z

+class HuiTextEntityRow extends PolymerElement {
+  static get template() {
+    return html`
+      <template is="dom-if" if="[[_stateObj]]">


Done inside hui-generic-entity-row

balloob · 2018-07-18T08:04:06Z

+    this._config = config;
+  }
+
+  getCardSize() {


are we trying to keep the same API between cards and entity rows?

hups I thought we use it also here, removed it

balloob · 2018-07-18T08:04:46Z

+class HuiToggleEntityRow extends PolymerElement {
+  static get template() {
+    return html`
+      <template is="dom-if" if="[[_stateObj]]">


Done inside hui-generic-entity-row

balloob · 2018-07-18T08:06:31Z

+    <state-info
+      hass="[[hass]]"
+      state-obj="[[stateObj]]"
+      in-dialog="[[inDialog]]"


In retrospect, in-dialog is such a misnomer as attribute for state-info. It defines context instead of behavior (show-last-changed) while state info should not know anything about dialogs. Oh well, so we learn

balloob · 2018-07-18T08:07:02Z

This is already looking very good !

randellhodges · 2018-09-12T14:56:39Z

This merge removed the overrideName changes that was added on July 1. Was that on purpose, or an oversight? I'm attempting to create a state card in lovelace and want to pass along the name from the entity card configuration but I have no way to pass it into state-info since this property has been removed.

See the bottom of the diff:
8c44e24#diff-cc39ce33639eea793f68fa0b9315237f

balloob · 2018-09-13T07:21:16Z

No discussion in merged PRs.
