Support for new velux api, added cover.velux by Julius2342 · Pull Request #18738 · home-assistant/core

Julius2342 · 2018-11-27T08:03:43Z

Description:

Upgraded pyvlx to version 0.2.*. Users will need to upgrade to a recent firmware version. Old and new firmwareversions are not compatible (both use a completely different API).

Added support for controlling Velux windows one by one.

Configuration should stay the same. Component will fetch the available devices/nodes from API.

Pull request in home-assistant.io with documentation (if applicable): home-assistant/home-assistant.io#7867

EDIT: Within the changelog of the release we should point to the page where the new Firmware may be downloaded: https://www.velux.com/api/klf200

WoodsterDK · 2018-12-07T06:03:49Z

Hi I noticed one issue:

async def async_open_cover(self, **kwargs):
    """Open the cover."""
    await self.node.close()

should be async def async_open_cover(self, **kwargs):
"""Open the cover."""
await self.node.open()

And

def current_cover_position(self):
    """Return the current position of the cover."""
    return 0

can be changed to support position query:

def current_cover_position(self):
    """Return the current position of the cover."""
    return self.node.current_position

Julius2342 · 2018-12-07T19:16:42Z

@WoodsterDK ty for you feedback! i already spotted the s/close/open/ - thing, but did not yet commit. I'm currently working on retrieving the current position from various feedback/status messages, but this still takes some iterations. I will post an update here if i have a working prototype :)

WoodsterDK · 2018-12-07T19:33:01Z

@Julius2342 no problem - I'm up for testing it, when you have something ready.
Let me know if you need some help.

houndci-bot · 2018-12-15T18:45:26Z

+        if ATTR_POSITION in kwargs:
+            position_percent = 100 - kwargs[ATTR_POSITION]
+            from pyvlx import Position
+            await self.node.set_position(Position(position_percent=position_percent))


line too long (85 > 79 characters)

Julius2342 · 2018-12-15T19:34:01Z

@WoodsterDK ^^

WoodsterDK · 2018-12-19T11:32:18Z

Hi,
The covers are not being inserted as entities.

I think there might be an issue if no scenes are present

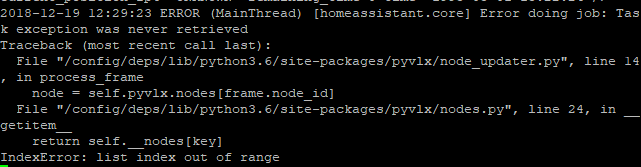

I have seen an "out of index"

Julius2342 · 2018-12-19T13:36:53Z

@WoodsterDK : do you get any error when initializing the the component? It should load all entities automatically on startup:

    async def async_start(self):
        """Start velux component."""
        await self.pyvlx.load_scenes()
        await self.pyvlx.load_nodes()

Julius2342 · 2018-12-19T17:48:34Z

@WoodsterDK : may you retry?

WoodsterDK · 2018-12-19T18:38:09Z

@WoodsterDK : may you retry?

@Julius2342 Will test tomorrow...
Could it be caused by a combination with the switches I have? - the nodeIDs for my covers might not come in a numerical order due to the switches.
Do you lookup in the node array according to the nodeID or by an index found by searching for the nodeID?

Julius2342 · 2018-12-19T19:15:23Z

@WoodsterDK : When retrieving the scenes, my old implementation was waiting for the last FrameGetSceneListNotification with remaining_scenes==0. If in your implementation no scenes are configured, this frame is never sent, the whole thing runs into a timeout and an exception is raised that the scene list was not retrieved.

Julius2342 · 2018-12-19T19:54:10Z

@WoodsterDK : And you are right, there was another bug with accessing the nodes via index-id instead of node_id (which makes more sense).

WoodsterDK · 2018-12-20T08:31:40Z

@WoodsterDK : And you are right, there was another bug with accessing the nodes via index-id instead of node_id (which makes more sense).

OK - just tried running with the updated library, and my covers seems to added as entities - GREAT.
I can control them, but it seems the position is not being correctly reflected.

Furthermore it could be nice to add the support of the feature cover.stop_cover in the component.

If I look in the log every 10 second there is this:

Even if there is no movement of the covers - do you poll for states from the products, or is it only the internal values that are being "broadcastet"?

Julius2342 · 2018-12-20T08:36:11Z

what do you mean with not being correctly reflected. . I'dont know what the correct correlation is.

WRT cover.stop, do you know which Frame to send?

No i do not poll. I activated the house-monitor. During movement they broadcast their position from time to time. Does this stop after the covers reached their final position?

WoodsterDK · 2018-12-24T12:46:02Z

@Julius2342 Great work - a couple of things:

notification of position seems to be working, if the slider is being used.
stop works
position is being messed up when the movement is stopped by pressing "Stop"

jpearce73 · 2019-01-17T05:33:29Z

Thanks for this work, I'd love to try it out.
I just upgraded homeassistant to 0.85.1. I found the components/velux.py and discovered its still the old version. Where do I learn how to pull pre-release change set like this?

apeeters · 2019-01-18T11:25:25Z

I tested this branch and it works works perfectly. Thanks for the great work! Can't wait to have it merged :)

WoodsterDK · 2019-01-18T11:46:38Z

@Julius2342 have you had a chance to look at:

notification of position seems to be working, if the slider is being used.
stop works
position is being messed up when the movement is stopped by pressing "Stop"

Julius2342 · 2019-01-18T12:38:45Z

@WoodsterDK : Yes, started a small refactoring but then I was interrupted. Will try to continue soon.

apeeters · 2019-01-18T12:44:27Z

@WoodsterDK I did not experience that problem when pressing stop.

WoodsterDK · 2019-01-18T16:15:54Z

@apeeters if you operate the cover, press stop close the ui card and open it again, the slider is positioned in a wrong position

apeeters · 2019-01-19T10:57:43Z

@WoodsterDK @Julius2342 I was able to reproduce this. It does not always occur and is caused by negative position values. Initially all my covers (closed) have position -23, after moving and stopping I sometimes get -5.

l-mb · 2019-01-23T16:46:32Z

Very interested in seeing this merged, let me know if I can test via a beta channel/repo for hass.io.

Julius2342 · 2019-01-28T12:26:52Z

@WoodsterDK may you retry?

WoodsterDK · 2019-01-29T08:00:18Z

@Julius2342 Sure thing - will see if I can fit in try today

marchingphoenix · 2019-01-29T17:55:50Z

+    @callback
+    def async_register_callbacks(self):
+        """Register callbacks to update hass after device was changed."""
+        async def after_update_callback(device):


Question, should the async def be outside of the def? I'm not 100% familiar with this yet.
example: cover.template.pyL201

I think that's okay, as it is just passed as a callback (which I assume gets awaited later on). The @callback marks this as something that does not do I/O (for optimization), see: https://developers.home-assistant.io/docs/en/asyncio_categorizing_functions.html#the-callback-function

WoodsterDK · 2019-01-29T18:54:07Z

@WoodsterDK may you retry?

@Julius2342 - just tested, with the reference to 'pyvlx==0.2.8' it seems to be working as expected... COOL :)

rytilahti · 2019-01-29T23:52:07Z

Added the 'breaking change' label as according to the initial descriptions this will be such for existing users.

rytilahti · 2019-01-29T23:54:28Z

            host=host,
-            password=password)
+            password=password,
+            log_frames=True)


What does this option do as it sounds like a debugging option, and why is it wanted here? Otherwise (considering the reports that this is working on real devices) this should be ready to be merged.

I removed this parameter!

Julius2342 · 2019-01-31T17:30:19Z

@rytilahti : I addressed your issue.

rytilahti · 2019-02-01T01:13:16Z

Thanks! 👍 I bolded the need to mention this in the changelog (inside description), as I don't think we have a label to highlight specific parts at the moment.

MartinHjelmare

Good! Just a small comment.

MartinHjelmare · 2019-02-01T09:39:39Z

+
+    async def async_set_cover_position(self, **kwargs):
+        """Move the cover to a specific position."""
+        if ATTR_POSITION in kwargs:


This is already validated by the service schema.
