SCSS tiles

Classes for square (and rectangular) boxes, optionally with some content.

NOTICE: The tiles do not have any colors assigned.

Table of contents:

1. Examples
2. Usage
3. Reference
   1. Base structure
   2. Tile classes
   3. Colors and background colors
   4. Background images
   5. Responsiveness
   6. Hover animations

Examples

You can view examples at GitHub.io:

• Example 00: Most basic features

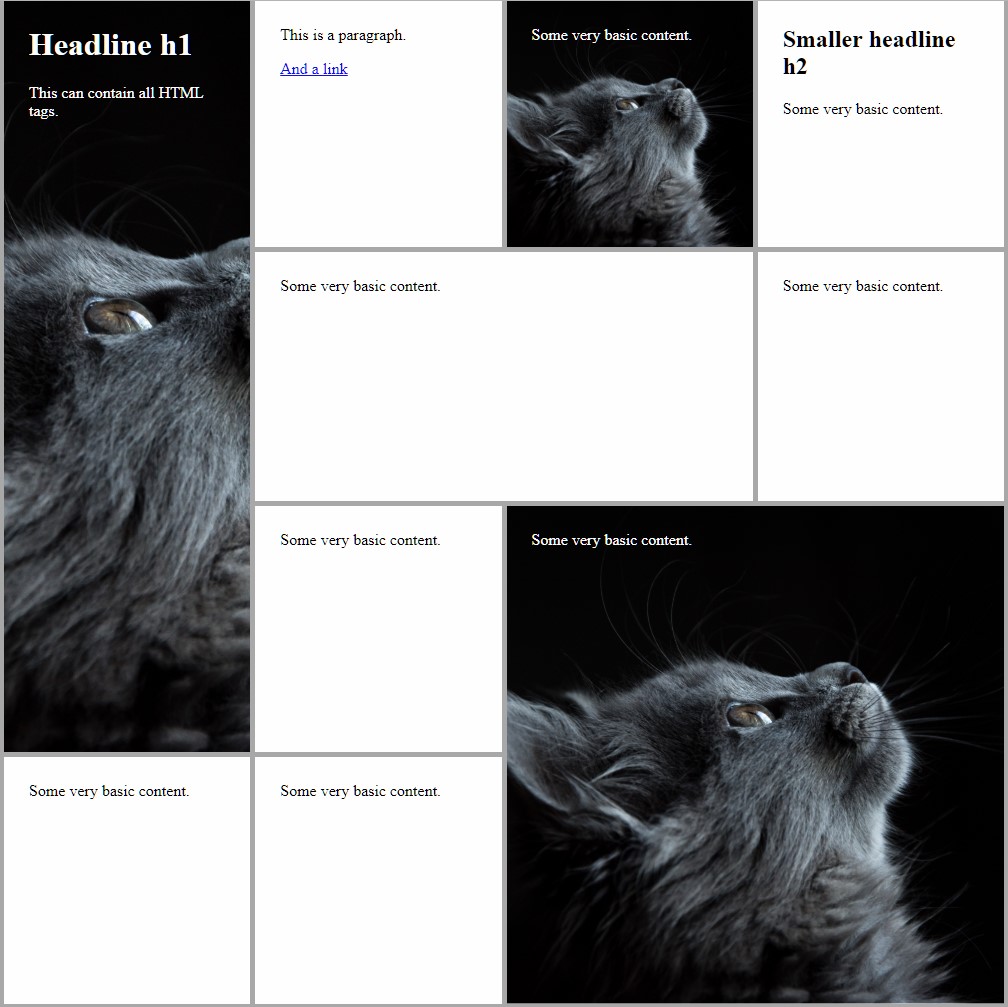

• Example 01: More advanced features
• Example 02: Flip animation
• Example 03: Shrink animation

Usage

Please have a look at the LICENSE file.

Standard usage

You can just download the dist/tiles.css and use it locally right away.

Add the dist/tiles-anim-*.css you like the most to add hover animations. Some provide special features (see below).

Advanced usage

Clone this repo and setup gulp to run the gulp tasks (at least sass-default). Change the src/scss/config.scss to your likings and use the resulting dist/tiles.css.

Expert usage

Feel free to tinker with the src/scss/tiles.scss. If you've found an improvement, send me a pull request.

Reference

Refer to the docs/example-##.html files.

When using SCSS tiles, one has to use a specific HTML structure for it to work:

Base structure

• A container (e.g. a <div>) with class tiles-container
  • containing several containers (e.g. a <div>) having class tile and optionally additional tiling classes
    • containing a container with class content
      • containing arbitrary HTML code

E.g.

<div class="tiles-container">
    <div class="tile">
        <div class="content">
            some HTML content
        </div>
    </div>
</div>

Tile classes

All tiles in the tiles-container have to have the tile base class. Additionally, they can have spanning classes, like tile-2-1 or tile-3-3.

These are named like tile-<column span>-<row span>, e.g. tile-3-2 spans three columns and two rows.

Colors and background colors

You can easily assign colors to the .tiles .content-selector.

NOTICE: This is the intended structure! Do not assign background-colors to the .tiles-class (see below for details).

Background images

The tiles can have full-size background images. Just assign the CSS-property background-image on their content container. DON'T assign the background to the tile container, this breaks the intended structure.

Refer to dist/example-01.html for this.

Responsiveness

Similar to the Bootstrap 4 grid logic it is possible to include multiple classes for different breakpoints.

E.g. you can build something like:

<div class="tiles-container tiles-container-2 tiles-container-md-4 tiles-container-xl-8">
    <div class="tile tile-2-1 tile-md-4-2 tile-xl-6-3">
        <div class="content">
            some HTML content
        </div>
    </div>
</div>

The grid can be used for up to 12 columns (please look out to match the tile sizes), and the following breakpoints are predefined:

name	suffix	≥ px
x-small	-	0
small	sm	576
medium	md	768
large	lg	992
x-large	xl	1200
xx-large	xxl	1600

Hover animations

NOTICE: There's a bug in Chrome executing the transitions on page loading a first time (this looks ugly). To circumvent this, add a <script> tag with a space to your body, if no javascript is yet embedded.

<script> </script>

The following hover animations are available via including:

Flip animation

A simple flip animation (rotating 180 degree around the Y axis), showing an empty backface or an explicitly set backface when complete.

To set an explicit backface, add the class tile-two-sided to the desired tile. Now you can add a second content container with the additional class back, containing everything that will be on the back of the tile. See docs/example-02.html for an example.

Shrink animation

A shrinking animation: The tile gets smaller (5px on each side), but the content stays the same size.
