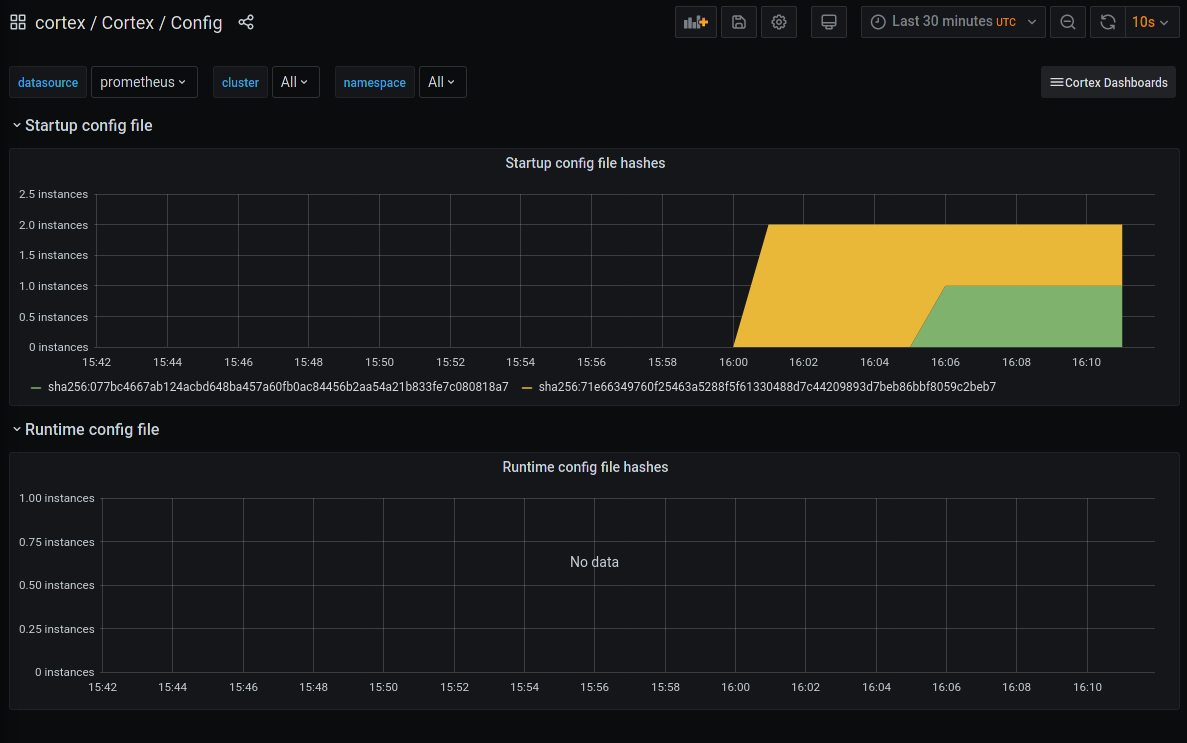

Add alert and dashboard for config file hashes

[simonswine]

This allows to monitor the roll-out of new config file version to the various members of a cluster.

The metric itself was added as part of cortexproject/cortex#2874.

Ideally someone double checks the filters I am using. I am also not 100% sure if really all nodes of a cluster typically have the exact same config and if the period of 1hours is reasonable.

This doesn't alert on runtime config divergence

[cstyan]

Do both the alert and dashboard work as expected for k8s clusters that have multiple Cortex cluster/namespaces?

Others would be able to give you more info. about how often we have intentional config drift. It might be useful to include another label, such as namespace, in the message. Depending on the tool you're viewing the alert in you might not get to see all the labels associated with the alert right away, so more info. in the message can be handy.

[simonswine]

I think so, as the dashboard can be filtered by cluster and namespace through .addClusterSelectorTemplates() and the alert is using the $._config.alert_aggregation_labels.

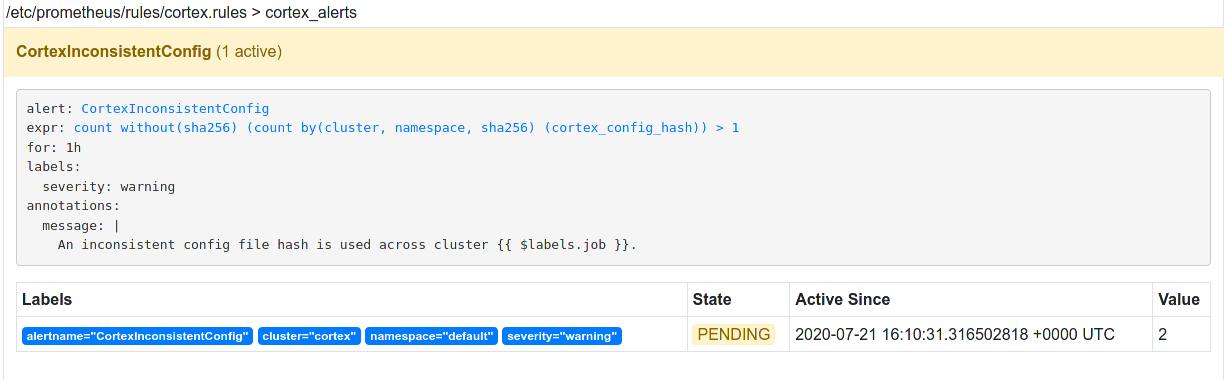

I have tested a similar query (for the alert) with cortex_build_info as the hash metric is not yet deployed anywhere

[pracucci]

👋 @simonswine. I left few comments. Feel free to reach out directly on Slack if you have specific questions about the feedback left here.

[annanay25]

lgtm, thanks @simonswine!

[pracucci]

Isn't this always > 1 when there are multiple jobs?

[simonswine]

I don't think so (maybe I am making a mistake here).

I think the first count checks for series with differenent hashes and the second count filters out the ones from different clusters. This unit test passes (maybe you can break it 🙂 ):

jsonnet -S alerts.jsonnet > alerts.yaml

cat > test.yaml <<EOF
rule_files:
  - alerts.yaml
evaluation_interval: 1m
tests:
 - interval: 1m
   input_series:
    - series: 'cortex_config_hash{sha256="aa",job="customer-a/cortex", cluster="customer-a", namespace="customer-a", instance="host-a1"}'
      values: '1+0x100'
    - series: 'cortex_config_hash{sha256="bb",job="customer-a/cortex", cluster="customer-a", namespace="customer-a", instance="host-a2"}'
      values: '1+0x100'
    - series: 'cortex_config_hash{sha256="cc",job="customer-b/cortex", cluster="customer-b", namespace="customer-b", instance="host-b1"}'
      values: '1+0x100'
    - series: 'cortex_config_hash{sha256="cc",job="customer-b/cortex", cluster="customer-b", namespace="customer-b", instance="host-b2"}'
      values: '1+0x100'
   alert_rule_test:
    - alertname: CortexInconsistentConfig
      eval_time: 59m
    - alertname: CortexInconsistentConfig
      eval_time: 60m
      exp_alerts:
       - exp_labels:
           severity: warning
           job: customer-a/cortex
           cluster: customer-a
           namespace: customer-a
         exp_annotations:
           message: "An inconsistent config file hash is used across cluster customer-a/cortex.\n"
EOF

promtool test rules unit_test.yaml
Unit Testing:  unit_test.yaml
  SUCCESS

[jtlisi]

I ran the following query against our local environment to verify the logic of this query:

count(count by(cluster, job, sha256) (cortex_runtime_config_hash)) without (sha256)

It came back looking sane to me

[jtlisi]

LGTM
