[Monitoring] Design/UI improvements #76946

chrisronline · 2020-09-08T13:58:00Z

Resolves #77492

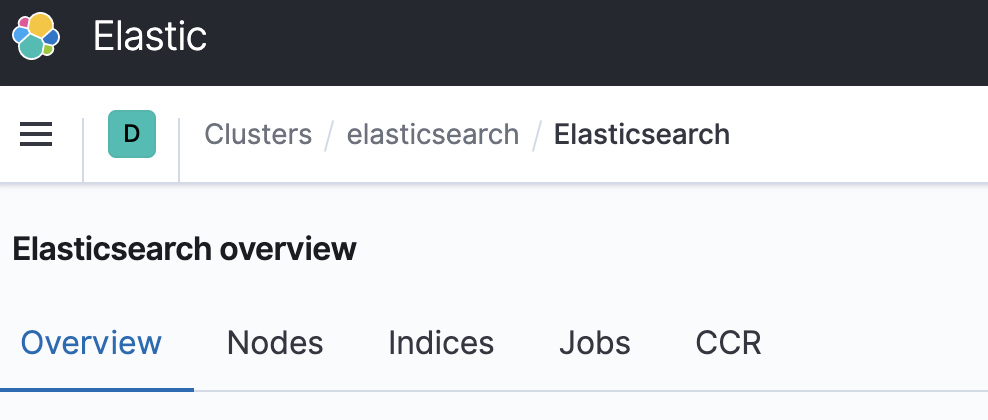

Adds headlines to each page, like:

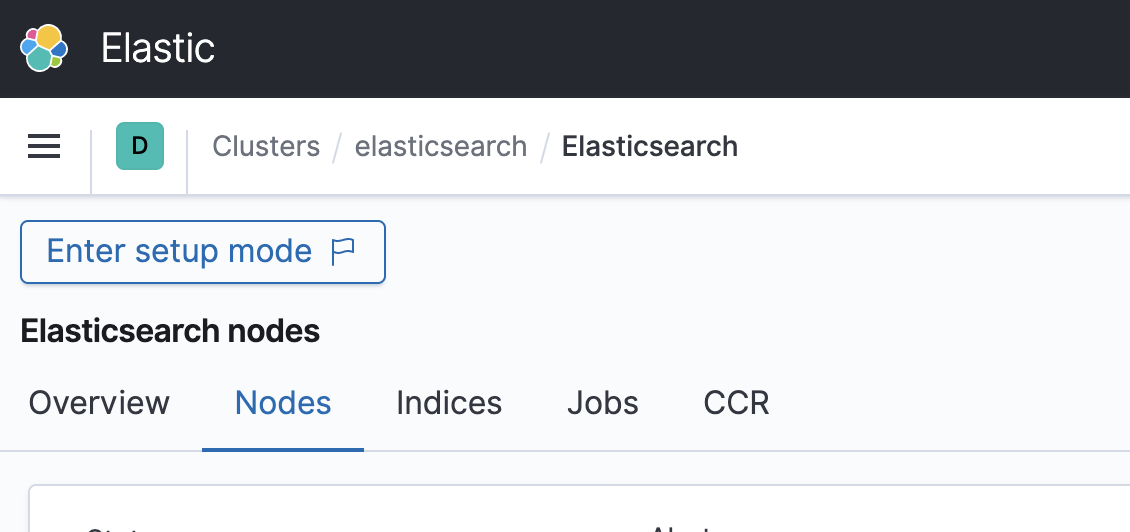

and how it looks with the Setup Mode button:

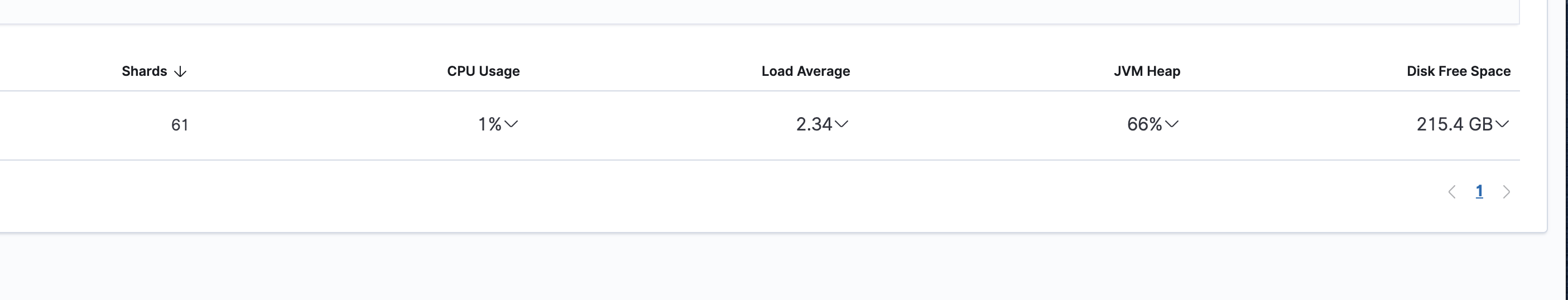

Improves numbers in listing tables

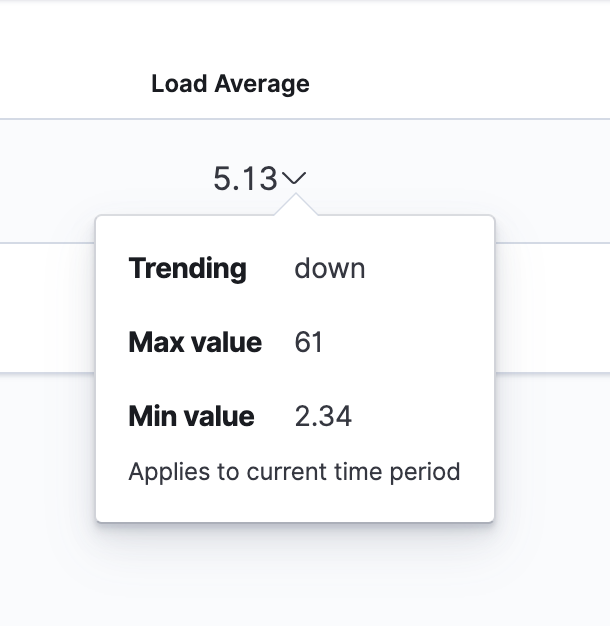

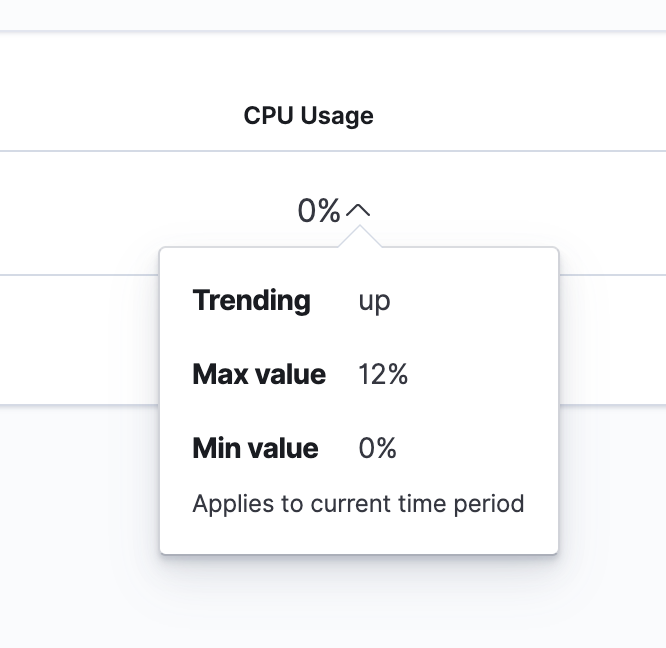

Show deltas in the ES nodes listing table differently

Update labels

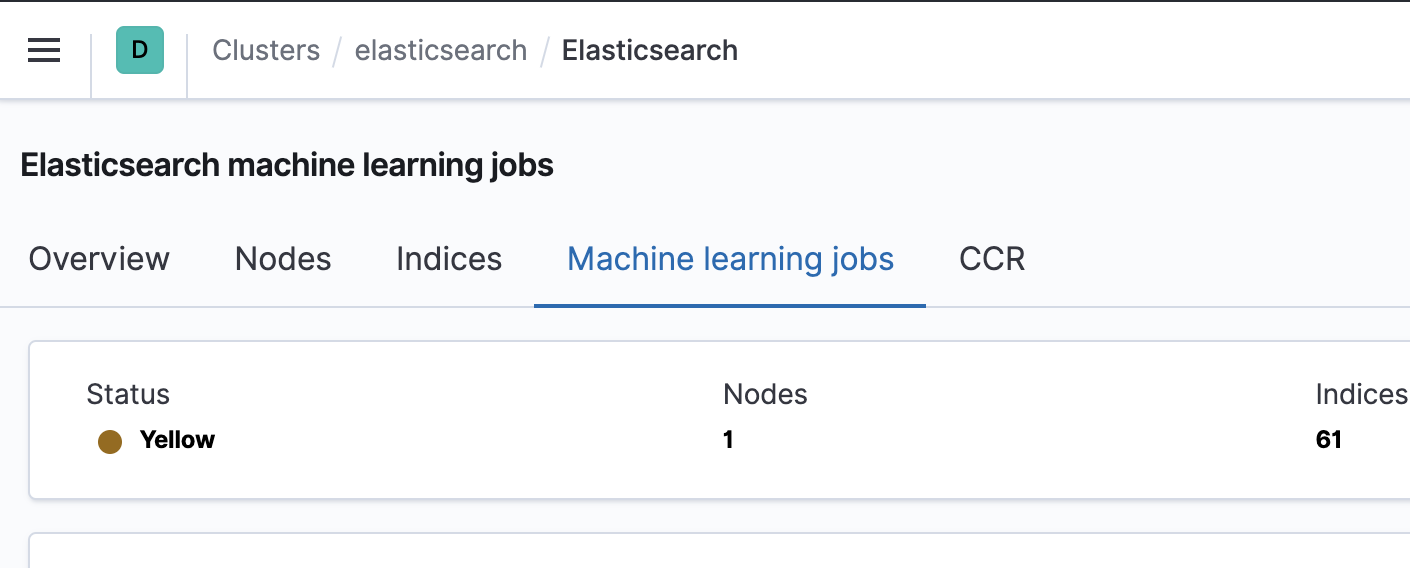

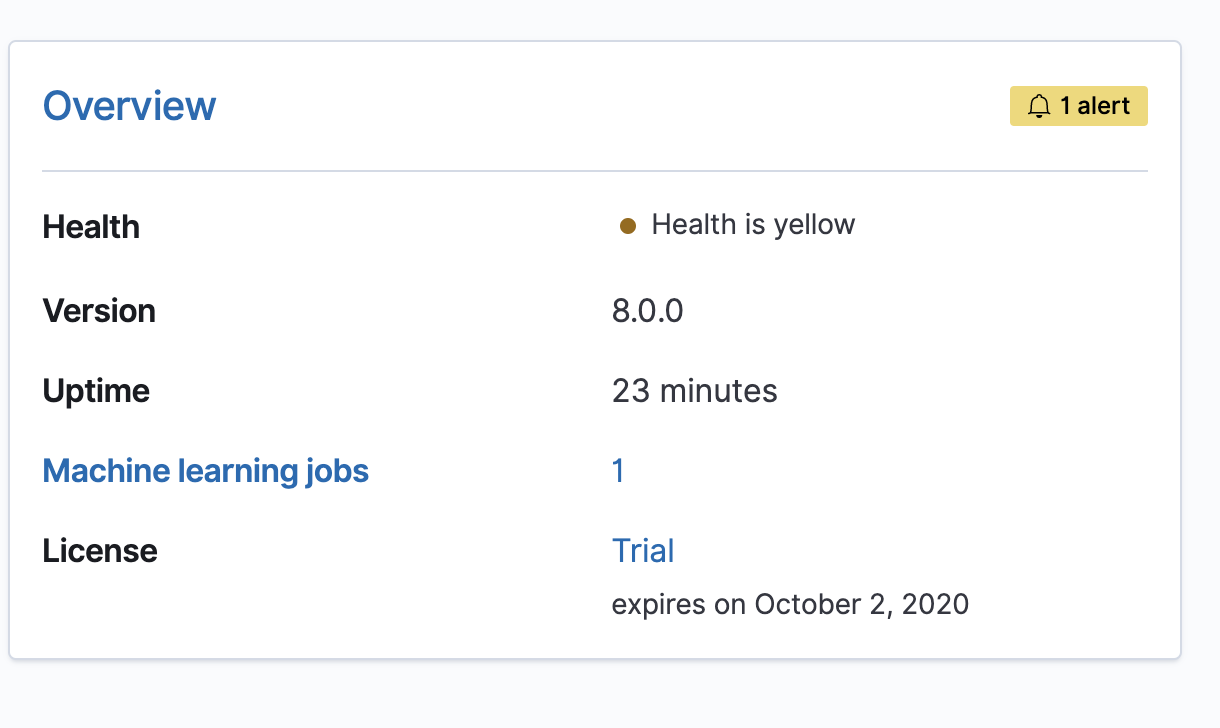

Jobs -> Machine learning jobs

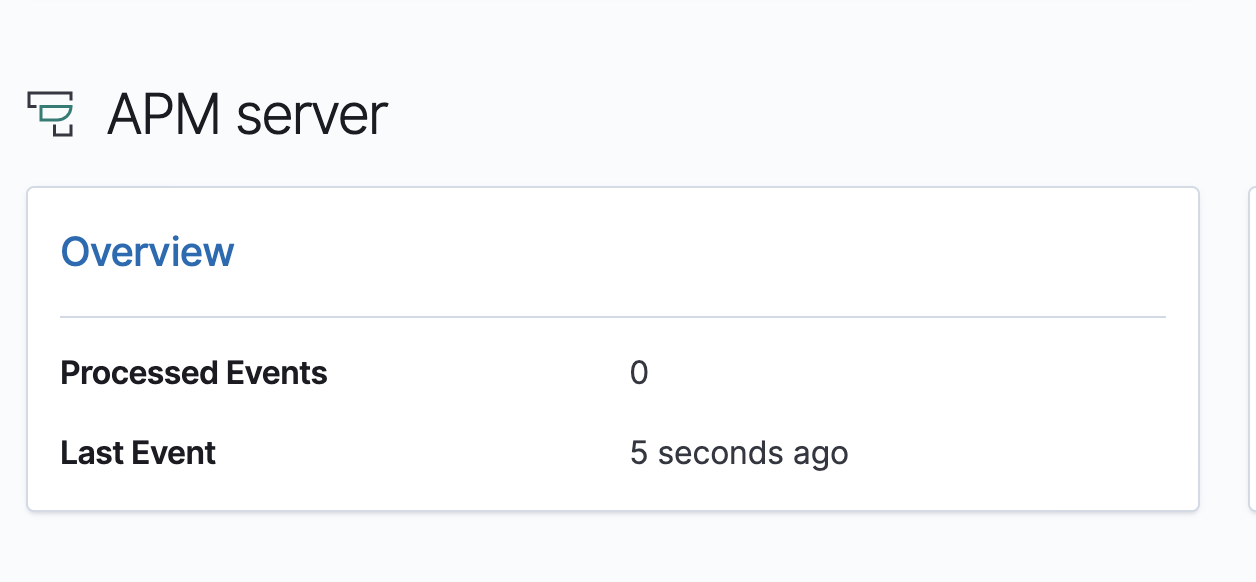

APM -> APM Server

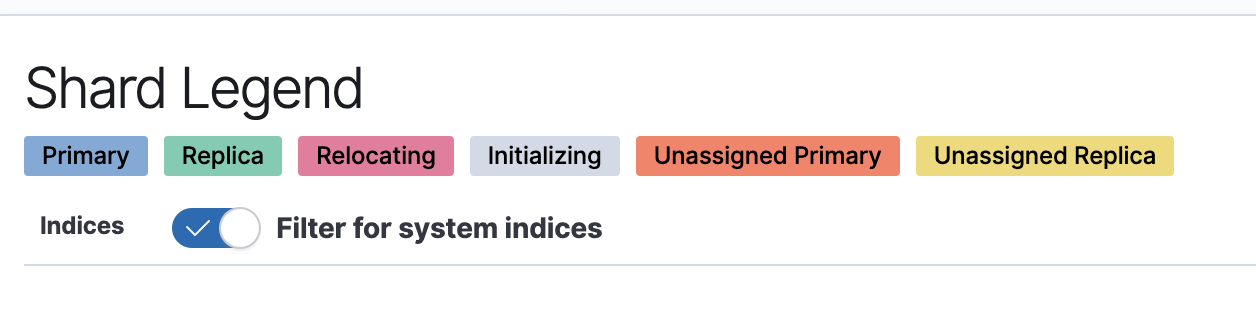

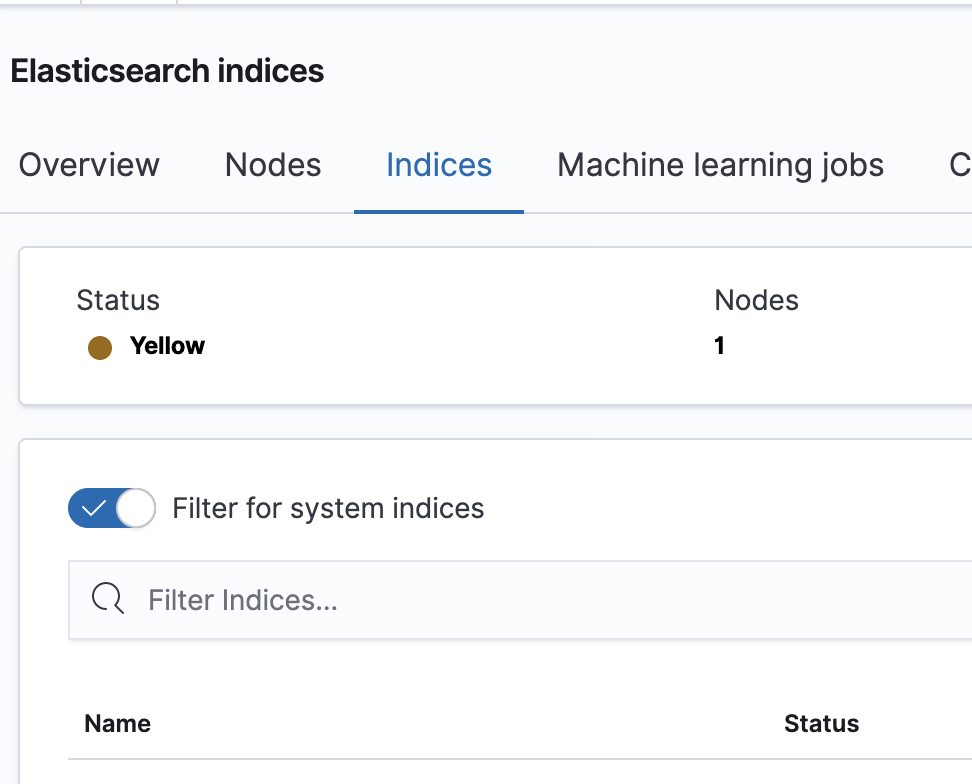

System indices -> Filter by system indices

elasticmachine · 2020-09-15T14:24:52Z

Pinging @elastic/stack-monitoring (Team:Monitoring)

igoristic · 2020-09-15T17:56:15Z

x-pack/plugins/monitoring/public/views/elasticsearch/ccr/index.js

          defaultMessage: 'Elasticsearch - Ccr',
        }),
+        pageTitle: i18n.translate('xpack.monitoring.elasticsearch.ccr.pageTitle', {
+          defaultMessage: 'Elasticsearch Ccr',


I think we should use one/same title for title and pageTitle, and also Ccr should be CCR

igoristic · 2020-09-15T17:56:20Z

x-pack/plugins/monitoring/public/views/elasticsearch/ccr/shard/index.js

        (data) => {
+          this.setPageTitle(
+            i18n.translate('xpack.monitoring.elasticsearch.ccr.shard.pageTitle', {
+              defaultMessage: 'Elasticsearch Ccr Shard - Index: {followerIndex} Shard: {shardId}',


Suggested change

defaultMessage: 'Elasticsearch Ccr Shard - Index: {followerIndex} Shard: {shardId}',

defaultMessage: 'Elasticsearch CCR Shard - Index: {followerIndex} Shard: {shardId}',

chrisronline · 2020-09-16T17:27:09Z

@katrin-freihofner Thanks for the great feedback. I made the requested changes and this PR is ready for another round!

chrisronline · 2020-09-17T13:06:33Z

@elasticmachine merge upstream

igoristic

Everything looks good 👍 ...so long as the tests are fixed and CI is green

Also, I think we should change all instances of Ccr to CCR

katrin-freihofner · 2020-09-23T11:59:52Z

This looks good.

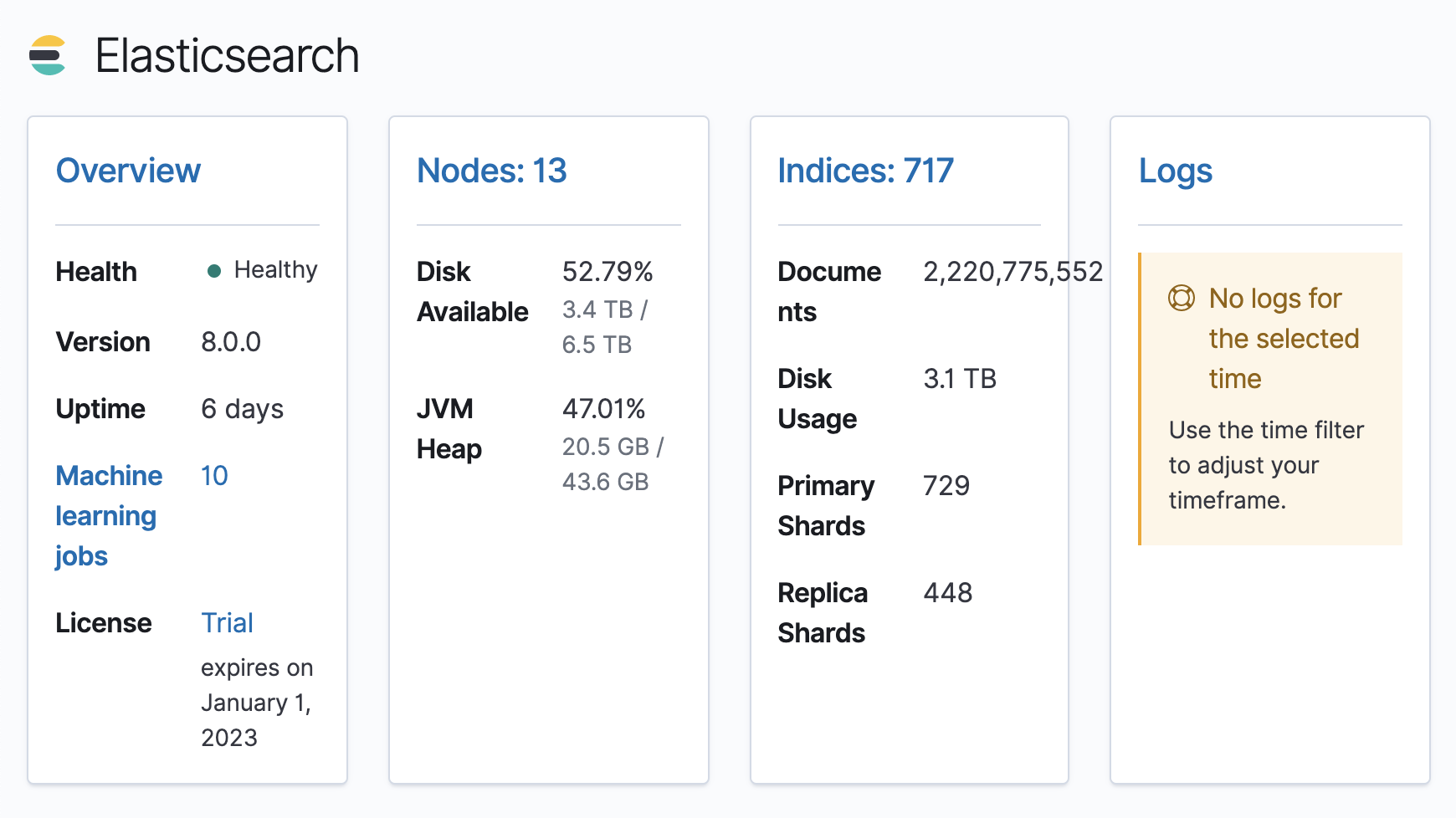

I only found this issue with the documents count:

I suggest having a two column layout if the screen gets that narrow (with two rows).

Also, I would place the up/down trend arrow next to the number, like this:

kibanamachine · 2020-09-23T15:06:50Z

💚 Build Succeeded

continuous-integration/kibana-ci/pull-request
Commit: 494517d

Build metrics

@kbn/optimizer bundle module count

id	value	diff	baseline
monitoring	626	+7	619

async chunks size

id	value	diff	baseline
monitoring	1.2MB	+12.2KB	1.1MB

History

💚 Build #76324 succeeded 659c222
💔 Build #75216 failed e6c3608
💔 Build #75181 failed 0f4cb65d58a9e1c0a86fc5922e90175f227c368b
💔 Build #74931 failed 4853349
💔 Build #74895 failed cffb241

To update your PR or re-run it, just comment with:
@elasticmachine merge upstream

* [Monitoring] Design/UI improvements (#76946) * UI tweaks * Add more page titles * Respect pagination settings * Update snapshot * Fix loc issues * Update node listing * Fix tests * Update icon * Update jobs label * More label changes * Fix tests * Fix tests * PR feedback * Improve responsive design here * PR feedback * Fix tests * Fix test and i18n * Remove unused translations * Fix tests * Tweaks # Conflicts: # x-pack/plugins/monitoring/public/components/apm/instance/instance.js # x-pack/plugins/monitoring/public/components/apm/instances/instances.js # x-pack/plugins/monitoring/public/components/apm/overview/index.js # x-pack/plugins/monitoring/public/components/beats/overview/__snapshots__/overview.test.js.snap # x-pack/plugins/monitoring/public/components/beats/overview/overview.js # x-pack/plugins/monitoring/public/components/elasticsearch/nodes/__tests__/__snapshots__/cells.test.js.snap # x-pack/plugins/monitoring/public/components/elasticsearch/nodes/cells.js * Fix tests Co-authored-by: Elastic Machine <[email protected]>

chrisronline · 2020-09-24T14:56:28Z

Backport:

7.x: 3515b64

Closes #194838 ## Summary This PR wraps up the change made in #76946 (issue #77492) The change was about relabeling the "Show system indices" toggle showing below to "Filter for system indices", but when no indices show up, the warning message still contains the old text, i.e. "Show system indices" ![Image](https://github.com/user-attachments/assets/9c3003a8-5689-4d3a-8175-8e707d1ec40a) ![Image](https://github.com/user-attachments/assets/cfdd9ba1-d87d-47ae-afb9-4fa81473230d) ### Checklist - [X] Any text added follows [EUI's writing guidelines](https://elastic.github.io/eui/#/guidelines/writing), uses sentence case text and includes [i18n support](https://github.com/elastic/kibana/blob/main/packages/kbn-i18n/README.md) - [X] This renders correctly on smaller devices using a responsive layout. (You can test this [in your browser](https://www.browserstack.com/guide/responsive-testing-on-local-server)) - [X] This was checked for [cross-browser compatibility](https://www.elastic.co/support/matrix#matrix_browsers)
