[Security Solution] Webhook - Case Management Connector Documentation

docs/management/action-types.asciidoc

@@ -59,6 +59,10 @@ a| <<webhook-action-type, Webhook>>

 | Send a request to a web service.

+a| <<cases-webhook-action-type, Webhook - Case Management>>
+
+| Send a request to a Case Management web service.
+
 a| <<xmatters-action-type,xMatters>>

 | Send actionable alerts to on-call xMatters resources.

docs/management/connectors/action-types/cases-webhook.asciidoc

@@ -0,0 +1,179 @@
+[role="xpack"]
+[[cases-webhook-action-type]]
+=== Webhook - Case Management connector and action
+++++
+<titleabbrev>Webhook - Case Management</titleabbrev>
+++++
+
+The Webhook - Case Management connector uses https://github.com/axios/axios[axios] to send POST, PUT, and GET requests to a Case Management RESTful API web service. The resulting connector can be used with Kibana Cases to create and update a case in the third party web service.
+
+[float]
+[[webhook-connector-configuration]]
+==== Connector configuration
+
+Webhook - Case Management connectors have the following configuration properties.
+
+Name::      The name of the connector. The name is used to identify a  connector in the management UI connector listing, or in the connector list when configuring an action.
+Require authentication:: If true, a username and password for login type authentication must be provided.
+Username::      Username for HTTP basic authentication.
+Password::  Password for HTTP basic authentication.
+Headers::   A set of key-value pairs sent as headers with the request
+Create Case Method::  REST API HTTP request method to create case in third party system, either `post`(default), `put`, or `patch`.
+Create Case URL::       Rest API URL to create case in third party system. If you are using the <<action-settings, `xpack.actions.allowedHosts`>> setting, make sure the hostname is added to the allowed hosts.
+Create Case Object::      A JSON payload sent to the create case URL to create case. Use the variable selector to add Kibana Cases data to the payload. Required variables are `case.title` and `case.description`. For example:
++
+[source,text]
+--
+{
+	"fields": {
+	  "summary": {{{case.title}}},
+	  "description": {{{case.description}}},
+	  "labels": {{{case.tags}}}
+	}
+}
+--
+Note: Due to Mustache template variables (the text enclosed in triple braces, for example, `{{{case.title}}}`), the JSON is not validated in this step. The JSON is validated once the mustache variables have been placed when REST method is executed. Manually ensure that the JSON is valid besides the mustache variables so the later validation will pass.
+
+Create Case Response - Case ID Key::   JSON key in create case response that contains the external case id
+Get Case URL::       Rest API URL to GET case by id from third party system. Use the variable selector to add external system id to the url. If you are using the <<action-settings, `xpack.actions.allowedHosts`>> setting, make sure the hostname is added to the allowed hosts. For example:
++
+[source,text]
+--
+https://test.host/rest/api/2/issue/{{{external.system.id}}}
+--
+Note: Due to Mustache template variables (the text enclosed in triple braces, for example, `{{{case.title}}}`), the JSON is not validated in this step. The JSON is validated once the mustache variables have been placed when REST method is executed. Manually ensure that the JSON is valid besides the mustache variables so the later validation will pass.
+
+Get Case Response - Title Key::   JSON key in get case response that contains the external case title
+Get Case Response - Created Date Key::   JSON key in get case response that contains the external case created date
+Get Case Response - Updated Date Key::   JSON key in get case response that contains the external case updated date
+External Case View URL::       URL to view case in external system. Use the variable selector to add external system id or external system title to the url. For example:
++
+[source,text]
+--
+https://test.host/browse/{{{external.system.title}}}
+--
+Update Case Method::  REST API HTTP request method to update case in third party system, either `post`, `put`(default), or `patch`.
+Update Case URL::       Rest API URL to update case by id in third party system. Use the variable selector to add external system id to the url. If you are using the <<action-settings, `xpack.actions.allowedHosts`>> setting, make sure the hostname is added to the allowed hosts. For example:
++
+[source,text]
+--
+https://test.host/rest/api/2/issue/{{{external.system.id}}}
+--
+Update Case Object::      A JSON payload sent to the update case URL to update case. Use the variable selector to add Kibana Cases data to the payload. Required variables are `case.title` and `case.description`. For example:
++
+[source,text]
+--
+{
+	"fields": {
+	  "summary": {{{case.title}}},
+	  "description": {{{case.description}}},
+	  "labels": {{{case.tags}}}
+	}
+}
+--
+Note: Due to Mustache template variables (the text enclosed in triple braces, for example, `{{{case.title}}}`), the JSON is not validated in this step. The JSON is validated once the mustache variables have been placed when REST method is executed. Manually ensure that the JSON is valid besides the mustache variables so the later validation will pass.
+Create Comment Method::  (optional) REST API HTTP request method to create a case comment in third party system, either `post`, `put`(default), or `patch`.
+Create Comment URL::       (optional) Rest API URL to create a case comment by id in third party system. Use the variable selector to add external system id to the url. If you are using the <<action-settings, `xpack.actions.allowedHosts`>> setting, make sure the hostname is added to the allowed hosts. For example:
++
+[source,text]
+--
+https://test.host/rest/api/2/issue/{{{external.system.id}}}/comment
+--
+Create Comment Object::      (optional) A JSON payload sent to the create comment URL to create a case comment. Use the variable selector to add Kibana Cases data to the payload. The required variable is `case.comment`. For example:
++
+[source,text]
+--
+{
+  "body": {{{case.comment}}}
+}
+--
+Note: Due to Mustache template variables (the text enclosed in triple braces, for example, `{{{case.title}}}`), the JSON is not validated in this step. The JSON is validated once the mustache variables have been placed when REST method is executed. Manually ensure that the JSON is valid besides the mustache variables so the later validation will pass.
+
+[float]
+[[webhook-connector-networking-configuration]]
+==== Connector networking configuration
+
+Use the <<action-settings, Action configuration settings>> to customize connector networking configurations, such as proxies, certificates, or TLS settings. You can set configurations that apply to all your connectors or use `xpack.actions.customHostSettings` to set per-host configurations.
+
+[float]
+[[Preconfigured-webhook-configuration]]
+==== Preconfigured connector type
+
+[source,text]
+--
+ my-case-management-webhook:
+   name: Case Management Webhook Connector
+   actionTypeId: .cases-webhook
+   config:
+     hasAuth: true
+     headers:
+       'content-type': 'application/json'
+     createIncidentUrl: 'https://test.host/rest/api/2/issue'
+     createIncidentMethod: 'post'
+     createIncidentJson: '{"fields":{"summary":{{{case.title}}},"description":{{{case.description}}},"labels":{{{case.tags}}}'
+     getIncidentUrl: 'https://test.host/rest/api/2/issue/{{{external.system.id}}}'
+     getIncidentResponseExternalTitleKey: 'key'
+     getIncidentResponseCreatedDateKey: 'fields.created'
+     getIncidentResponseUpdatedDateKey: 'fields.updated'
+     viewIncidentUrl: 'https://test.host/browse/{{{external.system.title}}}'
+     updateIncidentUrl: 'https://test.host/rest/api/2/issue/{{{external.system.id}}}'
+     updateIncidentMethod: 'put'
+     updateIncidentJson: '{"fields":{"summary":{{{case.title}}},"description":{{{case.description}}},"labels":{{{case.tags}}}'
+     createCommentMethod: 'post',
+     createCommentUrl: 'https://test.host/rest/api/2/issue/{{{external.system.id}}}/comment',
+     createCommentJson: '{"body": {{{case.comment}}}}',
+   secrets:
+     user: testuser
+     password: passwordkeystorevalue
+--
+
+Config defines information for the connector type.
+
+`hasAuth`:: A boolean that corresponds to *Requires authentication*. If `true`, this connector will require values for `user` and `password` inside the secrets configuration. Defaults to `true`.
+`headers`:: A record<string, string> that corresponds to *Headers*.
+`createIncidentUrl`:: A URL string that corresponds to *Create Case URL*.
+`createIncidentMethod`:: A string that corresponds to *Create Case Method*.
+`createIncidentJson`:: A stringified JSON with mustache variables that corresponds to *Create Case JSON*.
+`createIncidentResponseKey`:: A string from the response body of the create case method that corresponds to the *External Service Id*.
+`getIncidentUrl`:: A URL string with External Service Id mustache variable that corresponds to *Get Case URL*.
+`getIncidentResponseExternalTitleKey`:: A string from the response body of the get case method that corresponds to the *External Service Title*.
+`getIncidentResponseCreatedDateKey`:: A string from the response body of the get case method that corresponds to the *External Service Case Created Date*.
+`getIncidentResponseUpdatedDateKey`:: A string from the response body of the get case method that corresponds to the *External Service Case Updated Date*.
+`viewIncidentUrl`:: A URL string with either the External Service Id or External Service Title mustache variable that corresponds to *View Case URL*.
+`updateIncidentUrl`:: A URL string that corresponds to *Update Case URL*.
+`updateIncidentMethod`:: A string that corresponds to *Update Case Method*.
+`updateIncidentJson`:: A stringified JSON with mustache variables that corresponds to *Update Case JSON*.
+`createCommentUrl`:: A URL string that corresponds to *Create Comment URL*.
+`createCommentMethod`:: A string that corresponds to *Create Comment Method*.
+`createCommentJson`:: A stringified JSON with mustache variables that corresponds to *Create Comment JSON*.
+
+

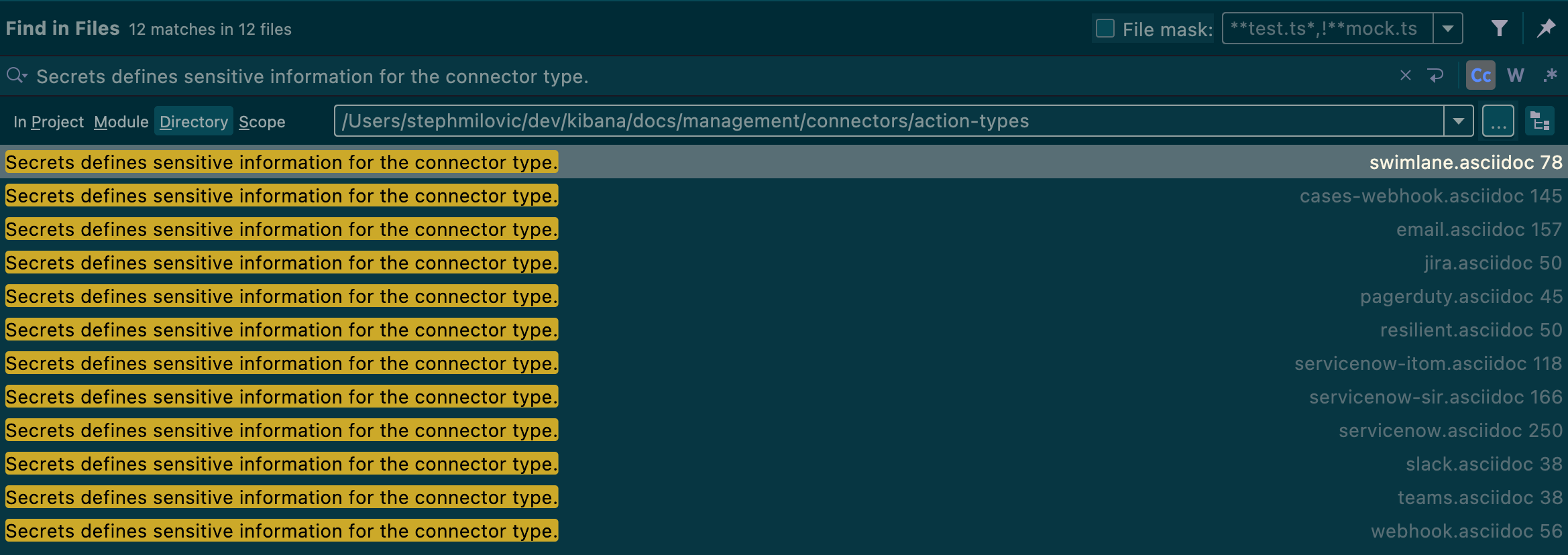

+Secrets defines sensitive information for the connector type.
+
+`user`:: A string that corresponds to *User*. Required if `hasAuth` is set to `true`.
+`password`:: A string that corresponds to *Password*. Required if `hasAuth` is set to `true`.
+
+[float]
+[[define-webhook-ui]]
+==== Define connector in Stack Management
+
+Define Webhook - Case Management connector properties.
+
+[role="screenshot"]
+image::management/connectors/images/cases-webhook-connector.gif[Webhook - Case Management connector]
+
+Test Webhook - Case Management action parameters.
+
+[role="screenshot"]
+image::management/connectors/images/cases-webhook-test.gif[Webhook - Case Management params test]
+
+[float]
+[[webhook-action-configuration]]
+==== Action configuration
+
+Webhook - Case Management actions have the following configuration properties.
+
+Title:: A title for the issue, used for searching the contents of the knowledge base.
+Description:: The details about the incident.
+Labels:: The labels for the incident.
+Additional comments:: Additional information for the client, such as how to troubleshoot the issue.

docs/management/connectors/index.asciidoc

@@ -11,5 +11,6 @@ include::action-types/servicenow-itom.asciidoc[leveloffset=+1]
 include::action-types/swimlane.asciidoc[]
 include::action-types/slack.asciidoc[]
 include::action-types/webhook.asciidoc[]
+include::action-types/cases-webhook.asciidoc[]
 include::action-types/xmatters.asciidoc[]
 include::pre-configured-connectors.asciidoc[]
