[Canvas] HeatMap. by Kuznietsov · Pull Request #120239 · elastic/kibana

Kuznietsov · 2021-12-02T16:08:56Z

Summary

Heatmap chart has been integrated to Canvas.

Introduced changes:

Added default expressions to heatmap expression function.
Added color_picker with interactive palette to Canvas.
Added heatmap view, heatmap_grid and heatmap_legend models.
Added support of handling expression functions as arguments at Canvas sidebar panel.
Added support of adding models/views as arguments of the views/models at Canvas sidebar panel.
Added withDebounceArg HoC, which is making inputs more usable for users at Canvas sidebar panel.
Fixed number, string, range, percentage for supporting better UX without lagging and moving the cursor to the end of the line.
Reduced amount of arguments, passed to the Arg component, which affected the performance of the Canvas positively.

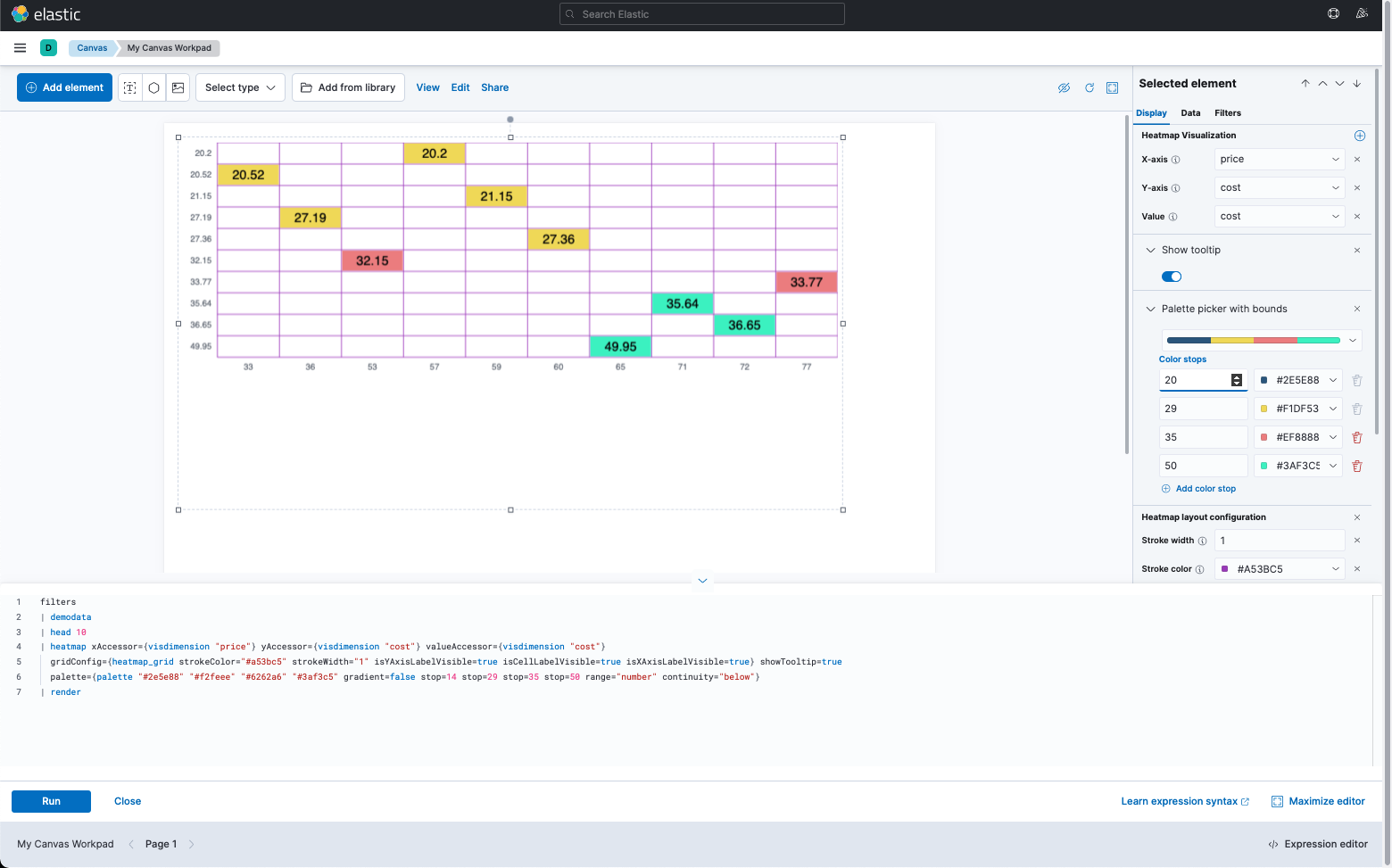

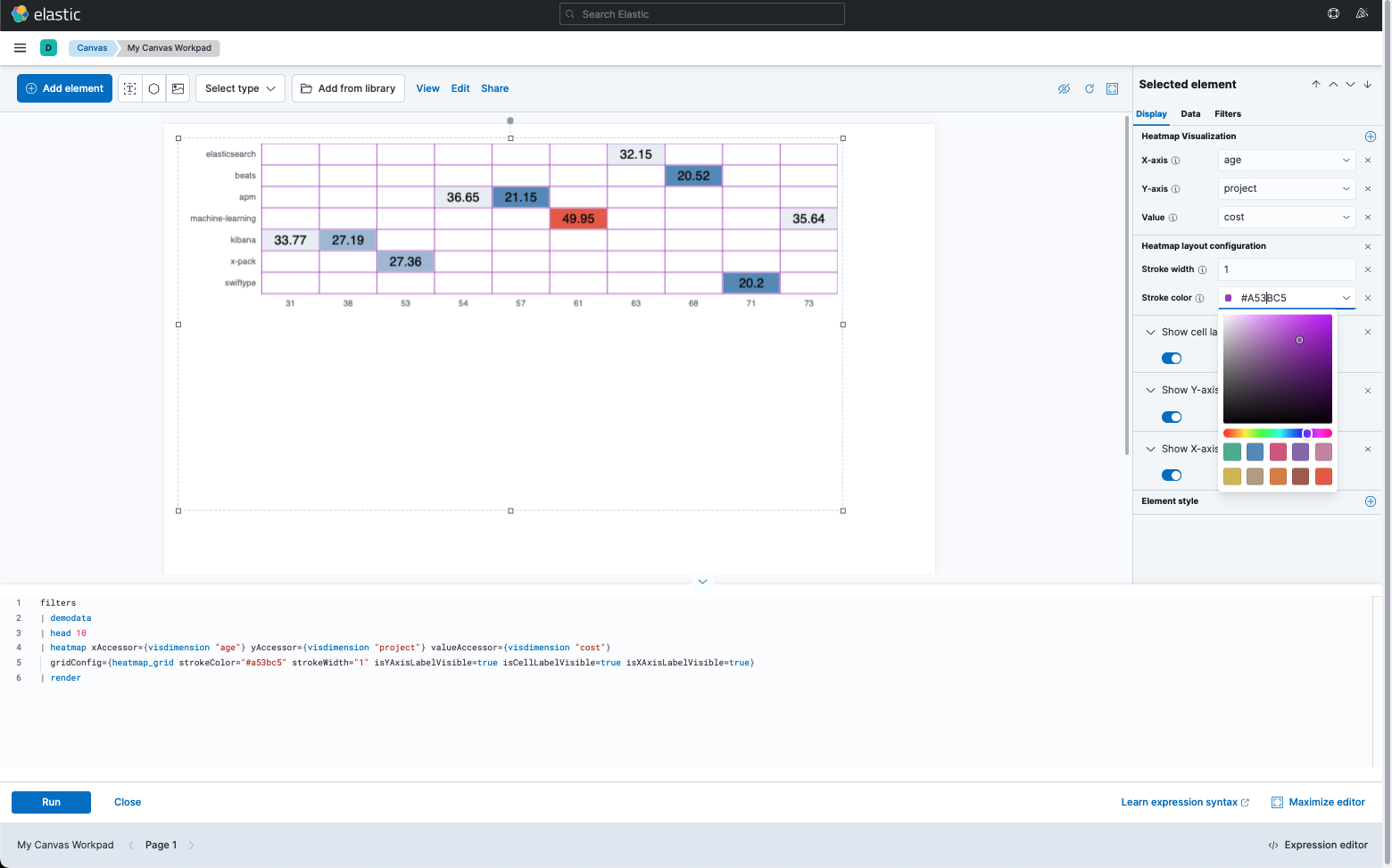

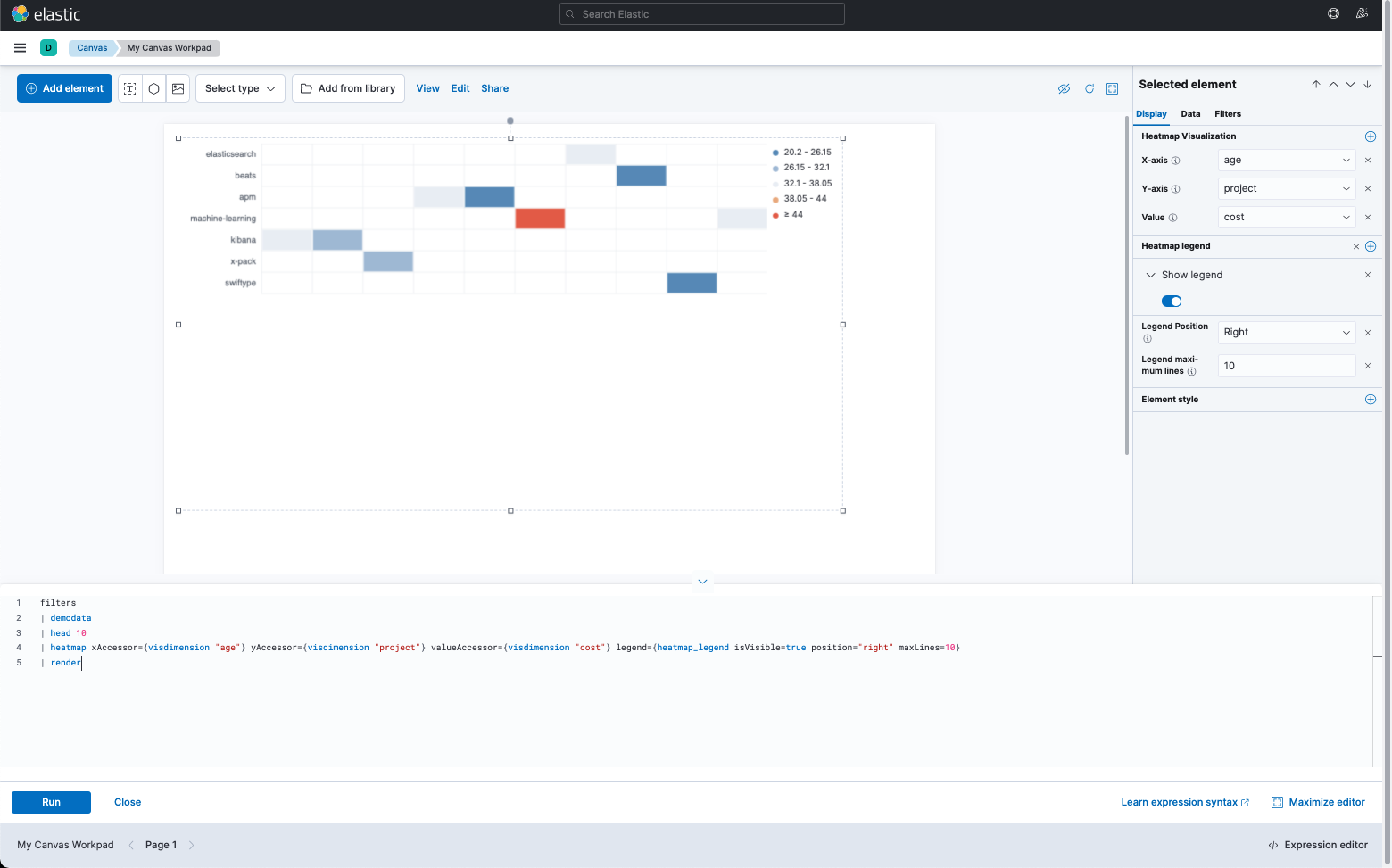

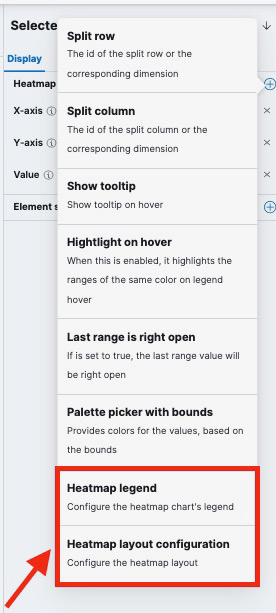

Screenshots

Support of expression functions as arguments:

Kuznietsov · 2021-12-07T09:13:31Z

@elasticmachine merge upstream

…ons.

Kuznietsov · 2021-12-15T07:04:30Z

@elasticmachine merge upstream

crob611

Looks good. Left a couple of comments that should be cleaned up and a couple of questions I'm curious about, but overall, I think it's good.

crob611 · 2021-12-22T17:08:24Z

x-pack/plugins/canvas/canvas_plugin_src/uis/arguments/color_picker/color_picker.tsx

@@ -0,0 +1,56 @@
+/*


Is there a reason we need this new color picker vs the existing color argument type? Color is probably not reusable outside of canvas, but it would at least keep consistency in Canvas that we can figure out once we make all of that available elsewhere?

I have had a couple of arguments in my head before implementing it:

ColorPicker at Canvas is totally our implementation. I believe, it has been created to hide the problems with reactDom.render on args update. Now we've got rid of such a problem.

Also, if I know correctly, Kibana is moving in the direction of relying on the eui components, to be able to change the UI very quickly. So, using the component, provided by the eui lib and not relying on the colors from the workpad directly in all the cases is a good idea, it seems to me.

@crob611, what do you think?

crob611 · 2021-12-22T17:17:08Z

x-pack/plugins/canvas/canvas_plugin_src/uis/models/heatmap_grid.ts

+ * 2.0.
+ */
+/*
+ * Copyright Elasticsearch B.V. and/or licensed to Elasticsearch B.V. under one


Remove double license header

crob611 · 2021-12-22T17:25:53Z

x-pack/plugins/canvas/public/components/arg_form/arg_form.js

          assets,
        };
-
+        // console.log(argumentProps);


Remove comment

crob611 · 2021-12-22T17:36:54Z

x-pack/plugins/canvas/public/components/arg_add_popover/arg_add_popover.tsx

-            key={`${opt.arg.name}-add`}
-            displayName={opt.arg.displayName ?? ''}
-            help={opt.arg.help ?? ''}
+            key={`${opt.name}-add`}


Question: What changed that led this to be the OptionArg?

The unnecessarily huge complexity of the configuration of the element, which just needs to display an array of labels)
The additional props, passed to the element, are leading to useless computations.

crob611 · 2021-12-22T17:57:27Z

x-pack/plugins/canvas/public/components/function_form/index.tsx

-          value: argValue,
-        })
-      );
+      dispatch(addArgumentValueAtIndex({ element, pageId, argName, value: argValue, path }));


Should probably change the name of this action since it no longer uses the index

crob611 · 2021-12-22T18:05:06Z

x-pack/plugins/canvas/public/components/with_debounce_arg/with_debounce_arg.tsx

+
+type Props = ArgTemplateFormProps['argumentProps'];
+
+export const withDebounceArg =


I really like this 👍

crob611 · 2021-12-22T18:23:12Z

x-pack/plugins/canvas/canvas_plugin_src/uis/arguments/datacolumn/index.js

 const DatacolumnArgInput = ({
  onValueChange,
-  columns,
+  resolved: { columns },


Can you explain the chain that led to some of these args having input come in via this resolved instead of directly as it previously was?

Sure. Before, at the Arg class, we were creating templateProps and passing there everything, but required only a few of the props, which were passed. So, I've reduced the number of props, we're passing and the performance has raised.

kibana/x-pack/plugins/canvas/public/expression_types/arg.ts

Line 142 in 1abcf81

const templateProps = {

But also, we have to control things, which are passed to the arguments.
At the previous version of this code you could see such logic:

const templateProps = { ...otherProps, ...resolved, onValueChange, typeInstance: this };

, where resolved are the props, which are produced by models/views/transforms resolve method. Example:

kibana/x-pack/plugins/canvas/canvas_plugin_src/uis/models/heatmap_grid.ts

Line 50 in 1abcf81

resolve({ context }: any): ResolvedColumns {

Such logic can cause some problems because it is impossible to track if some prop is rewritten. Also, it is difficult to document the types.

At this piece of code (

kibana/x-pack/plugins/canvas/public/expression_types/arg.ts

Line 148 in 1abcf81

resolved: { ...resolved, ...resolvedProps },

) you can see, that I've localized the object, produced by resolve method and now it is easier to track and understand the way, how our code is really working, and which props are default, and which are specific for our view/model/etc.

…hanged comments.

Kuznietsov · 2021-12-23T15:37:14Z

@elasticmachine merge upstream

Kuznietsov · 2021-12-24T08:44:18Z

@stratoula, when you'll review the current PR again, please, tell me if you agree with these changes: d0383a6. Thanks )

Kuznietsov · 2021-12-28T11:53:12Z

@elasticmachine merge upstream

stratoula · 2022-01-04T09:25:23Z

@elasticmachine merge upstream

stratoula · 2022-01-04T09:39:21Z

@Kunzetsov I think that the only required dimension should be the valueAccessor.
In Lens the vertical axis is not required

and in vizualize editor only the value accessor is required

With that being said I think is better to not apply these changes

Kuznietsov · 2022-01-04T09:54:26Z

@Kunzetsov I think that the only required dimension should be the valueAccessor. In Lens the vertical axis is not required

and in vizualize editor only the value accessor is required

With that being said I think is better to not apply these changes

@stratoula, I've played with these options before and they are causing troubles with required arguments. So, I've left it as it was before.

kibana/x-pack/plugins/canvas/canvas_plugin_src/uis/views/heatmap.ts

Line 35 in 687b83b

name: 'valueAccessor',

stratoula

Vis editor changes LGTM! I haven' checked a lot the canvas addition but I made some tests on viz editor and lens heatmaps. They work as expected.

I just want from @dej611 to have a look too just to have another pair of 👁️

dej611

Checked vis-editors changes and LGTM 👍

Kuznietsov · 2022-01-04T13:46:29Z

@stratoula, @dej611, @crob611, thanks for your reviews )

Kuznietsov · 2022-01-05T09:50:32Z

@elasticmachine merge upstream

Kuznietsov · 2022-01-06T08:15:22Z

@elasticmachine merge upstream

Kuznietsov · 2022-01-10T07:58:38Z

@elasticmachine merge upstream

kibana-ci · 2022-01-10T09:17:50Z

💚 Build Succeeded

Metrics [docs]

Module Count

Fewer modules leads to a faster build time

id	before	after	diff
`canvas`	1069	1078	+9

Public APIs missing comments

Total count of every public API that lacks a comment. Target amount is 0. Run node scripts/build_api_docs --plugin [yourplugin] --stats comments for more detailed information.

id	before	after	diff
`expressionHeatmap`	111	95	-16

Async chunks

Total size of all lazy-loaded chunks that will be downloaded as the user navigates the app

id	before	after	diff
`canvas`	1011.1KB	1.0MB	+16.5KB
`expressionHeatmap`	14.9KB	15.0KB	+132.0B
`lens`	1021.1KB	1020.8KB	-283.0B
total			+16.3KB

Page load bundle

Size of the bundles that are downloaded on every page load. Target size is below 100kb

id	before	after	diff
`expressionHeatmap`	12.9KB	12.2KB	-656.0B

Unknown metric groups

API count

id	before	after	diff
`expressionHeatmap`	115	99	-16

History

💚 Build #16073 succeeded e245aba
💚 Build #15852 succeeded ebab20c
💚 Build #15595 succeeded 687b83b
💚 Build #15224 succeeded 0dc0d2a
💚 Build #15065 succeeded 465d6b7
💔 Build #15051 failed d0383a6

To update your PR or re-run it, just comment with:
@elasticmachine merge upstream

cc @Kunzetsov
