[Perf] Windows/x86: 2 Improvements on 3/13/2023 6:11:08 PM #14042
Description
Run Information
| Architecture | x86 |
|---|---|
| OS | Windows 10.0.18362 |
| Baseline | 7e3bf878c105ea6114e56d3e6e3014c5480cb060 |
| Compare | 1c8d37af80667daffb3cb80ce0fe915621e8f039 |
| Diff | Diff |
Improvements in StoreBlock.LocalAddress
| Benchmark | Baseline | Test | Test/Base | Test Quality | Edge Detector | Baseline IR | Compare IR | IR Ratio | Baseline ETL | Compare ETL |
|---|---|---|---|---|---|---|---|---|---|---|
| CopyBlock128 - Duration of single invocation | 11.17 ns | 1.90 ns | 0.17 | 0.00 | False | 8.122992473272928 | 11.374861093962217 | 1.4003288974339085) | Trace | Trace |
Repro
General Docs link: https://github.com/dotnet/performance/blob/main/docs/benchmarking-workflow-dotnet-runtime.md
Payloads
git clone https://github.com/dotnet/performance.git
py .\performance\scripts\benchmarks_ci.py -f net8.0 --filter 'StoreBlock.LocalAddress*'Payloads

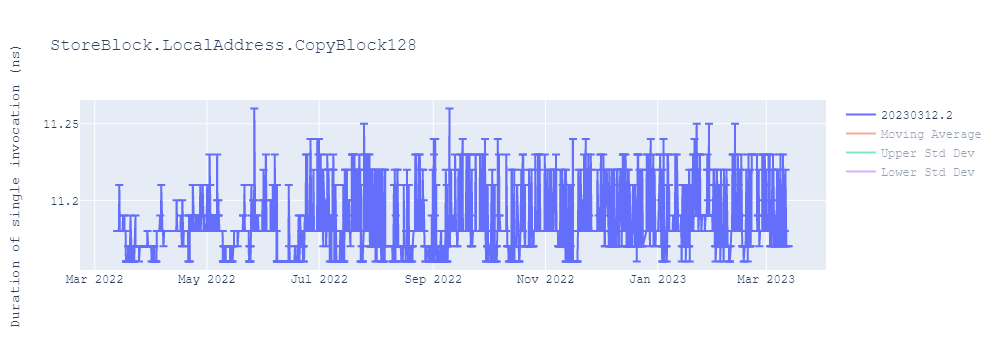

Histogram
StoreBlock.LocalAddress.CopyBlock128
Description of detection logic
IsImprovementBase: Marked as improvement because the compare was 5% less than the baseline, and the value was not too small.
IsImprovementCheck: Marked as improvement because the three check build points were 0.05 less than the baseline.
IsRegressionBase: Marked as not a regression because the compare was not 5% greater than the baseline, or the value was too small.
IsImprovementBase: Marked as improvement because the compare was 5% less than the baseline, and the value was not too small.
IsImprovementCheck: Marked as improvement because the three check build points were 0.05 less than the baseline.
IsImprovementWindowed:Marked as improvement because 1.896827572837044 < 10.61636497311516.
IsChangePoint: Marked as a change because one of 3/13/2023 2:14:21 PM, 3/14/2023 10:43:28 AM falls between 3/5/2023 5:50:49 PM and 3/14/2023 10:43:28 AM.
IsImprovementStdDev: Marked as improvement because 7299.225310165283 (T) = (0 -1.8967887299785873) / Math.Sqrt((0.00045510608243344824 / (299)) + (3.936085177711924E-07 / (4))) is greater than 1.9678765312856872 = MathNet.Numerics.Distributions.StudentT.InvCDF(0, 1, (299) + (4) - 2, .975) and 0.8304714299149188 = (11.188608085508223 - 1.8967887299785873) / 11.188608085508223 is greater than 0.05.
IsChangeEdgeDetector: Marked not as a regression because Edge Detector said so.
```### Baseline Jit Disasm
```assembly
; StoreBlock.LocalAddress.CopyBlock128()
push ebp
mov ebp,esp
push edi
push esi
sub esp,100
lea eax,[ecx+7C]
lea edi,[ebp-88]
mov esi,eax
mov ecx,80
rep movsb
xor edx,edx
nop
M00_L00:
lea edi,[ebp-108]
lea esi,[ebp-88]
mov ecx,80
rep movsb
inc edx
cmp edx,64
jl short M00_L00
mov edi,eax
lea esi,[ebp-108]
mov ecx,80
rep movsb
lea esp,[ebp-8]
pop esi
pop edi
pop ebp
ret
; Total bytes of code 79
Compare Jit Disasm
; StoreBlock.LocalAddress.CopyBlock128()
push ebp
mov ebp,esp
sub esp,100
vzeroupper
add ecx,7C
vmovdqu ymm0,ymmword ptr [ecx]
vmovdqu ymmword ptr [ebp-80],ymm0
vmovdqu ymm0,ymmword ptr [ecx+20]
vmovdqu ymmword ptr [ebp-60],ymm0
vmovdqu ymm0,ymmword ptr [ecx+40]
vmovdqu ymmword ptr [ebp-40],ymm0
vmovdqu ymm0,ymmword ptr [ecx+60]
vmovdqu ymmword ptr [ebp-20],ymm0
xor eax,eax
nop
nop
nop
nop
nop
nop
nop
nop
M00_L00:
vmovdqu ymm0,ymmword ptr [ebp-80]
vmovdqu ymmword ptr [ebp-100],ymm0
vmovdqu ymm0,ymmword ptr [ebp-60]
vmovdqu ymmword ptr [ebp-0E0],ymm0
vmovdqu ymm0,ymmword ptr [ebp-40]
vmovdqu ymmword ptr [ebp-0C0],ymm0
vmovdqu ymm0,ymmword ptr [ebp-20]
vmovdqu ymmword ptr [ebp-0A0],ymm0
inc eax
cmp eax,64
jl short M00_L00
vmovdqu ymm0,ymmword ptr [ebp-100]
vmovdqu ymmword ptr [ecx],ymm0
vmovdqu ymm0,ymmword ptr [ebp-0E0]
vmovdqu ymmword ptr [ecx+20],ymm0
vmovdqu ymm0,ymmword ptr [ebp-0C0]
vmovdqu ymmword ptr [ecx+40],ymm0
vmovdqu ymm0,ymmword ptr [ebp-0A0]
vmovdqu ymmword ptr [ecx+60],ymm0
mov esp,ebp
pop ebp
ret
; Total bytes of code 177Docs
Profiling workflow for dotnet/runtime repository
Benchmarking workflow for dotnet/runtime repository
Run Information
| Architecture | x86 |
|---|---|
| OS | Windows 10.0.18362 |
| Baseline | 7e3bf878c105ea6114e56d3e6e3014c5480cb060 |
| Compare | 1c8d37af80667daffb3cb80ce0fe915621e8f039 |
| Diff | Diff |
Improvements in StoreBlock.AnyLocation
| Benchmark | Baseline | Test | Test/Base | Test Quality | Edge Detector | Baseline IR | Compare IR | IR Ratio | Baseline ETL | Compare ETL |
|---|---|---|---|---|---|---|---|---|---|---|
| CopyBlock128 - Duration of single invocation | 12.28 ns | 3.02 ns | 0.25 | 0.00 | False | Trace | Trace |
Repro
General Docs link: https://github.com/dotnet/performance/blob/main/docs/benchmarking-workflow-dotnet-runtime.md
Payloads
git clone https://github.com/dotnet/performance.git
py .\performance\scripts\benchmarks_ci.py -f net8.0 --filter 'StoreBlock.AnyLocation*'Payloads
Histogram
StoreBlock.AnyLocation.CopyBlock128
Description of detection logic
IsImprovementBase: Marked as improvement because the compare was 5% less than the baseline, and the value was not too small.
IsImprovementCheck: Marked as improvement because the three check build points were 0.05 less than the baseline.
IsRegressionBase: Marked as not a regression because the compare was not 5% greater than the baseline, or the value was too small.
IsImprovementBase: Marked as improvement because the compare was 5% less than the baseline, and the value was not too small.
IsImprovementCheck: Marked as improvement because the three check build points were 0.05 less than the baseline.
IsImprovementWindowed:Marked as improvement because 3.0212941400685547 < 11.680166465794535.
IsChangePoint: Marked as a change because one of 3/13/2023 2:14:21 PM, 3/14/2023 10:43:28 AM falls between 3/5/2023 5:50:49 PM and 3/14/2023 10:43:28 AM.
IsImprovementStdDev: Marked as improvement because 2850.0975915399436 (T) = (0 -3.0224128232889456) / Math.Sqrt((0.0017321750189426277 / (299)) + (1.888854741800787E-05 / (4))) is greater than 1.9678765312856872 = MathNet.Numerics.Distributions.StudentT.InvCDF(0, 1, (299) + (4) - 2, .975) and 0.7535649059568582 = (12.264539005795301 - 3.0224128232889456) / 12.264539005795301 is greater than 0.05.
IsChangeEdgeDetector: Marked not as a regression because Edge Detector said so.
```### Baseline Jit Disasm
```assembly
; StoreBlock.AnyLocation.CopyBlock128()
push ebp
mov ebp,esp
push edi
push esi
mov eax,ecx
xor edx,edx
M00_L00:
mov ecx,[eax+8]
cmp edx,[ecx+4]
jae short M00_L01
lea edi,[ecx+edx+8]
mov ecx,[eax+4]
cmp edx,[ecx+4]
jae short M00_L01
lea esi,[ecx+edx+8]
mov ecx,80
rep movsb
add edx,80
cmp edx,1000
jl short M00_L00
pop esi
pop edi
pop ebp
ret
M00_L01:
call CORINFO_HELP_RNGCHKFAIL
int 3
; Total bytes of code 64
Compare Jit Disasm
; StoreBlock.AnyLocation.CopyBlock128()
push ebp
mov ebp,esp
push esi
vzeroupper
xor eax,eax
M00_L00:
mov edx,[ecx+8]
cmp eax,[edx+4]
jae short M00_L01
lea edx,[edx+eax+8]
mov esi,[ecx+4]
cmp eax,[esi+4]
jae short M00_L01
lea esi,[esi+eax+8]
vmovdqu ymm0,ymmword ptr [esi]
vmovdqu ymmword ptr [edx],ymm0
vmovdqu ymm0,ymmword ptr [esi+20]
vmovdqu ymmword ptr [edx+20],ymm0
vmovdqu ymm0,ymmword ptr [esi+40]
vmovdqu ymmword ptr [edx+40],ymm0
vmovdqu ymm0,ymmword ptr [esi+60]
vmovdqu ymmword ptr [edx+60],ymm0
add eax,80
cmp eax,1000
jl short M00_L00
pop esi
pop ebp
ret
M00_L01:
call CORINFO_HELP_RNGCHKFAIL
int 3
; Total bytes of code 92Docs
Profiling workflow for dotnet/runtime repository
Benchmarking workflow for dotnet/runtime repository
