Split slow ecosystems across multiple CI jobs

[jurre]

The python tests are too damn slow. This is something that we should
fix at the core, by making them faster, but until we do that, let's not
waste precious time waiting on those tests to pass, let's throw more
computers at the problem.

This splits the tests up across multiple CI jobs using the parallel_test gem.

You'll notice the builds are still all fairly slow in this PR, but that's because the docker build step isn't being cached here, because we've passed some extra arguments to that step. It will be once this PR is merged.

You'll also see a few required checks now no longer pass, because their names have been changed. I'll update those once this PR is accepted.

There's a few other suites that take more than 5 minutes as well, so I've opted to also split those up.

[jurre]

Based on just glancing at the test speeds in the actions outputs of a few recent builds, I would recommend we do this for a few more suites:

• bundler1: split into 2 jobs
• bundler2: split into 2 jobs
• composer: split into 2 jobs
• go_modules: split into 3 jobs
• hex: split into 3 jobs
• npm_and_yarn: split into 5 jobs
• pub: split into 2 jobs

At that point it might be worth looking if we can somehow reuse the docker images across all those suites instead of building from scratch for each one, but previous experimentation has shown that building for every job was slightly faster because copying the image from storage was relatively slow. It's a lot of wasted compute though, and might have gotten faster?

Not going to do it in this PR though, as this seems like a good improvement on it's own and I don't have more spare cycles to spend on this right now.

[mattt]

Nice work, @jurre! Adding some links for posterity:

• Python: Move some more tests to the slow suite #4564
• Attempt to run tests in parallel #4627
• SharedHelpers#with_git_configured is non-thread safe  #4909: Why we can't run tests in parallel automatically with parallel_rspec (if we fix this, we might be able to keep 1:1 between ecosystems and CI matrix)

[landongrindheim]

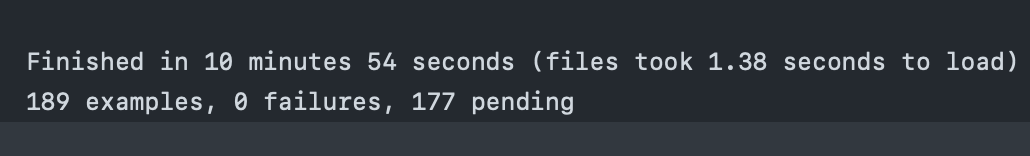

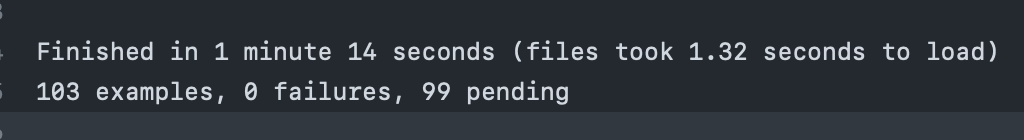

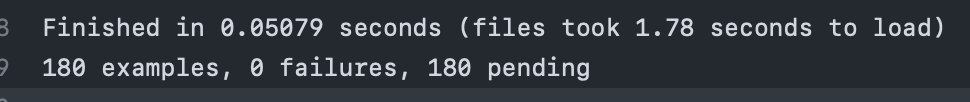

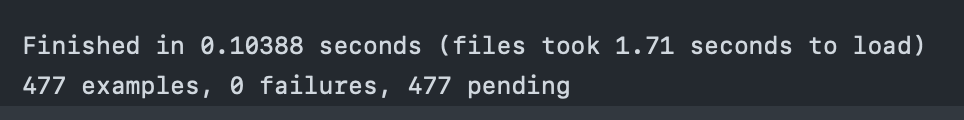

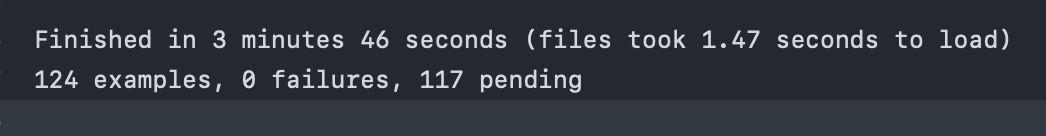

I'm seeing some pretty big variation between what's being run. I wonder if we could sort the tests being run into buckets before shuffling (though I understand that introduces some brittleness), so that we could make sure they're somewhat evenly distributed?

Suite 0

Tests run: 7

Suite 1

Tests run: 0

Suite 2

Tests run: 4

Suite 3

Tests run: 12

Suite 4

Tests run: 0

[jurre]

@landongrindheim I can't think of a way to do it easily, we'd have to keep track of every files average runtime somewhere or manually tag the files which is annoying and very easy to forget when adding new files.

In some runs I've seen the distribution be better, but it is indeed unpredictable with this approach.

The python_slow suite should already pull out some excessively slow tests into it's own suite, we can re-evaluate that and see if we can move things there.

But with all those approaches you always keep running into the fact that some files are just much slower than others, and you could keep track of every test individually and try to match them up as best as possible etc, but it seems very involved.

There is a service that offers something like this: https://knapsackpro.com/, but I'm not sure if we can get it approved or if it's even worth it.

If you have an idea on how to do it, I'd suggest we put it on a backlog somewhere to pick up relatively soon but move forward with this approach for now. Let's not make perfect the enemy of better here

[deivid-rodriguez]

The parallel_tests gem also has that feature of balancing test times. But there's the blockers to use this gem linked above, and also as @jurre mentioned it's tricky to implement even if the balancing itself is built-in, since it indeed requires keeping the file of recorded runtimes in sync. I guess it'd need to be kept as a build artifact or something, upload it after runs on pushes to main, and download it before running tests on PRs.

[deivid-rodriguez]

Something else I'm thinking, related to @landongrindheim's comment, is: do we need the shuffling at all? We cannot yet balance this properly, but maybe we can at least make test times stable by always running the same files on each runner?

[landongrindheim]

Nice work on this @jurre!

I think the conversation that's coming out of this change is definitely worth having, but I'd be disappointed if we hesitated on shipping this improvement because we hoped we could do better.

Let's keep talking about further improvements while benefiting from this one

[jurre]

The parallel_tests gem also has that feature of balancing test times. But there's the blockers to use this gem linked above, and also as @jurre mentioned it's tricky to implement even if the balancing itself is built-in, since it indeed requires keeping the file of recorded runtimes in sync. I guess it'd need to be kept as a build artifact or something, upload it after runs on pushes to main, and download it before running tests on PRs.

Yeah, and with parallel_tests we're also limited by the number of cores available in the actions VM's (which is 2 I think), so there are limits to what you can achieve with that approach.

Another thing I hope to look at soon is figuring out how much time in those tests is spent installing a new version of python, listing those versions out somewhere and preinstalling them in the CI image. That way we can cache them in between many runs. There must be more things like that where we can improve the actual runtime of the tests themselves, which seems like that would be the ultimate fix, but it's much more time consuming.

[deivid-rodriguez]

Let's keep talking about further improvements while benefiting from this one

Absolutely, my suggestions are definitely not blockers for shipping this, it's an awesome improvement already!

[jurre]

Something else I'm thinking, related to @landongrindheim's comment, is: do we need the shuffling at all? We cannot yet balance this properly, but maybe we can at least make test times stable by always running the same files on each runner?

Yeah we can try it and see if it happens to be a good distribution :D

[deivid-rodriguez]

It's going to change over time anyways, but I think it's better to have something stable (even if there's an unlucky machine that doesn't run anything like the example copied above) than something unstable.

[deivid-rodriguez]

Just for future reference, apparently parallel_tests also supports this exact use case: https://github.com/grosser/parallel_tests/wiki/Distributed-Parallel-Tests-on-CI-systems. By default it distributes tests by file size.

[jurre]

Just for future reference, apparently parallel_tests also supports this exact use case: https://github.com/grosser/parallel_tests/wiki/Distributed-Parallel-Tests-on-CI-systems. By default it distributes tests by file size.

Ah that's an interesting option, we should try it, I think it should work out of the box

[deivid-rodriguez]

I noticed that required jobs are pending because all required job names are now changed. I left an idea that I'm not sure it works, but would leave us with more readable job names, and without needing to change all required jobs in UI configuration manually.

[andrcuns]

At that point it might be worth looking if we can somehow reuse the docker images across all those suites instead of building from scratch for each one, but previous experimentation has shown that building for every job was slightly faster because copying the image from storage was relatively slow. It's a lot of wasted compute though, and might have gotten faster?

@jurre just an FYI, when I was experimenting with arm image builds, I did just that, build image only once and transfer via github artifacts. The image is pretty beefy, it takes roughly 6 minutes to upload the image tar to gh artifacts and something like 30 seconds to download it in the next job.

It is also possible to simply publish dev docker images in to the registry, it will definitely be faster since it will allow reusing existing layers but will create a fair amount of dev tags bloat. Some kind of cleanup setup will be required.

[jurre]

It seems a bit slower using parallel_test, but maybe that's a coincidence.

Now that it's this easy, should I split up a couple other ecosystems as well?

[landongrindheim]

⚡

[landongrindheim]

Please forgive my YAML syntax ignorance 😇

Is it possible to use space inside these curly braces to align these arguments? Ex:

 - { path: pub,       name: pub,       ci_node_total: 2, ci_node_index: 1 }
 - { path: terraform, name: terraform, ci_node_total: 1, ci_node_index: 0 }

It'd make it easier for me to read.

[jeffwidman]

The spaces should be perfectly fine IIRC. However, in VS Code, I tend to just right-click in YAML files and select "format document" and it auto-spaces things... whatever it spits out might be a sensible default?

Also, I filed:

• Run yamllint on PR's #5572

As I've been bit before by unexpected yaml issues.

[jeffwidman]

Very clever!

[jeffwidman]

Is this a future TODO that should be merged in or does it need addressing/removing before merge?

[jurre]

I was treating it as a future TODO. Should be easy to tackle, but I don't really have more spare cycles to burn on this

[ilyazub]

It seems a bit slower using parallel_test, but maybe that's a coincidence.

CI specs run using a single core even when ci_node_total is greater than 1.

Examples:

• 1 process for 8 specs, ~ 8 specs per process: https://github.com/dependabot/dependabot-core/actions/runs/4661988395/jobs/8251872425
• 1 process for 16 specs, ~ 16 specs per process: https://github.com/dependabot/dependabot-core/actions/runs/4751708654/jobs/8441161997
• 1 process for 16 specs, ~ 16 specs per process: https://github.com/dependabot/dependabot-core/actions/runs/4669826594/jobs/8268798949#step:5:168
